R282_G30

Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 3 x PCIe Gen4 GPUs
Comparison Request Price
Overview Specifications
  • NVIDIA-Certified Systems™ - Data Center Servers
  • Supports up to 3 x Dual slot Gen4 GPUs
  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 5 x FHFL PCIe Gen4 x16 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 2400W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87.5 x 730
Form Factor

2U
Motherboard

MR92-FS1

CPU

3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4189
Socket P+
Chipset

Intel® C621A
Memory

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
- 1 x VGA port
Drive Bays / Storage

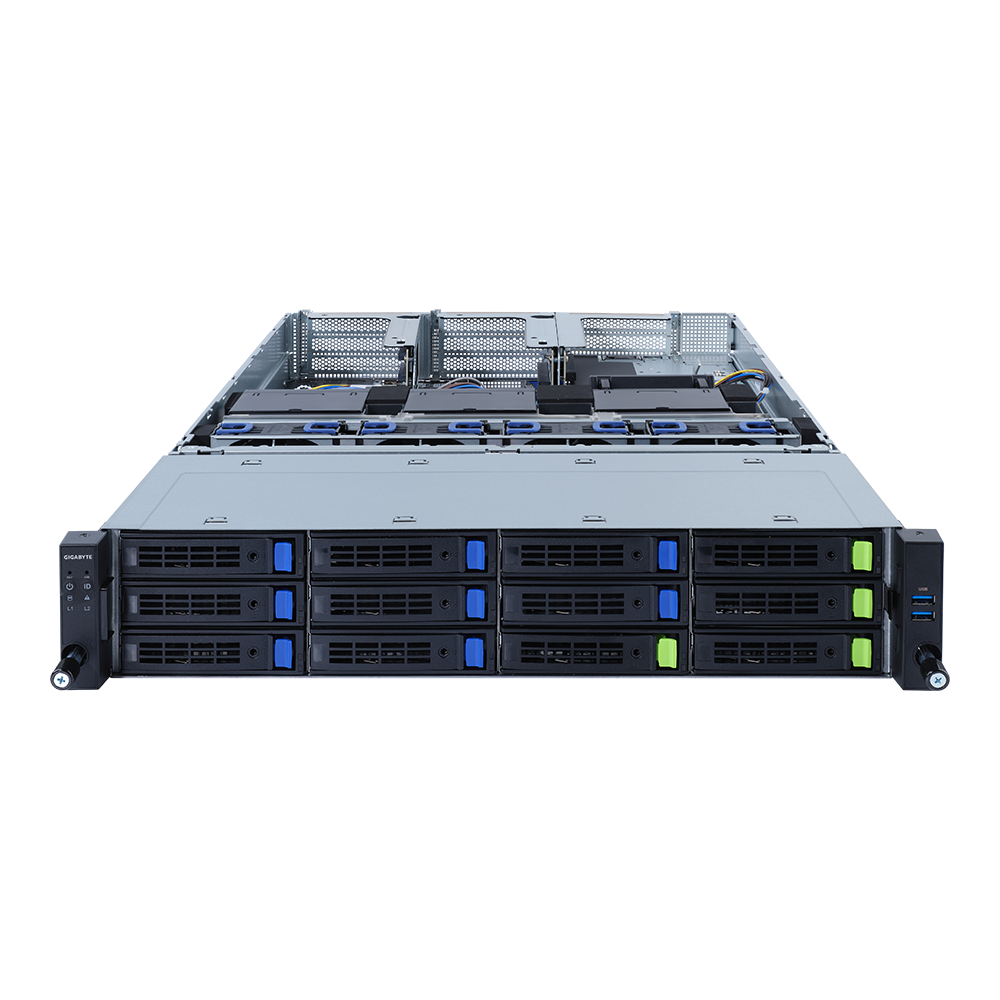

Front side:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 3.5"/2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

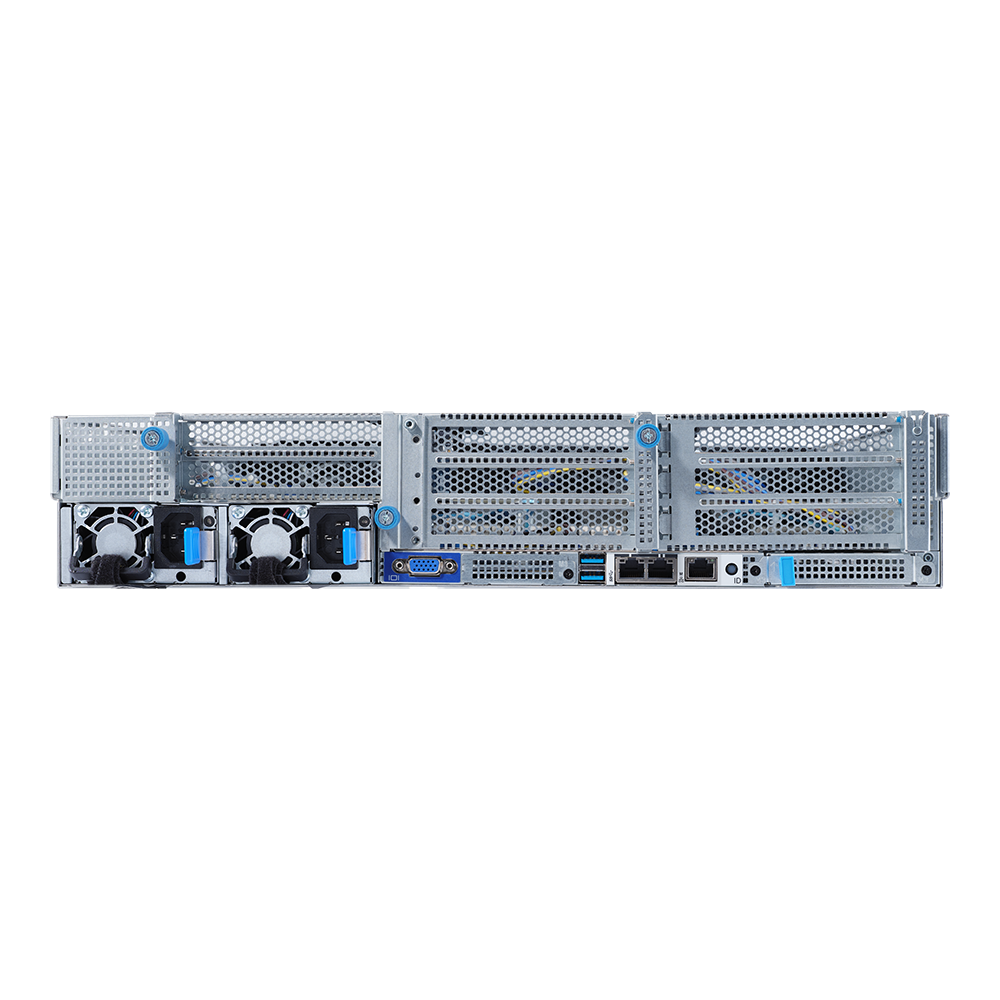

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
System Fans

4 x 80x80x38mm (16,300rpm)

Power Supply

1+1 2400W 80 PLUS Platinum redundant power supplies (-100)

AC Input:
- 100-127V~/ 12.5A, 47-63Hz
- 180-200V~/ 14.5A, 47-63Hz
- 200-240V~/ 14.5A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 12A

DC Output:
- Max 1000W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2200W/ 180-200V~
+12V/ 180A
+12Vsb/ 3A
- Max 2400W/ 200-240V~ or 240Vdc Input
+12V/ 197A
+12Vsb/ 3A

1+1 2700W 80 PLUS Titanium redundant power supplies (-1T0)

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-in cards
Raid

Intel® SATA RAID 0/1/10/5
Internal Io

1 x TPM header
1 x VROC connector
Backplane Board

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Windows Server 2016
Windows Server 2019
Windows Server 2022
Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-G30
2 x CPU heatsinks
2 x GPU power cables (CPU 8pin, 150mm)
1 x GPU power cable (CPU 8pin, 350mm)
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR282G30MR-00-1* - Motherboard: 9MR92FS1NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-453204-M1R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20C5: 9CBP20C5NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2014: 9CRS2014NR-00 - Riser card - CRS2026: 9CRS2026NR-00 - GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R - GPU power cable (CPU 8pin, 600mm): 25CRI-600100-Y4R - Power supply (-100): 25EP0-224000-D0S - Power supply (-1T0): 25EP0-227000-D0S
Optional Parts

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282G30SR-RMA-A100
Riser Card

CRS2014: - 1 x PCIe x16 (Gen4 x16) FHFL slot, from CPU_1, for GPUs CRS2026 x 2: - 2 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs - 2 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0
