R282_2O0

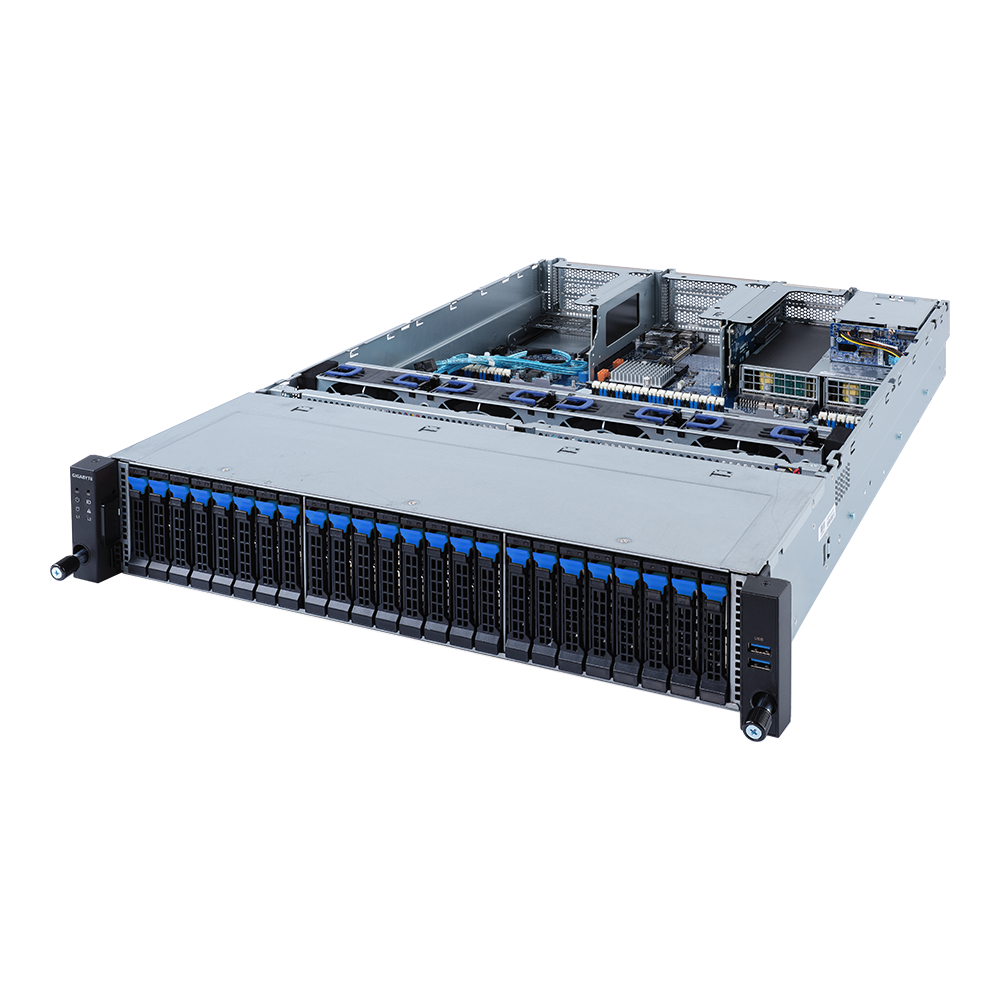

Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 24+2-Bay SATA/SAS
Comparison Request Price
Overview Specifications
  • 3rd Gen Intel® Xeon® Scalable Processors
  • Dual processor, LGA 4189
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • Intel® C621A Chipset
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 24 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Onboard 12Gb/s SAS expander
  • 6 x FHHL PCIe Gen4 x16 and x8 slots
  • 2 x LP PCIe Gen4 x8 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1600W (240V) 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87.5 x 730

Form Factor

2U

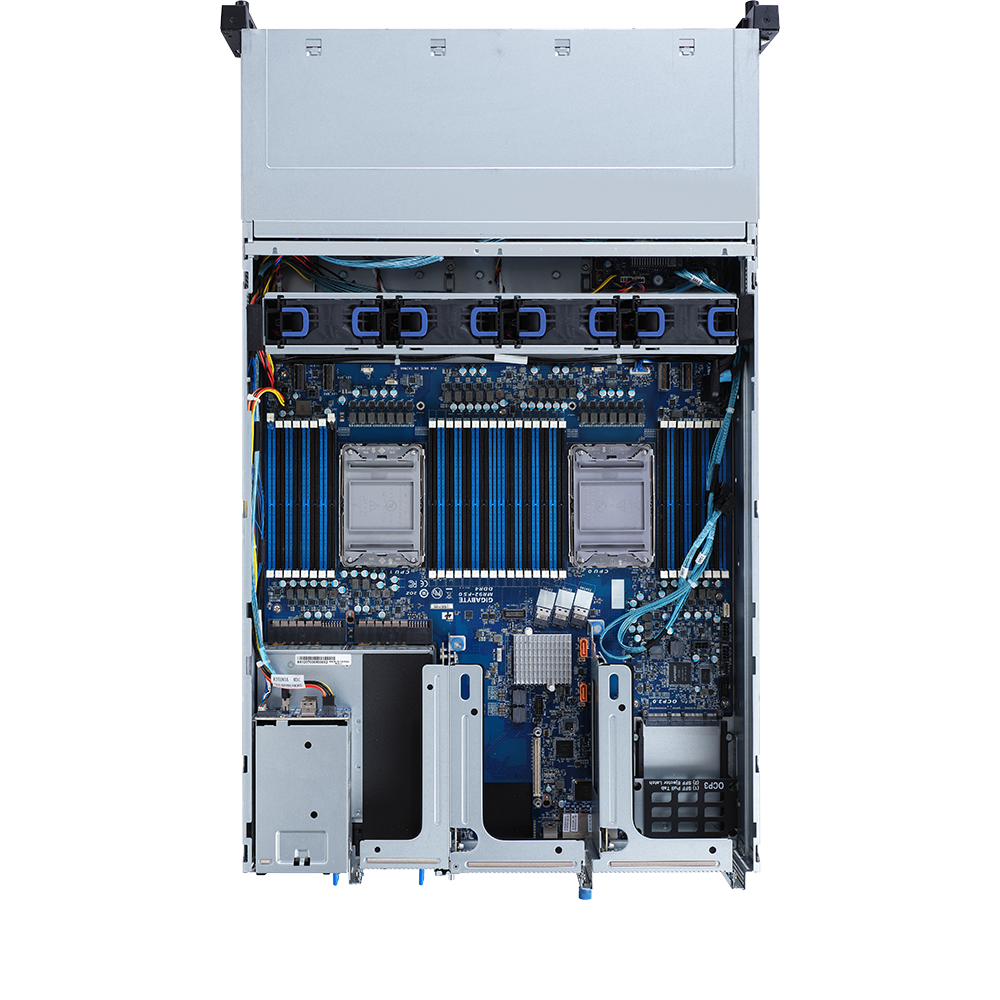

Motherboard

MR92-FS1
CPU

3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket

2 x LGA 4189
Socket P+
Chipset

Intel® C621A Chipset

Memory

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Drive Bays / Storage

Front side:
24 x 2.5" SATA/SAS hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays (Connected via SAS Expander)

SAS card is required to enable drive bays

Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

Default configuration supports:
Non-supported SATA/SAS drives without SAS card

Suggested 12Gb/s SAS cards:
CRA4448

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth from CPU_1
Supports NCSI function
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

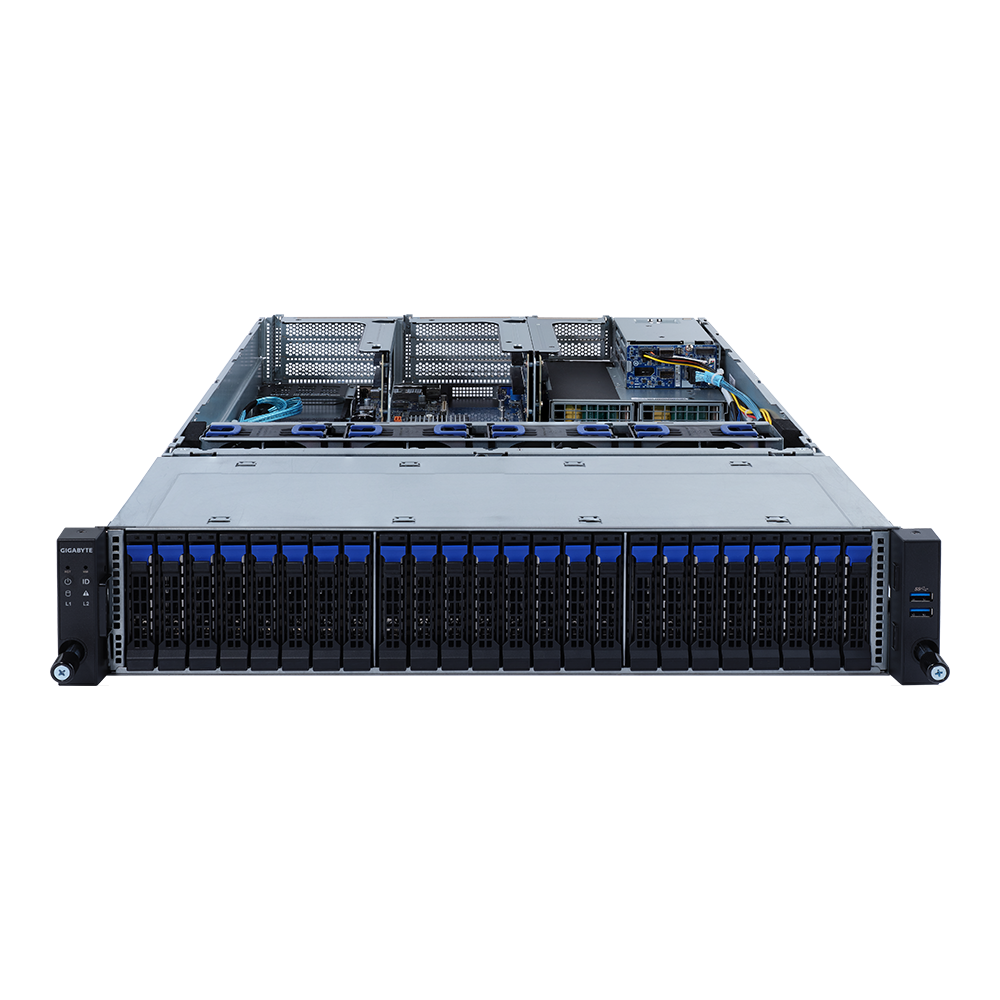

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs

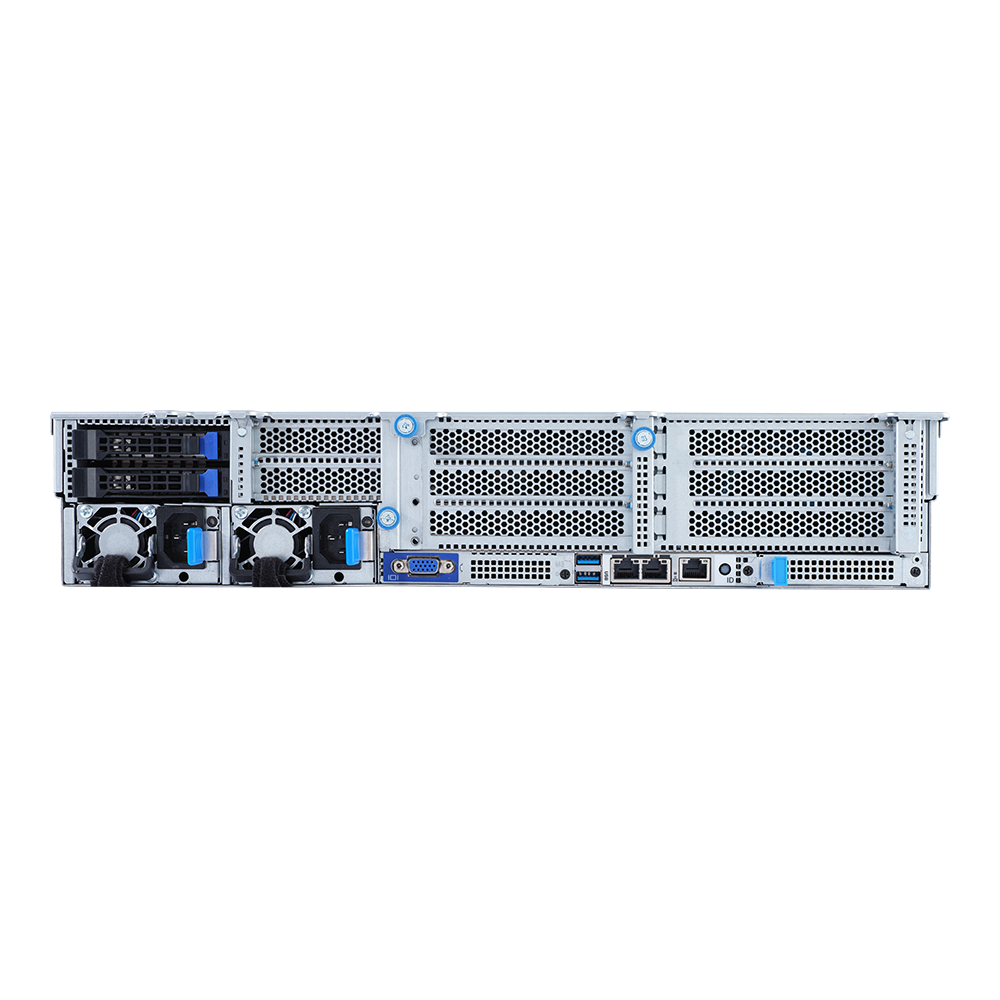

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
System Fans

4 x 80x80x38mm (16,300rpm)

Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies (-100)

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10.0A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A

1+1 1600W 80 PLUS Titanium redundant power supplies (-1T0)

AC Input:
- 100-240V~/ 12-9.5A, 50-60Hz

DC Input:
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-120V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12.2V/ 131.2A
+ 12Vsb/ 3A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Supported via SAS add-on card
Raid

Depends on SAS add-on card
Internal Io

2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Backplane Board

Speed and bandwidth: Front side - CBP20O7: SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-2O0
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR2822O0MR-00-1* - Motherboard: 9MR92FS1NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-343102-M1R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2033: 9CRS2033NR-00 - Riser card - CRS2137: 9CRS2137NR-00 - Riser card - CRS2027: 9CRS2027NR-00 - Power supply (-100): 25EP0-21600C-L0S - Power supply (-1T0): 25EP0-21600E-L0S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR2822O0SR-RMA-A100
Riser Card

CRS2033: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0 CRS2137: - 1 x PCIe x16 (Gen4 x16 or x8) FHHL slot, from CPU_1 - 1 x PCIe x8 (Gen4 x0 or x8) FHHL slot, from CPU_1 - 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, from CPU_1, shared with OCP 2.0 CRS2027: - 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1
