R282_NO0

Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS
Comparison Request Price
Overview Specifications
  • Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2

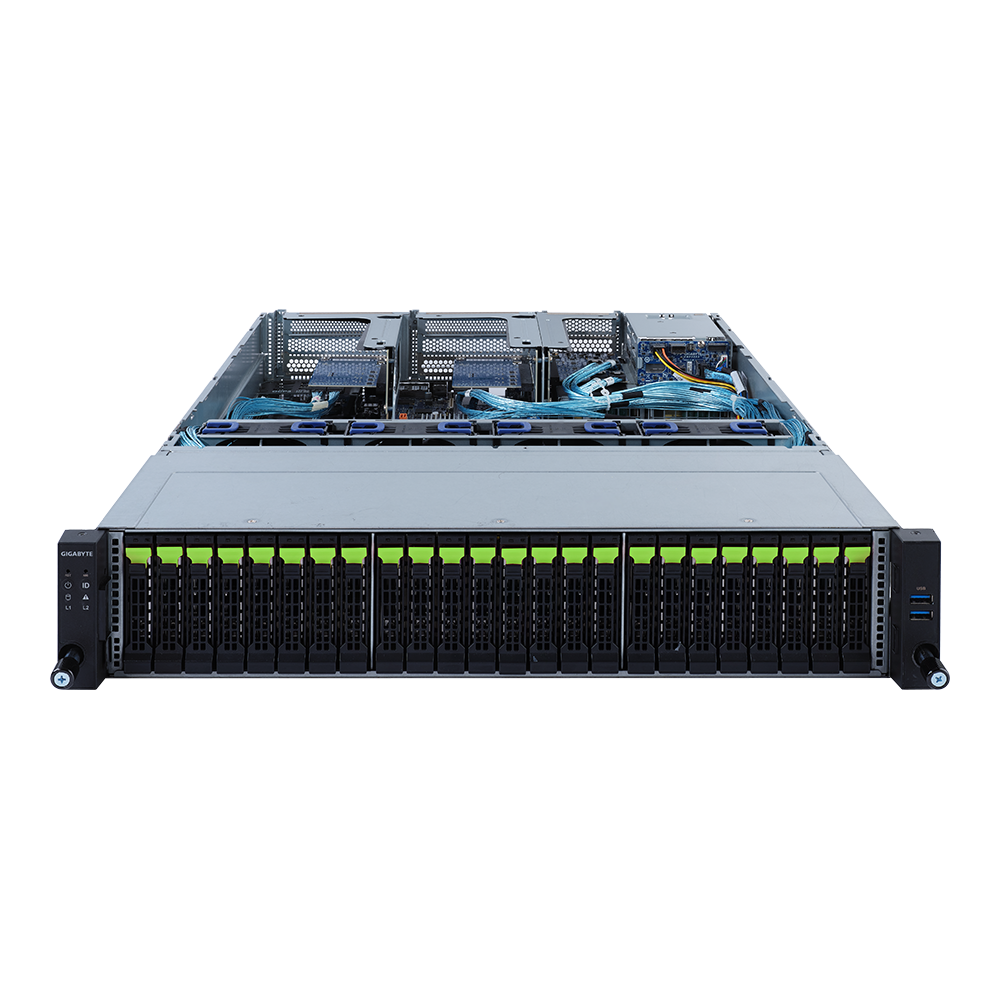

  • 24 x 2.5" Gen4 NVMe hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable on the rear side
  • 2 x FHHL PCIe Gen4 x16 slots
  • 1+1 1600W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87.5 x 730
Form Factor

2U
Motherboard

MR92-FS1
CPU

3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4189
Socket P+

Chipset

Intel® C621A
Memory

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
- 1 x VGA port
Drive Bays / Storage

Front side:
24 x 2.5" Gen4 NVMe hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134, 4 x NVMe PCIe HBA
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1, Disabled
Supports NCSI function

Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

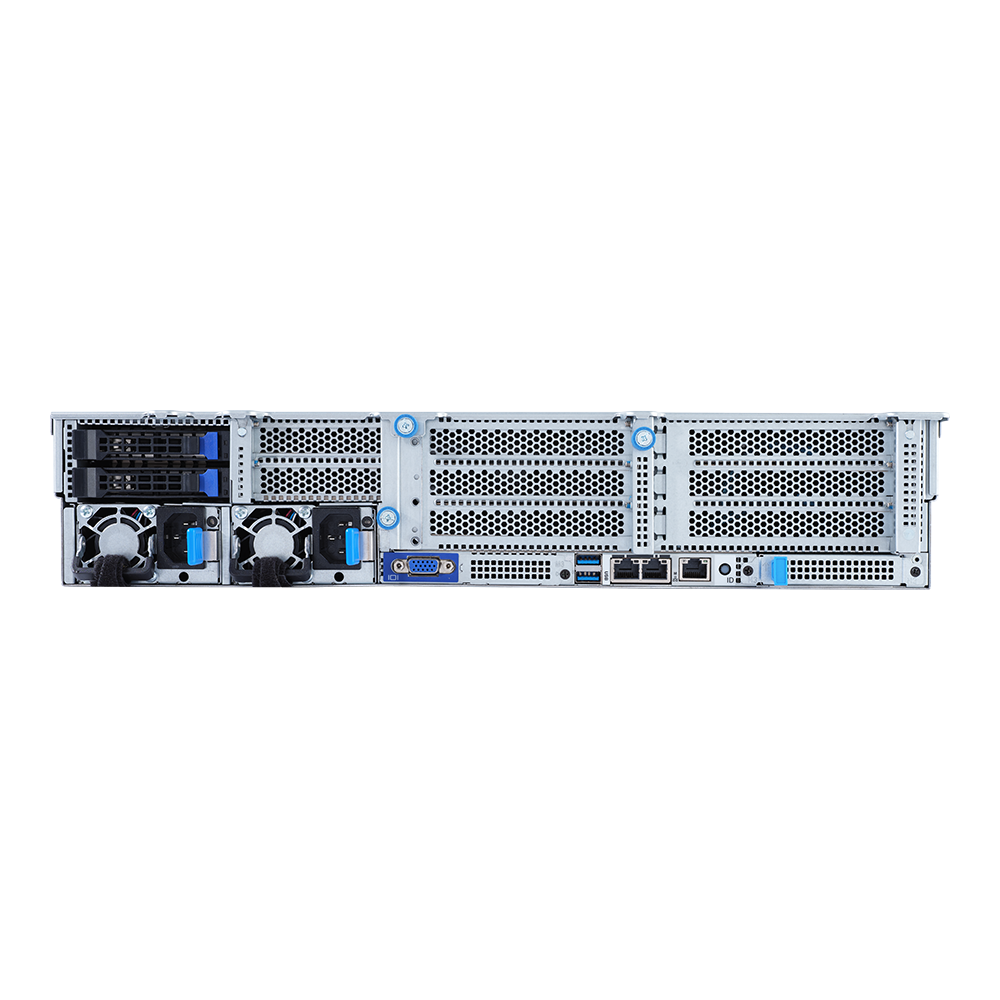

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

System Fans

4 x 80x80x38mm (16,300rpm)
Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Depends on SAS add-in cards
Raid

Intel® SATA RAID 0/1
Internal Io

1 x TPM header
1 x VROC connector
Backplane Board

Speed and bandwidth: Front side - CBP20O7: PCIe Gen4 x4 Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 20.04 LTS or later or later
Ubuntu 22.04 LTS or later or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Windows Server 2016
Windows Server 2019
Windows Server 2022

Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-NO0
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR282NO0MR-00-1* - Motherboard: 9MR92FS1NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-343102-M1R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2026: 9CRS2026NR-00 - Riser card - CRS2015: 9CRS2015NR-00 - Power supply: 25EP0-216008-L0S
Optional Parts

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
c) SupremeRAID License: 25FC1-SRBUN4-AFR (32-native Gen4 NVMe RAID)
- RMA packaging: 6NR282NO0SR-RMA-A100
Riser Card

CRS2026 x 2: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3134 - 4 x NVMe PCIe HBA - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1 - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, shared with OCP 2.0, occupied by CNV3134 - 4 x NVMe PCIe HBA CRS2015: - 1 x PCIe x16 (Gen4 x16) low-profile slot, occupied by CNV3134 - 4 x NVMe PCIe HBA
