R282_N80

Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS
Comparison Request Price
Overview Specifications
  • Dual 3rd Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • Onboard 12Gb/s SAS expander
  • 6 x FHHL PCIe Gen4 x16 and x8 slots
  • 2 x LP PCIe Gen4 x8 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1600W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87.5 x 730

Form Factor

2U
Motherboard

MR92-FS0
CPU

3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
TDP up to 270W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4189
Socket P+
Chipset

Intel® C621A
Memory

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2500
- 1 x VGA port
Drive Bays / Storage

Front side:
8 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
16 x 2.5" SATA/SAS hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays (Connected via SAS Expander)

SAS card is required to enable drive bays

Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

Default configuration supports:
8 x 2.5" NVMe drives, non-supported SATA/SAS drives without SAS card

Suggested 12Gb/s SAS cards:
CRA4448
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

Management

Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

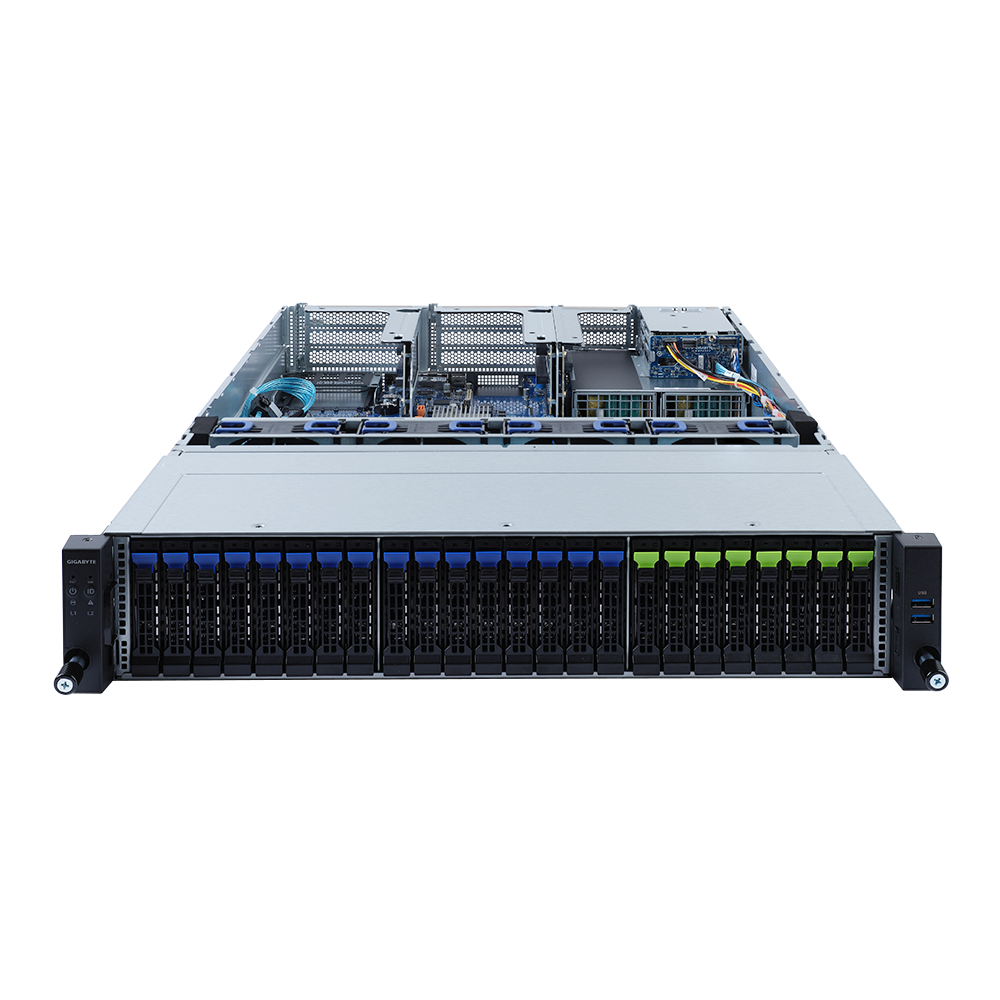

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Stroage activity LED
1 x System status LED

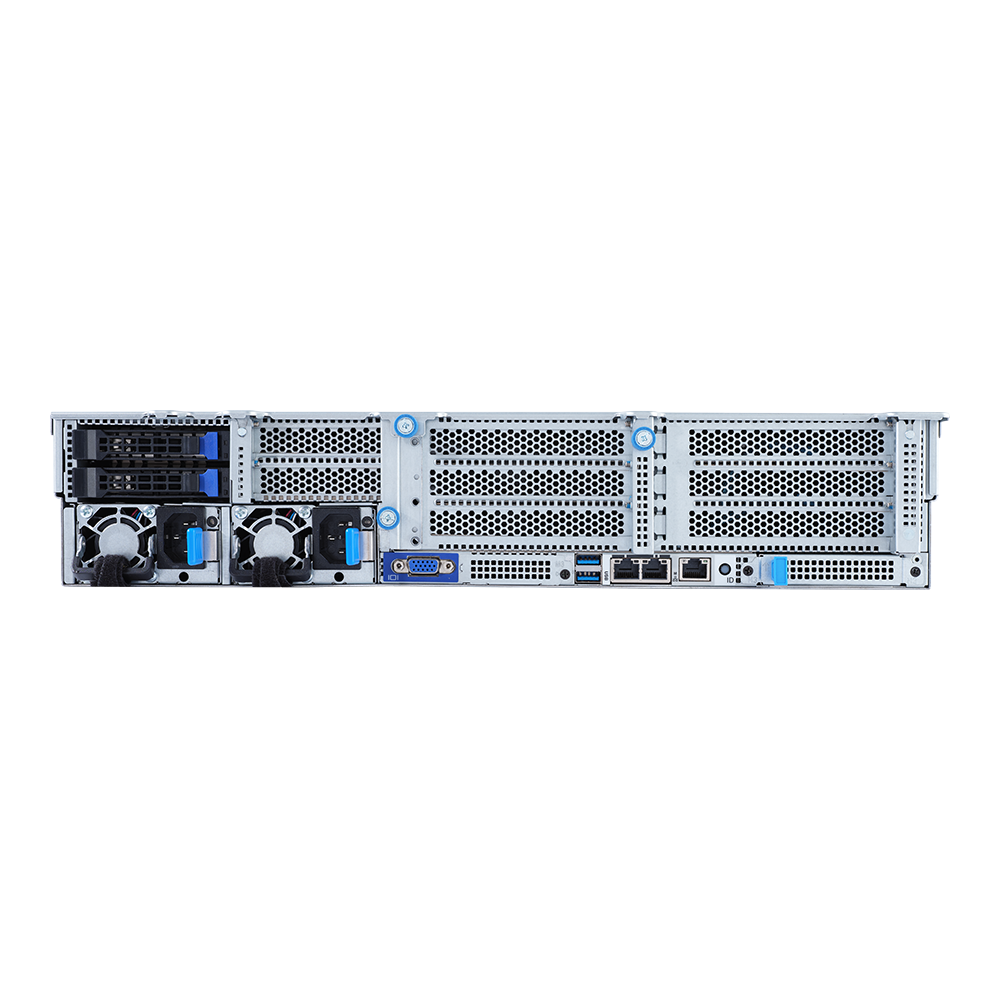

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
System Fans

4 x 80x80x38mm (16,300rpm)
Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies (-100)

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

1+1 1600W 80 PLUS Titanium redundant power supplies (-1T0)

AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Supported via SAS add-in cards
Raid

Depends on SAS add-in cards
Internal Io

1 x TPM header
1 x VROC connector

Backplane Board

Speed and bandwidth: Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Windows Server 2016
Windows Server 2019
Windows Server 2022
Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-N80
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR282N80MR-00-1* - Motherboard: 9MR92FS0NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-343102-M1R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2027: 9CRS2027NR-00 - Riser card - CRS2033: 9CRS2033NR-00 - Riser card - CRS2137: 9CRS2137NR-00 - Power supply (-100): 25EP0-216008-L0S - Power supply (-1T0): 25EP0-21600E-L0S
Optional Parts

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282N80SR-RMA-A100
Riser Card

CRS2033: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0 CRS2137: - 1 x PCIe x16 (Gen4 x16 o x8) FHHL slot, from CPU_1 - 1 x PCIe x8 (Gen4 x0 or x8) FHHL slot, from CPU_1 - 1 x PCIe x16 (Gen4 x16 or x8) FHHL slot, from CPU_1, shared with OCP 2.0 CRS2027: - 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1
