R282_Z94

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS
Comparison Request Price
Overview Specifications
  • Hardware-level root of trust
  • Dual AMD EPYC™ 7003/7002 Series Processors (with AMD 3D V-Cache™ Technology)
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 24 x 2.5" Gen4 NVMe hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 1 x FHHL PCIe Gen4 x16 slot
  • 1+1 1600W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87 x 730

Weight

Net Weight: 18.5 kg
Gross Weight: 25.5 kg

Form Factor

2U
Motherboard

MZ92-FS1 Rev. 3.0

CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7003 Series Processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 280W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4094
Socket SP3
Chipset

System on Chip
Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2500
- 1 x VGA port
Drive Bays / Storage

Front side:
24 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x from CPU_0, 12 x from CPU_1)

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_0

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNV9134 - 4 x NVMe HBA
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen4 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO132 - 2 x NVMe HBA
Supports NCSI function
Management

Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

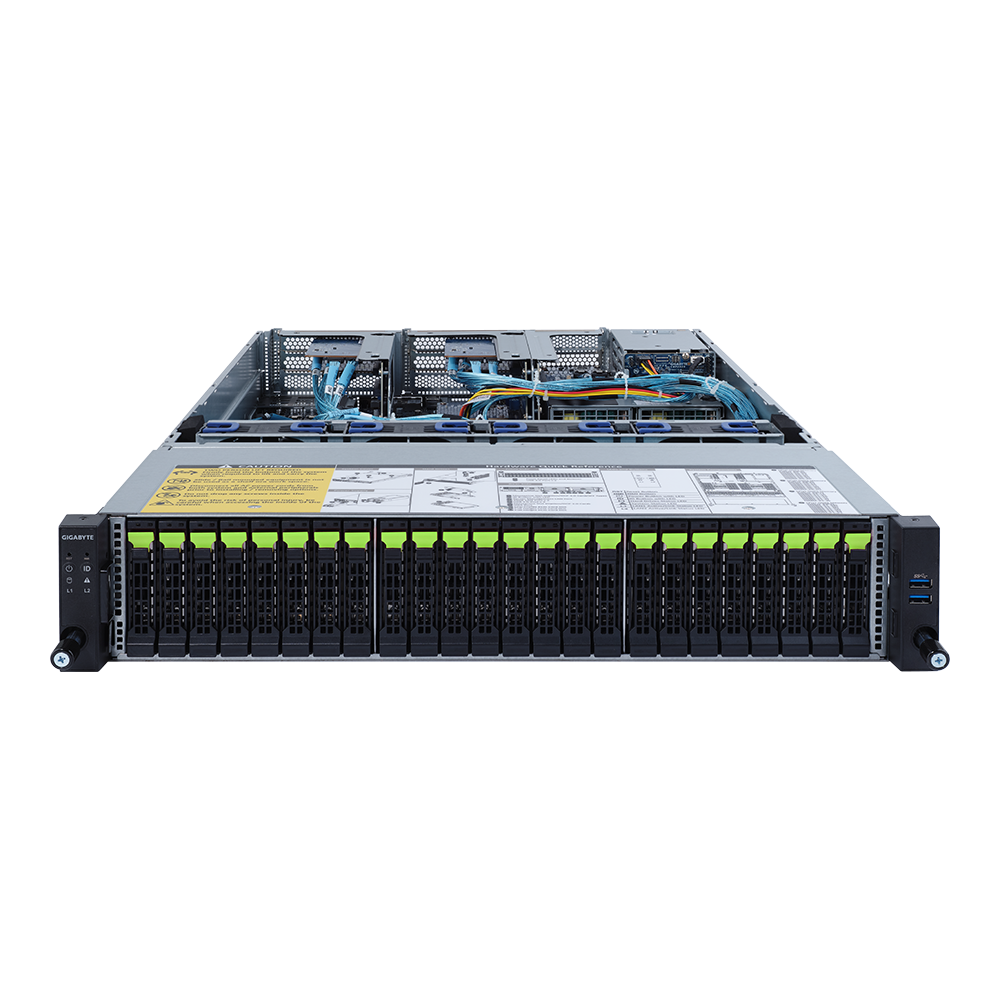

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

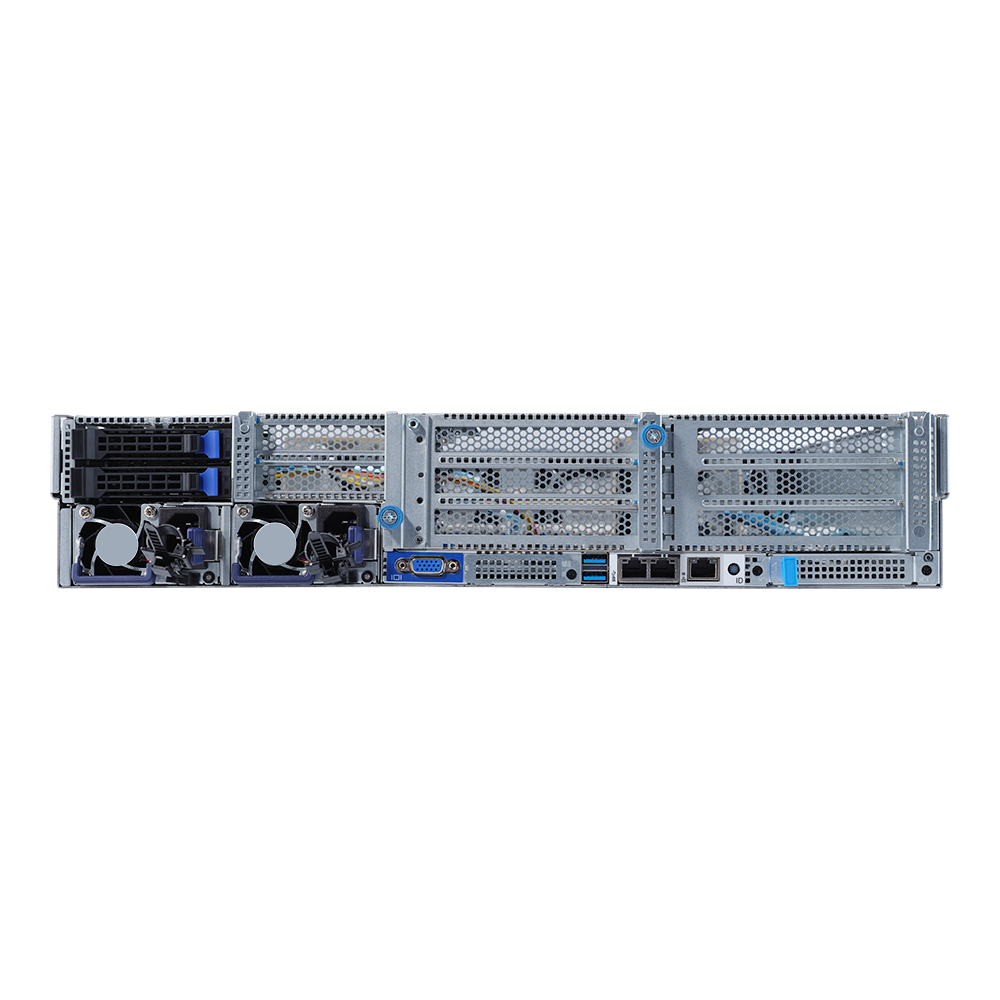

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
System Fans

4 x 80x80x38mm (16,300rpm)

Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

N/A
Raid

N/A
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: Front side - CBP20O8: PCIe Gen4 x4 Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-Z94
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR282Z94MR-00-A* - Motherboard: 9MZ92FS1NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-15320E-J1R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O8: 9CBP20O8NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - PCIe pass through board: 9CEP2080NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2015: 9CRS2015NR-00 - Riser card - CRS2033: 9CRS2033NR-00 - OCP 3.0 4-port Gen4 NVMe HBA: 9CNV9134NR-00 - OCP 2.0 2-port Gen4 NVMe HBA: 9CNVO132NR-00 - PCIe 4-port Gen4 NVMe HBA: 9CNV3134NR-00 - PCIe 2-port Gen4 NVMe HBA: 9CNV3132NR-00 - Power supply: 25EP0-216008-L0S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282Z94SR-RMA-A100
Riser Card

CRS2015: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by CNV3134 - 4 x NVMe HBA CRS2033 x 2: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0, occupied by 2 x CNV3132 - 2 x NVMe HBAs - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1 - 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1, occupied by 2 x CNV3132 - 2 x NVMe HBAs
