R282_Z93

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 3 x PCIe Gen4 GPUs
Comparison Request Price
Overview Specifications
  • NVIDIA-Certified Systems™ - Data Center Servers
  • NVIDIA-Certified Systems™ - High-Density VDI Servers
  • Supports up to 3 x Dual slot Gen4 GPUs
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 3 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x FHHL PCIe Gen4 x16 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • Dual 2000W 80 PLUS Platinum redundant power supply (-A00)
  • Dual 2000W 80 PLUS Titanium redundant power supply (-AT0)
Dimensions

438 x 87 x 730

Weight

Net Weight: 18.5 kg
Gross Weight: 25.5 kg
Form Factor

2U
Motherboard

MZ92-FS0 Rev. 3.0
CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports CPU 280W at ambient 30°C

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL list if running 3200 MT/s with 2DPC.

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2500
- 1 x VGA port

Drive Bays / Storage

Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- (8 x from CPU_0, 4 x from CPU_1)

Default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA

SAS card is required for SAS devices support

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device

Note: Support is not provided for mixed GPU populations.
Management

Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

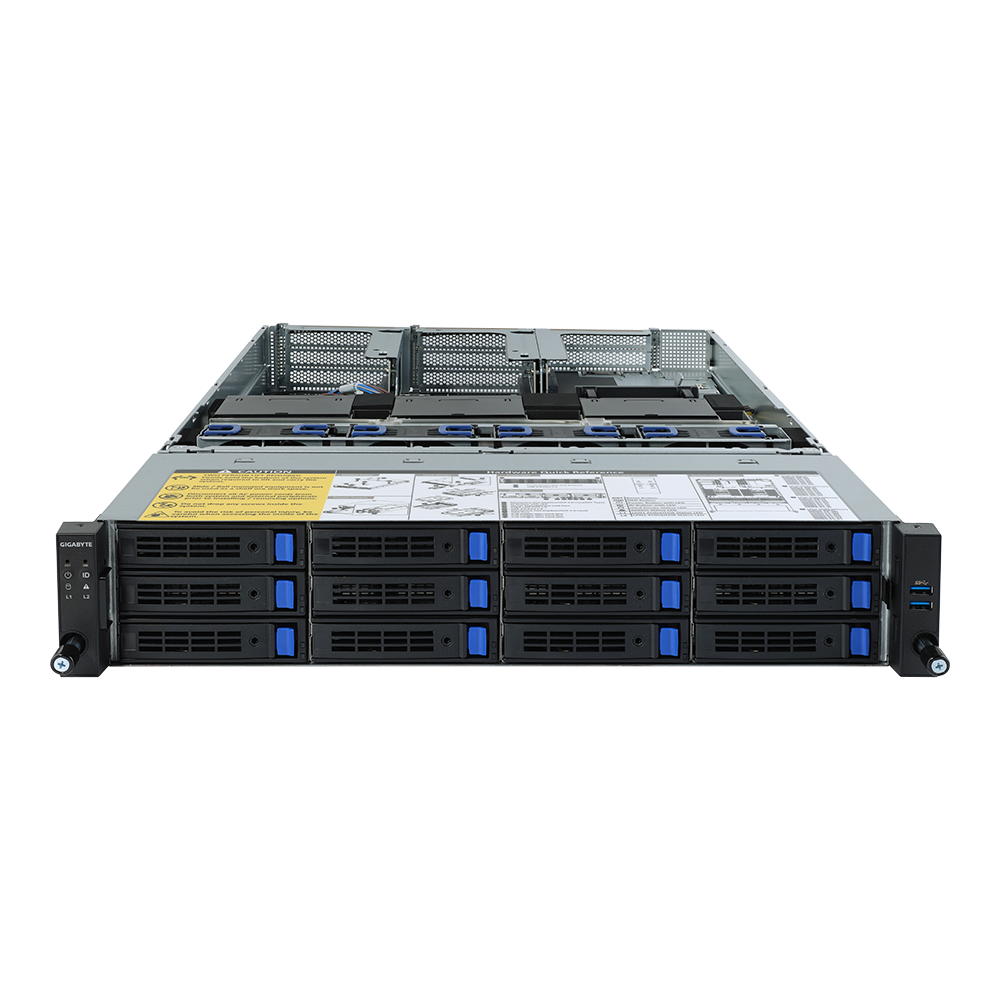

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

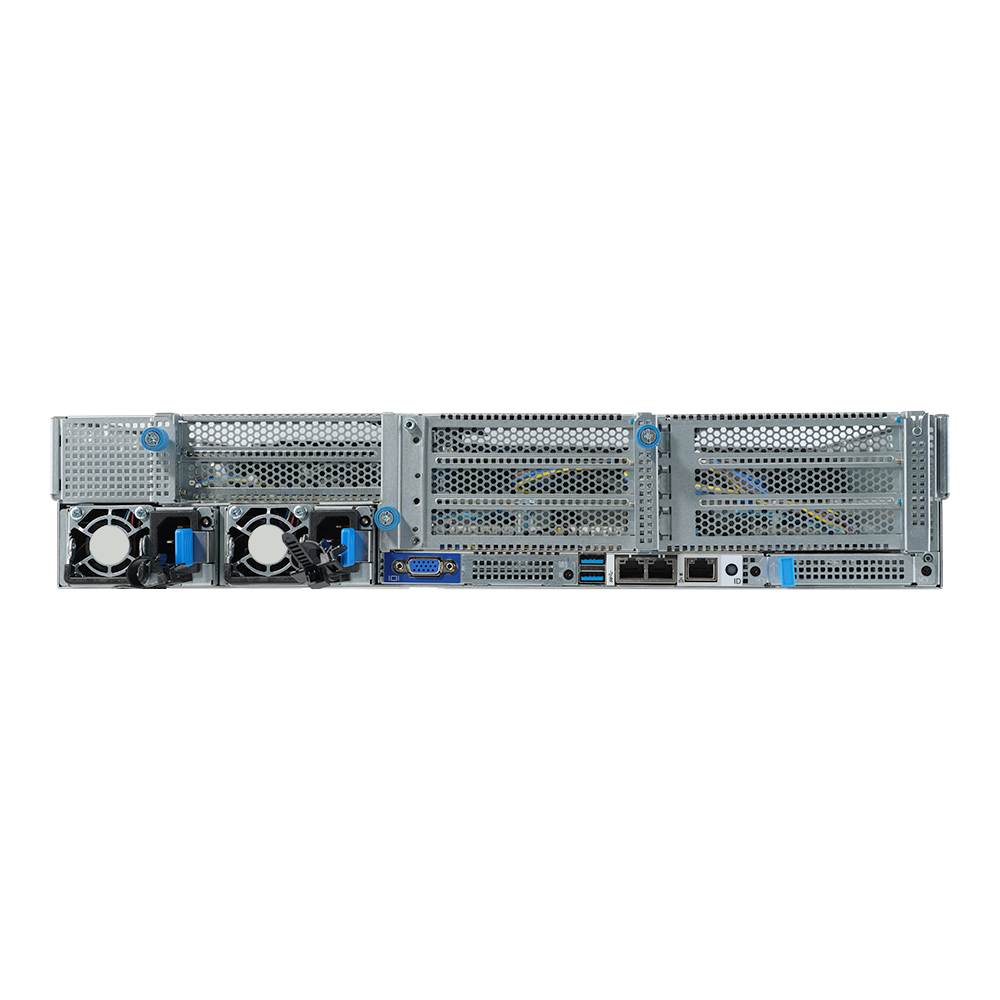

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

System Fans

4 x 80x80x38mm (16,300rpm)
Power Supply

Dual 2000W 80 PLUS Platinum redundant power supply (-A00)

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12V/ 163.5A
+12Vsb/ 2.5A

Dual 2000W 80 PLUS Titanium redundant power supply (-AT0)

AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Backplane Board

Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-Z93
2 x CPU heatsinks
2 x GPU power cables (PCIe 8pin*2, 350mm)
1 x GPU power cable (PCIe 8pin*2, 480mm)
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR282Z93MR-00-A* - Motherboard: 9MZ92FS0NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-44320G-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20C4: 9CBP20C4NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2014: 9CRS2014NR-00 - Riser card - CRS2026: 9CRS2026NR-00 - GPU power cable (PCIe 8pin*2, 350mm): 25CRI-350305-Y4R - GPU power cable (PCIe 8pin*2, 480mm): 25CRI-480300-Y4R - Power supply (-A00): 25EP0-22000C-L0S - Power supply (-AT0): 25EP0-22000J-G1S
Optional Parts

- 4 x NVMe kit: 6NR282Z9DSR-00-100
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR282Z93SR-RMA-A100
Riser Card

RS2014: - 1 x PCIe x16 (Gen4 x16) FHFL slot, from CPU_1, for GPUs CRS2026 x 2: - 1 x PCIe x16 (Gen4 x16) FHFL slot, from CPU_0, for GPUs - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 1 x PCIe x16 (Gen4 x16) FHFL slot, from CPU_1, for GPUs - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
