| Dimensions |
438 x 87 x 730
|
| Weight |
Net Weight: 18.5 kg
Gross Weight: 25.5 kg
|
| Form Factor |
2U |

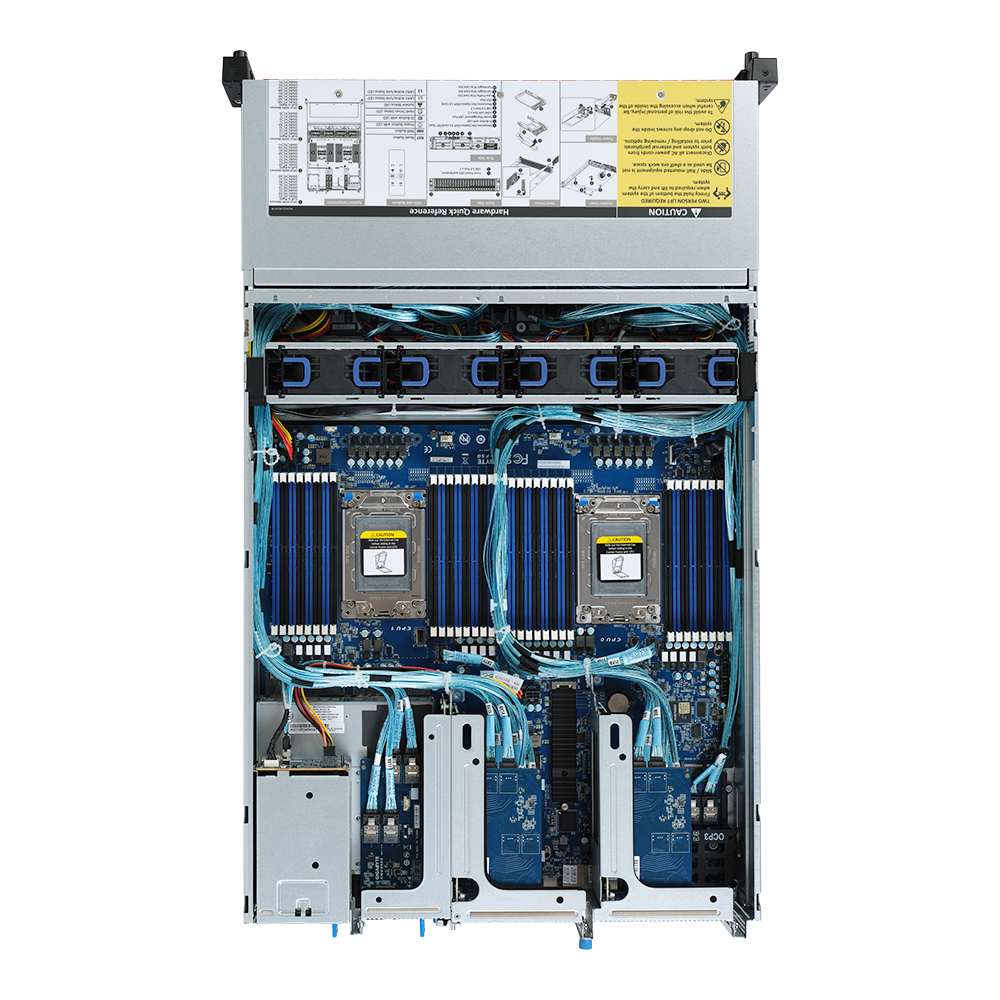

| Motherboard |
MZ92-FS0 Rev. 3.0 |
| CPU |
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7003 Series Processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket |
2 x LGA 4094
Socket SP3
|
| Chipset |
System on Chip |
| Memory |
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC. |
| Network Connectivity |
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
|
| Video Output |
Integrated in Aspeed® AST2500
- 1 x VGA port
|

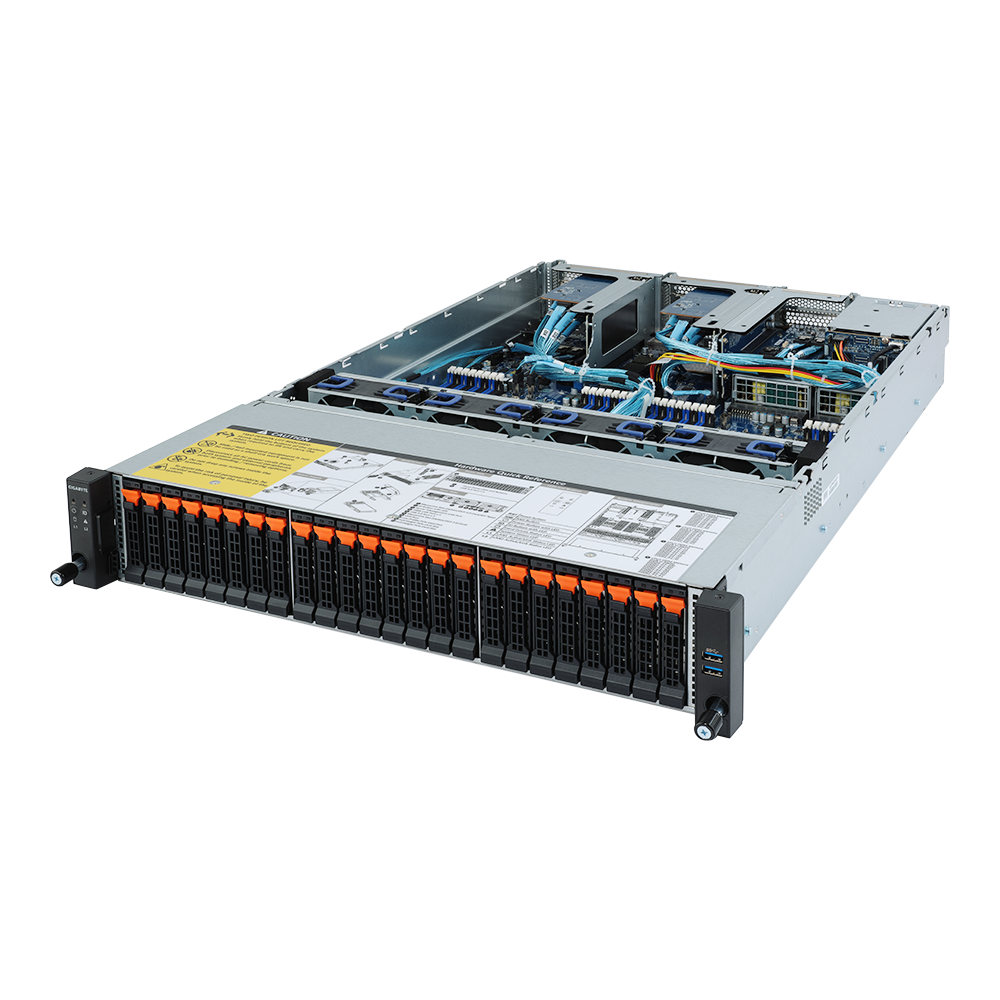

| Drive Bays / Storage |
Front side:
24 x 2.5" Gen3 NVMe hot-swappable bays
- (12 x from CPU_0, 12 x from CPU_1)
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_1 |
| Expansion Slots |
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0, occupied by CNVO134
Supports NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1, occupied by CNVO022
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device |
| Management |
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
|
| Security / TPM |
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010 |

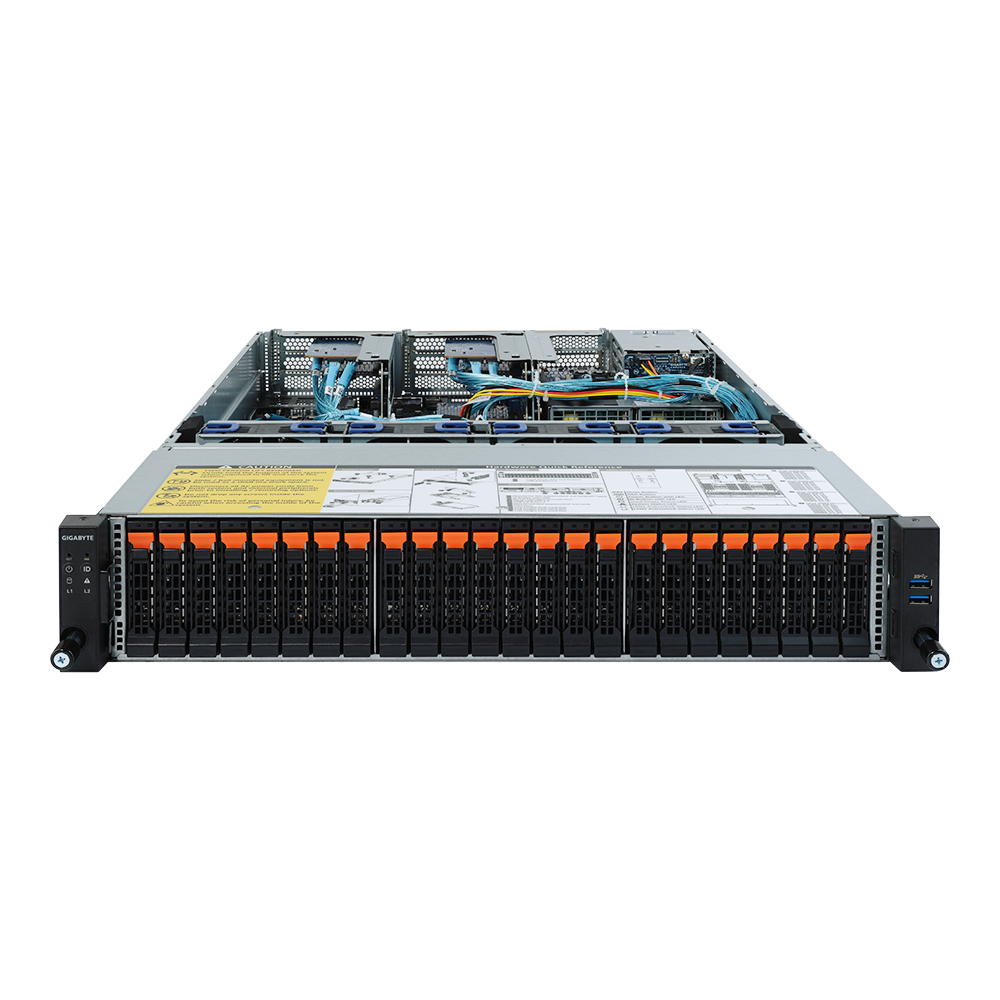

| Front I/O |
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED |

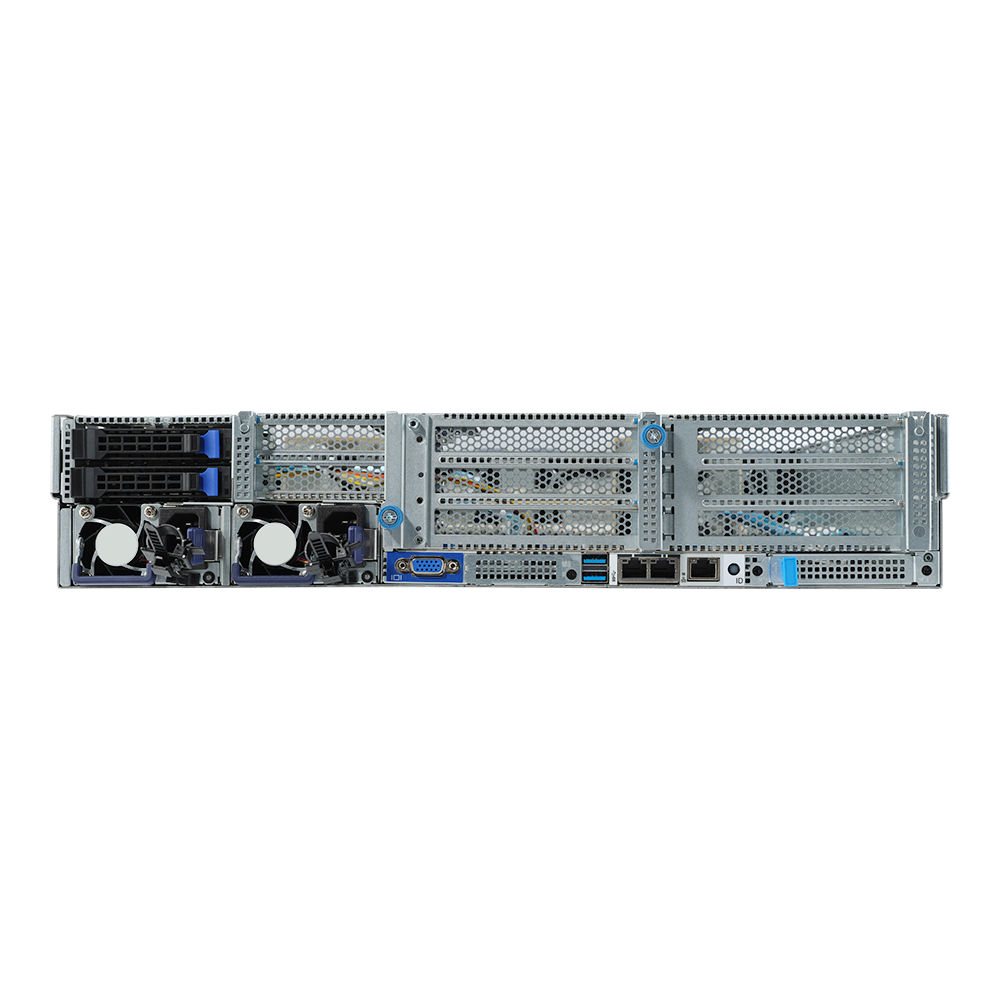

| Rear I/O |
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED |
| System Fans |
4 x 80x80x38mm (16,300rpm)
|
| Power Supply |
1+1 1600W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
|
| Operating Environment |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Sas |
N/A |
| Raid |
N/A |
| Internal Io |
1 x TPM header
|
| Backplane Board |
Speed and bandwidth: Front side - CBP20O5: PCIe Gen3 x4 Rear side - CBP2020: SATA 6Gb/s or SAS 12Gb/s |
| Os Compatibility |
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022 |
| Packaging Dimensions |
982 x 588 x 268 mm |
| Packaging Content |
1 x R282-Z92
2 x CPU heatsinks
1 x 2-Section Rail kit |
| Part Numbers |
- Barebone package: 6NR282Z92MR-00-A* - Motherboard: 9MZ92FS0NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-15320E-J1R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O5: 9CBP20O5NR-00 - Backplane board - CBP2020: 9CBP2020NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2014: 9CRS2014NR-00 - Riser card - CRS2033: 9CRS2033NR-00 - Power supply: 25EP0-216008-L0S |
| Optional Parts |
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR282Z92SR-RMA-A100 |
| Riser Card |
CRS2014: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by CNV3024 CRS2033 x 2: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0, occupied by CNV3024 - 1 x PCIe x8 (Gen4 x8) FHHL slot, from CPU_0, occupied by CNV3022 - 1 x PCIe x8 (Gen4 x8) FHHL slot, from CPU_0 - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1, occupied by CNV3024 - 1 x PCIe x8 (Gen4 x8) FHHL slot, from CPU_1, occupied by CNV3022 - 1 x PCIe x8 (Gen4 x8) FHHL slot, from CPU_1 |
