R282_Z90

Rack Server - AMD EPYC™ 7003/7002 - 2U DP 12+2-Bay SATA/SAS
Comparison Request Price
Overview Specifications
  • Dual AMD EPYC™ 7003/7002 Series Processors (with AMD 3D V-Cache™ Technology)
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 6 x FHHL PCIe Gen4 x16 and x8 slots
  • 2 x LP PCIe Gen4 x8 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • Dual 1200W 80 PLUS Platinum redundant power supply
Dimensions

438 x 87 x 730

Weight

Net Weight: 18 kg
Gross Weight: 25.5 kg
Form Factor

2U

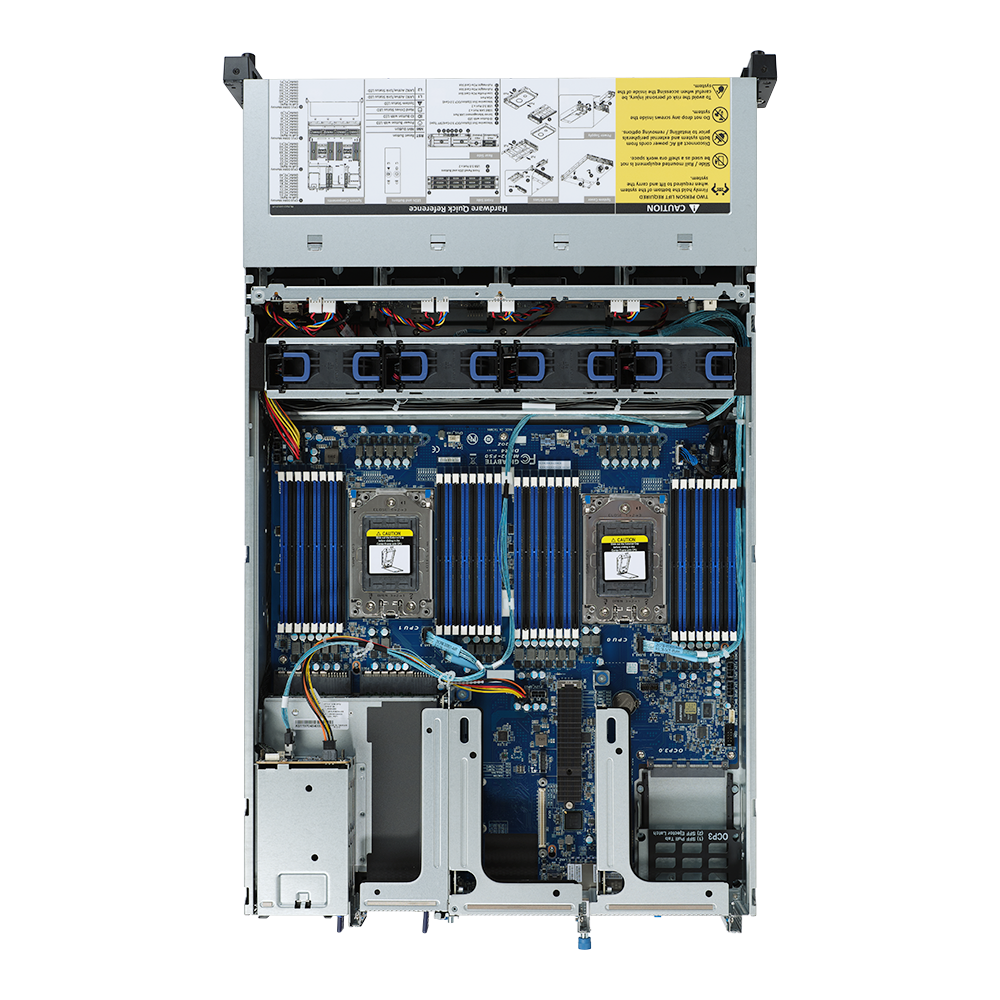

Motherboard

MZ92-FS0 Rev. 3.0

CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 280W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2500
- 1 x VGA port

Drive Bays / Storage

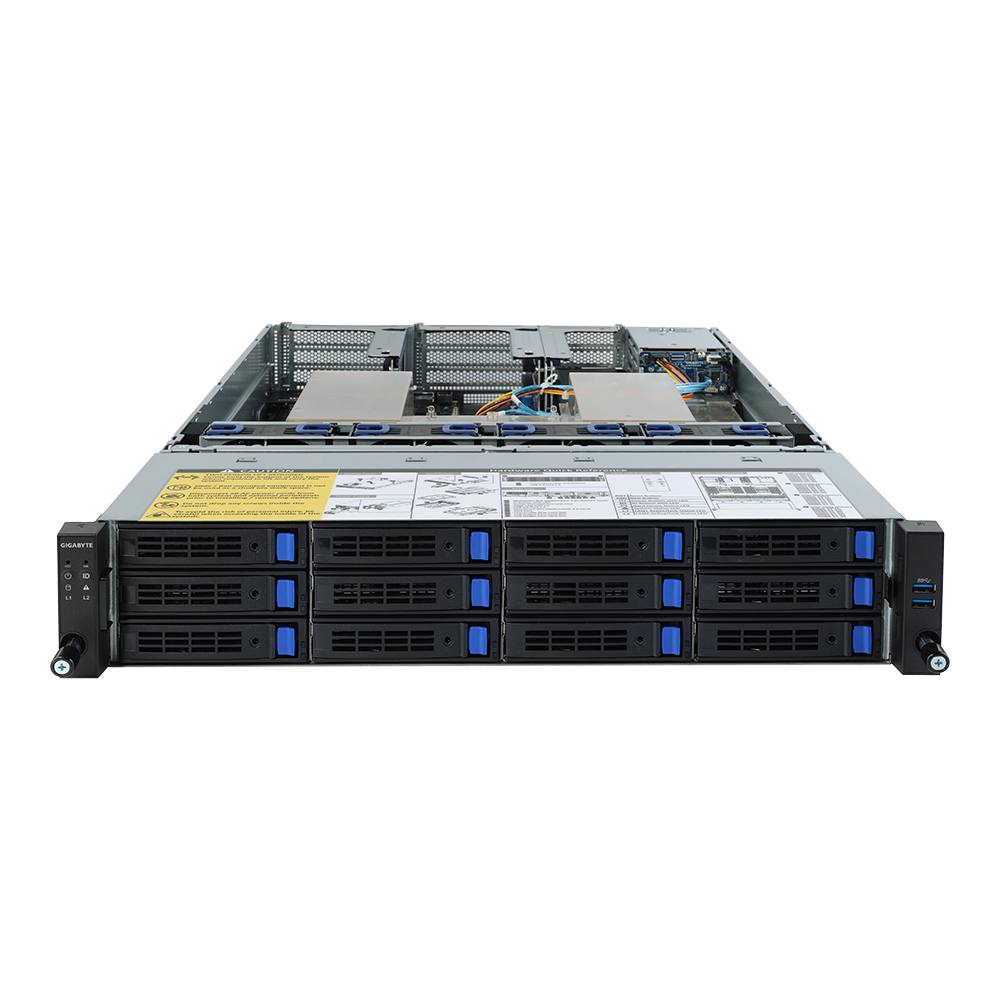

Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- (8 x from CPU_0, 4 x from CPU_1)

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays, from CPU_1

Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA

SAS card is required for SAS devices support
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Management

Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Front I/O

2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

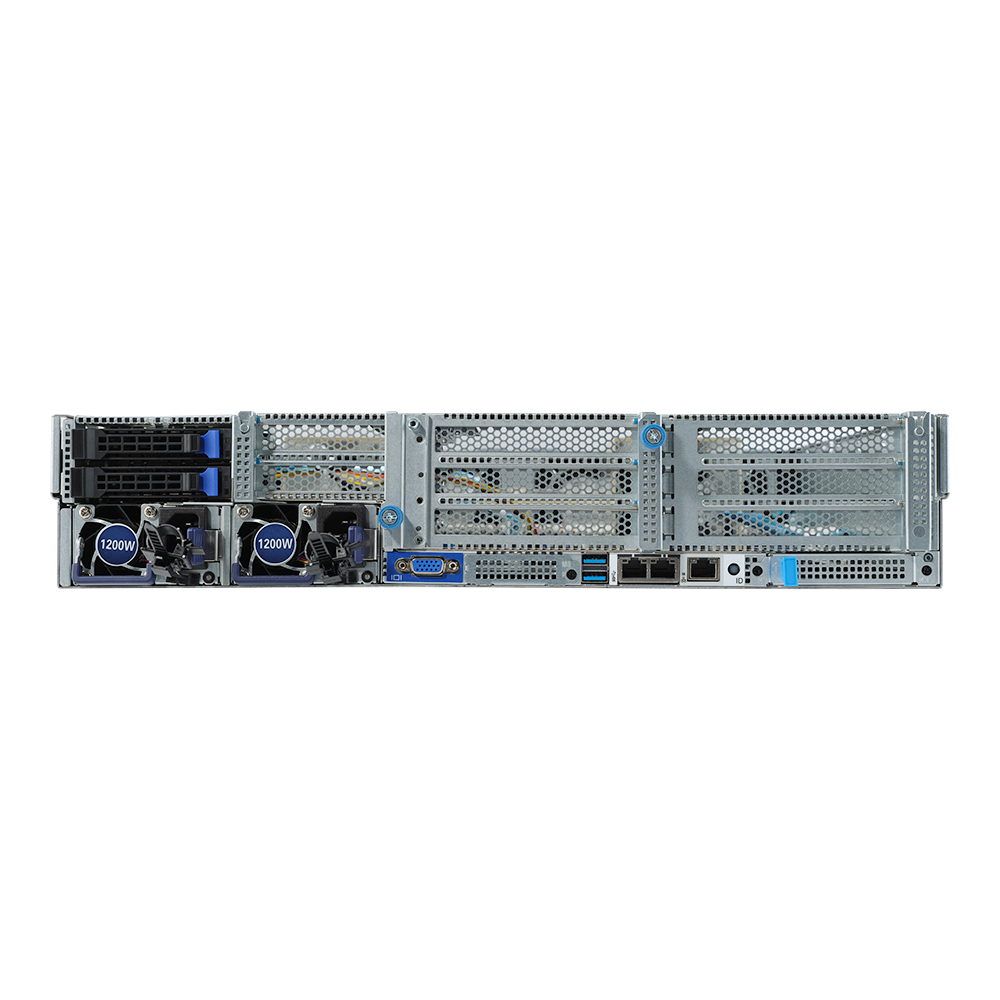

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
System Fans

4 x 80x80x38mm (16,300rpm)

Power Supply

Dual 1200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz

DC Input: (Only for China):
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A

Note: Select 1600W power supply if using 280W CPUs with full loading configuration.

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

1 x TPM header

Backplane Board

Speed and bandwidth: Front side - CBP20C4: SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2020: SATA 6Gb/s or SAS 12Gb/
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.5 Update3
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Packaging Dimensions

982 x 588 x 268 mm
Packaging Content

1 x R282-Z90
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR282Z90MR-00-A* - Motherboard: 9MZ92FS0NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-15320E-J1R - Backplane board - CBP20C4: 9CBP20C4NR-00 - Backplane board - CBP2020: 9CBP2020NR-00 - Front panel board - CFP2001: 9CFP2001NR-00 - Fan module: 25ST2-883829-D0R - Riser card - CRS2027: 9CRS2027NR-00 - Riser card - CRS2033: 9CRS2033NR-00 - Power supply: 25EP0-212008-D0S
Optional Parts

- 4 x NVMe kit: 6NR282Z9BSR-00-100
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR282Z90SR-RMA-A100
Riser Card

CRS2027: - 2 x PCIe x8 (Gen4 x8) low-profile slots, from CPU_1 CRS2033 x 2: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_0 - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1 - 2 x PCIe x8 (Gen4 x8) FHHL slots, from CPU_1
