R182_NC0

Rack Server - 3rd Gen Intel® Xeon® Scalable - 1U DP 12-Bay Gen4 NVMe/SATA/SAS
Comparison Request Price
Overview Specifications
  • 3rd Gen Intel® Xeon® Scalable Processors
  • Dual processor, LGA 4189
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • Intel® C621A Chipset
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 2 x FHHL PCIe Gen4 x16 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1300W (240V) 80 PLUS Platinum redundant power supplies
Dimensions

438 x 43.5 x 780
Weight

Net Weight: 14 kg
Gross Weight: 24.02 kg

Form Factor

1U
Motherboard

MR92-FS1
CPU

3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket

2 x LGA 4189
Socket P+
Chipset

Intel® C621A Chipset
Memory

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 management LAN

Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Drive Bays / Storage

Front side:
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

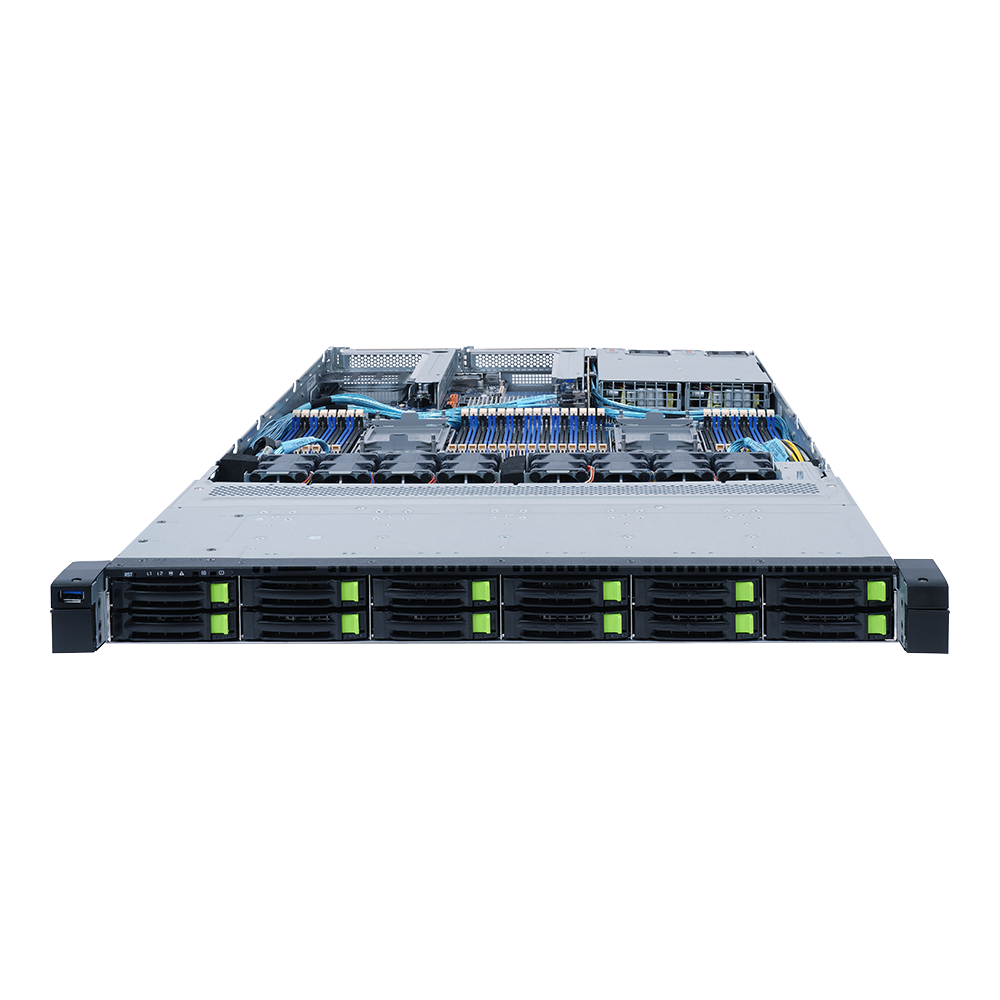

Front I/O

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

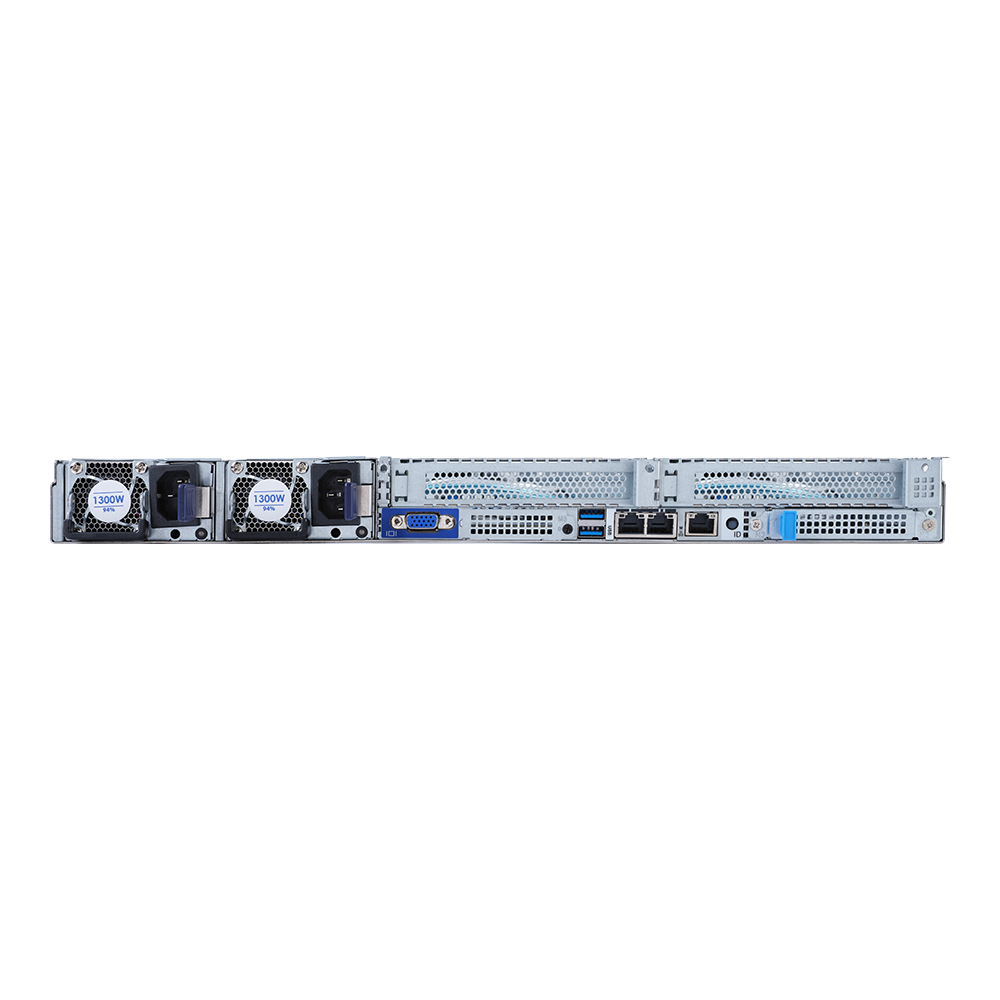

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
System Fans

8 x 40x40x56mm (29,700rpm)
Power Supply

1+1 1300W 80 PLUS Platinum redundant power supplies (-100)

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+ 12V/ 105.4A
+ 12Vsb/ 3A

1+1 1300W 80 PLUS Titanium redundant power supplies (-1T0)

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1300W/ 200-240V~
+ 12.2V/ 106A
+ 12Vsb/ 3A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-on card
Raid

Intel® SATA RAID 0/1/10/5
Internal Io

2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch
Backplane Board

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 20.04.1 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Packaging Dimensions

1038 x 588 x 238 mm
Packaging Content

1 x R182-NC0
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR182NC0MR-00-1* - Motherboard: 9MR92FS1NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R - CPU heatsink: 25ST1-453204-M1R - Backplane board - CBP10C0: 9CBP10C0NR-00 - Riser card - CRS101E: 9CRS101ENR-00 - Riser card - CRS101G: 9CRS101GNR-00 - Fan module: 25ST2-405622-A0R - Power supply (-100): 25EP0-213002-F3S - Power supply (-1T0): 25EP0-21300C-G1S
Optional Parts

- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR182NC0SR-RMA-A100
Riser Card

RS101E: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 CRS101G: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
