R182_N20

438 x 43.5 x 780

Net Weight: 13.6 kg
Gross Weight: 23.4 kg

1U

MR92-FS1

3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 4189
Socket P+

Intel® C621A

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 3200/2933/2666 MT/s

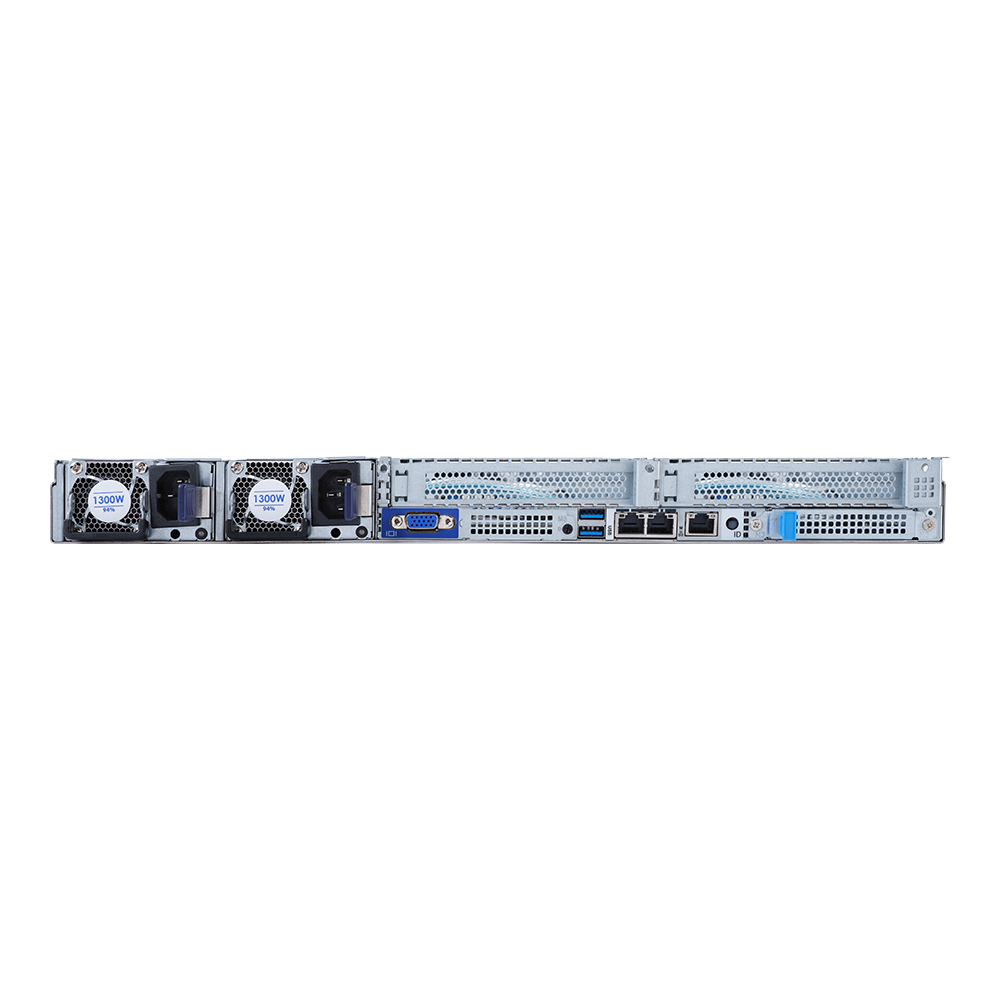

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
- 1 x VGA port

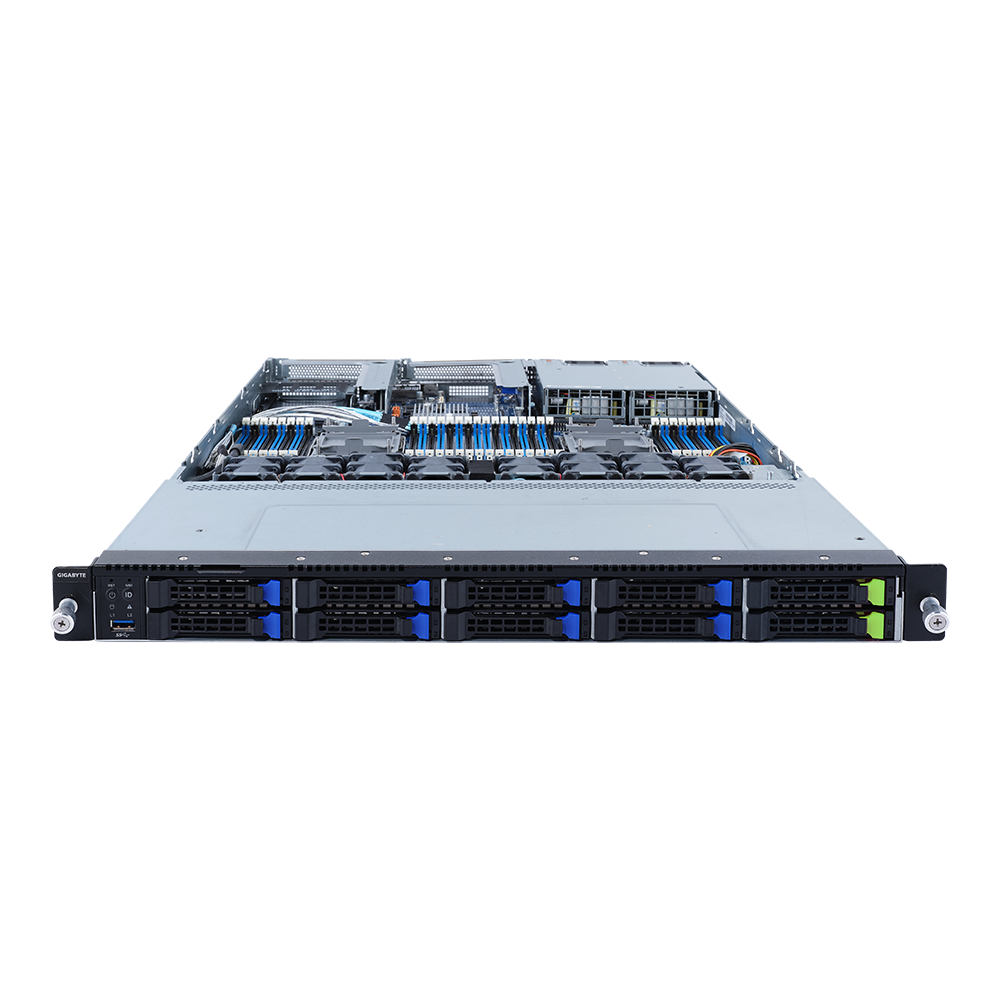

Front side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth, from CPU_1
Supports NCSI function

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

8 x 40x40x56mm (29,700rpm)

1+1 1300W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Depends on SAS add-in cards

Intel® SATA RAID 0/1/10/5

2 x SATA 7-pin connectors
1 x TPM header
1 x VROC connector

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Windows Server 2016
Windows Server 2019
Windows Server 2022

985 x 588 x 250 mm

1 x R182-N20
2 x CPU heatsinks
1 x 2-Section Rail kit

- Barebone package: 6NR182N20MR-00-1* - Motherboard: 9MR92FS1NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R - CPU heatsink: 25ST1-453204-M1R - Backplane board - CBP10A5: 9CBP10A5NR-00 - Riser card - CRS101E: 9CRS101ENR-00 - Riser card - CRS101G: 9CRS101GNR-00 - Fan module: 25ST2-405623-A0R - Power supply: 25EP0-213002-F3S

- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SR1000-AFS (4-native NVMe RAID)
- RMA packaging: 6NR182N20SR-RMA-A100

CRS101E: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 CRS101G: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
