R182_Z92

Rack Server - AMD EPYC™ 7003/7002 - 1U DP 10-Bay Gen3 NVMe
Comparison Request Price
Overview Specifications
  • Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
  • Dual AMD EPYC™ 7003 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 10 x 2.5" Gen3 NVMe hot-swappable bays
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • 2 x FHHL PCIe Gen4 x16 slots
  • 1 x OCP 3.0 Gen4 x16 slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
  • 1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
  • 1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
Dimensions

438 x 43.5 x 730
Weight

Net Weight: 13 kg
Gross Weight: 22 kg
Form Factor

1U

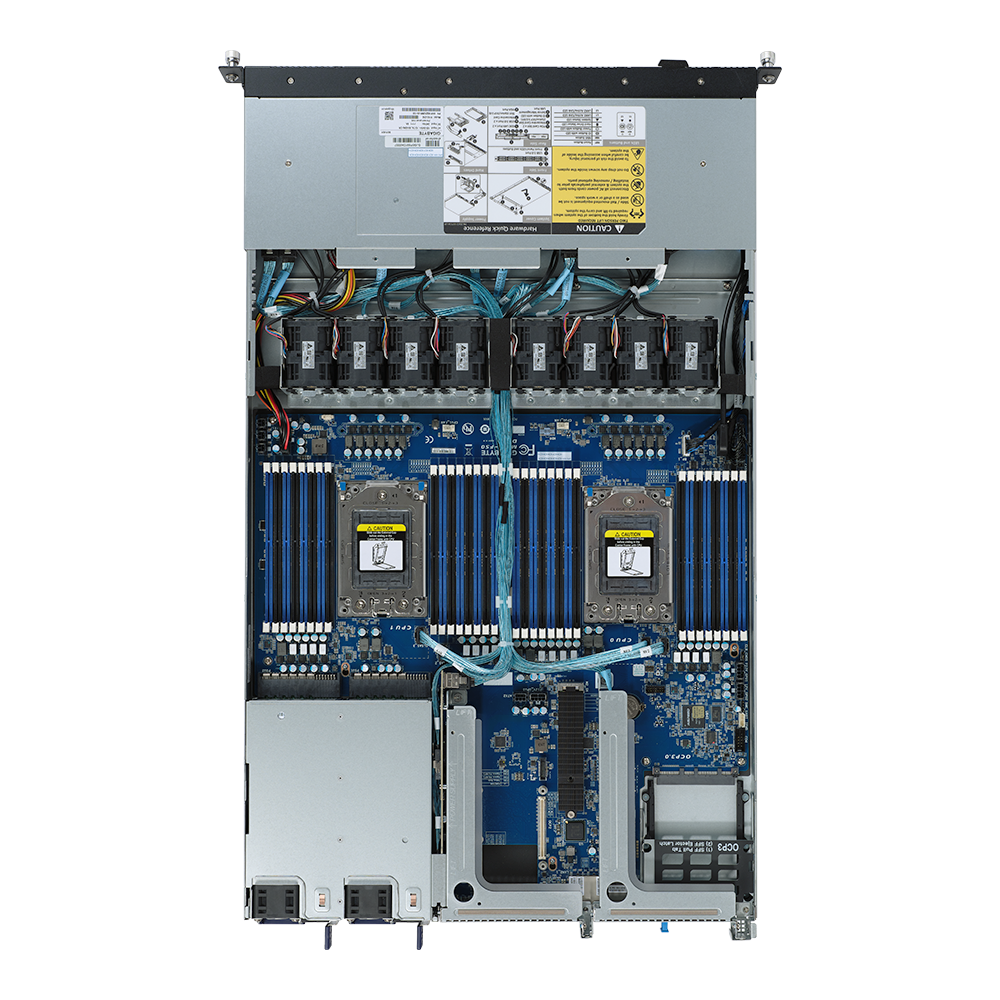

Motherboard

MZ92-FS0 Rev. 3.0
CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Supports 280W CPU at ambient 30°C

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s

*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2500
- 1 x VGA port

Drive Bays / Storage

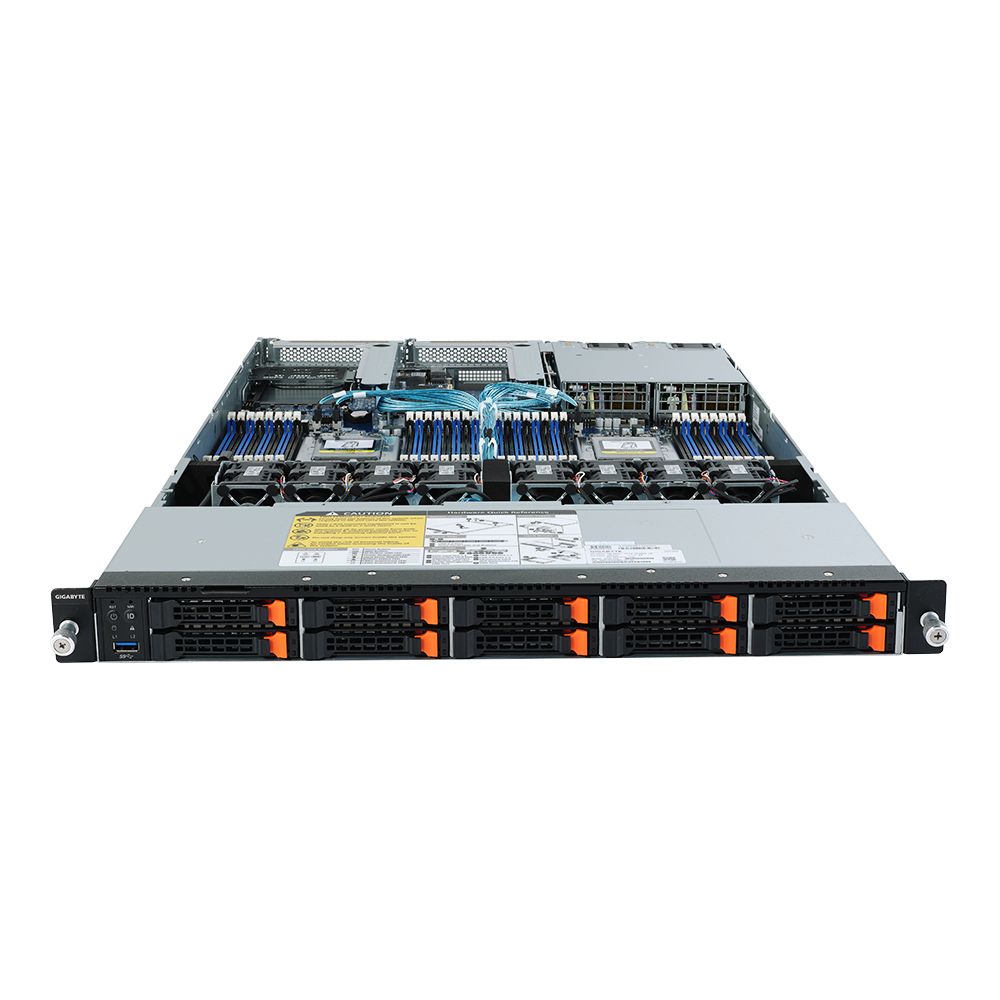

Front side:
10 x 2.5" Gen3 NVMe hot-swappable bays
- (4 x from CPU_0, 6 x from CPU_1)

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2), from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards
- CPU TDP is limited to 225W if using M.2 device
Management

Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Front I/O

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

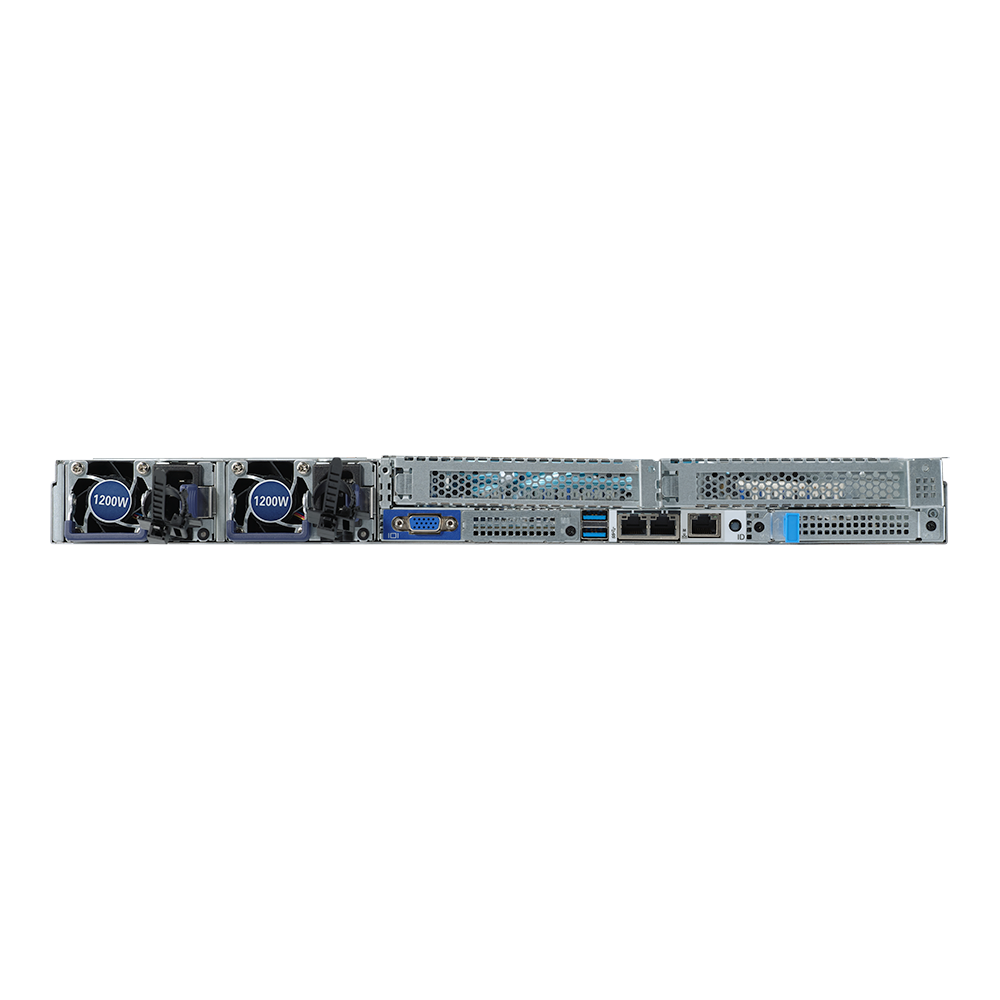

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED

System Fans

8 x 40x40x56mm (23,000rpm)

Power Supply

1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)

AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A

1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A

1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 7A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

N/A
Raid

N/A
Internal Io

1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Backplane Board

Speed and bandwidth: PCIe Gen3 x4
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP1 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Packaging Dimensions

985 x 588 x 250 mm
Packaging Content

1 x R182-Z92
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR182Z92MR-00-A*/B* - Motherboard: 9MZ92FS0NR-00 - 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R - CPU heatsink: 25ST1-44320G-A0R - Backplane board - CBP10A3: 9CBP10A3NR-00 - Fan module: 25ST2-44562G-D0R - Riser card - CRS101E: 9CRS101ENR-00 - NVMe HBA - CNVP141: 9CNVP141NR-00 - Power supply (-A00): 25EP0-212008-D0S - Power supply (-B00): 25EP0-21300B-F3S - Power supply (-AT0): 25EP0-21300C-G1S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
- RMA packaging: 6NR182Z92SR-RMA-A100
Riser Card

CRS101E x 2: - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_0 - 1 x PCIe x16 (Gen4 x16) FHHL slot, from CPU_1
