H262_Z6B-ICP1

High Density Server - AMD EPYC™ 7003/7002 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA Immersion
Comparison Request Price
Overview Specifications
  • Immersion Cooling Server
  • Hardware-level root of trust support

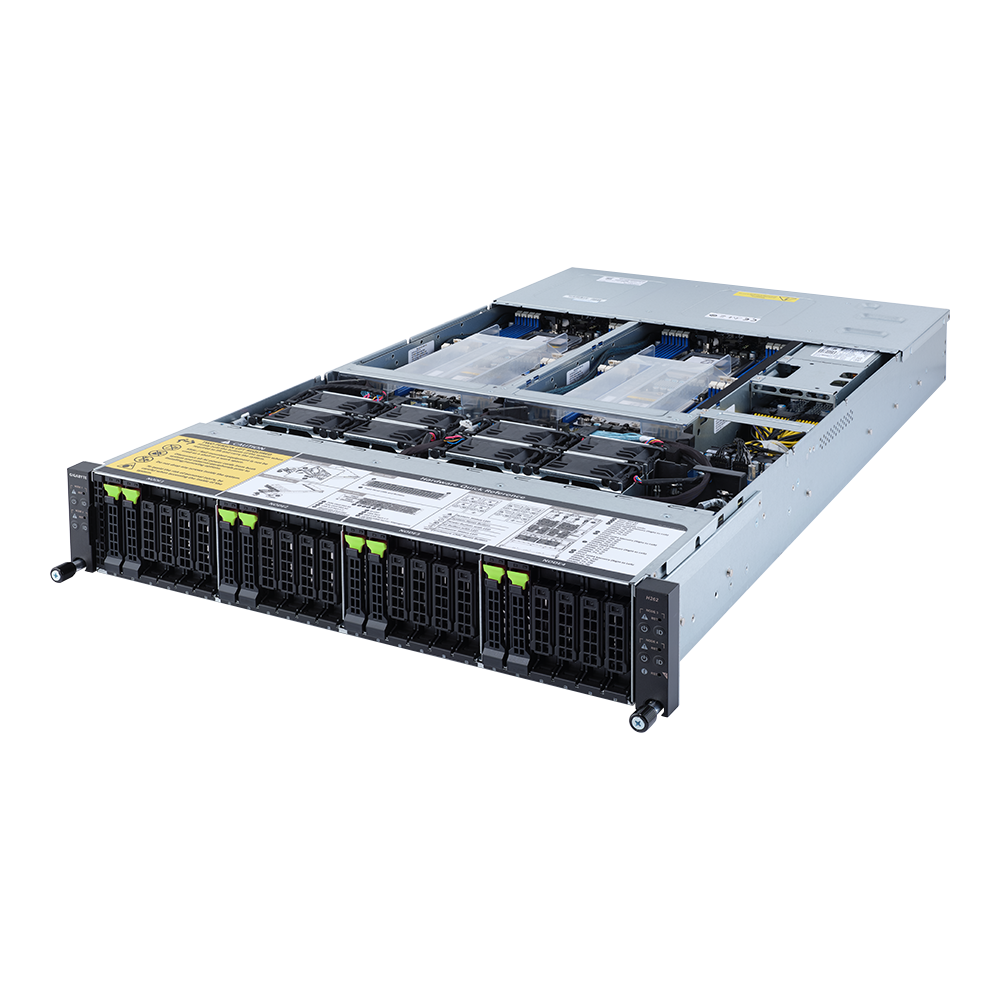

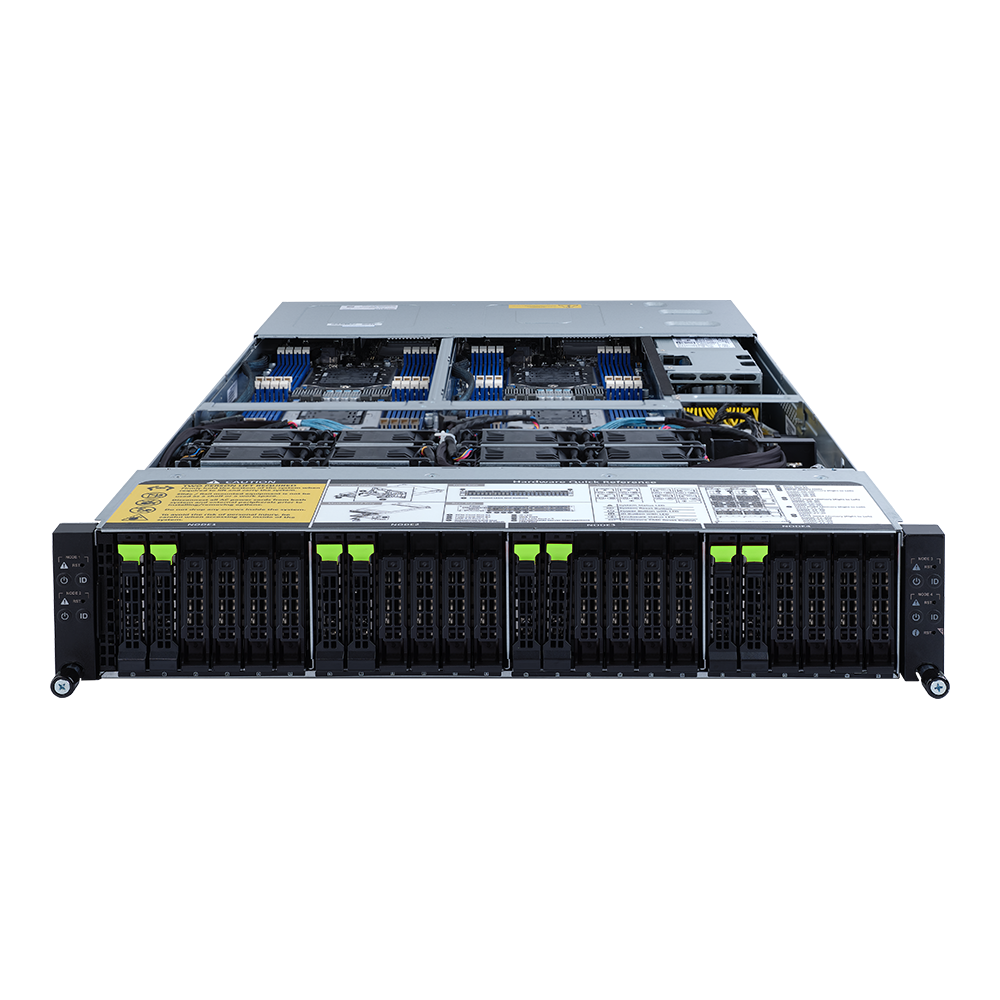

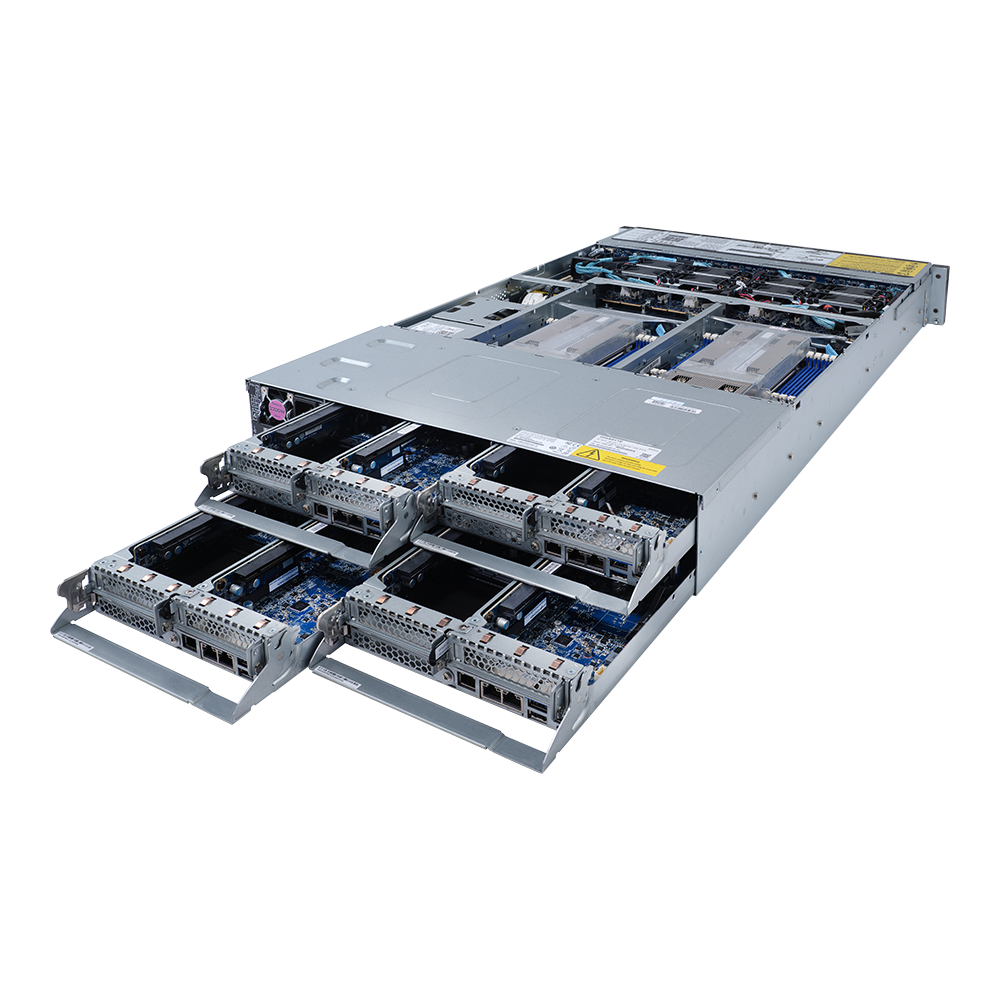

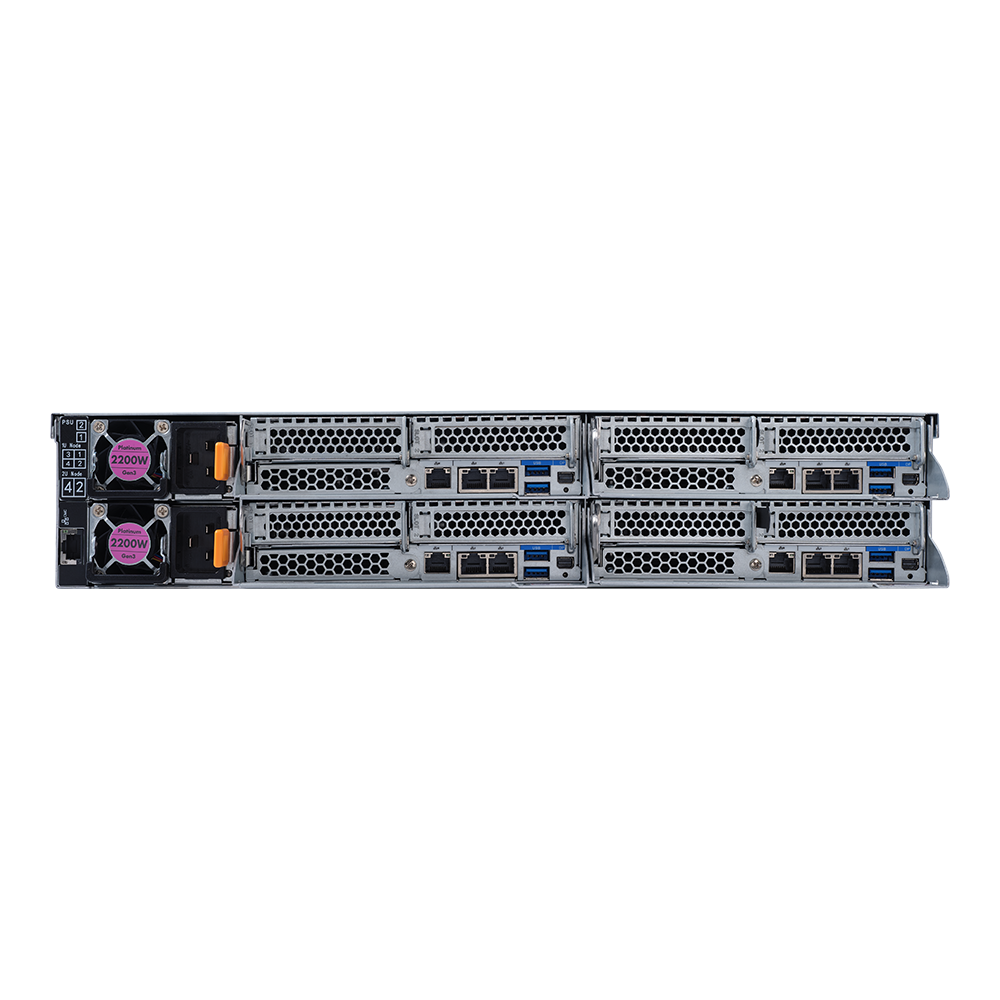

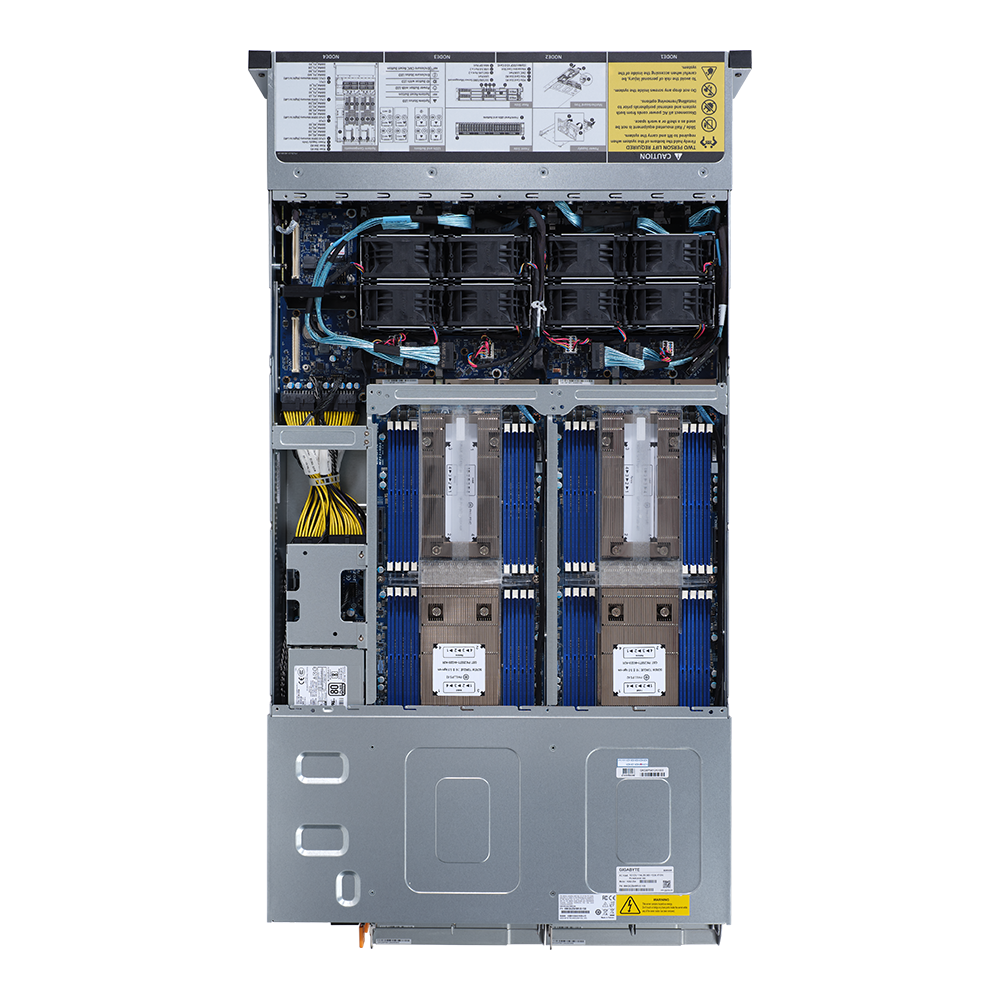

  • 2U 4-node front access server system
  • Dual AMD EPYC™ 7003/7002 Series Processors per node
  • 8-Channel DDR4 RDIMM/LRDIMM, 64 x DIMMs
  • 8 x 1Gb/s LAN ports via Intel® I350-AM2
  • 1 x CMC port
  • 8 x 2.5" Gen4 NVMe/SATA hot-swappable bays
  • 4 x M.2 slots with PCIe Gen4 x4 interface
  • 8 x LP PCIe Gen4 x16 slots
  • 4 x OCP 3.0 Gen4 x16 mezzanine slots
  • Dual 3000W 80 PLUS Titanium redundant power supply
Dimensions

4-Node - Front access
440 x 87.5 x 840
Form Factor

2U

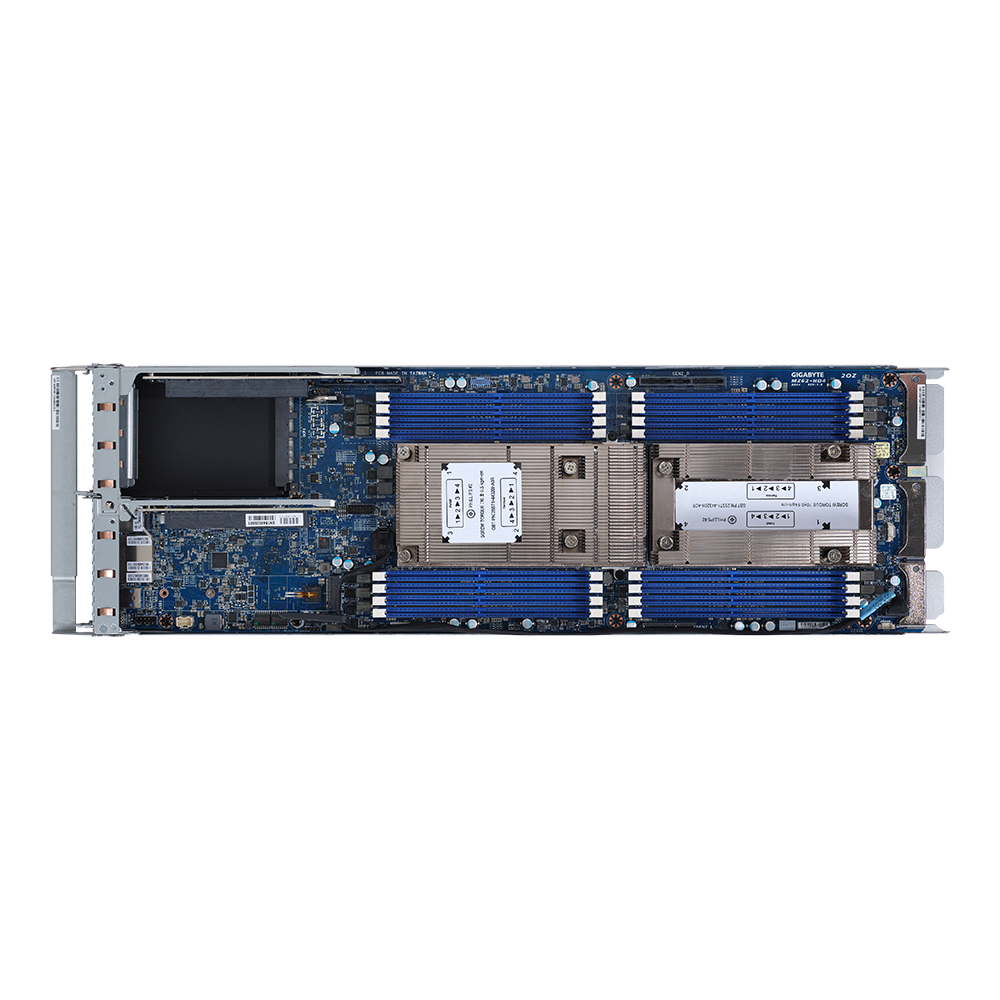

Motherboard

MZ62-HD4 Rev. 3.0
CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 280W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

Per Node:
2 x LGA 4094

Total:
8 x LGA 4094

Socket SP3

Chipset

System on ChipSystem on Chip
Memory

Per node:
16 x DIMM slots

Total:
64 x DIMM slots

DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s

Network Connectivity

Per node:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function

4 x 10/100/1000 Mbps Management LAN
1 x CMC port

Video Output

Integrated in Aspeed® AST2500
- 1 x Mini-DP
Drive Bays / Storage

Per node:
2 x 2.5" Gen4 NVMe/SATA hot-swappable bays, from CPU_1

Total:
8 x 2.5" Gen4 NVMe/SATA hot-swappable bays, from CPU_1

Expansion Slots

Per node:
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

Total:
Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

Riser Card CRSH01H x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

4 x OCP 3.0 slots with PCIe Gen4 x16 bandwidth, from CPU_0

4 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Management

Aspeed® AST2500 Baseboard Management Controller
Aspeed® AST2520A2-GP Chassis Management Controller
GIGABYTE Management Console web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Front I/O

Top I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x ID LED

Total:
8 x USB 3.2 Gen1
4 x Mini-DP
8 x RJ45
4 x MLAN
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
4 x ID LEDs
*1 x CMC port
*1 x CMC status LED
*1 x CMC reset button

*Only one CMC port, CMC status LED, and reset button per system.
Power Supply

Dual 3000W 80 PLUS Titanium power supply

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord
Operating Environment

Operating coolant temperature: 25°C to 35°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

N/A
Raid

N/A
Internal Io

Per node:
1 x TPM header

Backplane Board

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Packaging Dimensions

1180 x 779 x 300 mm
Packaging Content

1 x H262-Z6B
8 x CPU heatsinks
Part Numbers

- Barebone package: 6NH262Z6BRR000ICP1* - Motherboard: 9MZ62HD4NR-00 - CPU heatsink: 25ST1-443109-A3R/25ST1-44310A-A3R - Backplane board: 9CBPH082NR-00 - Riser card - CRSH01E: 9CRSH01ENR-00 - Riser card - CRSH01H: 9CRSH01HNR-00 - Power supply: 25EP0-23000E-G1S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP061: 9CMTP061NR-00
- Ring topology kit: 6NH262Z65SR-00-100
