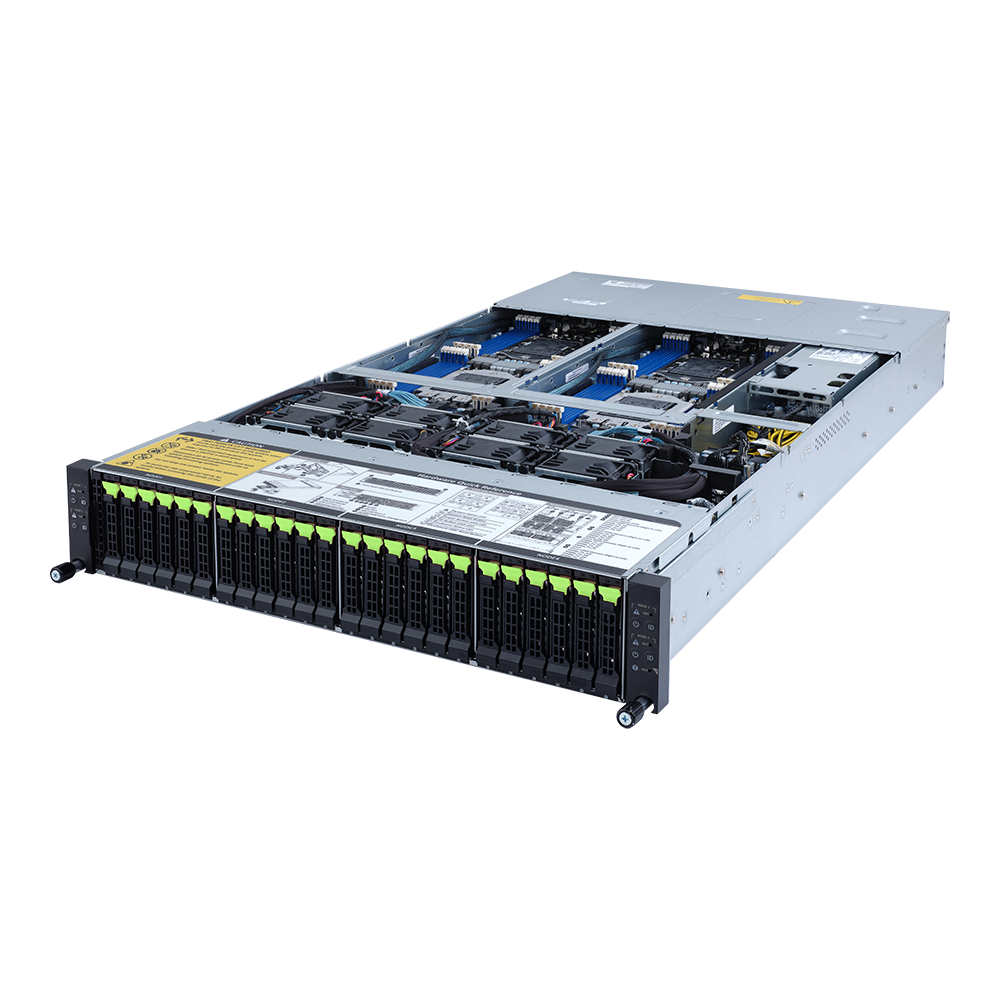

H262_Z6A

High Density Server - AMD EPYC™ 7003/7002 - 2U 4-Node DP 24-Bay Gen4 NVMe/SATA/SAS
Comparison Request Price
Overview Specifications
  • Hardware-level root of trust support

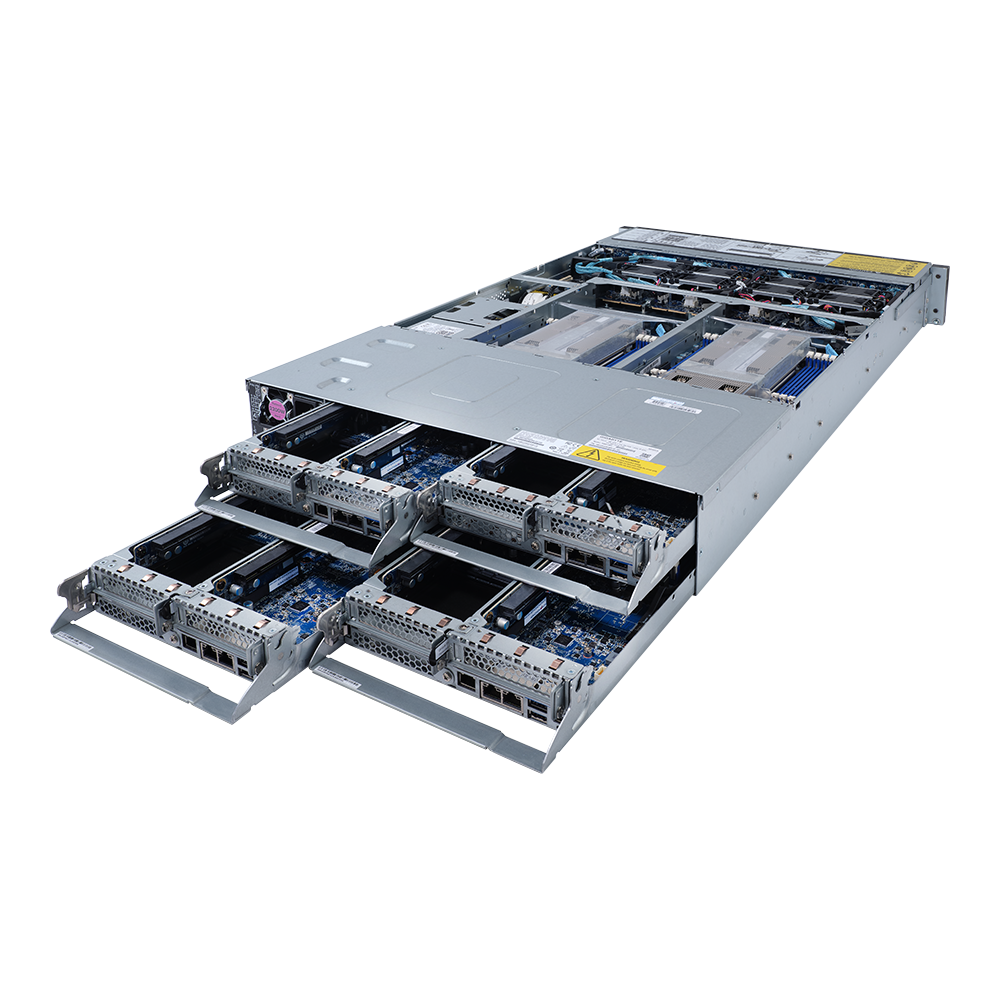

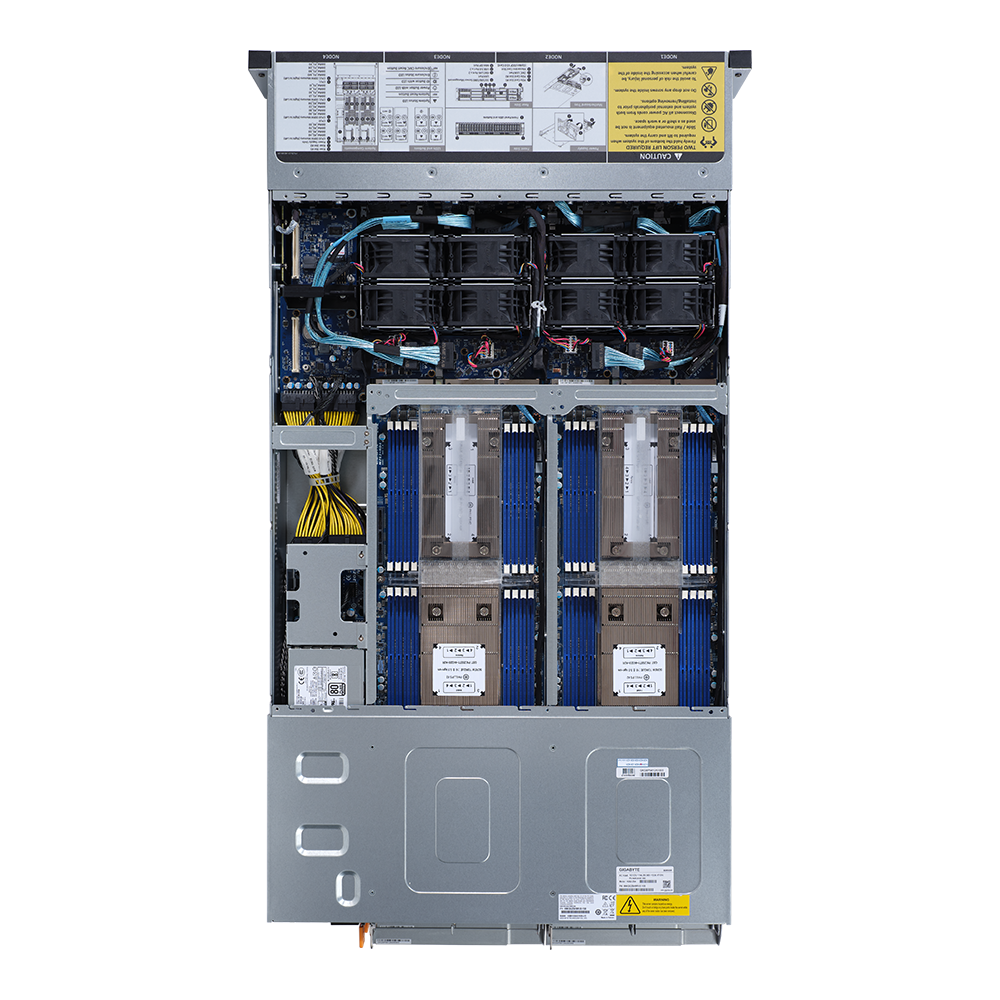

  • 2U 4-node rear access server system
  • Dual AMD EPYC™ 7003/7002 Series Processors per node
  • 8-Channel DDR4 RDIMM/LRDIMM, 64 x DIMMs
  • 8 x 1Gb/s LAN ports via Intel® I350-AM2
  • 1 x CMC port
  • 24 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x M.2 slots with PCIe Gen4 x4 interface
  • 8 x LP PCIe Gen4 x16 slots
  • 4 x OCP 3.0 Gen4 x16 slots
  • Dual 2200W 80 PLUS Platinum redundant power supply
Dimensions

4-Node - Rear access
440 x 87.5 x 840

Weight

Net Weight: 47.63 kg
Gross Weight: 49.63 kg

Form Factor

2U

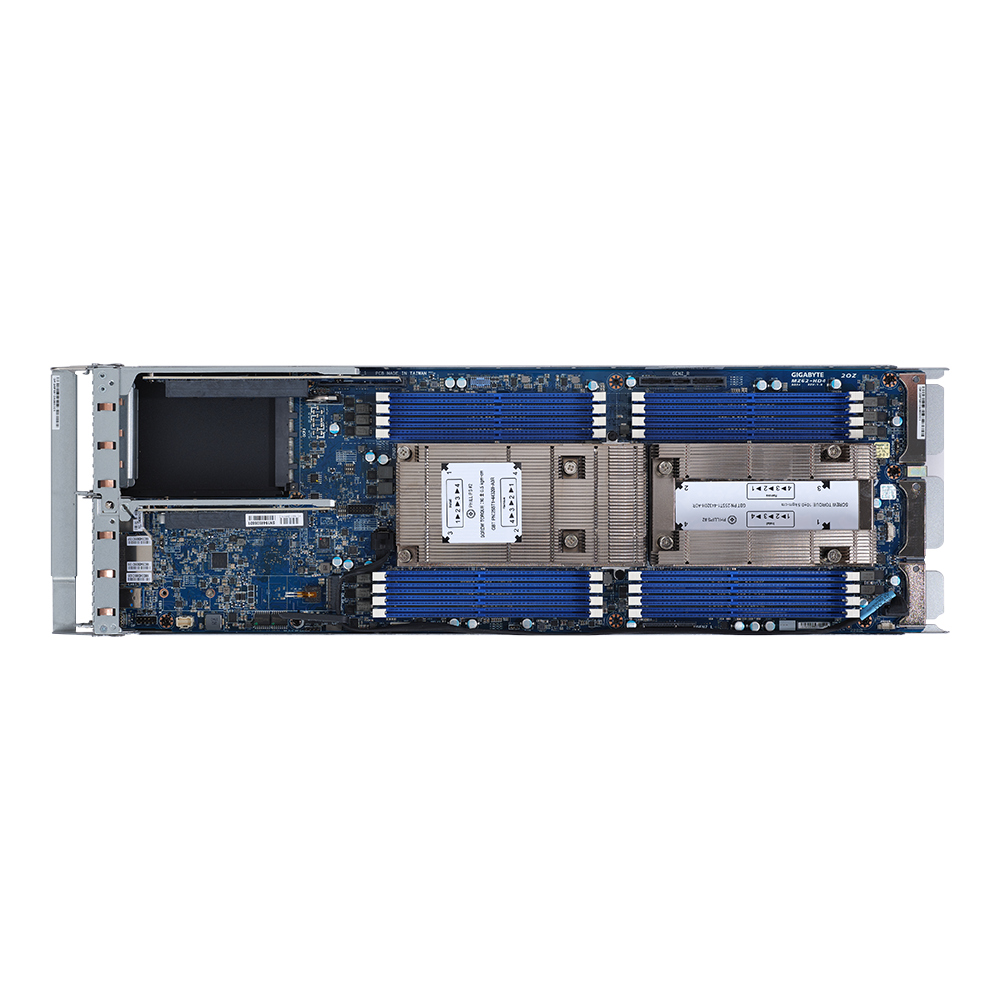

Motherboard

MZ62-HD4 Rev. 3.0
CPU

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor per node, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 200W

Note:
1) If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
2) Contact GIGABYTE sales rep or technical support for more details about supporting cTDP 240W CPU.
Socket

Per Node:
2 x LGA 4094

Total:
8 x LGA 4094

Socket SP3
Chipset

System on Chip
Memory

Per node:
16 x DIMM slots

Total:
64 x DIMM slots

DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
Network Connectivity

Per node:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Total:
8 x 1Gb/s LAN ports (4 x Intel® I350-AM2)
Support NCSI function

4 x 10/100/1000 Mbps Management LAN
1 x CMC port
Video Output

Integrated in Aspeed® AST2500
- 1 x Mini-DP per node

Drive Bays / Storage

Per node:
6 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)

Total:
24 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)

Expansion Slots

Per node:
2 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

Total:
8 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0

4 x OCP 3.0 slots with PCIe Gen4 x16 bandwidth, from CPU_0

4 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

Management

Aspeed® AST2500 Baseboard Management Controller
Aspeed® AST2520A2-GP Chassis Management Controller
GIGABYTE Management Console web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

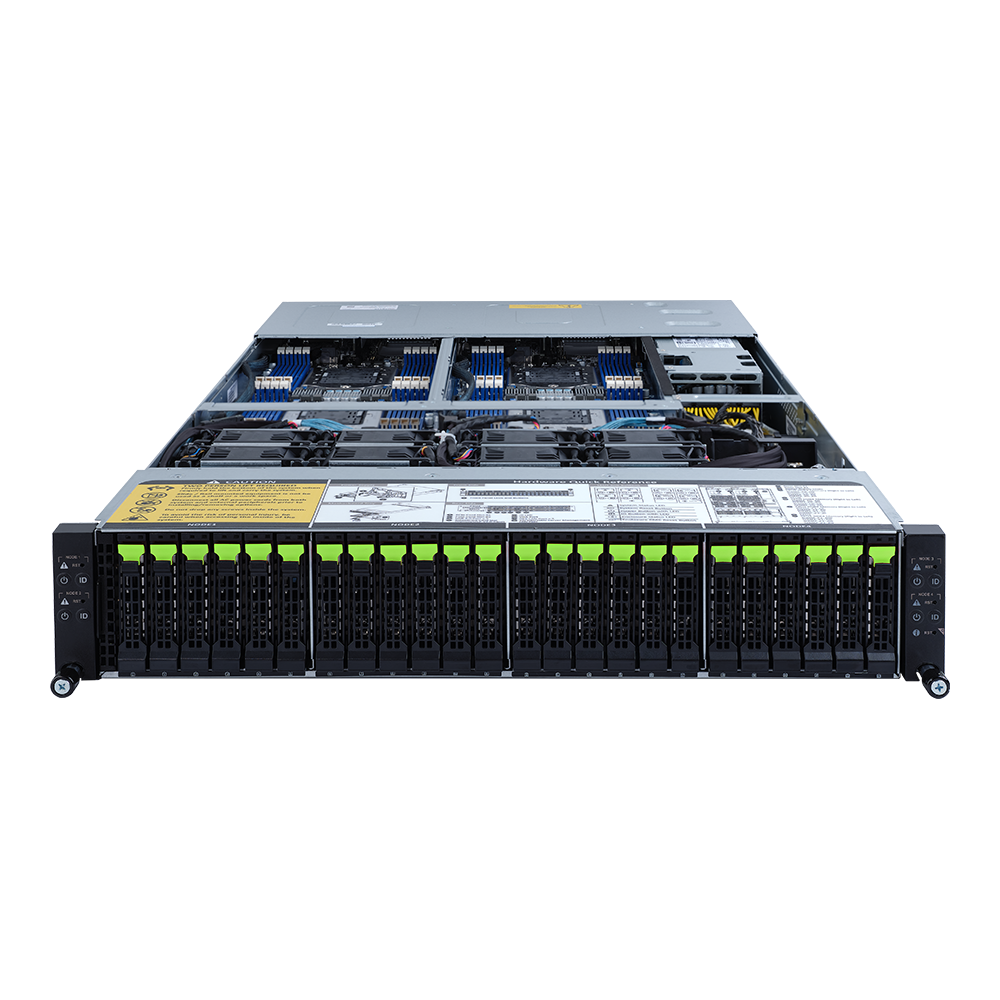

Front I/O

Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED

Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button

*Only one CMC status LED and reset button per system.

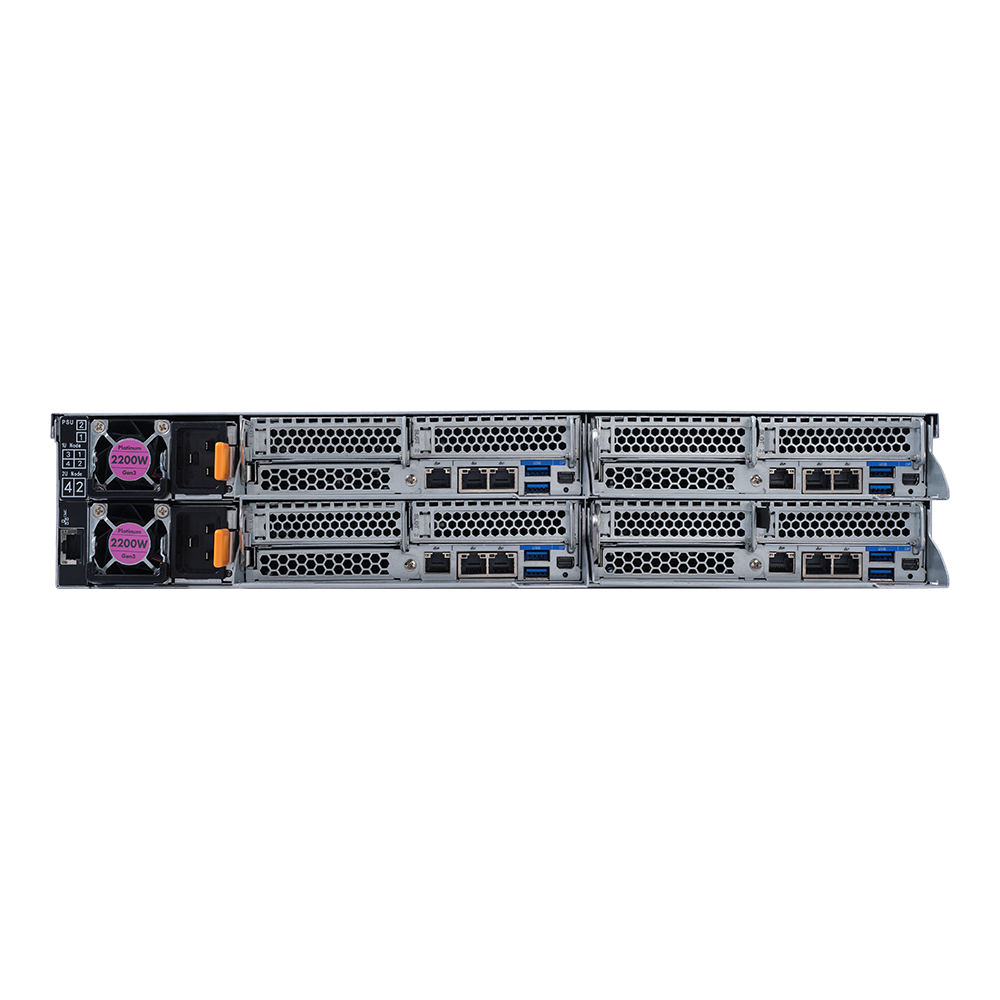

Rear I/O

Per node:
2 x USB 3.0
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Total:
8 x USB 3.0
4 x Mini-DP
8 x RJ45
4 x MLAN
4 x ID LED
*1 x CMC port

*Only one CMC port per system.

System Fans

8 x 80x80x38mm (16,300rpm)
Power Supply

Dual 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A

Note: System power supply requires C19 power cord.

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

Per node:
1 x TPM header
Backplane Board

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Packaging Dimensions

1180 x 779 x 300 mm
Packaging Content

1 x H262-Z6A
8 x CPU heatsinks
1 x 3-Section Rail kit
Part Numbers

- Barebone package: 6NH262Z6AMR-00-A* - Motherboard: 9MZ62HD4NR-00 - 3-Section Rail kit: 25HB2-A66122-K0R - CPU heatsink: 25ST1-44320H-A0R/25ST1-44320I-A0R - Backplane board - CBPH7O0: 9CBPH7O0NR-00 - Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R - Power supply: 25EP0-222003-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP061: 9CMTP061NR-00
- Ring topology kit: 6NH262Z65SR-00-100
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- RMA packaging: 6NH262Z6ASR-RMA-A100
