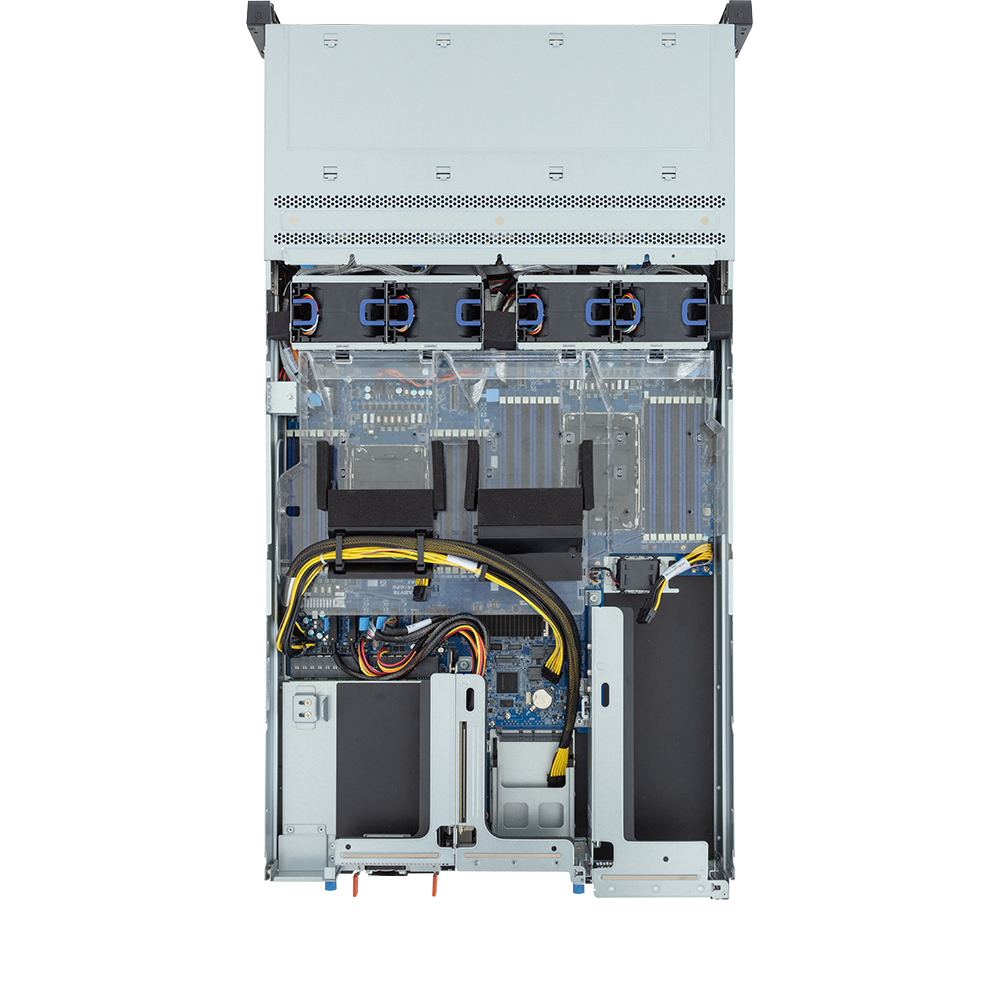

R284_SF0-AAL1

Rack Server - Intel® Xeon® 6 Processors - 2U DP 4 x PCIe Gen5 GPUs
Comparison Request Price
Overview Specifications
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MCR DIMM, 32 x DIMMs
  • Dual ROM Architecture

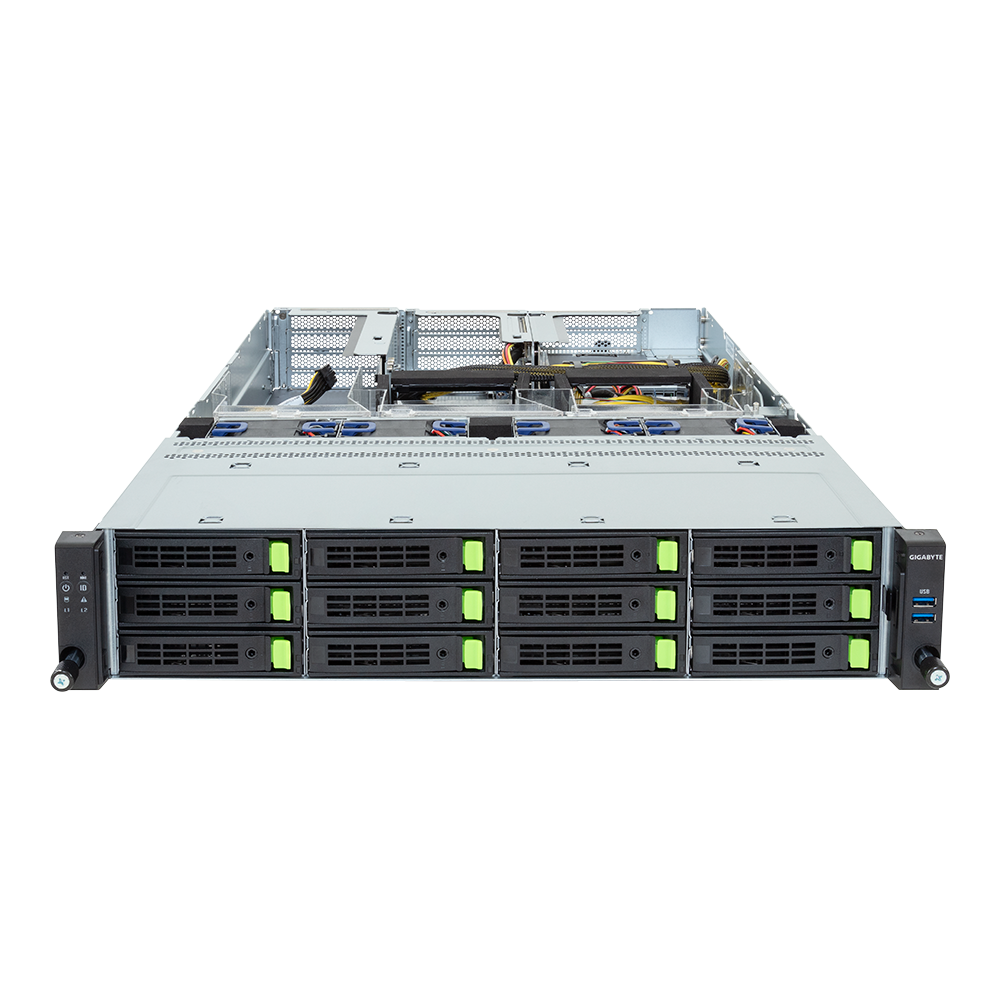

  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen5 x4 interface
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply
Dimensions

438 x 87.5 x 815
Form Factor

2U
Motherboard

MSF4-GP0

CPU

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 350W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4710
Socket E2

Chipset

System on Chip

Memory

32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
Network Connectivity

Rear:
1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
- 1 x Mini-DP

Drive Bays / Storage

Front hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

[1] Storage card is required to support SATA and SAS drives.
Expansion Slots

PCIe Cable x 2:
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHHL x16 (Gen5 x16), from CPU_1

Riser Card CRC2012:
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs

Riser Card CRS202P:
- 2 x FHFL x16 (Gen5 x16), from CPU_0

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)
Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED
System Fans

1 x 40x40x28mm (34,000rpm)
4 x 80x80x56mm (15,500rpm)
Power Supply

Dual 2700W 80 PLUS Titanium redundant power supply [1]

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.
Operating Environment

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Require SAS add-in cards
Raid

Require RAID add-in cards Onboard VROC key header
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R284-SF0-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 100mm)
1 x GPU power cable (12VHPWR, 280mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
4 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR284SF0DR000AAL1* - Motherboard: 9MSF4GP0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3201-S7H - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20C7: 9CBP20C7NR-00* - Fan module 40x40x28mm: 25ST2-44282I-N2R - Fan module 80x80x56mm: 25ST2-885621-A0R - Riser card - CRC2012: 9CRC2012NR-00* - Riser card - CRS202P: 9CRS202PNR-00* - I/O board - CBG70: 9CBG70NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 100mm): 25CRI-1000B2-Y4R - GPU power cable (12VHPWR, 280mm): 25CRI-3000B2-Y4R - GPU power cable (12VHPWR, 450mm): 25CRI-4500B0-Y4R - GPU power cable (12VHPWR, 550mm): 25CRI-5500B0-Y4R - Power supply: 25EP0-227000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
