R284_S92-AAJ1

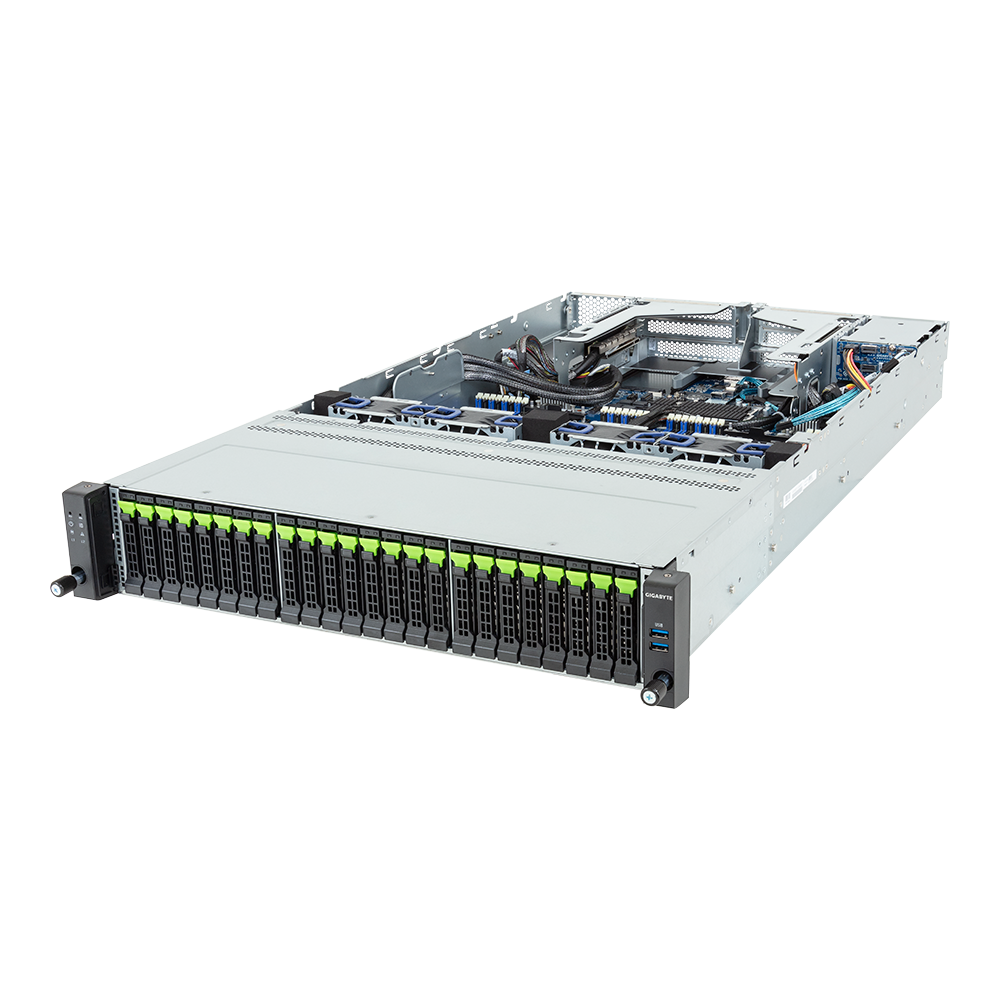

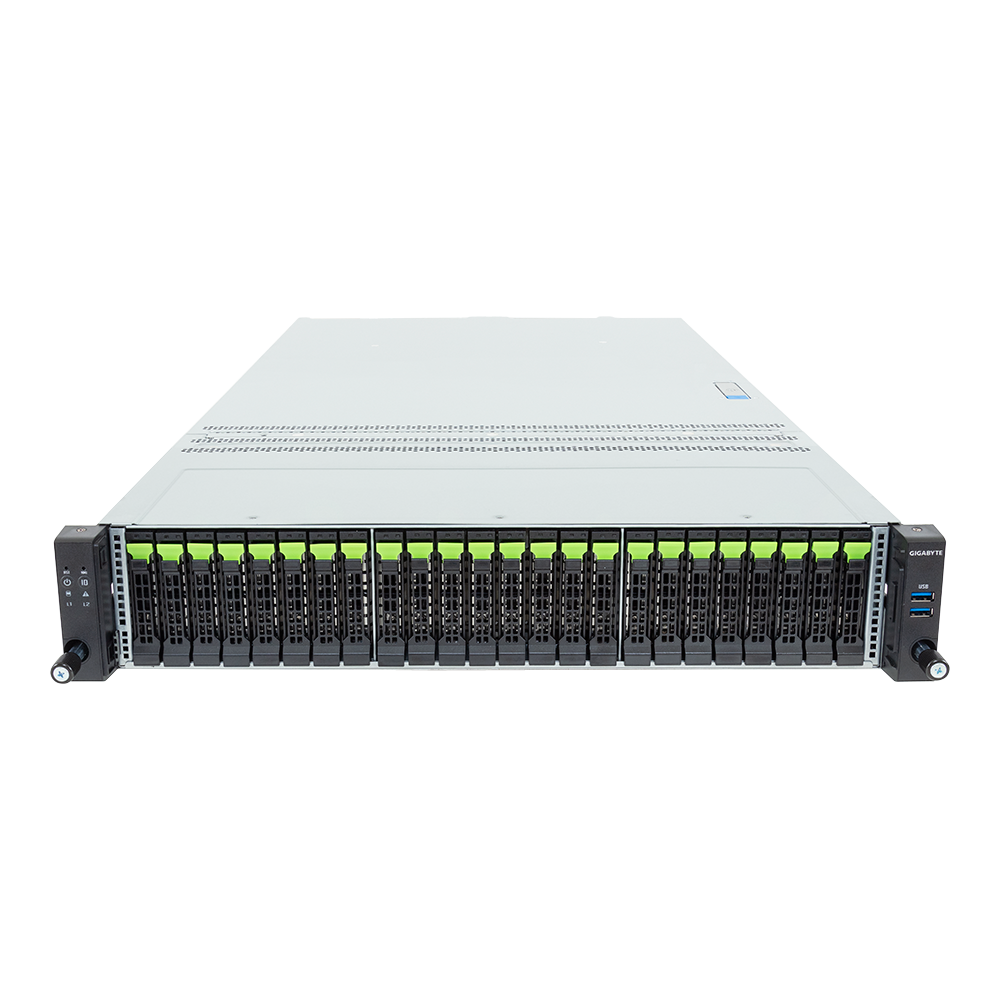

Rack Server - Intel® Xeon® 6 Processors - 2U DP 24+2-Bay Gen5 NVMe/SATA/SAS-4
Comparison Request Price
Overview Specifications
  • Dual Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MCR DIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 24 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 2 x FHHL Dual-slot PCIe Gen5 x16 slots
  • 1 x FHHL Single-slot PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 2000W 80 PLUS Titanium redundant power supplies
Dimensions

438 x 87.5 x 815
Form Factor

2U

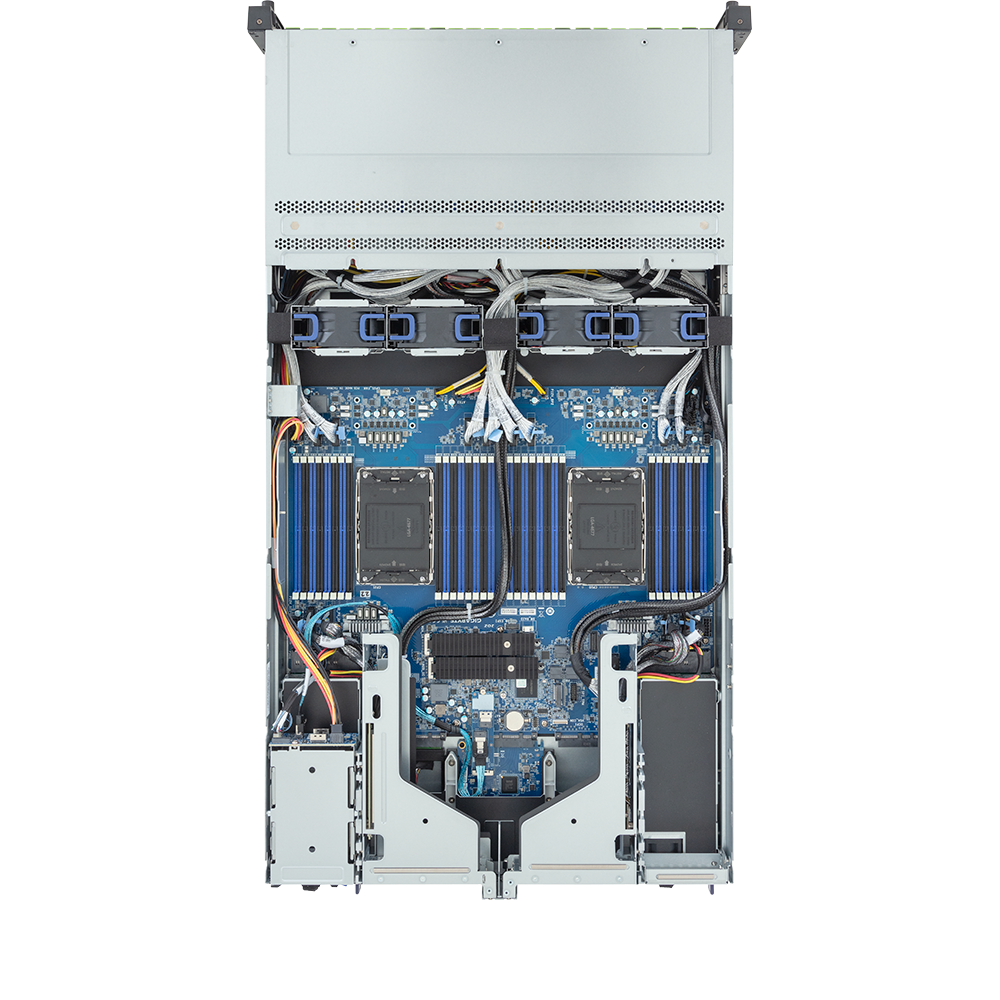

Motherboard

MS94-FS0
CPU

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 350W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4710
Socket E2
Chipset

System on Chip
Memory

32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

Network Connectivity

Rear (I/O board - CDCR010):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
- 1 x Mini-DP

Drive Bays / Storage

Front hot-swap:
24 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (12 x NVMe from CPU_0, 12 x NVMe from CPU_1)

Rear hot-swap:
2 x 2.5" SATA/SAS-4 [2]
- (SATA from CPU_0, through I/O board)

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1

Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA

[1] Storage card is required to support SATA and SAS drives.
[2] SAS card is required to support SAS drives.

Expansion Slots

PCIe Cable x 2:
- 1 x FHHL x16 (Gen5 x16), from CPU_0 (Dual-slot)
- 1 x FHHL x16 (Gen5 x16), from CPU_1 (Dual-slot)

Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1 (Single-slot)

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1, disabled for NVMe
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

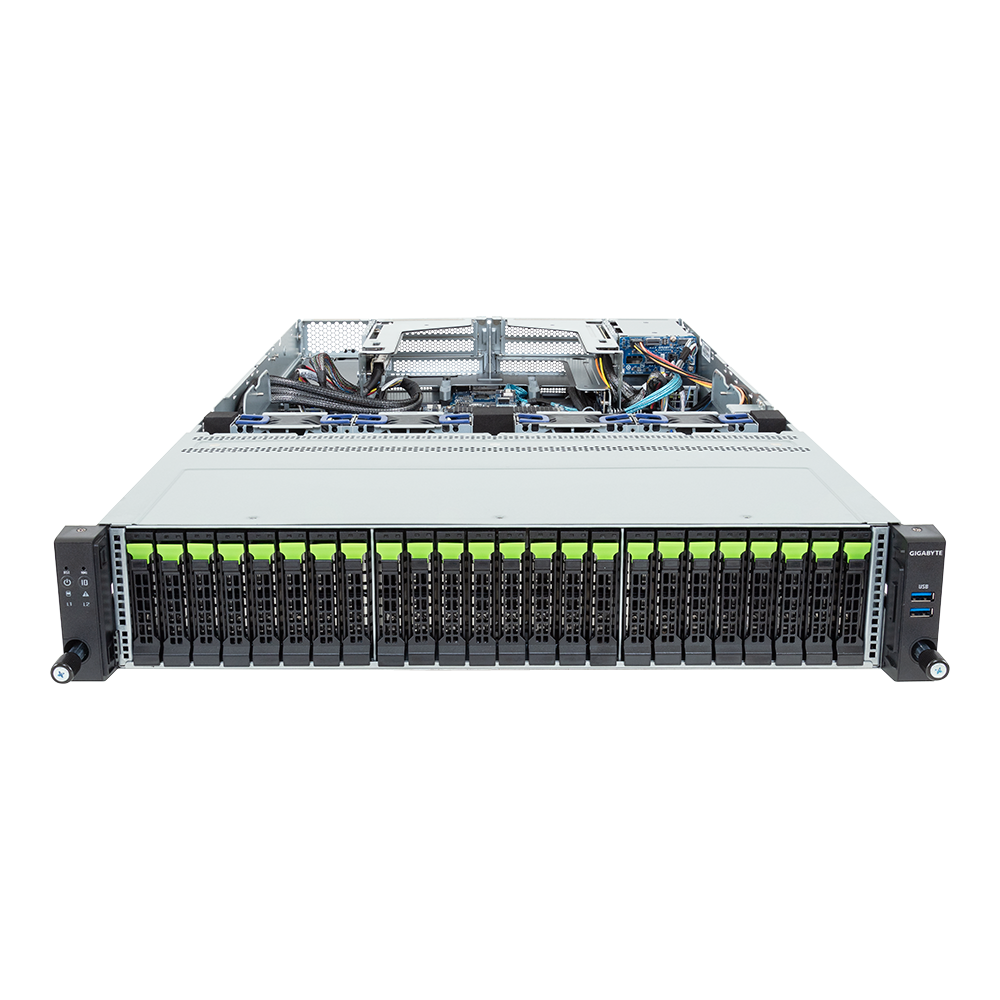

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

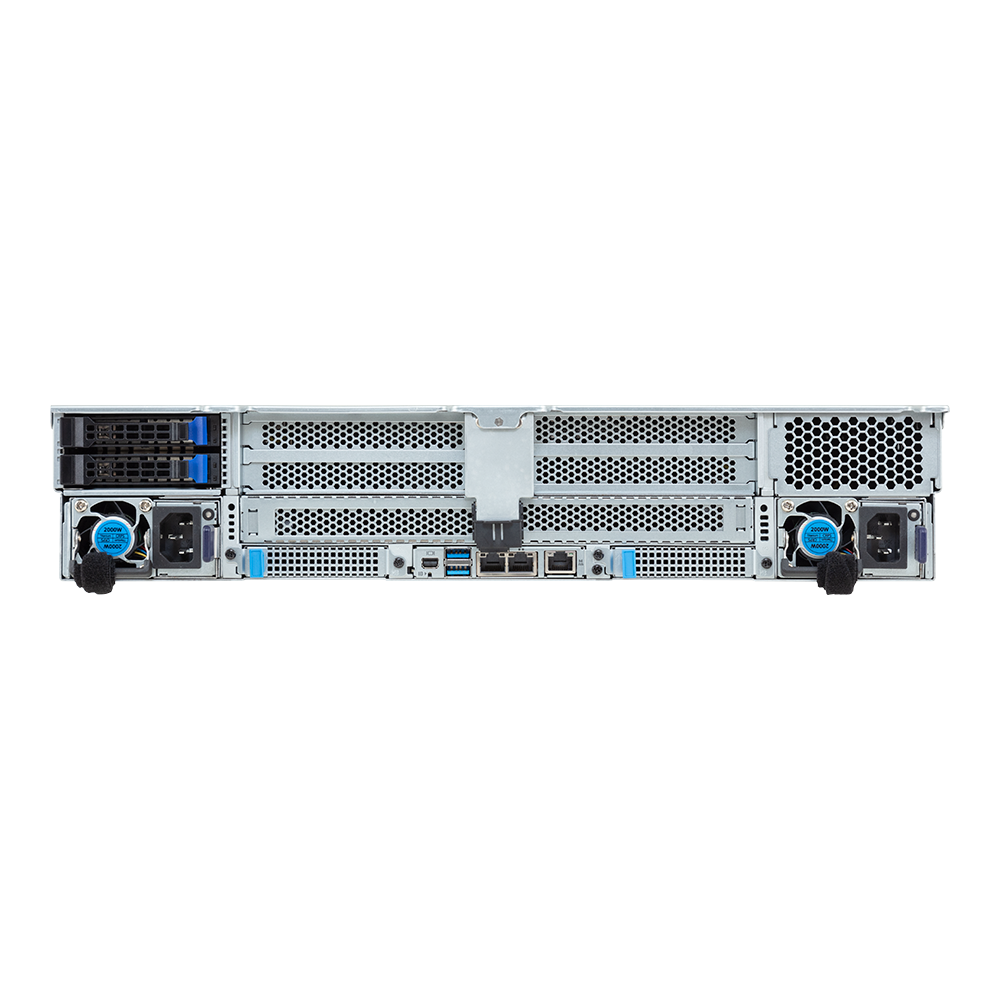

Rear I/O

I/O board - CDCR010:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
System Fans

4 x 80x80x38mm (16,000rpm)
Power Supply

1+1 2000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A

[Note] GIGABYTE provides PSUs with various energy efficiency ratings and power outputs. Please contact our sales representatives to determine the best configuration for your system.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Require SAS add-in cards
Raid

Require RAID add-in cards Onboard VROC key header
Backplane Board

Speed and bandwidth: Front side - CBP2081: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s Front side - CBP20G0: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R284-S92-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x Carriers
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR284S92DR000AAJ1* - Motherboard: 9MS94FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-323208-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP2025: 9CBP2025NR-00* - Backplane board - CBP2081: 9CBP2081NR-00* - Backplane board - CBP20G0: 9CBP20G0NR-00* - Fan module: 25ST2-88382Y-A0R - M.2 type SATA card - CRS2810: 9CRS2810NR-00* - Riser card - CRS101K: 9CRS101KNR-00* - I/O board with M.2 slot - CDCR010: 9CDCR010NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-22000L-G1S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
