R183_ZF1-AAJ1

438 x 43.5 x 815

Net Weight: 23.9 kg
Gross Weight: 25.9 kg

1U

MZF3-GP0

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 30°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 6096
Socket SP5

System on Chip

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

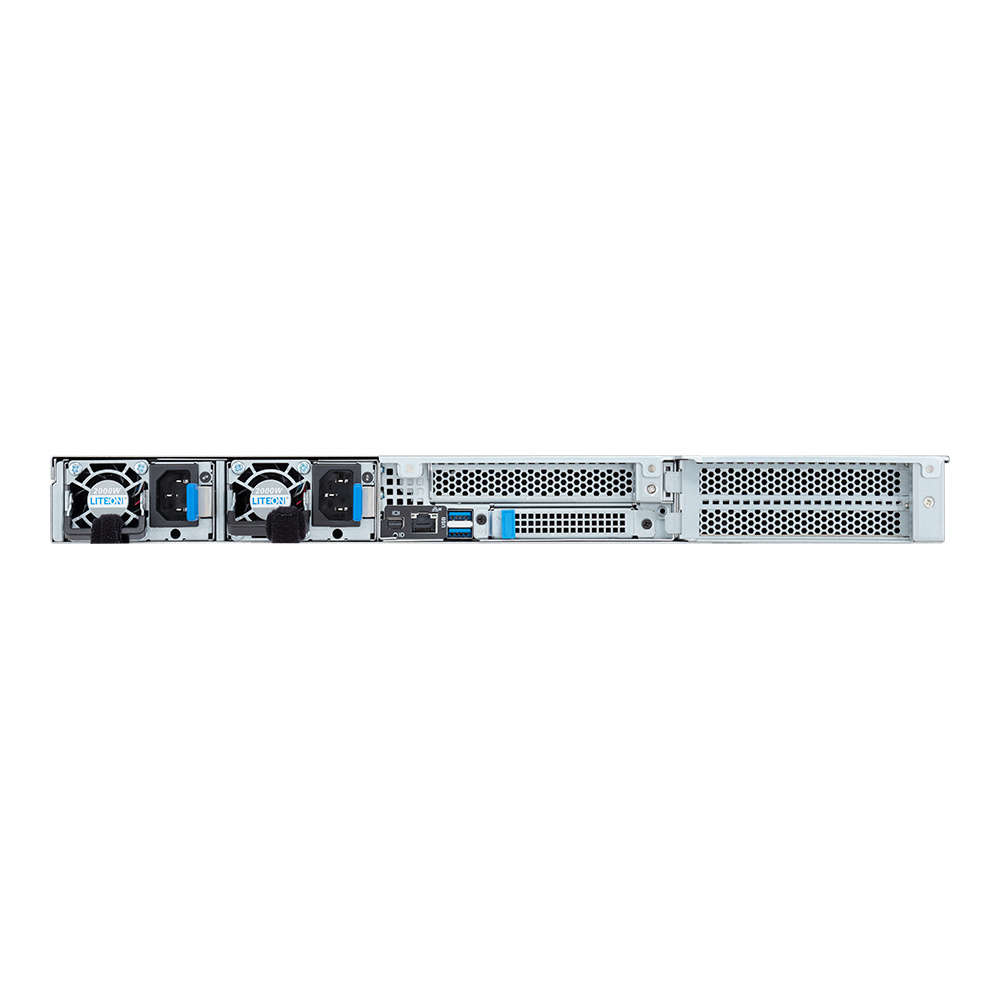

Rear side:
1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

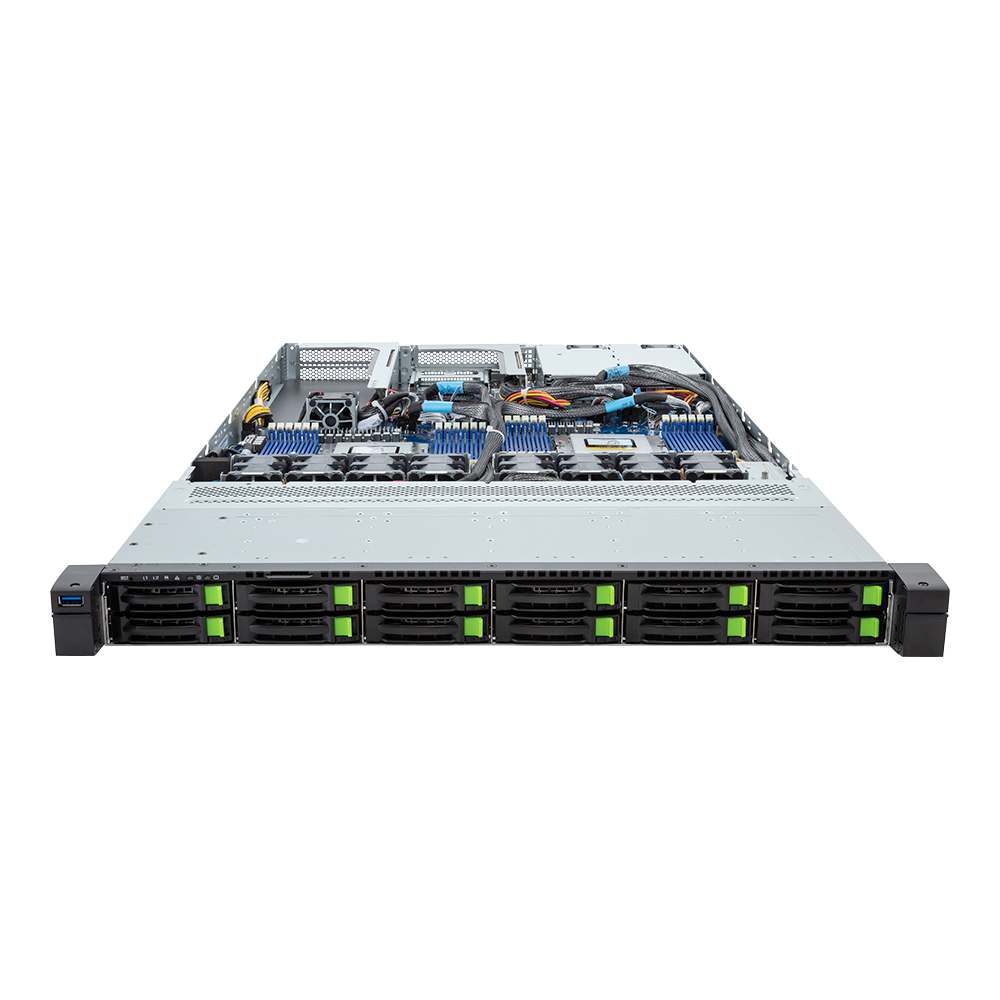

Front side:
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0, 6 x SATA via CRS2810 from CPU_1)

SAS card is required for SAS devices support

Note: SATA hotplug utility can be downloaded on support page.

PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, occupied when Dual slot GPU is inserted
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280 cards
- Occupied by CRS2810 - 6 x SATA ports

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED

1 x 40x40x28mm (34,000rpm)
8 x 40x40x56mm (32,000rpm)

1+1 2000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Depends on SAS add-in cards

N/A

1 x TPM header

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Please refer to OS compatibility table in support page

1038 x 588 x 273 mm

1 x R183-ZF1-AAJ1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

- Barebone package: 6NR183ZF1DR000AAJ1* - Motherboard: 9MZF3GP0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-453400-M1R - Front panel board - CFP1030: 9CFP1030NR-00 - Backplane board - CBP10C2: 9CBP10C2NR-00 - Fan module 40x40x28mm: 25ST2-44282I-N2R - Fan module 40x40x56mm: 25ST2-40562H-A0R - M.2 type SATA card - CRS2810: 9CRS2810NR-00 - I/O board - CBG70: 9CBG70NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-22000J-G1S

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR183ZF1SR-RMA-A100
