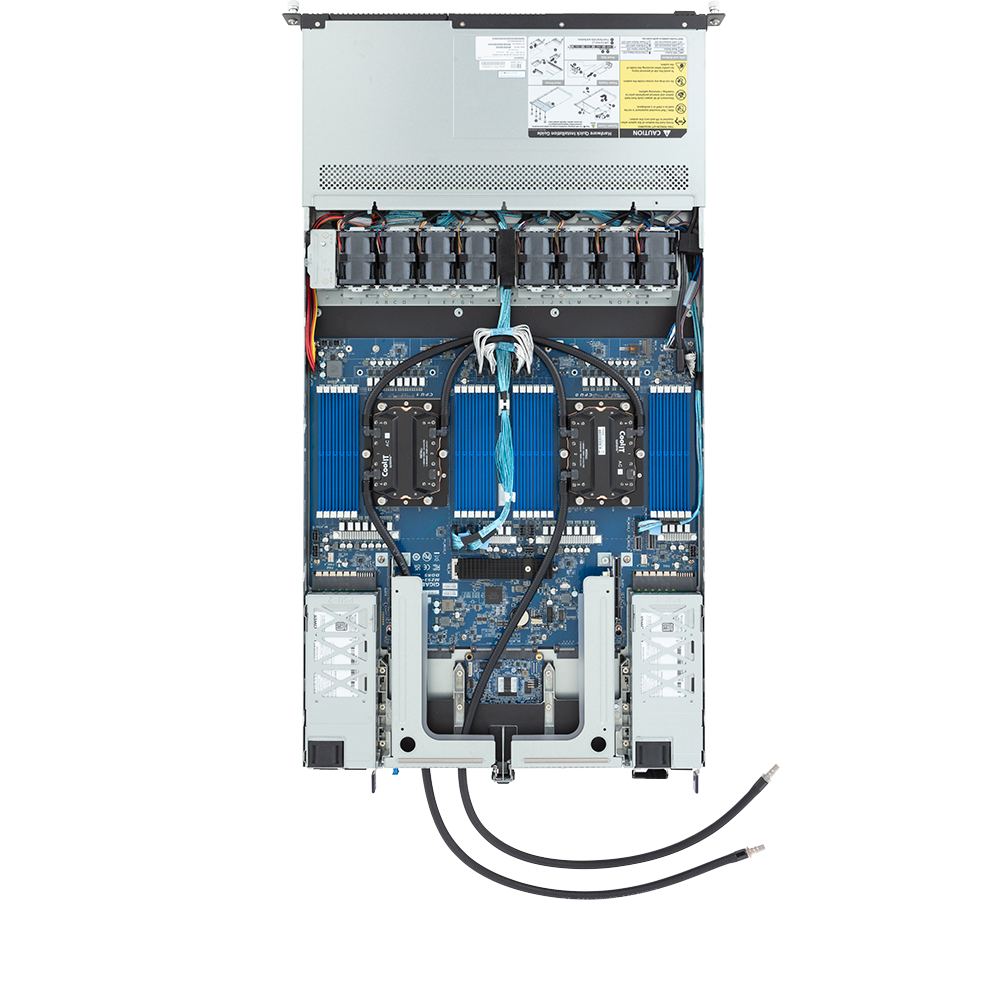

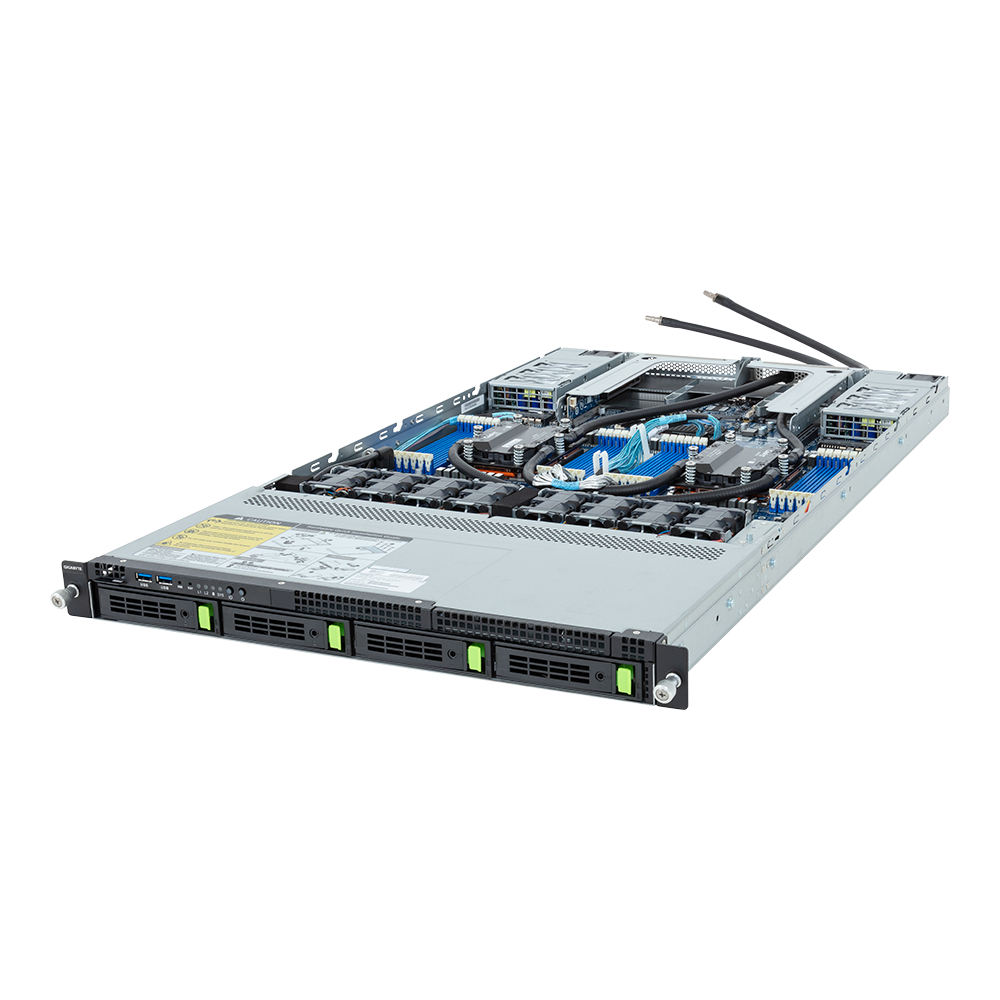

R183_Z90- LAD1

Rack Server - AMD EPYC™ 9004 - 1U DP 4-Bay Gen4 NVMe/SATA/SAS DLC
Comparison Request Price
Overview Specifications
  • Direct liquid cooling solution
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • 2 x OCP 3.0 Gen5 x16 slots
  • 1+1 1600W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 43.5 x 815
Weight

Net Weight: 24.4 kg
Gross Weight: 26.4 kg
Form Factor

1U
Motherboard

MZ93-FS0
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128 cores, 256 threads per processor
cTDP up to 400W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

Front side:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

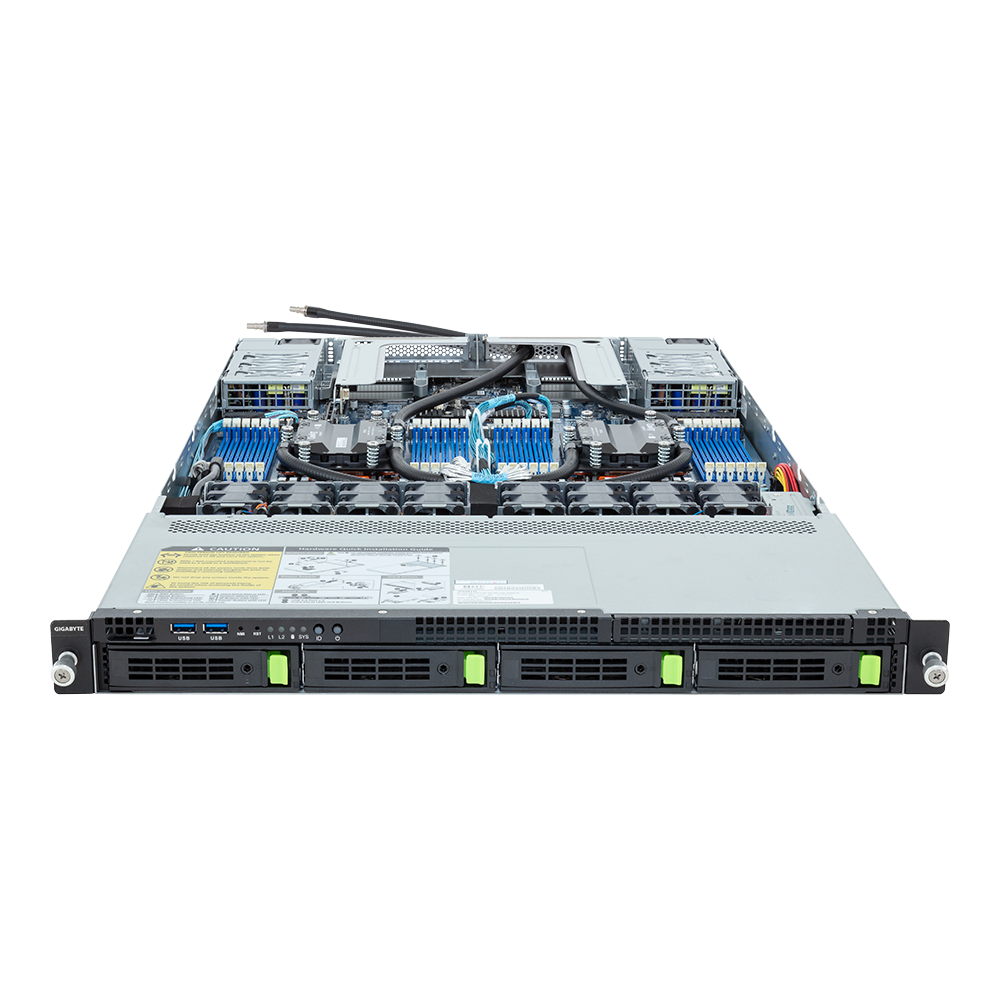

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

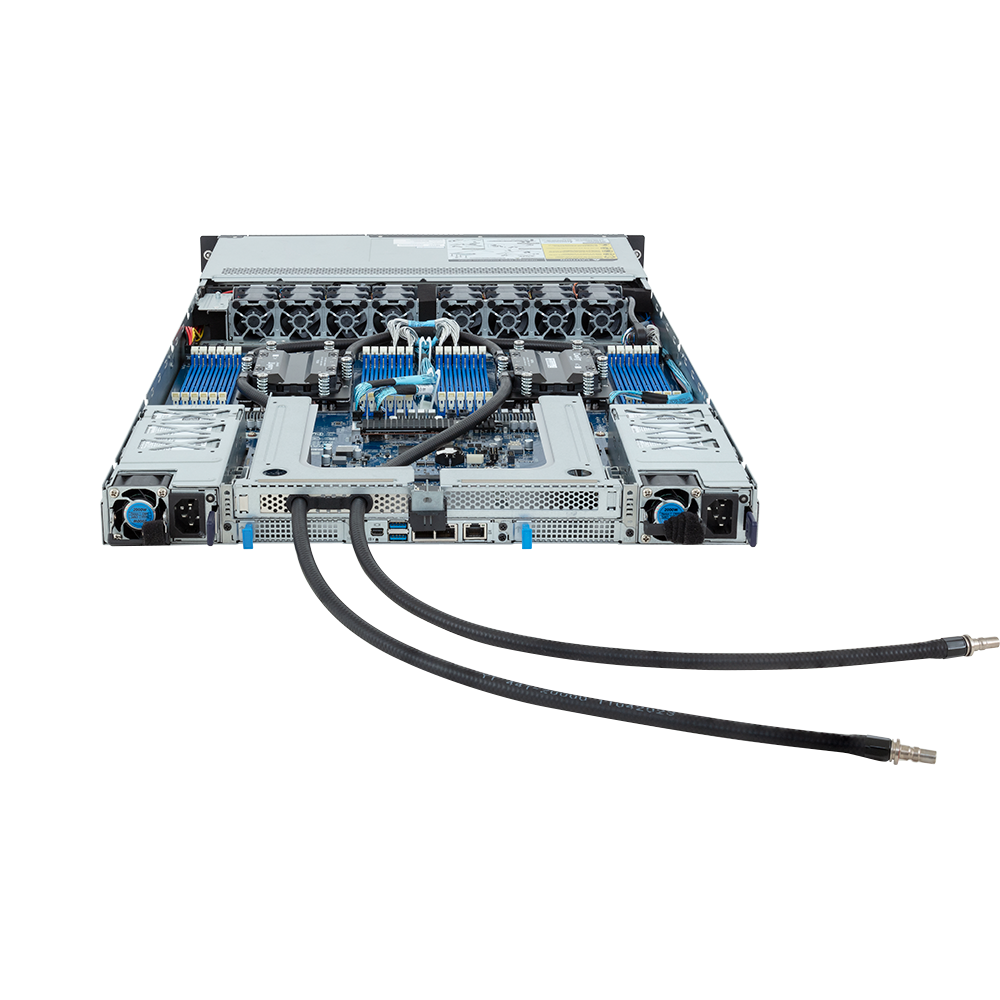

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
System Fans

8 x 40x40x56mm (32,000rpm)
Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Note:
1) The ambient temperature and relative humidity of the environment depend on the inlet supply water temperature and the coolant flow rate.
2) If the relative humidity surpasses 60%, maintain the inlet water temperature between 40°C and 45°C to prevent condensation and ensure optimal system performance.
Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1086 x 588 x 261 mm
Packaging Content

1 x R183-Z90-LAD1
1 x CoolIT CPU cold plate loop
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
Part Numbers

- Barebone w/ cold plates: 6NR183Z90DR000LAD1* - Barebone w/o cold plates: 6NR183Z90DZ000LAD1* - Motherboard: 9MZ93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CoolIT CPU cold plate loop: 25ST7-20000G-C4R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP1010: 9CFP1010NR-00 - Backplane board - CBP1047: 9CBP1047NR-00 - Fan module: 25ST2-40562H-A0R - Riser card - CRS101T: 9CRS101TNR-00 - G-SCM board - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-21600C-L0S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- CoolIT Leak sensor board: 6NR183Z90S1000LAD10
- RMA packaging: 6NR183Z90SR-RMA-L100
Additional Certifications

Red Hat Enterprise Linux 8.6 (x86_64) or later
Red Hat Enterprise Linux 9.0 (x86_64) or later
Windows Server 2022 (x64)
Riser Card

CRS101T: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
