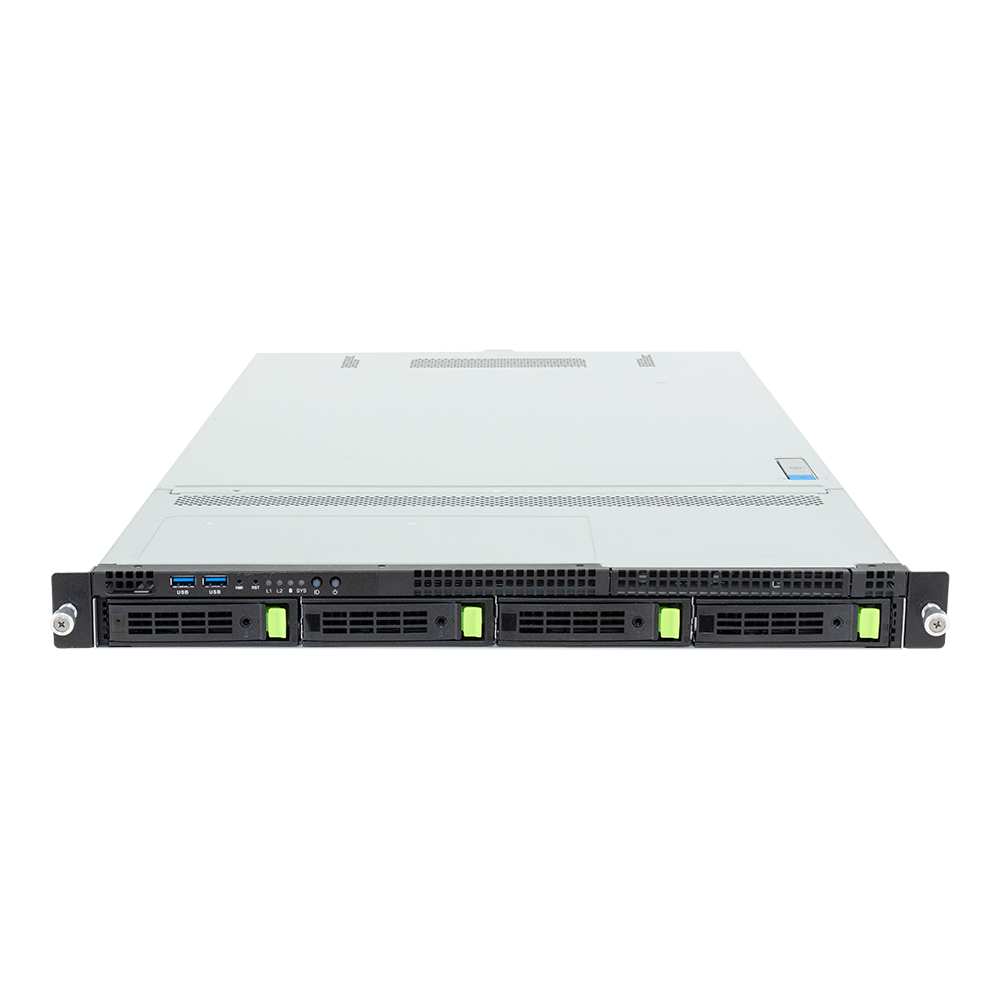

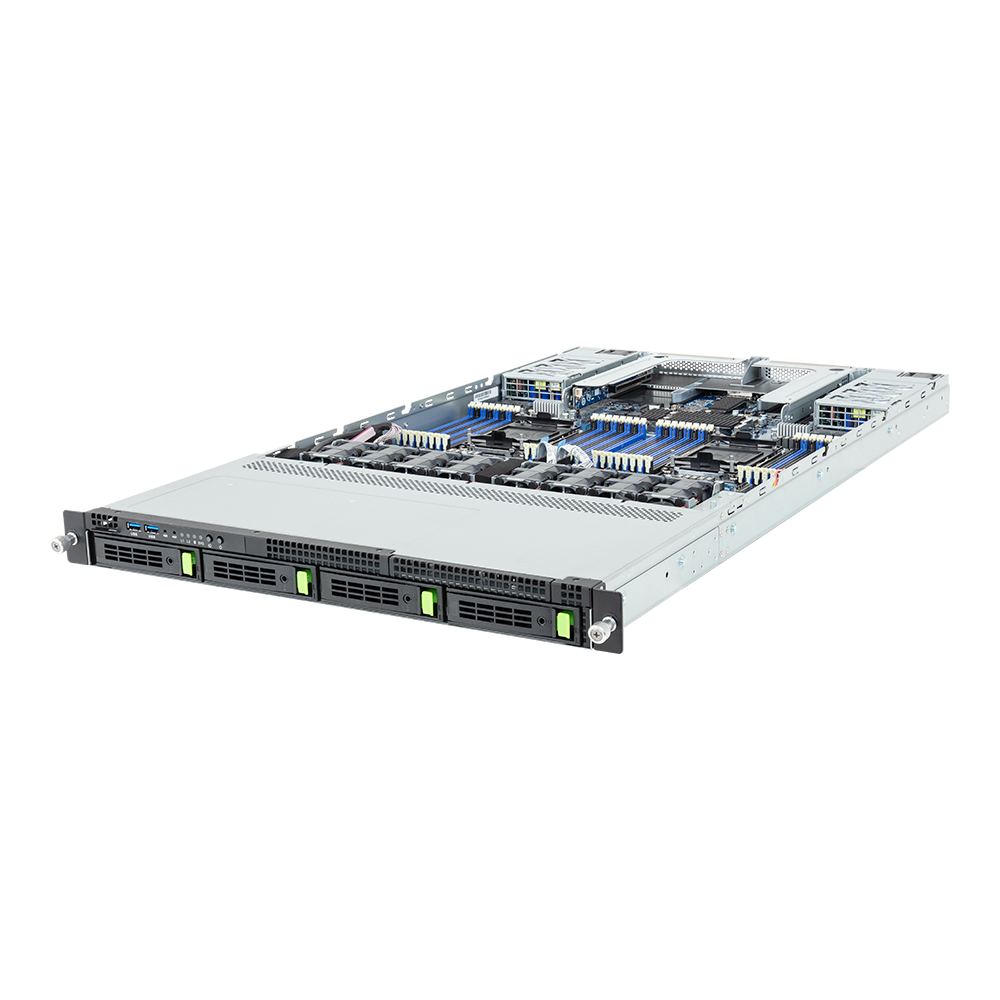

R184_S90-AAV1

438 x 43.5 x 815

1U

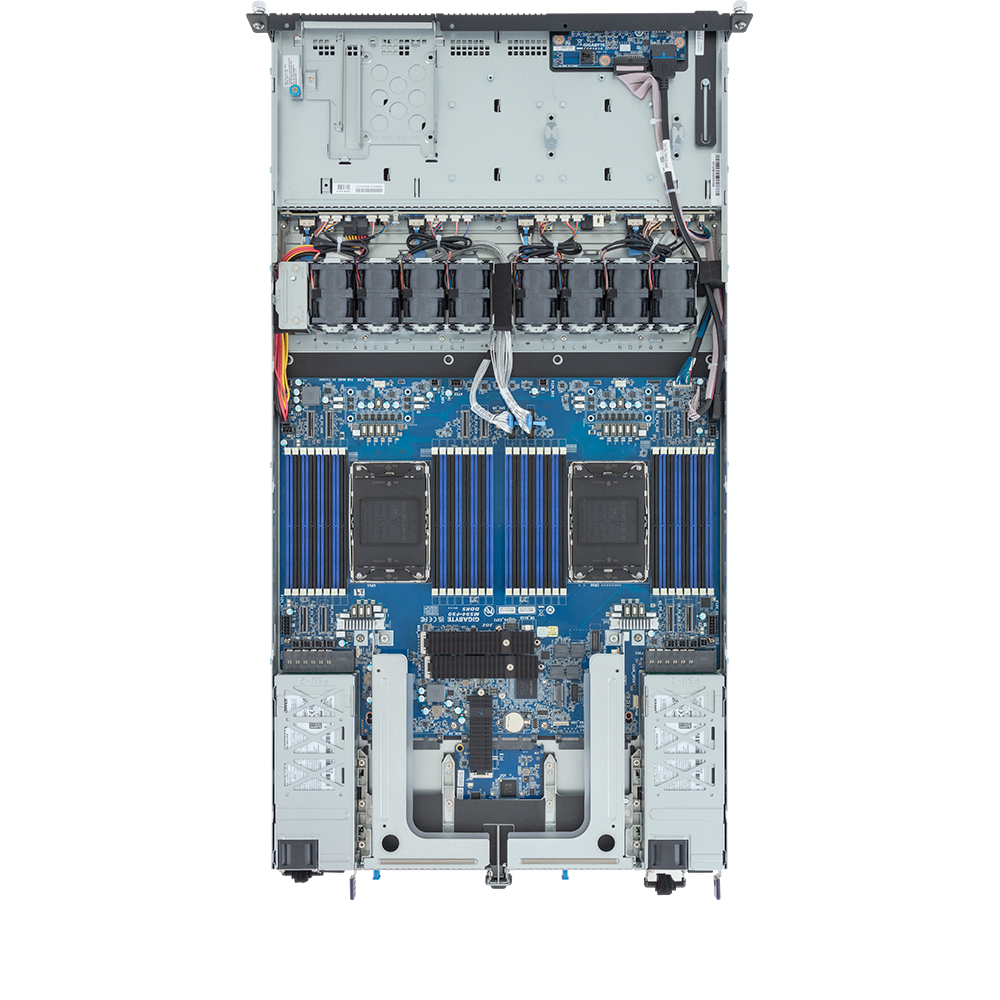

MS94-FS0

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 350W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 4710
Socket E2

System on Chip

32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

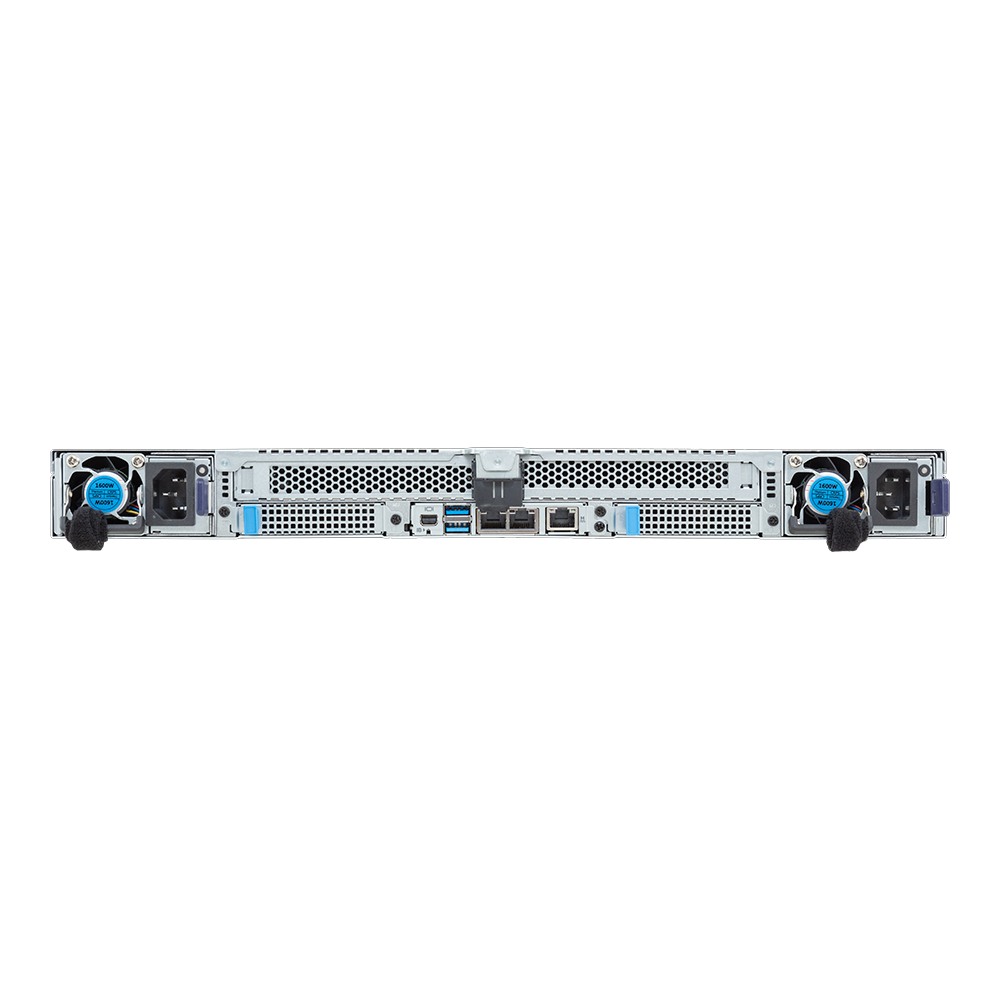

Rear (I/O board - CDCR010):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
- 1 x Mini-DP

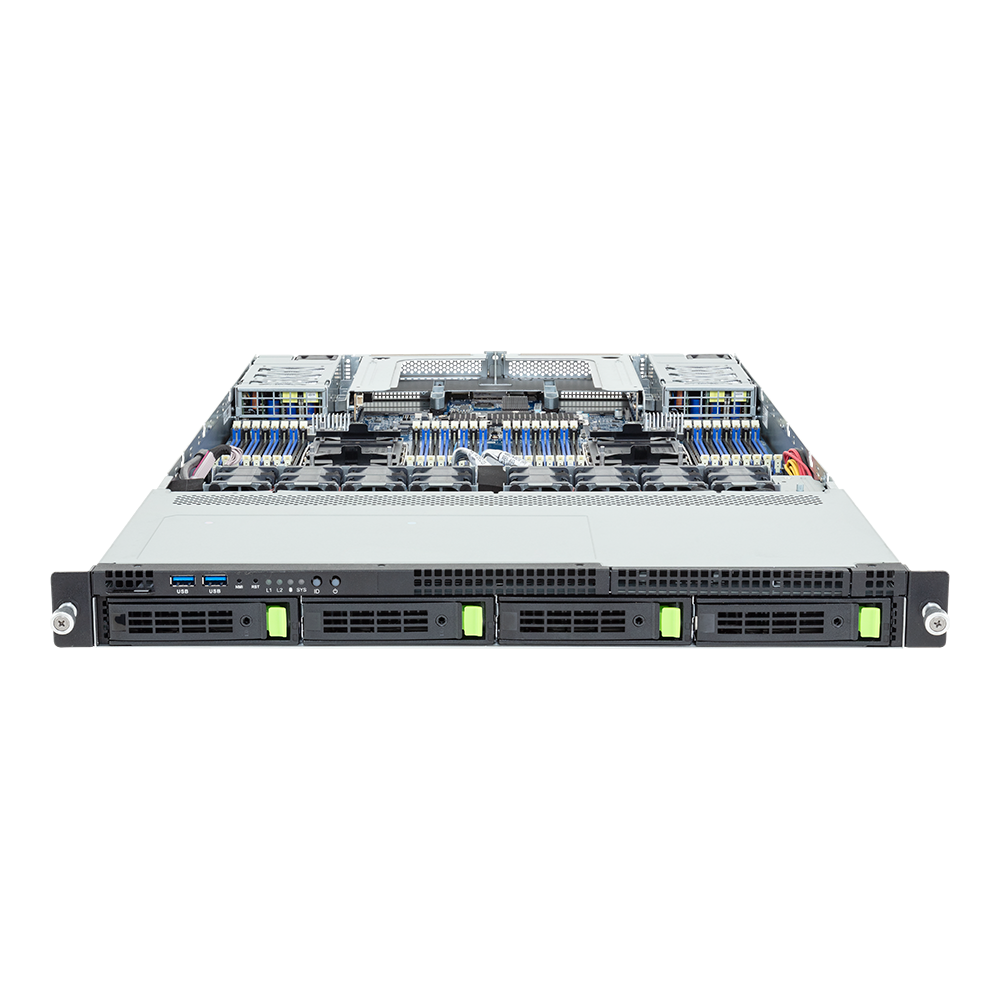

Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from CPU_0)

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1

Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0

[1] Storage card is required to support SATA and SAS drives.

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

I/O board - CDCR010:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

8 x 40x40x56mm (32,000rpm)

1+1 1600W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A

[Note] GIGABYTE provides PSUs with various energy efficiency ratings and power outputs. Please contact our sales representatives to determine the best configuration for your system.

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Require SAS add-in cards

Require RAID add-in cards Onboard VROC key header

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Please refer to OS compatibility table in support page

1045 x 595 x 249 mm

1 x R184-S90-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x Carriers
1 x 2-Section Rail kit

- Barebone package: 6NR184S90DR000AAV1* - Motherboard: 9MS94FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3201-S7H - M.2 heatsink (2280): 12SP2-080027-00R - M.2 heatsink (22110): 12SP2-11000E-00R - Front panel board - CFP1010: 9CFP1010NR-00* - Backplane board - CBP1048: 9CBP1048NR-00* - Fan module: 25ST2-40562H-A0R - Riser card - CRS101J: 9CRS101JNR-00* - Riser card - CRS101K: 9CRS101KNR-00* - I/O board with M.2 slot - CDCR010: 9CDCR010NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-21600I-G1S

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R

CRS101J: - 1 x FHHL x16 (Gen5 x16), from CPU_0 CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1
