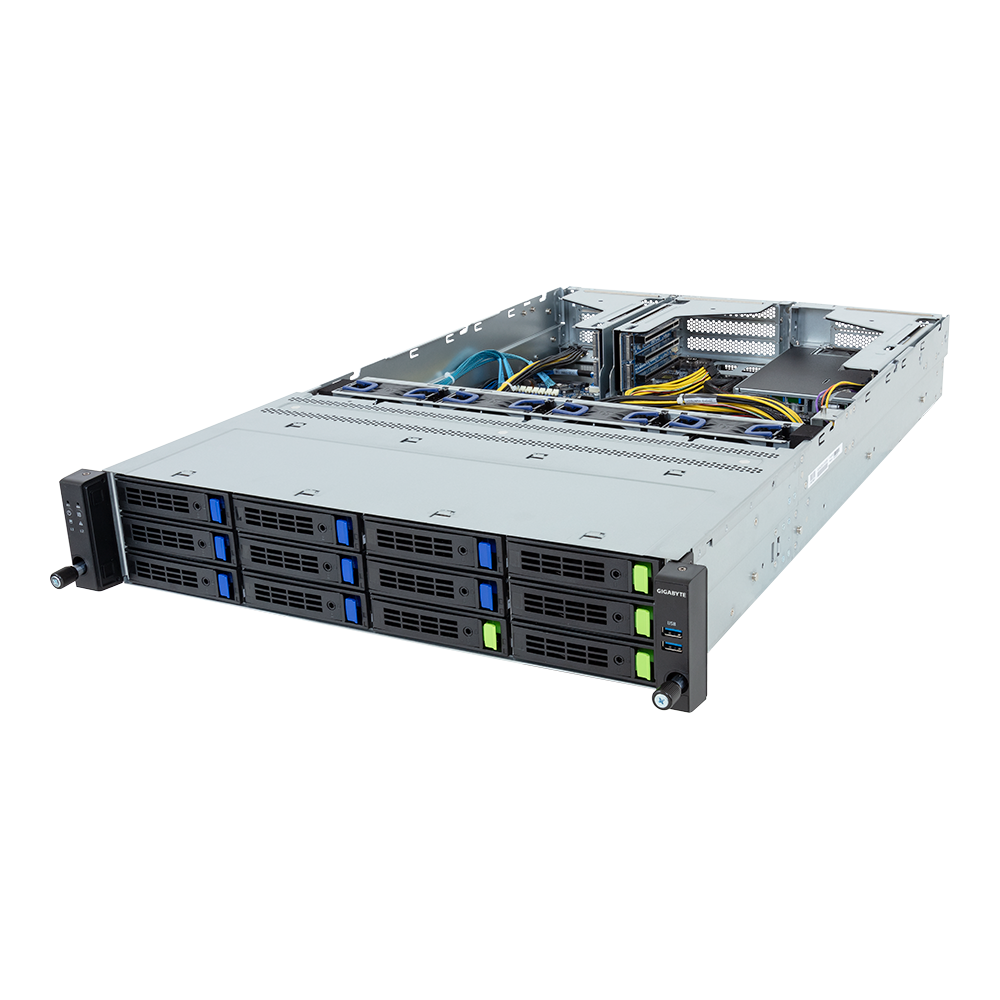

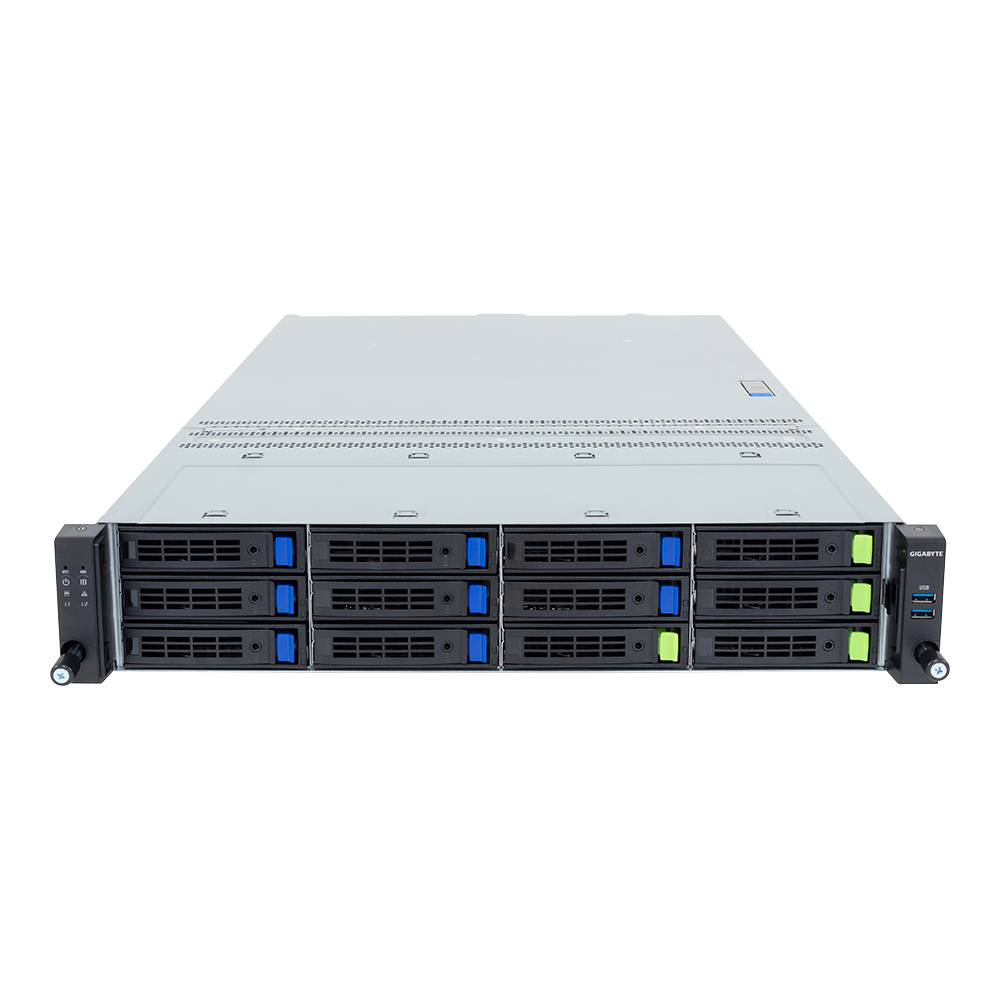

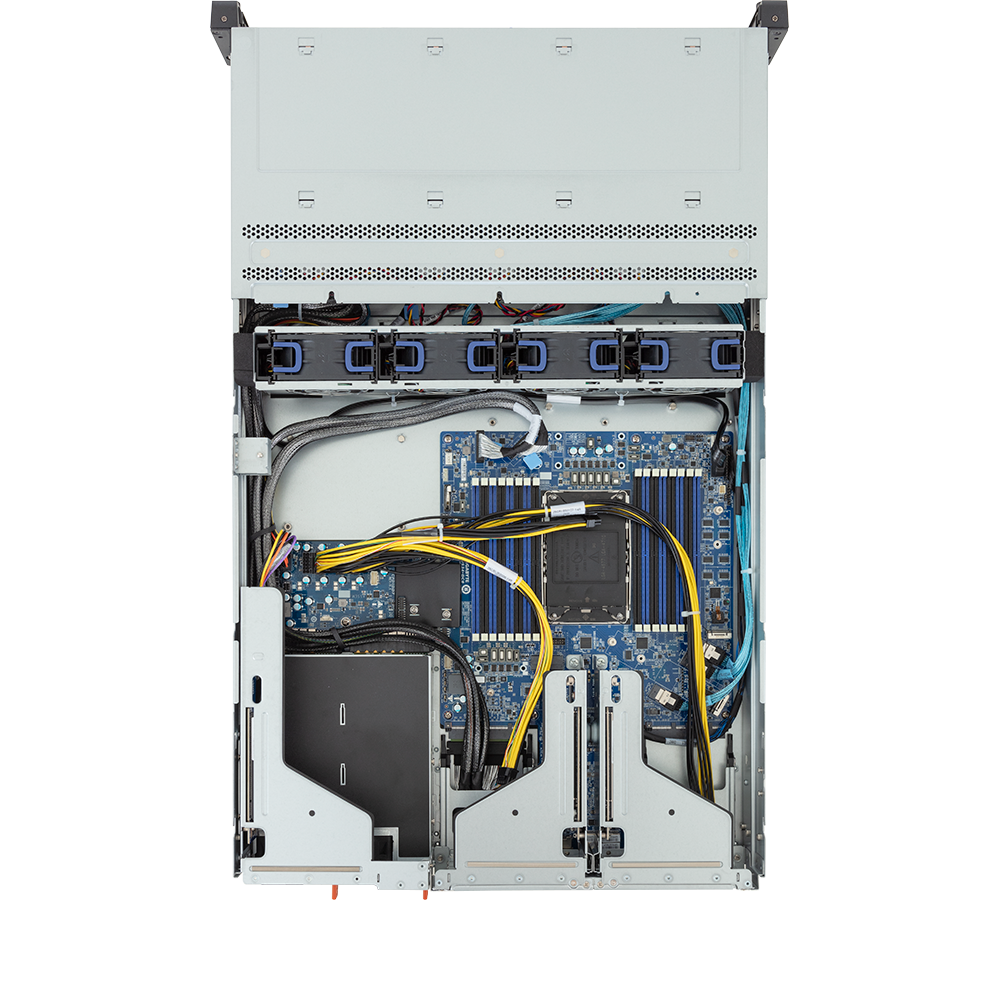

R264_S33-AAL1

Rack Server - Intel® Xeon® 6 Processors - 2U UP 3 x PCIe Gen5 GPUs
Comparison Request Price
Overview Specifications
  • Supports up to 3 x Dual slot Gen5 GPUs
  • Single Intel® Xeon® 6 Processors, LGA 4710
  • 8-Channel DDR5 RDIMM / MCR DIMM, 16 x DIMMs
  • Dual ROM Architecture
  • 1 x 1Gb/s LAN port via Intel® I210-AT
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 8 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
  • 1 x M.2 slot with PCIe Gen5 x2 interface
  • 3 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
Dimensions

438 x 87.5 x 710
Form Factor

2U
Motherboard

MS34-DC0
CPU

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Single processor, TDP up to 350W
Socket

1 x LGA 4710
Socket E2
Chipset

System on Chip
Memory

16 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
Network Connectivity

Rear:
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
- 1 x Mini-DP
Drive Bays / Storage

Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
8 x 3.5"/2.5" SATA/SAS-4 [1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, disabled for SATA

[1] SAS card is required to support SAS drives.
Expansion Slots

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), disabled for NVMe

Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

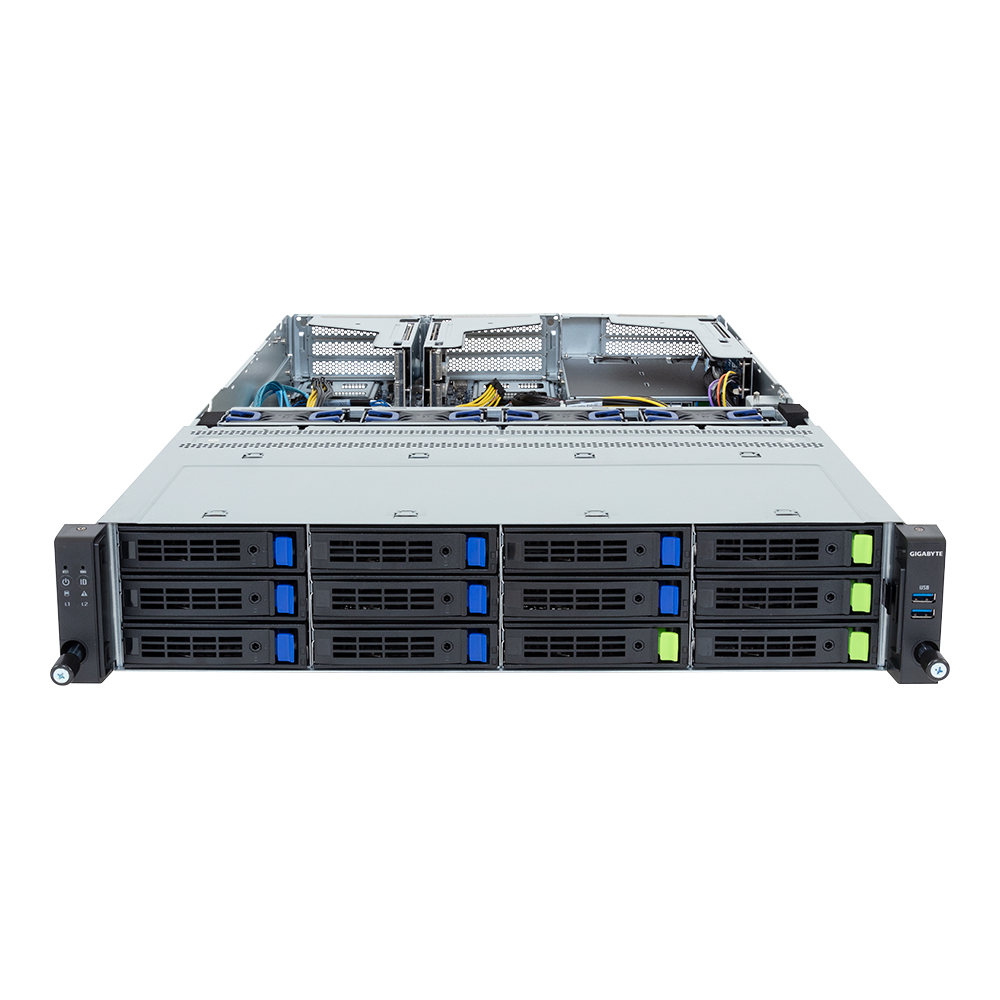

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED
Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

1+1 2700W 80 PLUS Titanium redundant power supplies [1]

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Require SAS add-in cards
Raid

Require RAID add-in cards Onboard VROC key header
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

989 x 594 x 279 mm
Packaging Content

1 x R264-S33-AAL1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 250mm)
1 x GPU power cable (12VHPWR, 350mm)
1 x GPU power cable (12VHPWR, 550mm)
2 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR264S33DR000AAL1* - Motherboard: 9MS34DC0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R - CPU heatsink: 25ST1-4Z3200-S7R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20C7: 9CBP20C7NR-00* - Fan module: 25ST2-88382N-S1R - Riser card - CRS2018: 9CRS2018NR-00* - Riser card - CRS201C: 9CRS201CNR-00* - Riser card - CRS201D: 9CRS201DNR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R - GPU power cable (12VHPWR, 350mm): 25CRI-350006-Y4R - GPU power cable (12VHPWR, 550mm): 25CRI-550107-Y4R - Power supply: 25EP0-227000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
Riser Card

CRS201C: - 1 x FHFL x16 (Gen5 x16), for GPUs CRS201D: - 1 x FHFL x16 (Gen5 x16), for GPUs CRS2018: - 1 x FHFL x16 (Gen5 x16), for GPUs
