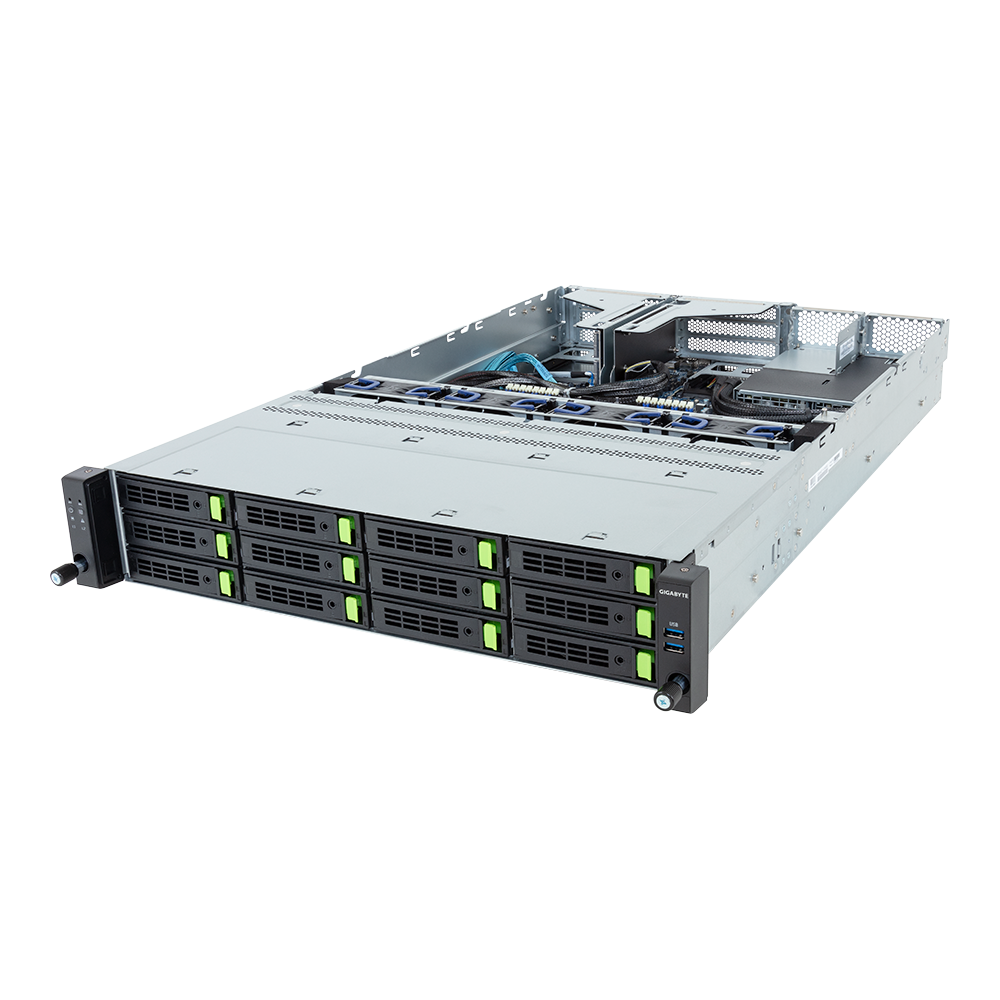

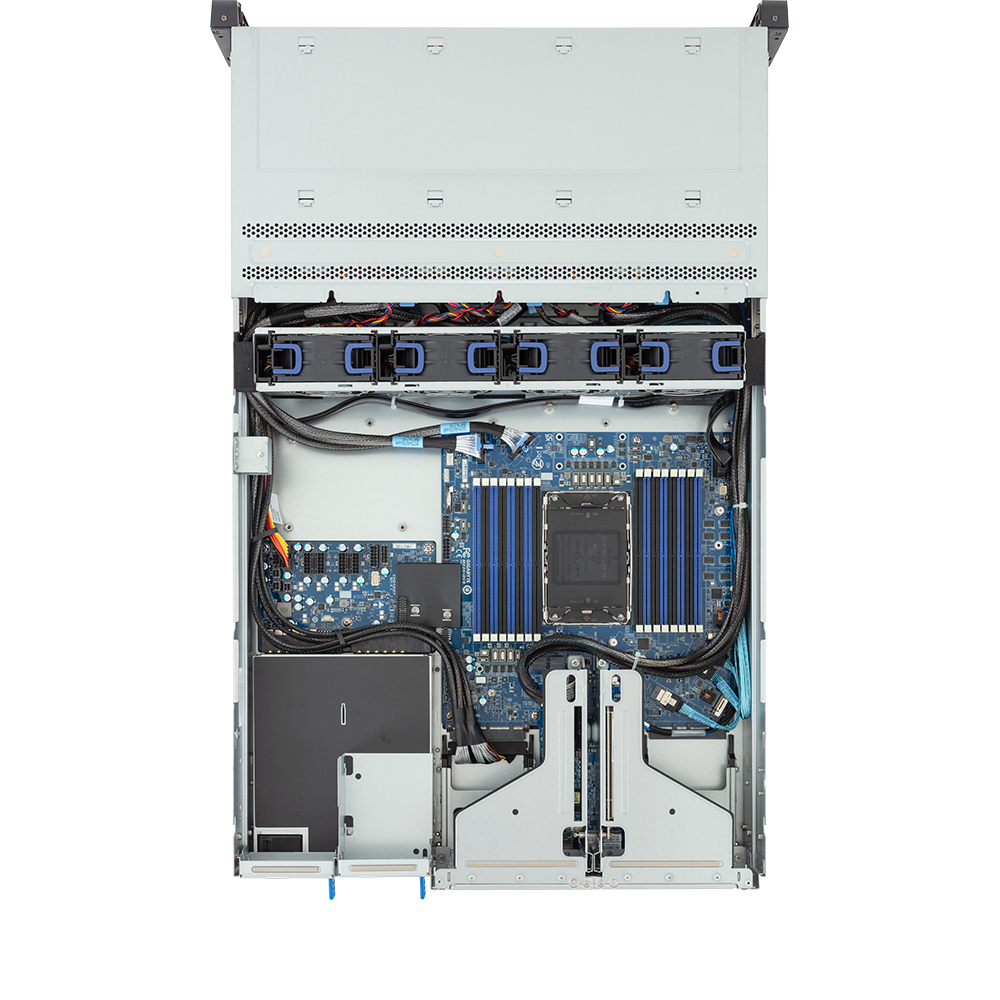

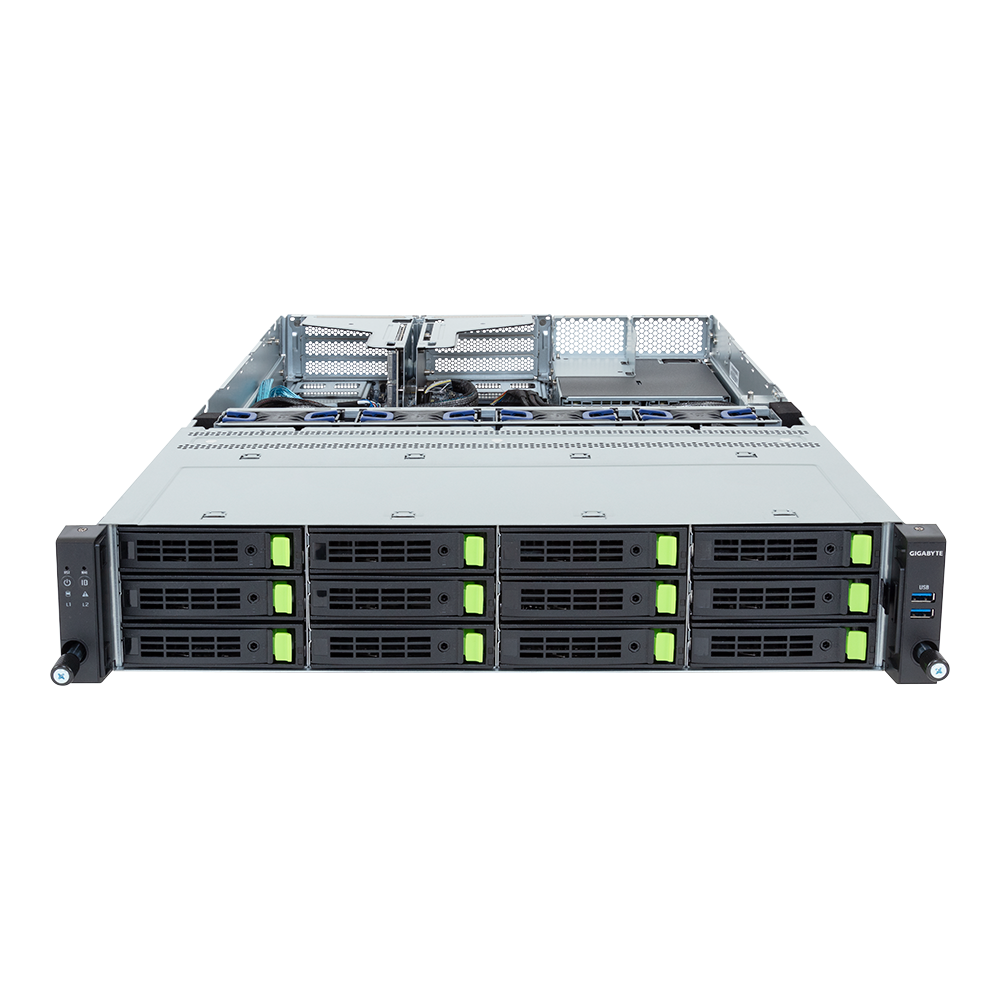

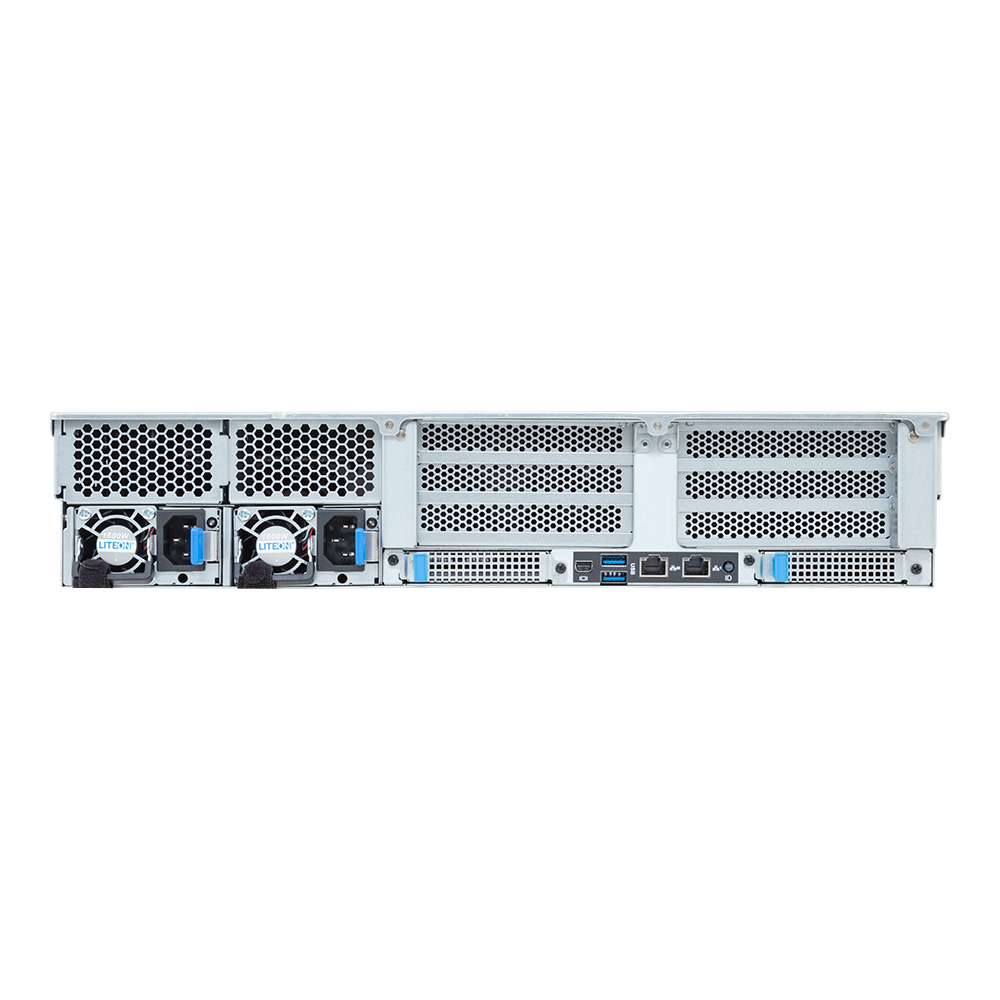

R264_S30-AAV1

438 x 87.5 x 710

2U

MS34-DC0

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Single processor, TDP up to 350W

1 x LGA 4710
Socket E2

System on Chip

16 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

Rear:
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
- 1 x Mini-DP

Front hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA [2]

[1] SAS card is required to support SAS drives.
[2] To enable the M.2 slot, please adjust the switch according to the manual for proper support.

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), disabled for NVMe

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED

4 x 80x80x38mm (18,300rpm)

1+1 1600W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A

[Note] GIGABYTE provides PSUs with various energy efficiency ratings and power outputs. Please contact our sales representatives to determine the best configuration for your system.

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Require SAS add-in cards

Require RAID add-in cards Onboard VROC key header

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Please refer to OS compatibility table in support page

989 x 594 x 279 mm

1 x R264-S30-AAV1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
2 x Carriers
1 x 2-Section Rail kit

- Barebone package: 6NR264S30DR000AAV1* - Motherboard: 9MS34DC0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R - CPU heatsink: 25ST1-323208-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20C7: 9CBP20C7NR-00* - Fan module: 25ST2-88382N-S1R - Riser card - CRS201C: 9CRS201CNR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-21600I-G1S

- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R

CRS201C: - 1 x FHHL x16 (Gen5 x16)
