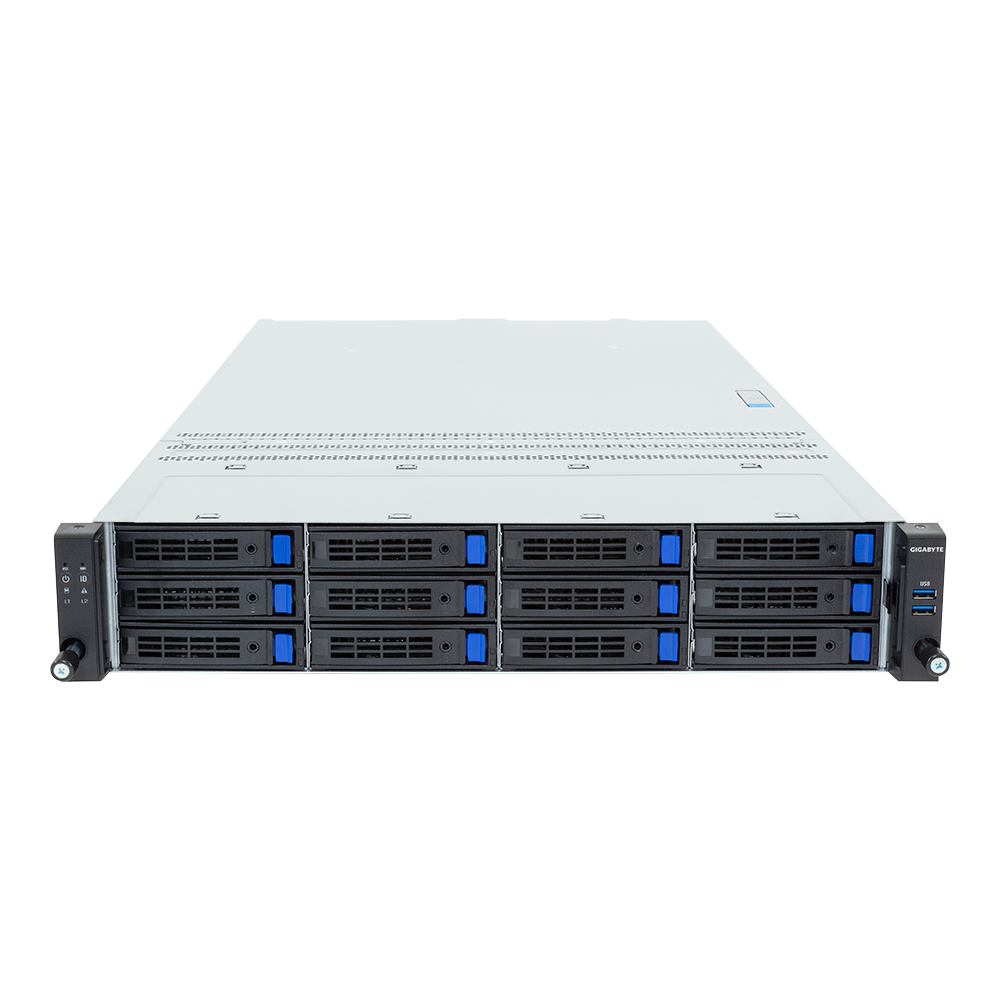

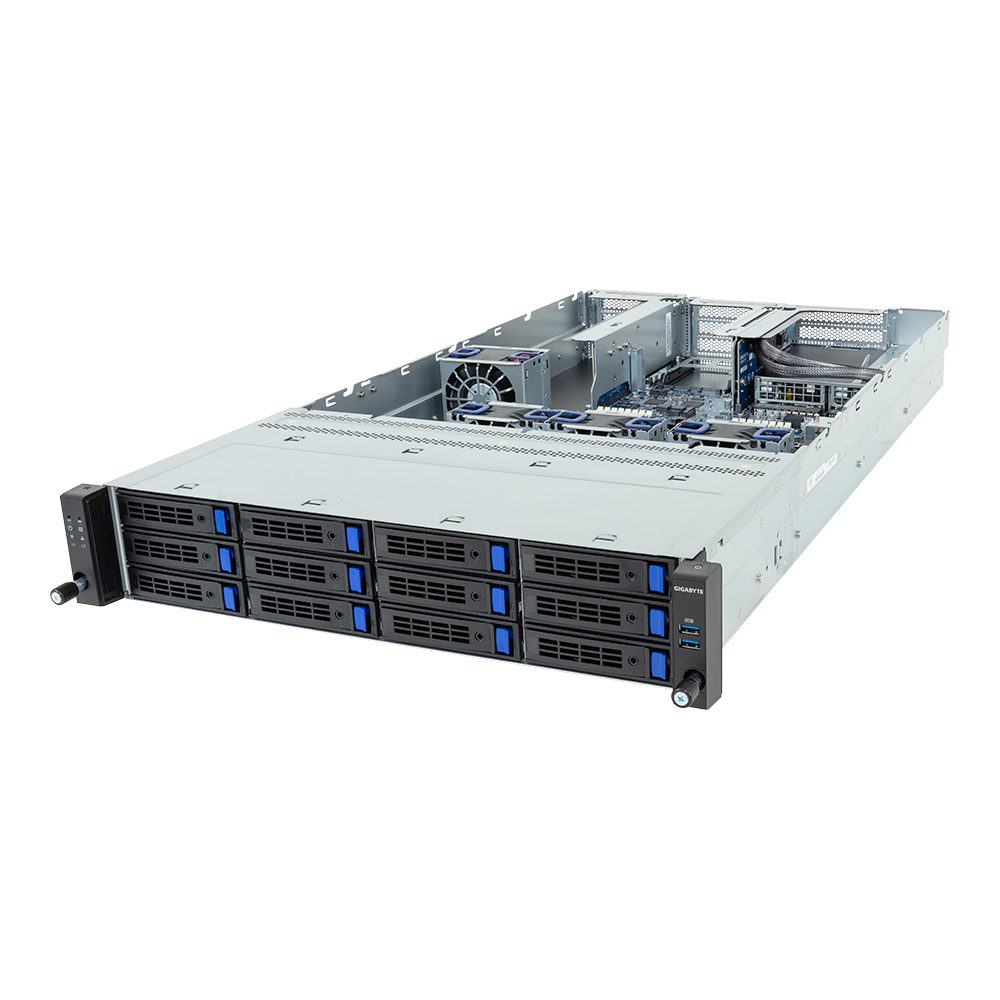

R264_SG0-AAS1

438 x 87.5 x 815

2U

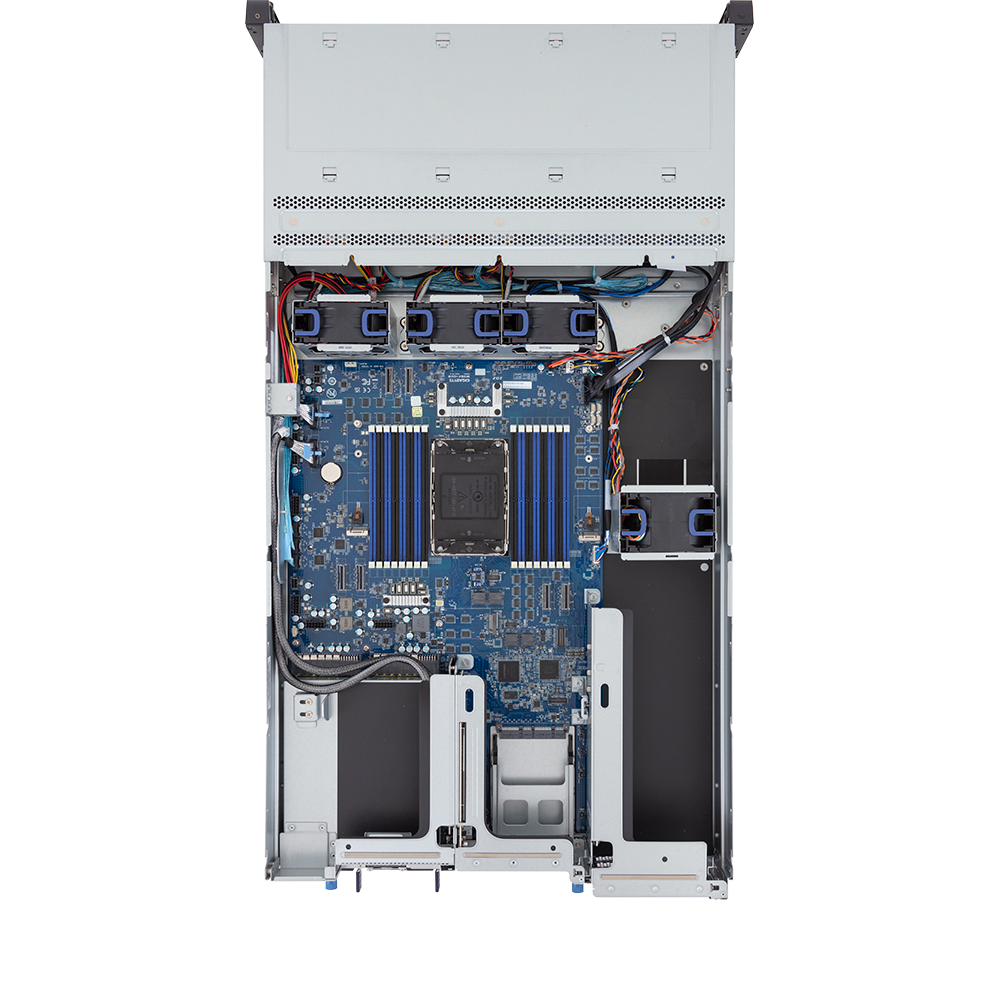

MSG4-GU0

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Single processor, TDP up to 350W

1 x LGA 4710
Socket E2

System on Chip

16 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

[1] MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

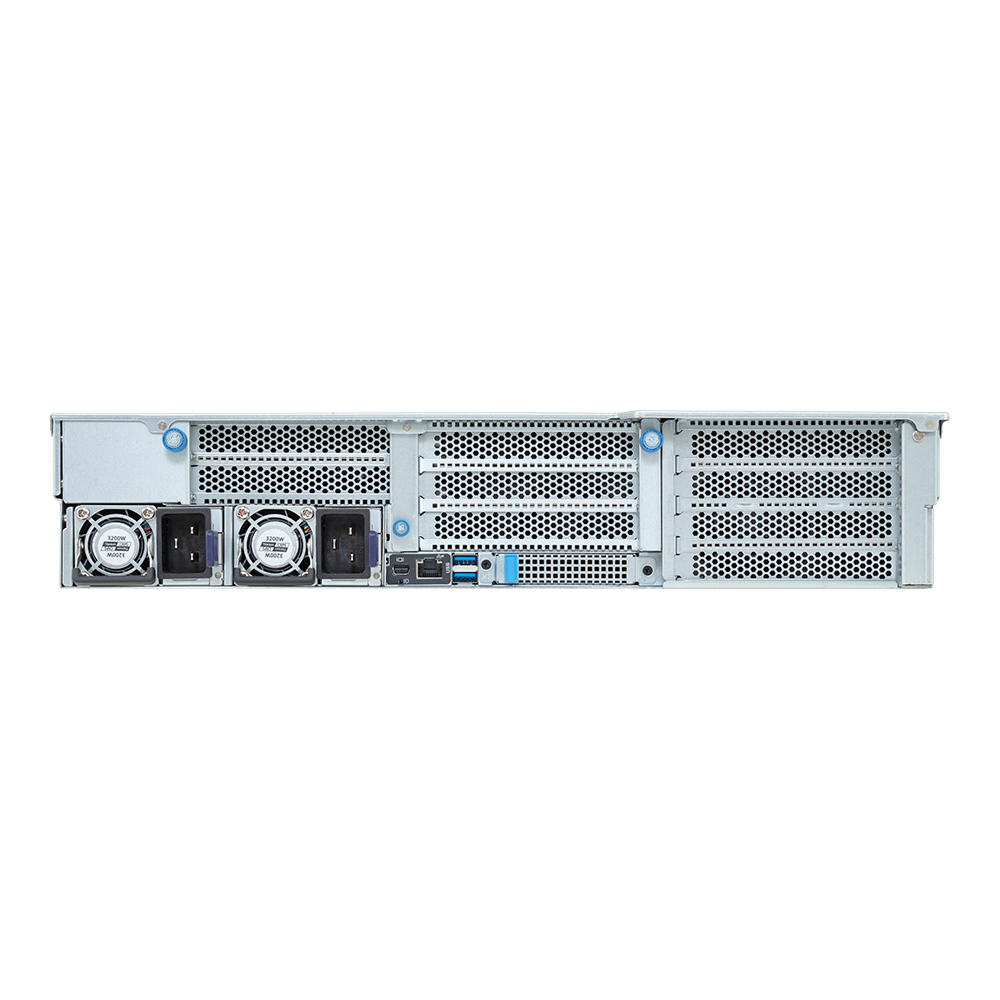

Rear:
1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
- 1 x Mini-DP

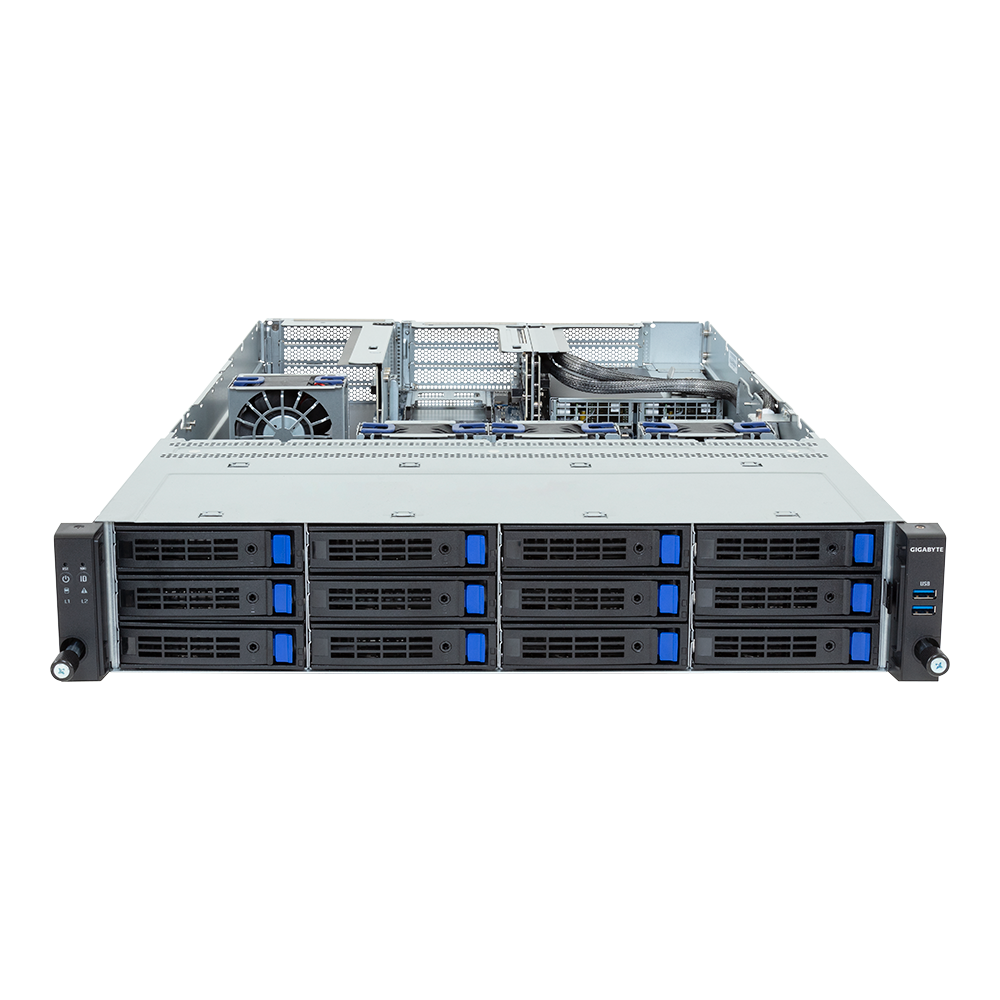

Front hot-swap:
12 x 3.5"/2.5" SATA/SAS-4 [1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, disabled for SATA

[1] SAS card is required to support SAS drives.

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED

3 x 80x80x38mm (18,300rpm)
1 x 80x80x56mm (15,500rpm)

1+1 3200W 80 PLUS Titanium redundant power supplies [1]

AC Input:
- 100-127V~/ 16A, 50-60Hz
- 200-220V~/ 16A, 50-60Hz
- 220-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1300W/ 100-127V~
+12.2V/ 106.6A
+12.2Vsb/ 3A
- Max 3000W/ 200-220V~
+12.2V/ 246A
+12.2Vsb/ 3A
- Max 3200W/ 220-240V~ or 240Vdc Input
+12.2V/ 262.3A
+12.2Vsb/ 3A

[1] The system power supply requires C19 power cord.

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Require SAS add-in cards

Require RAID add-in cards Onboard VROC key header

Speed and bandwidth: SATA 6Gb/s or SAS-4 24Gb/s

Please refer to OS compatibility table in support page

1077 x 679 x 300 mm

1 x R264-SG0-AAS1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 250mm)
2 x GPU power cables (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
2 x Carriers
1 x 2-Section Rail kit

- Barebone package: 6NR264SG0DR000AAS1* - Motherboard: 9MSG4GU0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP20C5: 9CBP20C5NR-00* - Fan module 80x80x38mm: 25ST2-443820-S1R - Fan module 80x80x56mm: 25ST2-885621-A0R - Riser card - CRS201K: 9CRS201KNR-00* - Riser card - CRS202P: 9CRS202PNR-00* - Riser card - CRS202Q: 9CRS202QNR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R - GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R - GPU power cable (12VHPWR, 550mm): 25CRI-550107-Y4R - Power supply: 25EP0-232000-G1S

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R

CRS202P: - 2 x FHFL x16 (Gen5 x16), for GPUs CRS202Q: - 1 x FHFL x16 (Gen5 x16), for GPUs CRS201K: - 1 x FHFL x16 (Gen5 x16), for GPUs
