R283_Z97-AAL1

Rack Server - AMD EPYC™ 9004 - 2U DP 12+4-Bay Gen5 NVMe/SATA/SAS-4 2700W Titanium
Comparison Request Price
Overview Specifications
  • Supports up to 2 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 4 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
  • 4 x 2.5" SATA/SAS-4 hot-swappable bays on the rear side
  • 2 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
Dimensions

438 x 87.5 x 815
Form Factor

2U
Motherboard

MZ93-FS1
CPU

AMD EPYC™ 9004 Series Processors
Dual processor, 5nm technology
Up to 32 cores, 64 threads per processor
Supports cTDP up to 240W at ambient 30°C

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
- 1 x Mini-DP
Drive Bays / Storage

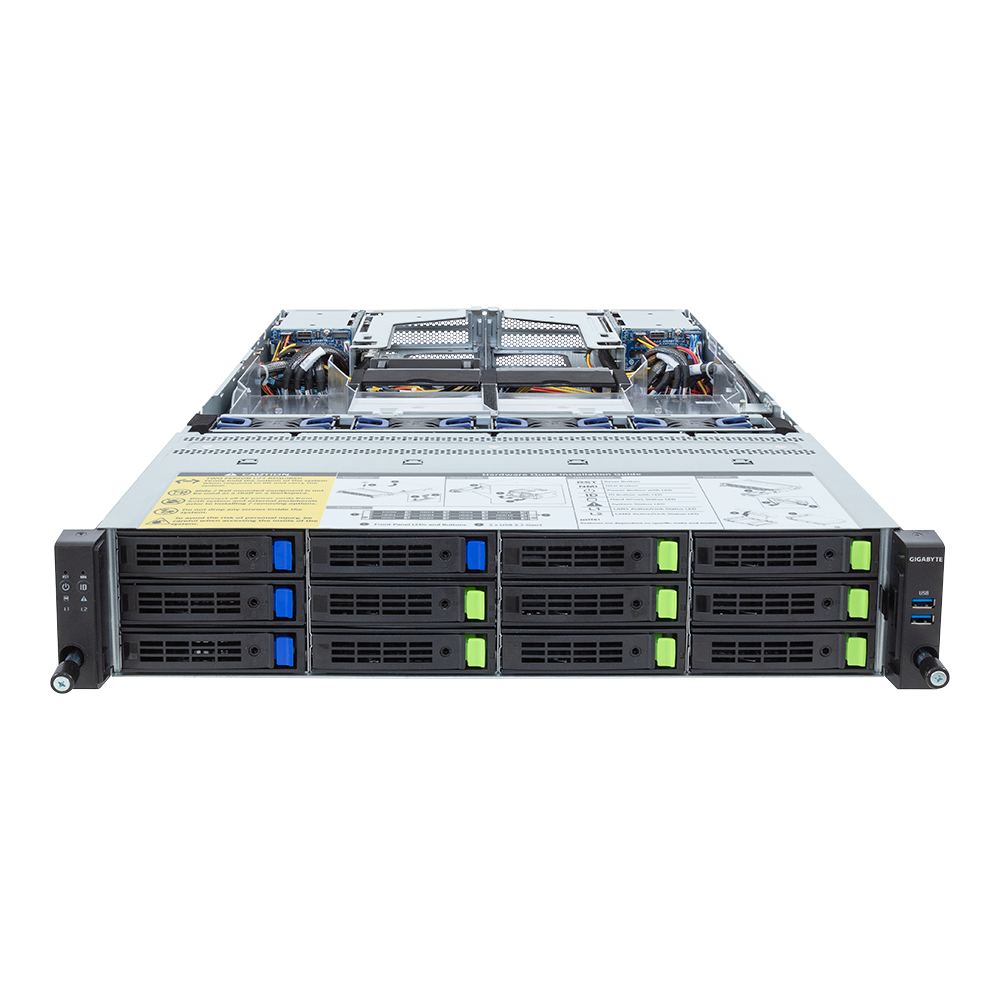

Front side:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
4 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)

Rear side:
4 x 2.5" SATA/SAS-4 hot-swappable bays, via CRS2810 from CPU_1

SAS card is required for SAS devices support

Note: SATA hotplug utility can be downloaded on support page.

Expansion Slots

PCIe Cable x 4:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 4 x SATA ports

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

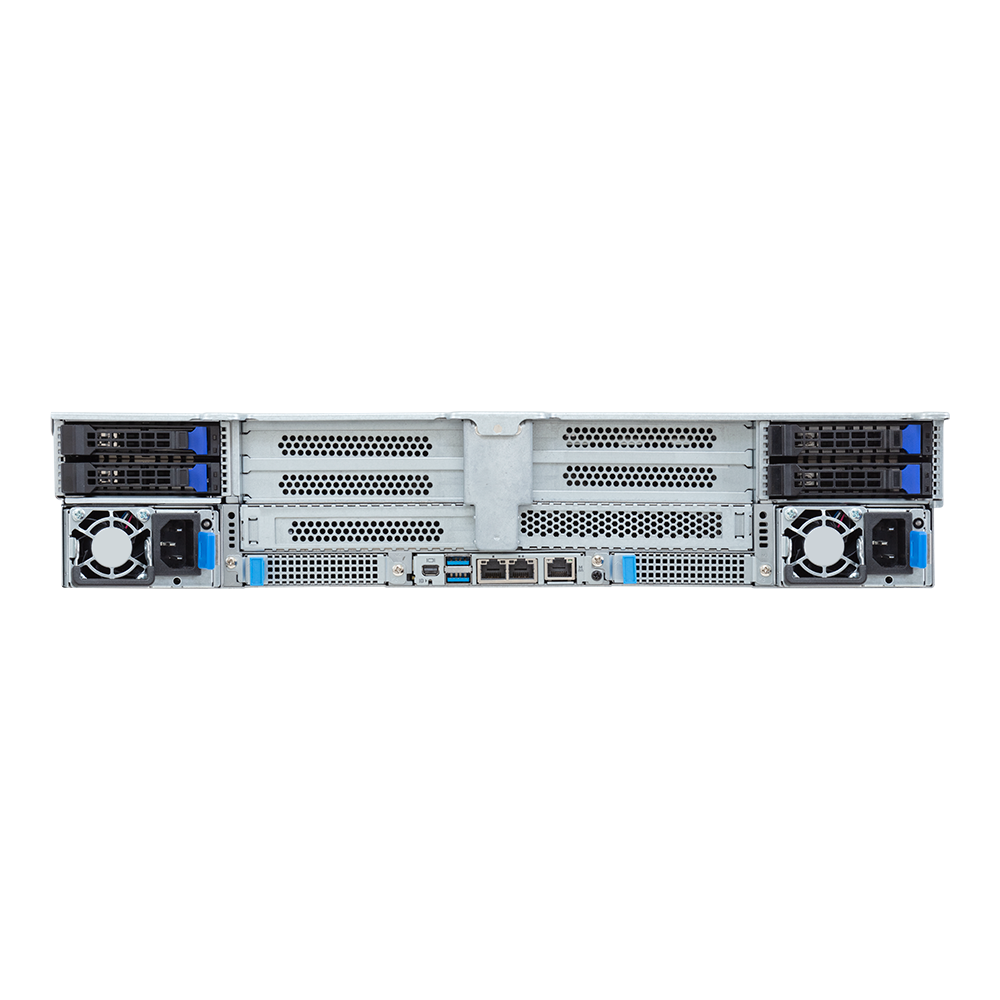

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

1+1 2700W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-Z97-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
1 x 2-Section Rail kit
Part Numbers

- Barebone package: 6NR283Z97DR000AAL1* - Motherboard: 9MZ93FS1UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-553202-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20C7: 9CBP20C7NR-00 - Backplane board - CBP2025: 9CBP2025NR-00 - Fan module: 25ST2-88382T-S1R - M.2 type SATA card - CRS2810: 9CRS2810NR-00 - G-SCM board - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R - Power supply: 25EP0-227000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z97SR-RMA-A100
