R283_S92- AAE1

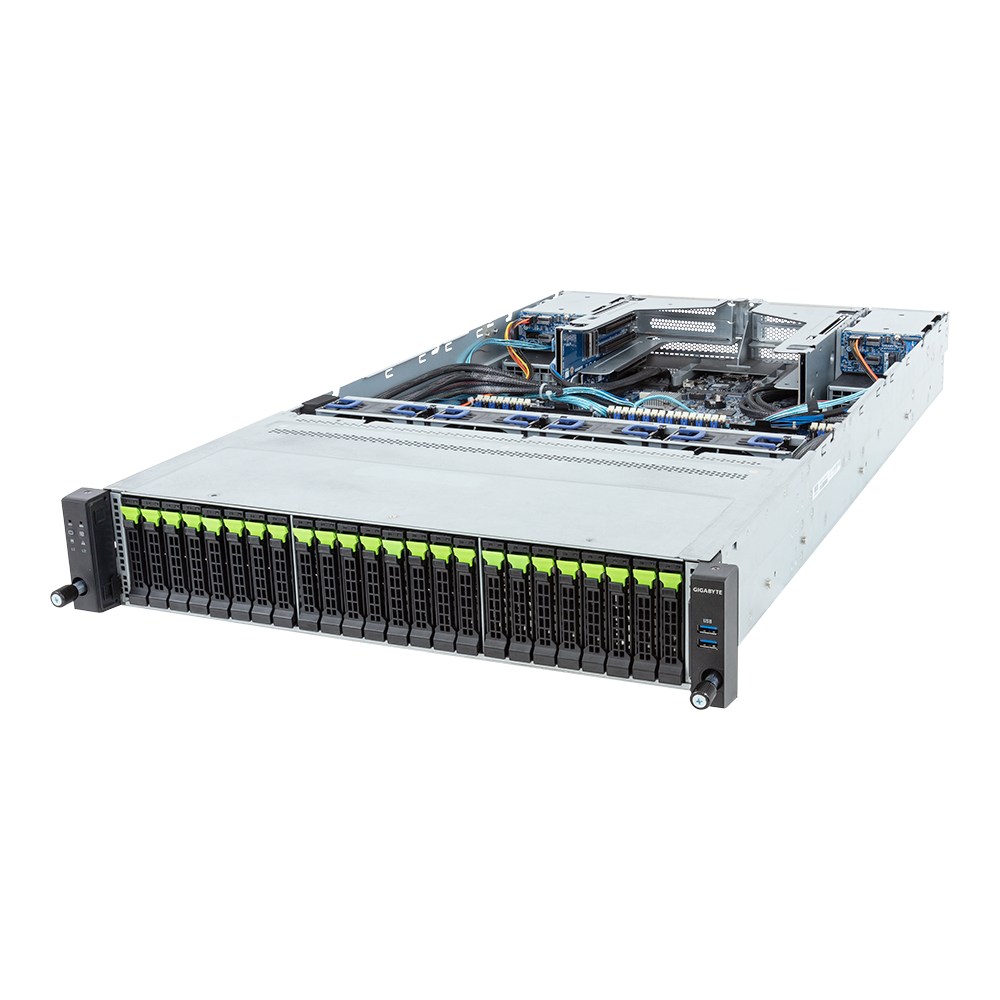

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 24+4-Bay Gen4 NVMe/SATA/SAS (24 x NVMe)
Comparison Request Price
Overview Specifications
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • 4 x FHHL PCIe Gen5 x16 slots
  • Compatible with SupremeRAID™ by Graid Technology
  • 1+1 2000W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87.5 x 815

Form Factor

2U
Motherboard

MS93-FS0

CPU

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4677
Socket E

Chipset

Intel® C741

Memory

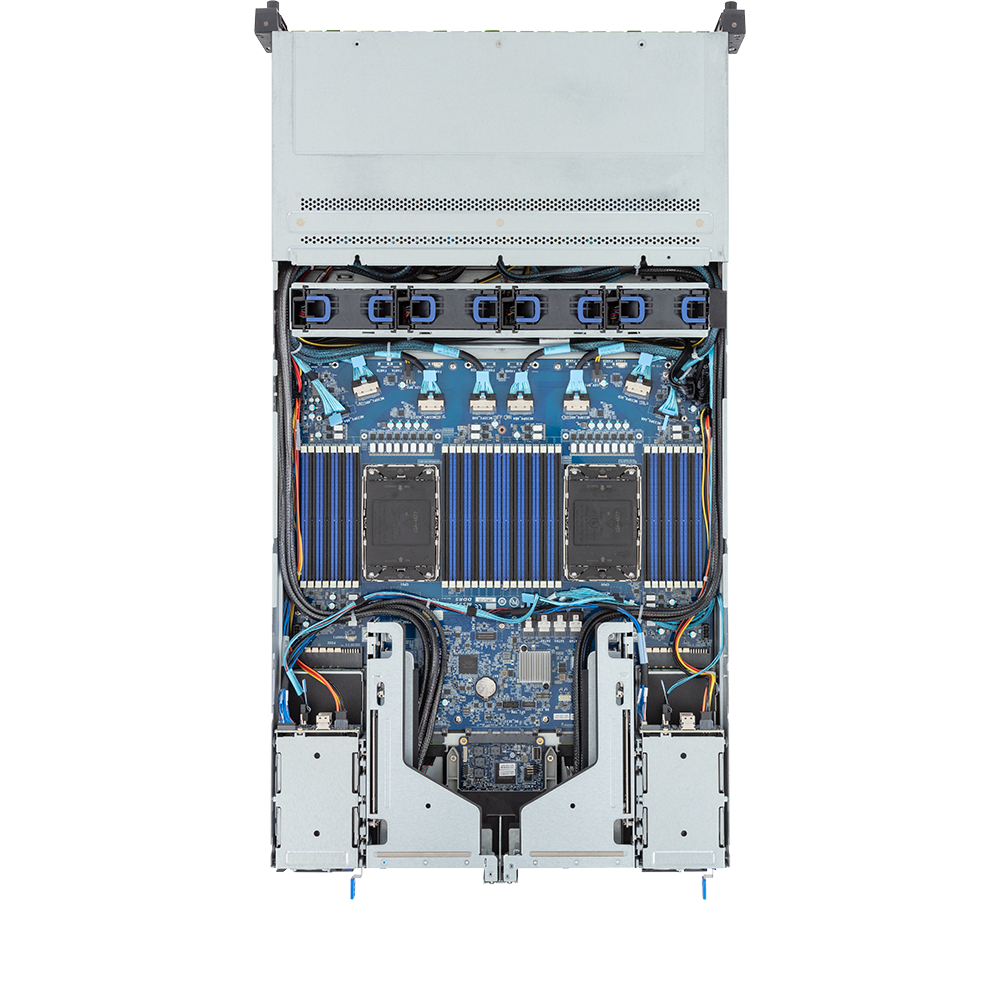

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Drive Bays / Storage

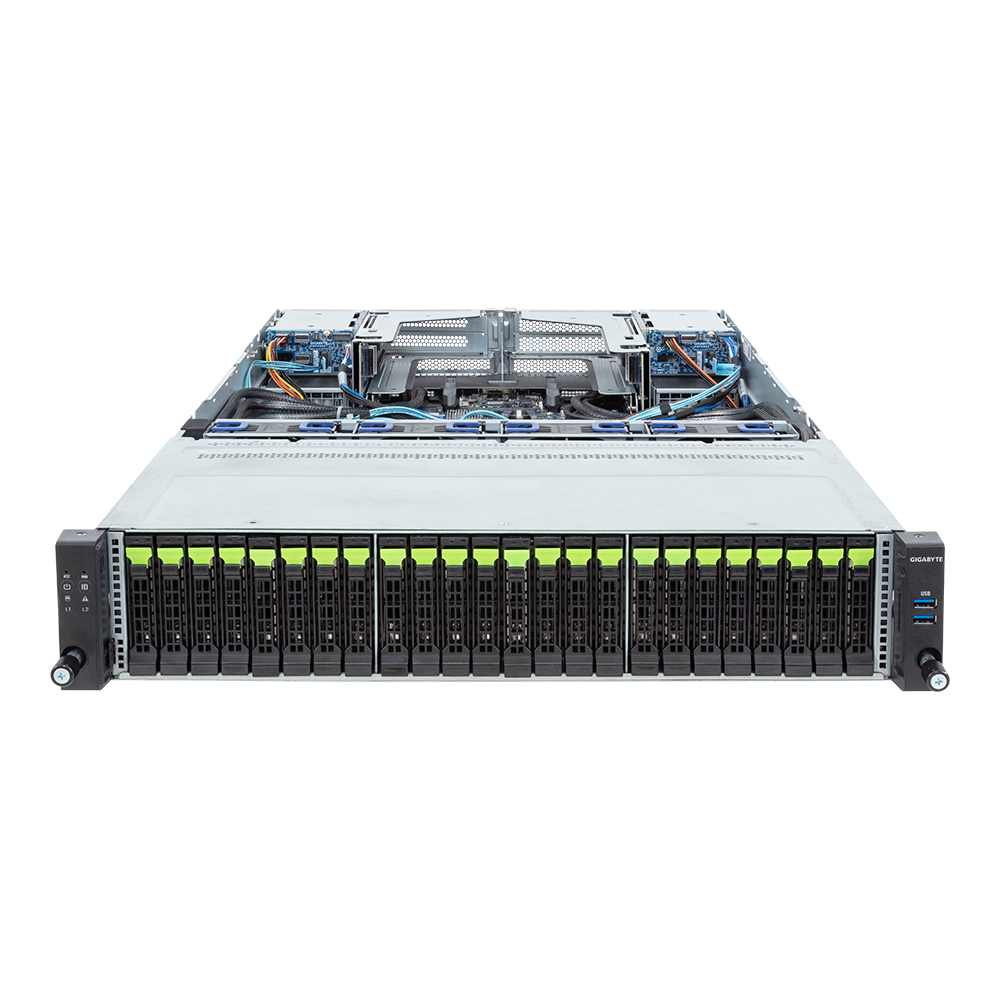

Front side:
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
12 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x NVMe from CPU_0, 12 x NVMe from CPU_1)

Rear side:
4 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

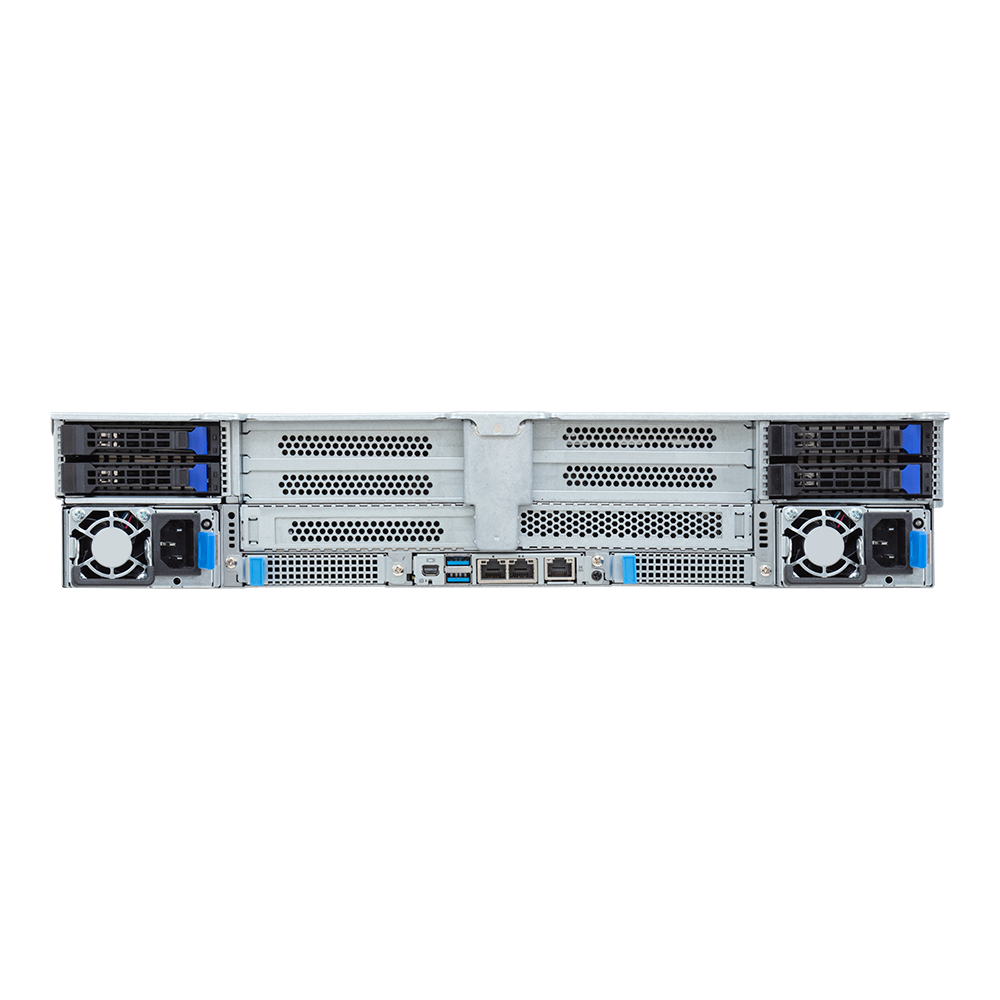

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

1+1 2000W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12.2V/ 163.5A
+12Vsb/ 2.5A

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-in cards
Raid

Intel® SATA RAID 0/1/10/5 Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1000-ED12, SR-1000-FD32, SR-1010-FD32 Support RAID 0/1/5/6/10
Internal Io

1 x TPM header
1 x VROC connector

Backplane Board

Speed and bandwidth: Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-S92-AAE1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package (5th/4th Gen): 6NR283S92DR000ABE1* - Barebone package (4th Gen): 6NR283S92DR000AAE1* - Motherboard: 9AS93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-323208-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101J: 9CRS101JNR-00 - Riser card - CRS101K: 9CRS101KNR-00 - Riser card - CRS202G: 9CRS202GNR-00 - Riser card - CRS202H: 9CRS202HNR-00 - G-SCM board - CDCR112: 9CDCR112NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-22000A-L0S
Optional Parts

- RAID card (SR-1000-ED12): 25FC1-SR1000-AFS
- RAID card (SR-1000-FD32): 25FC1-SRBUN0-AFS
- RAID card (SR-1010-ED32): 25FC1-SRBUN4-AFR
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S92SR-RMA-A100
Additional Certifications

VMware ESXi 8.0
Windows Server 2022 (x64)
Riser Card

CRS101J: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS101K: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 CRS202G: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS202H: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
