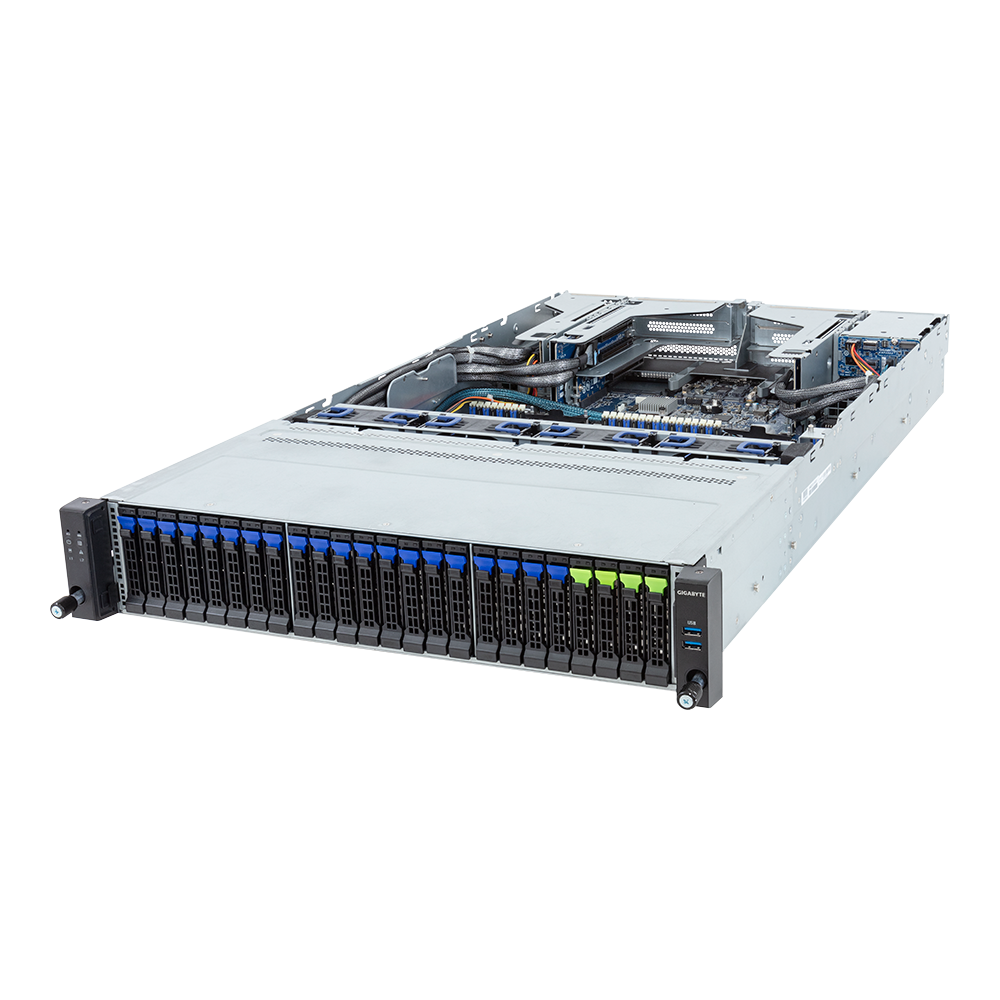

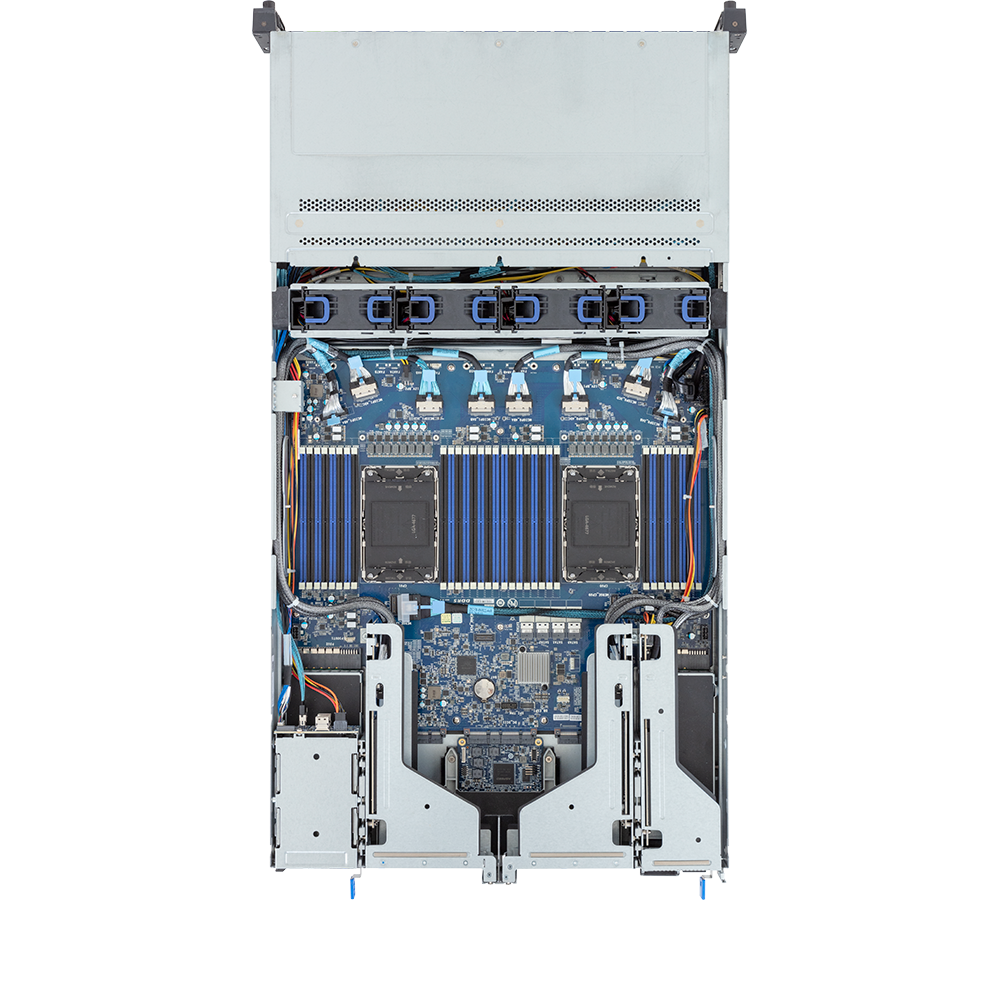

R283_S92-AAE4

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 24+2-Bay Gen4 NVMe/SATA/SAS (4 x NVMe)
Comparison Request Price
Overview Specifications
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 20 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • Onboard 12Gb/s SAS expander
  • 6 x FHHL PCIe Gen5 x16 slots
  • 2 x LP PCIe Gen5 x8 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • 1+1 2000W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87.5 x 815
Form Factor

2U
Motherboard

MS93-FS0
CPU

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 4677
Socket E

Chipset

Intel® C741
Memory

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
20 x 2.5" SATA/SAS hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

a) SAS card is required to enable the drives.
b) All devices are connected to SAS expander.
c) Please select enterprise SATA devices for SAS expander system.
Expansion Slots

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

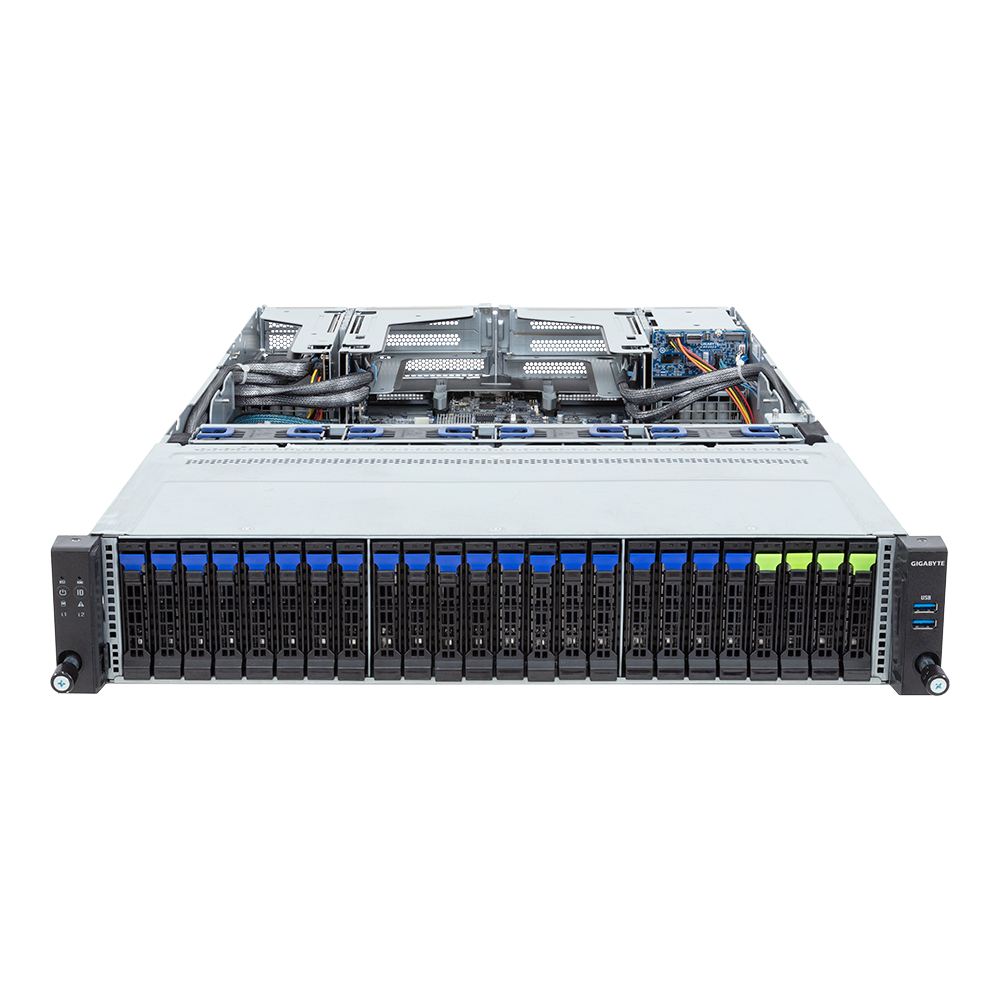

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

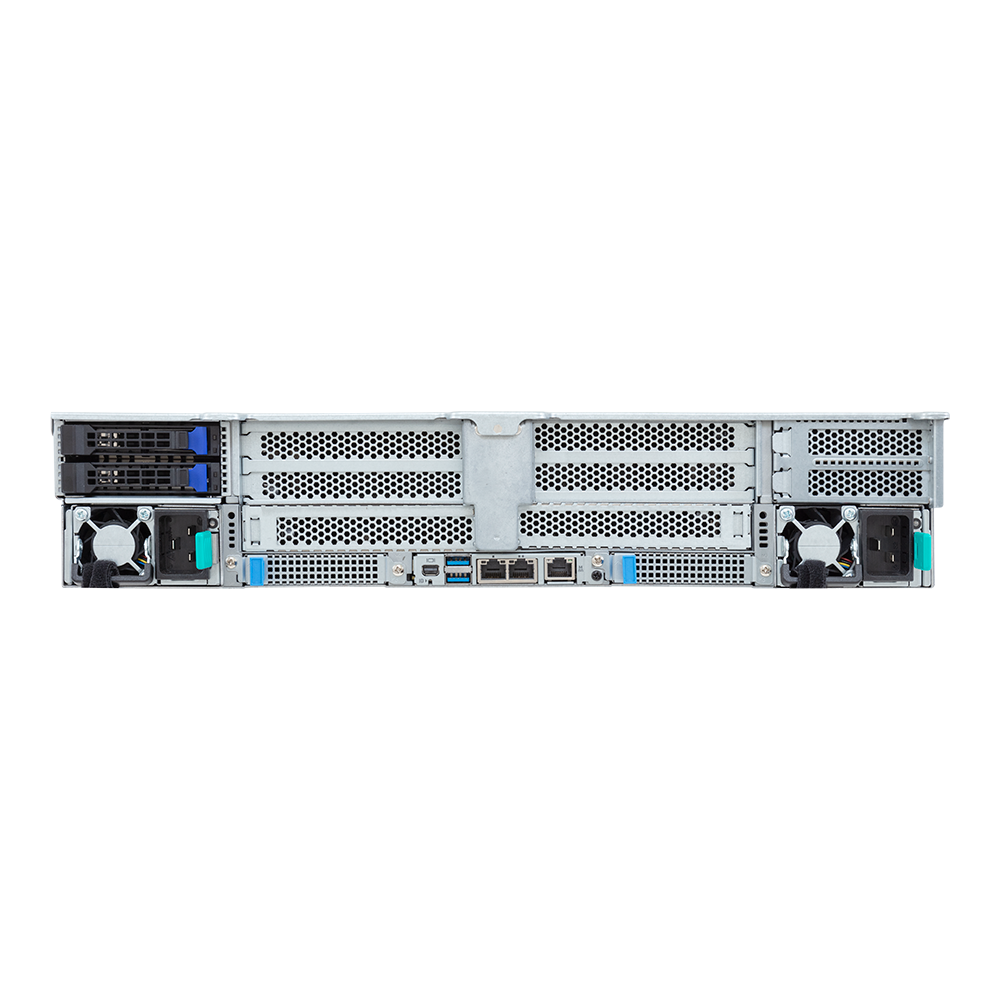

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

1+1 2000W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12.2V/ 163.5A
+12Vsb/ 2.5A

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Supported
Raid

Intel® SATA RAID 0/1/10/5
Internal Io

1 x TPM header
1 x VROC connector

Backplane Board

Speed and bandwidth: Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-S92-AAE4
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package (5th/4th Gen): 6NR283S92DR000ABE4* - Barebone package (4th Gen): 6NR283S92DR000AAE4* - Motherboard: 9AS93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-323208-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101J: 9CRS101JNR-00 - Riser card - CRS101K: 9CRS101KNR-00 - Riser card - CRS202E: 9CRS202ENR-00 - Riser card - CRS202G: 9CRS202GNR-00 - Riser card - CRS202H: 9CRS202HNR-00 - G-SCM board - CDCR112: 9CDCR112NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-22000A-L0S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S92SR-RMA-A100
Additional Certifications

VMware ESXi 8.0
Windows Server 2022 (x64)

Riser Card

CRS101J: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS101K: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 CRS202E: - 2 x PCIe x16 (Gen5 x8) low-profile slots, from CPU_0 CRS202G: - 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0* *Slot_10 downgraded to Gen4 if using XCC CPU with 4 x UPI. CRS202H: - 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1
