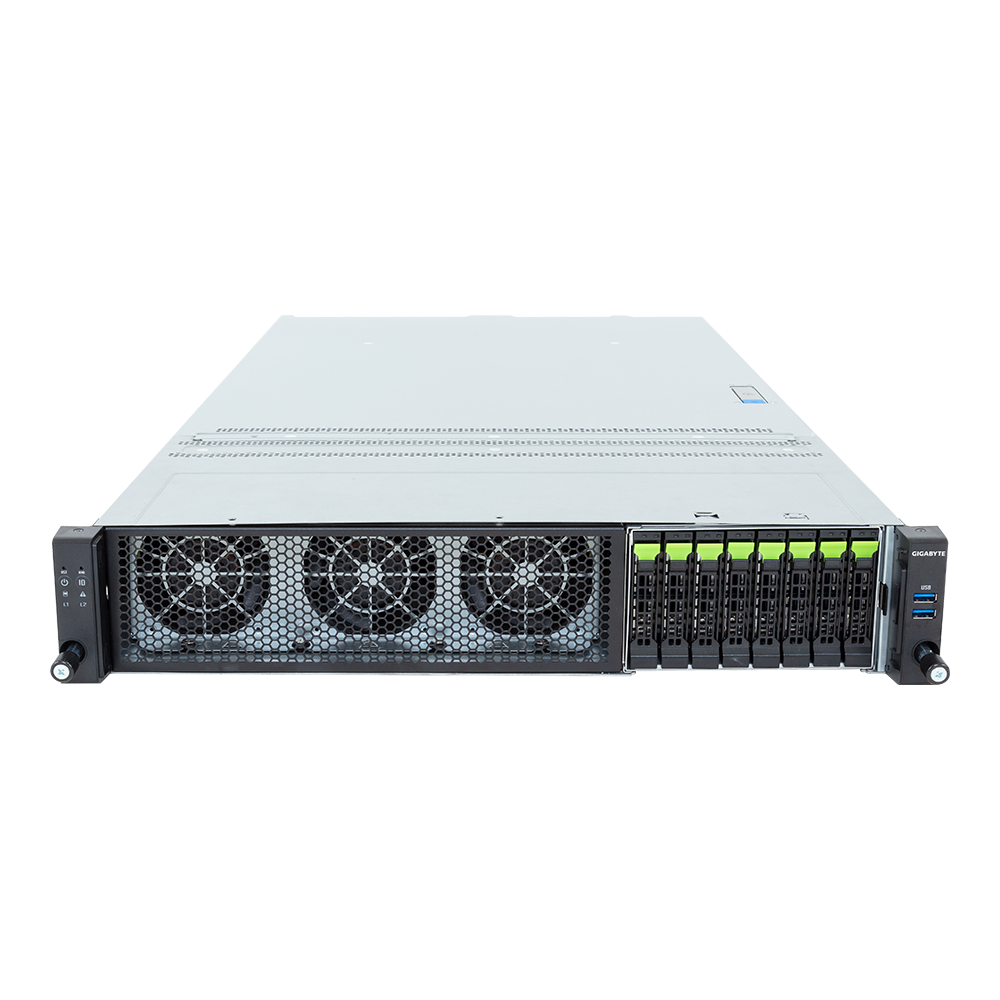

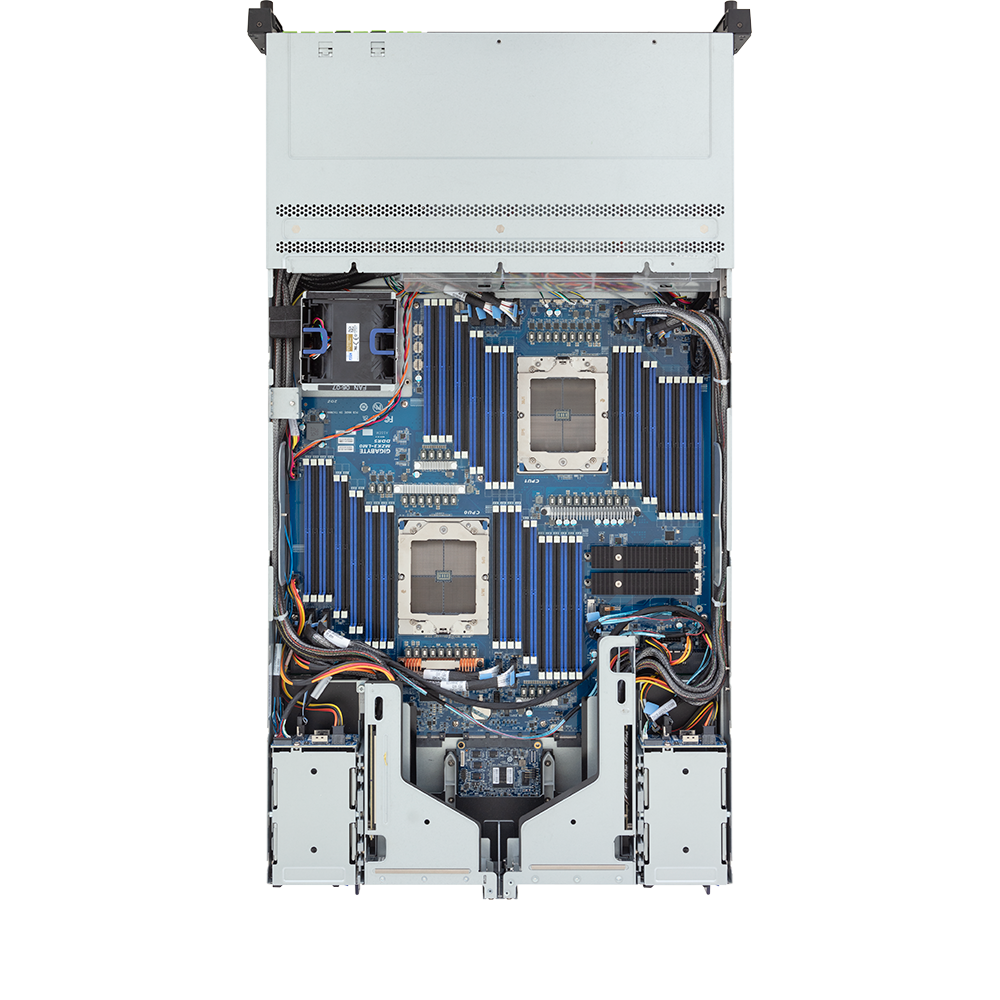

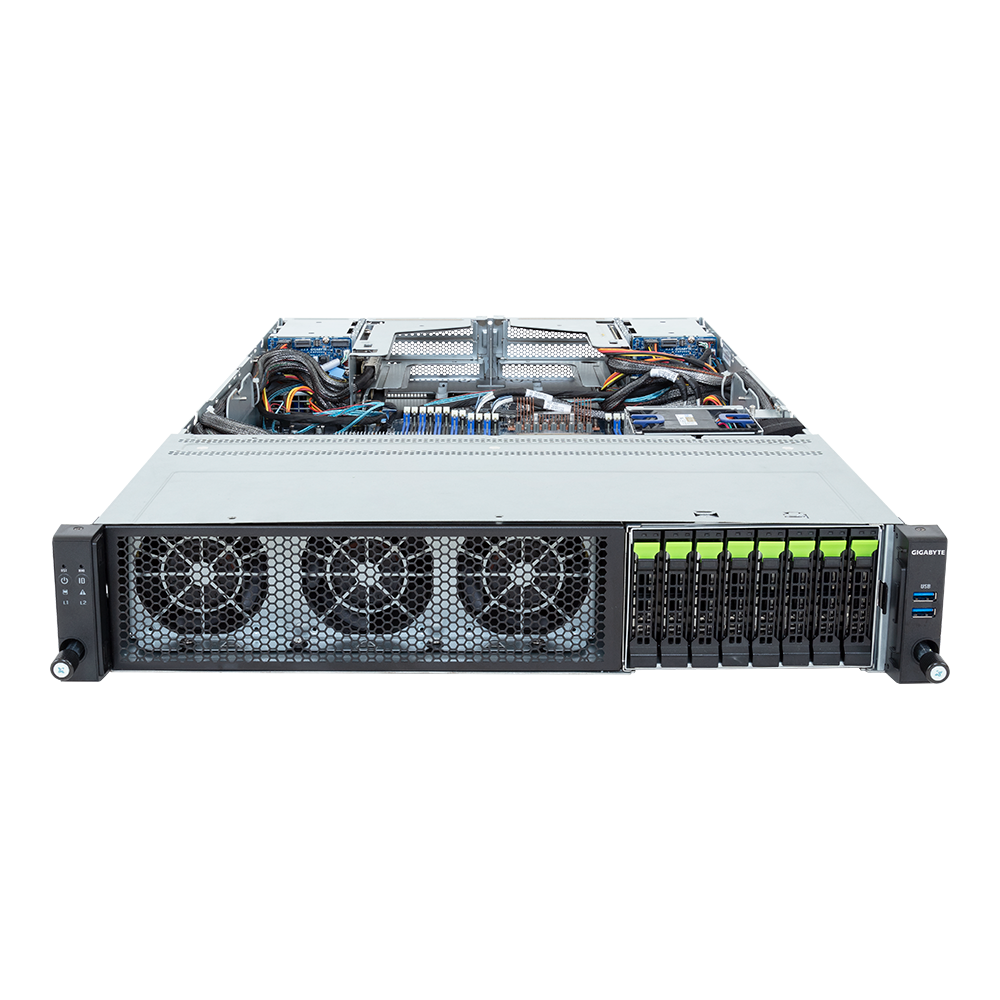

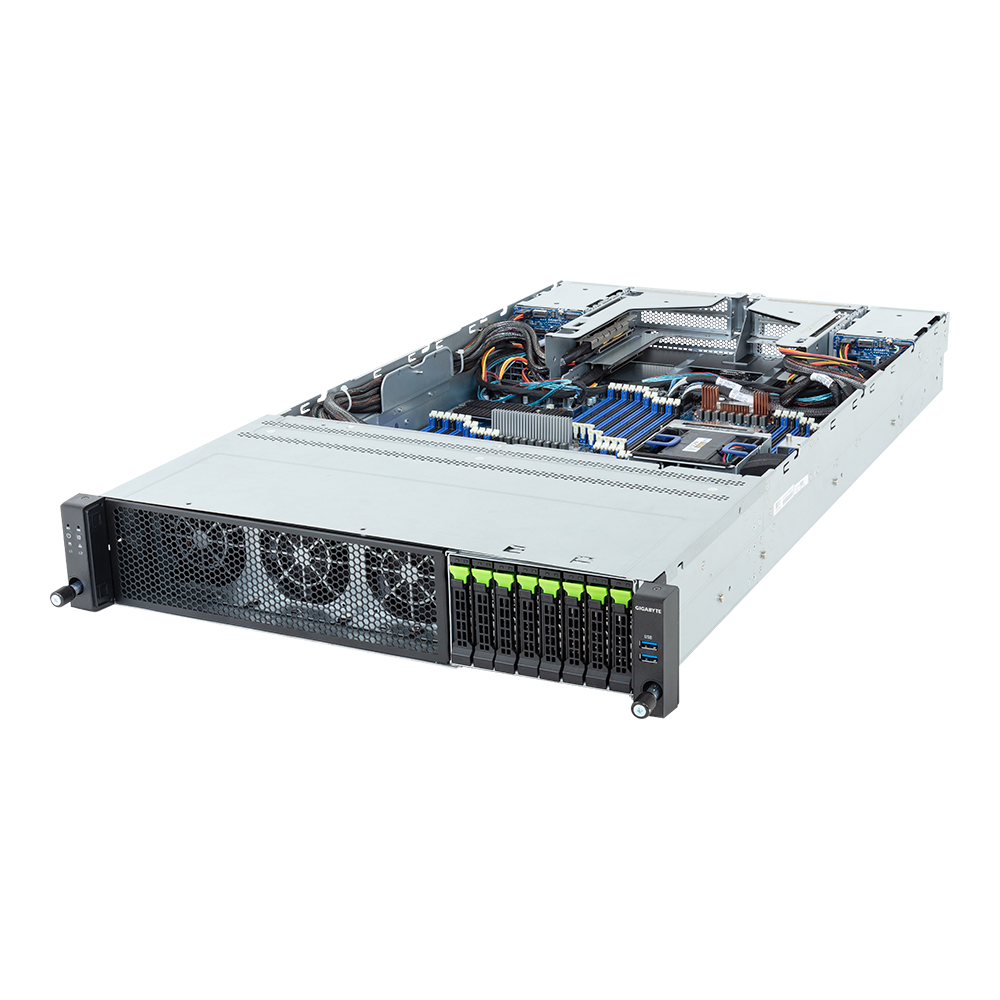

R283_ZK0-AAL1

Rack Server - AMD EPYC™ 9004 - 2U DP 8+4-Bay Gen5 NVMe/SATA/SAS-4
Comparison Request Price
Overview Specifications
  • Dual AMD EPYC™ 9004 Series Processors
  • Ready for select 5th Generation AMD EPYC™ Processors
  • 12-Channel DDR5 RDIMM, 48 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • 2 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 4 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
  • 1+1 2700W 80 PLUS Titanium redundant power supplies
Dimensions

438 x 87.5 x 815
Form Factor

2U
Motherboard

MZK3-LM0
CPU

AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 400W

Ready for select 5th Generation AMD EPYC™ Processors

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

48 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Network Connectivity

Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
- 1 x Mini-DP

Drive Bays / Storage

Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)

Rear hot-swap:
4 x 2.5" SATA/SAS-4 [2]
- (SATA via CRS2810 from CPU_0)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

[1] Storage card is required to support SATA and SAS drives.
[2] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
Expansion Slots

PCIe Cable x 4:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 3 x FHHL x16 (Gen5 x16), from CPU_1

2 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Support NCSI function

Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

System Fans

4 x 80x80x80mm (13,000rpm)
Power Supply

1+1 2700W 80 PLUS Titanium redundant power supplies [1]

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.

Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Require SAS add-in cards
Raid

Require RAID add-in cards
Backplane Board

Speed and bandwidth: Front side - CBP2081: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s Rear side - CBP2025: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-ZK0-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283ZK0DR000AAL1* - Motherboard: 9MZK3LM0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-563400-C1R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP2025: 9CBP2025NR-00* - Backplane board - CBP2081: 9CBP2081NR-00* - Fan module: 25ST2-808022-A0R - M.2 type SATA card - CRS2810: 9CRS2810NR-00* - G-SCM board - CDCR114: 9CDCR114NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-227000-D0S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
