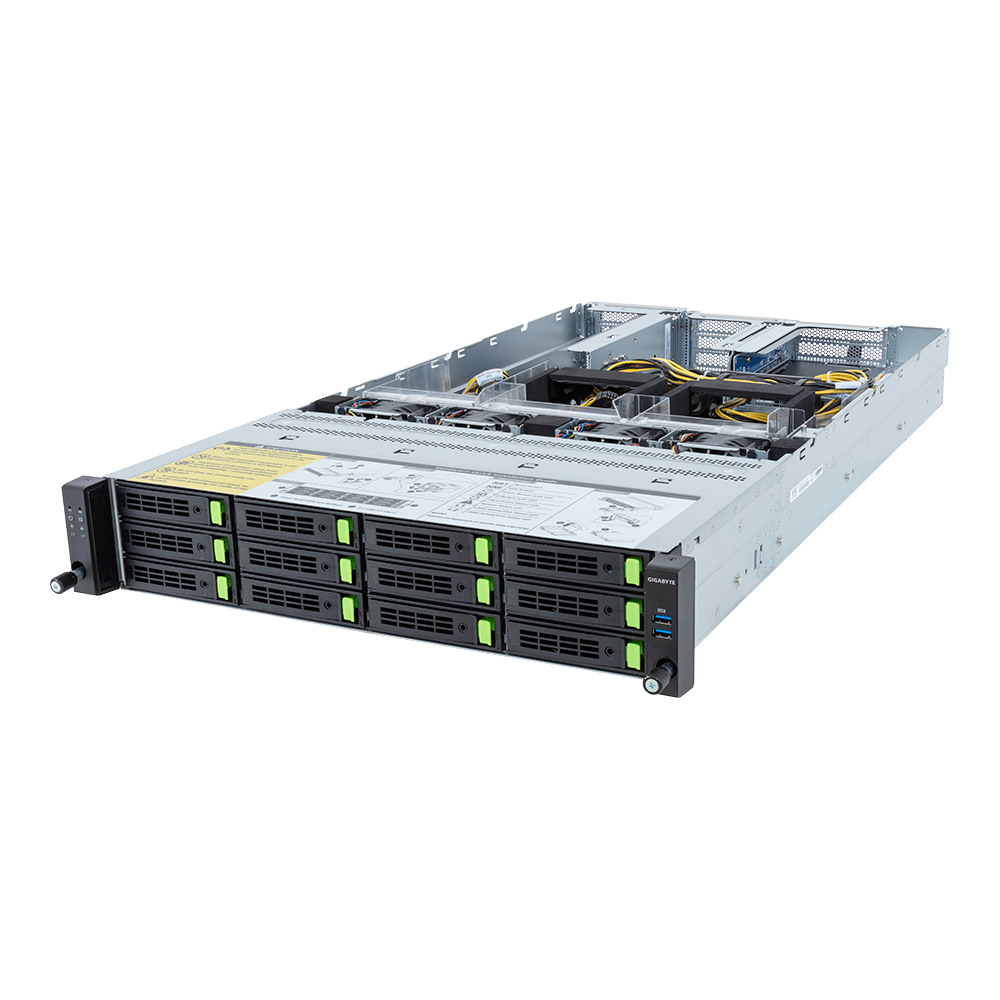

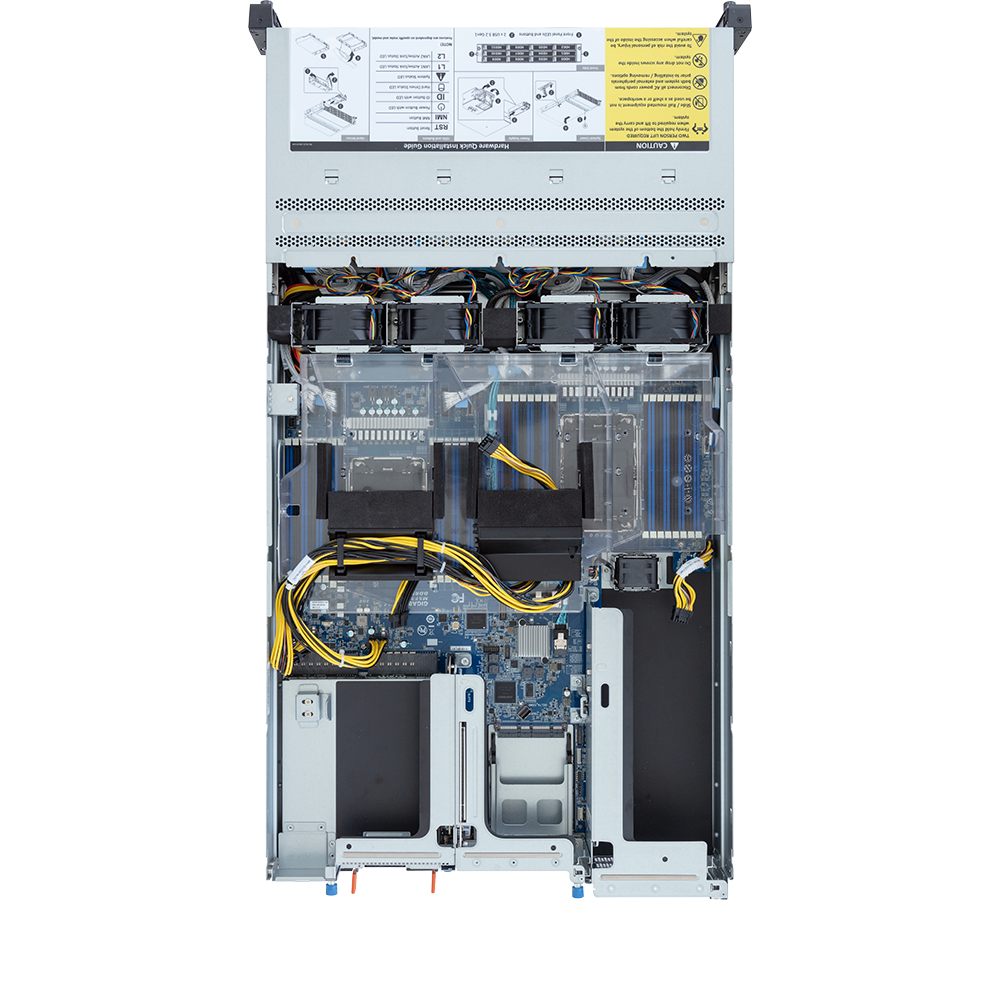

R283_SF0-AAL1

Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 4 x PCIe Gen5 GPUs (12 x drives)
Comparison Request Price
Overview Specifications
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP 3.0 Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply
Dimensions

438 x 87.5 x 815

Weight

Net Weight: 29.36 kg
Gross Weight: 31.36 kg
Form Factor

2U
Motherboard

MSF3-GP0
CPU

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4677
Socket E

Chipset

Intel® C741

Memory

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

Network Connectivity

Rear side:
1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

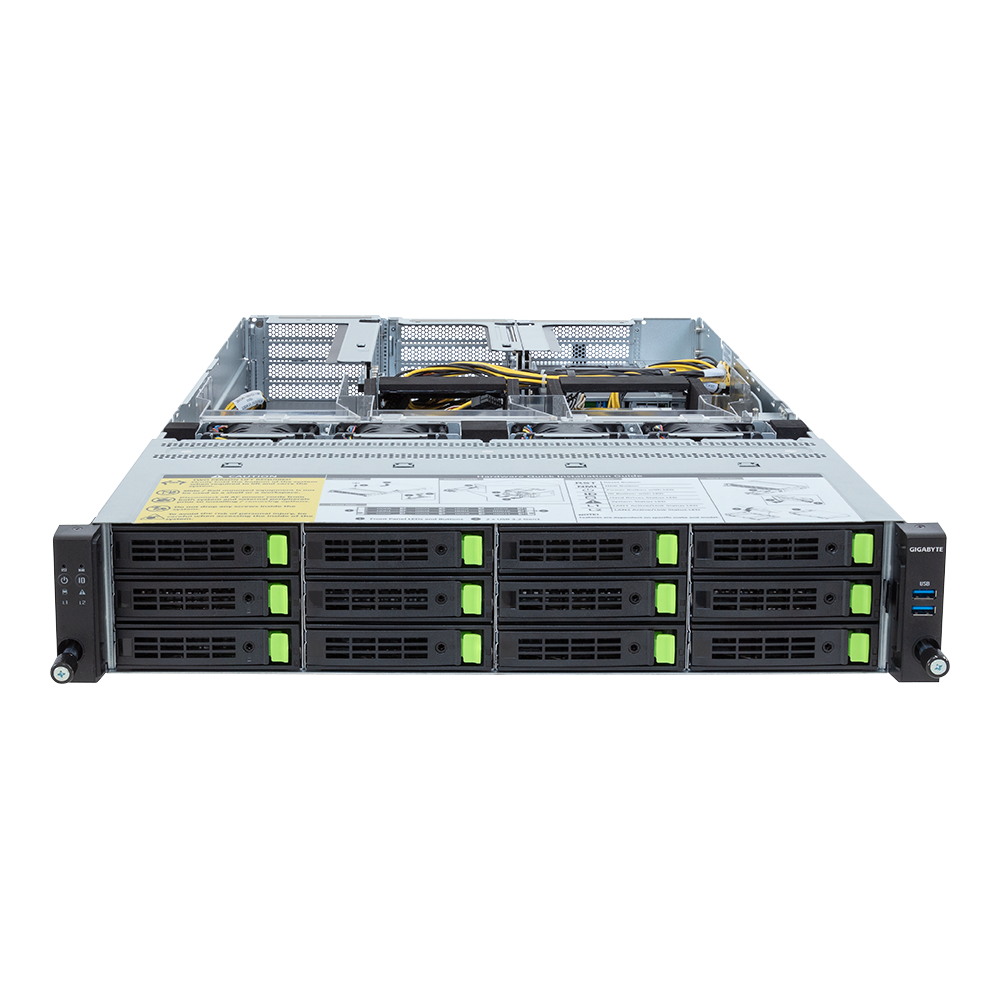

Front side:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)

SAS card is required for SAS devices support

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

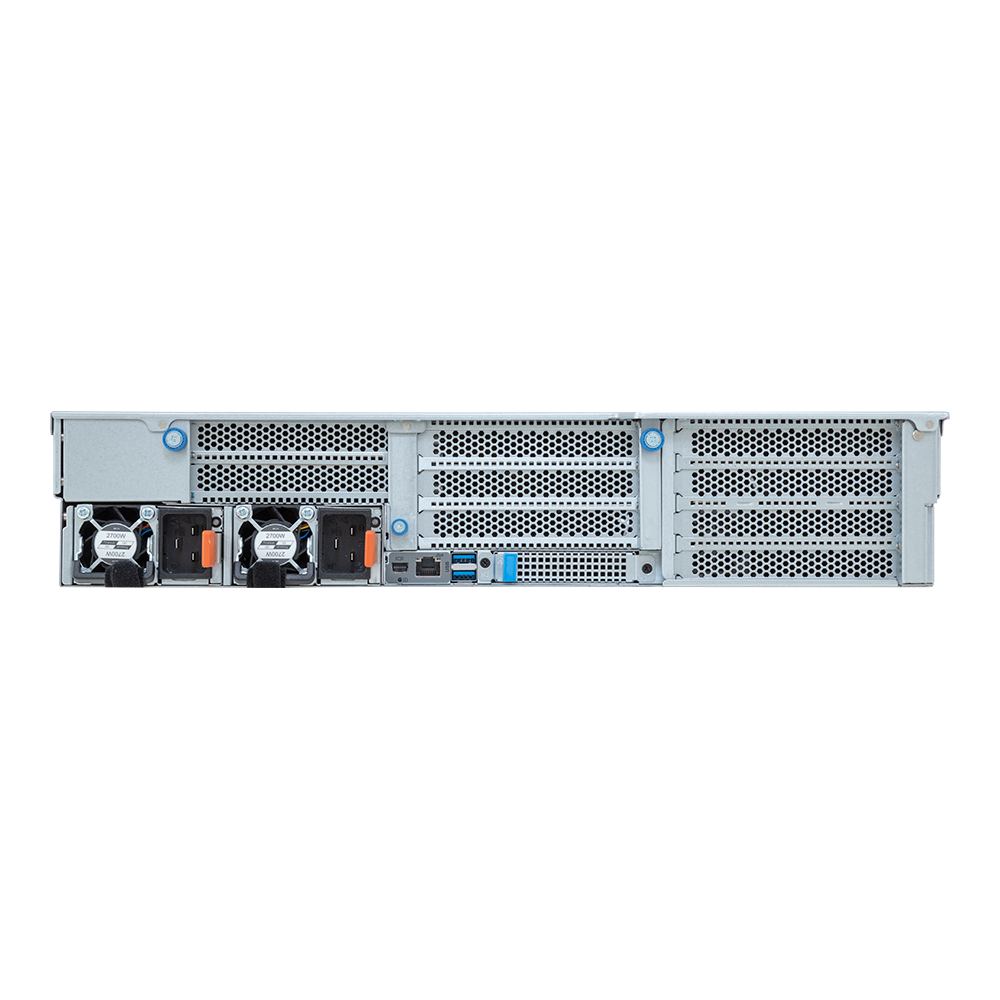

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED

System Fans

1 x 40x40x28mm (34,000rpm)
4 x 80x80x38mm (18,300rpm)

Power Supply

Dual 2700W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

Operating Environment

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Depends on SAS add-in cards
Raid

Intel® SATA RAID 0/1/10/5
Internal Io

1 x TPM header
1 x VROC connector
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-SF0-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 100mm)
1 x GPU power cable (12VHPWR, 300mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 650mm)
6 x Carriers
1 x 2-Section Rail kit
Part Numbers

- Barebone package (5th/4th Gen): 6NR283SF0DR000ABL1* - Barebone package (4th Gen): 6NR283SF0DR000AAL1* - Motherboard: 9MSF3GP0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20C7: 9CBP20C7NR-00 - Fan module: 25ST2-44282I-N2R - Fan module: 25ST2-88382W-S1R - Riser card - CRS201J: 9CRS201JNR-00 - Riser card - CRS202P: 9CRS202PNR-00 - Riser card - CRS202Q: 9CRS202QNR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 100mm): 25CRI-1001C0-Y4R - GPU power cable (12VHPWR, 300mm): 25CRI-300102-Y4R - GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R - GPU power cable (12VHPWR, 650mm): 25CRI-650102-Y4R - Power supply: 25EP0-227000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283SF0SR-RMA-A100
Additional Certifications

Windows Server 2022 (x64)
Riser Card

CRS202P: - 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs CRS202Q: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 CRS201J: - 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
