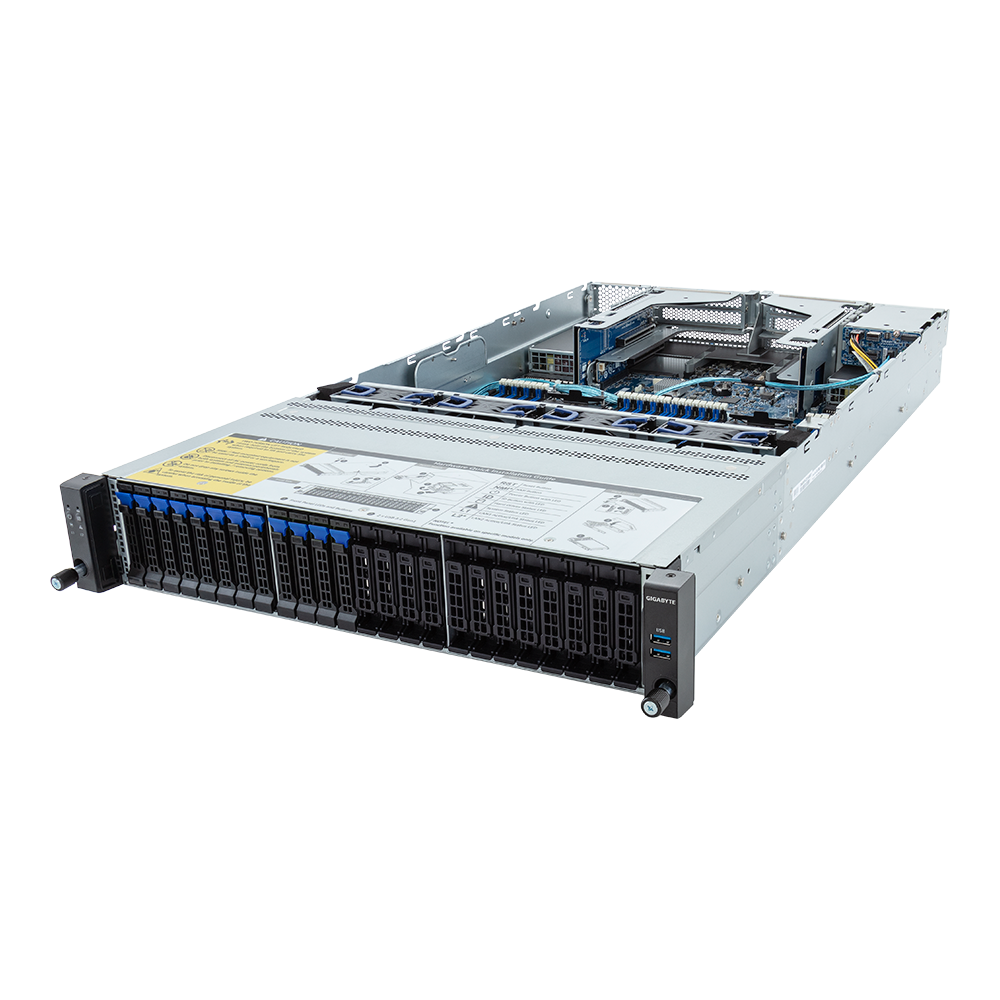

R283_S95-AAC1

2U
438 x 87.5 x 815

MS93-FS1

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

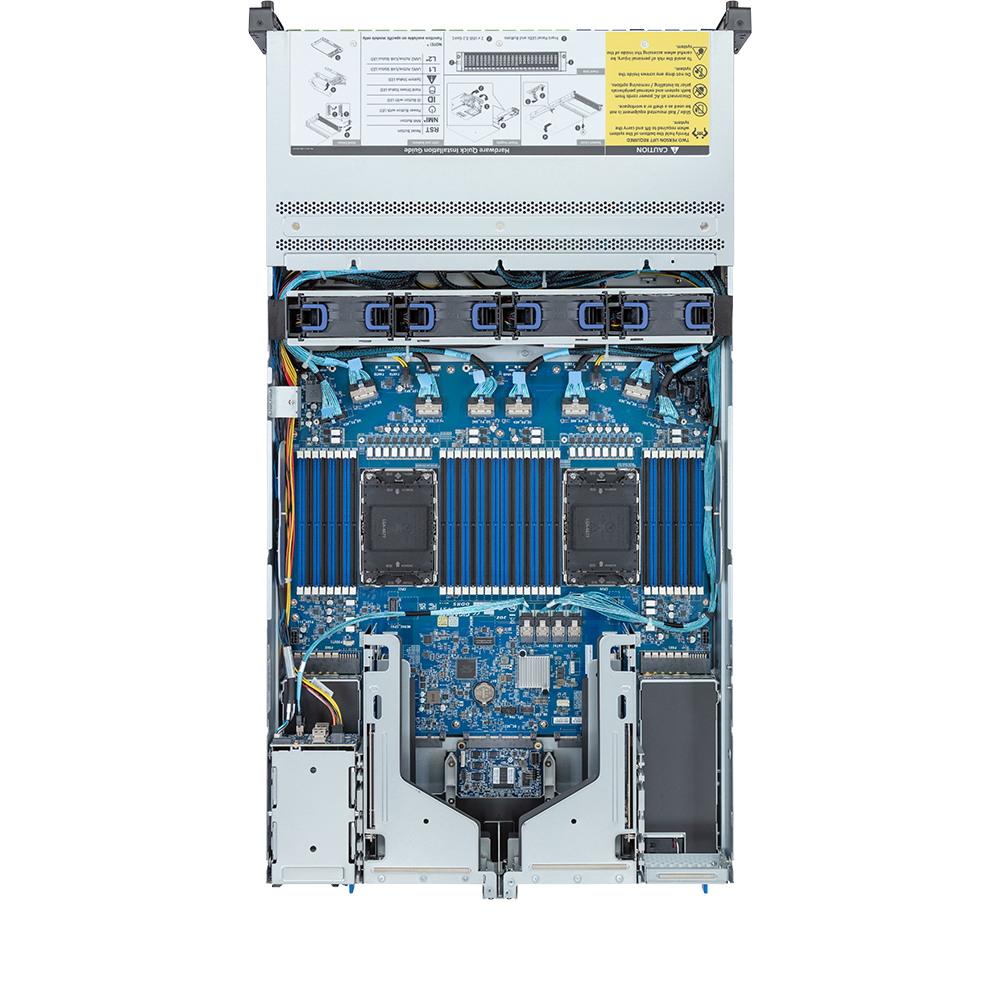

2 x LGA 4677
Socket E

Intel® C741

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

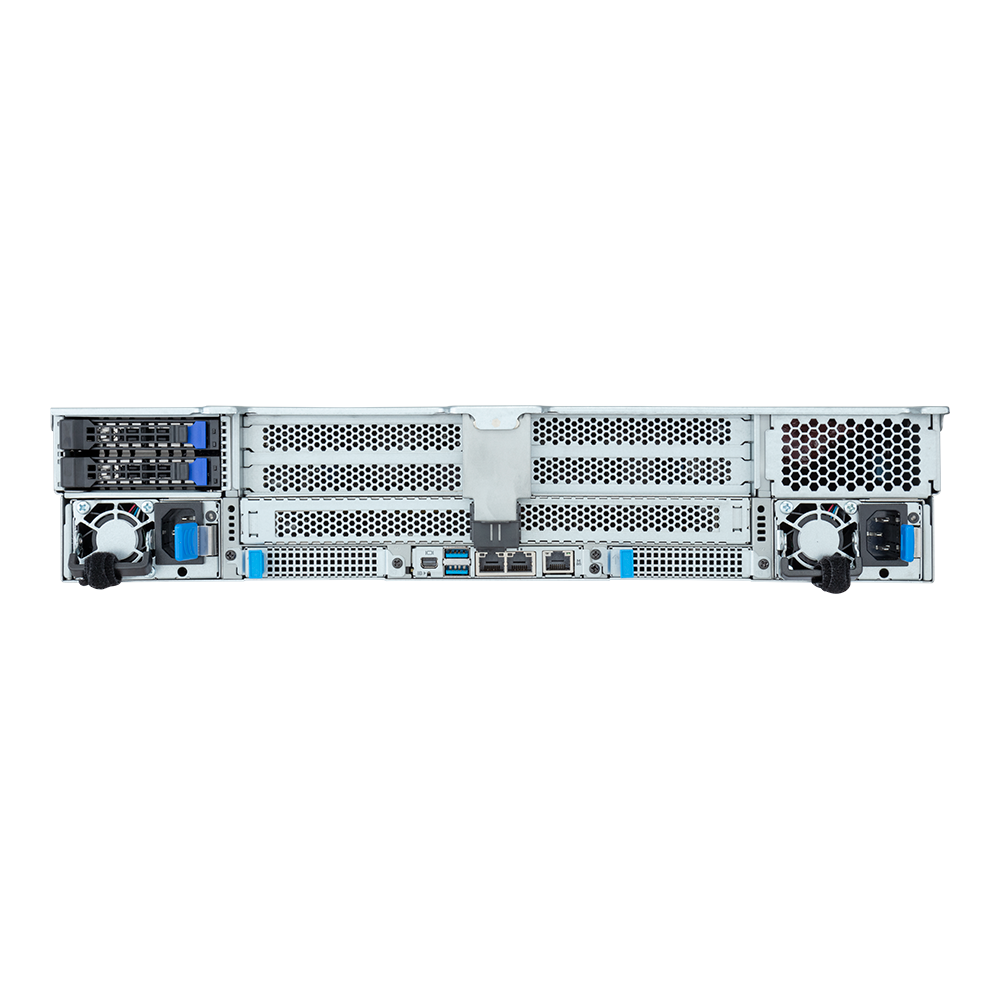

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

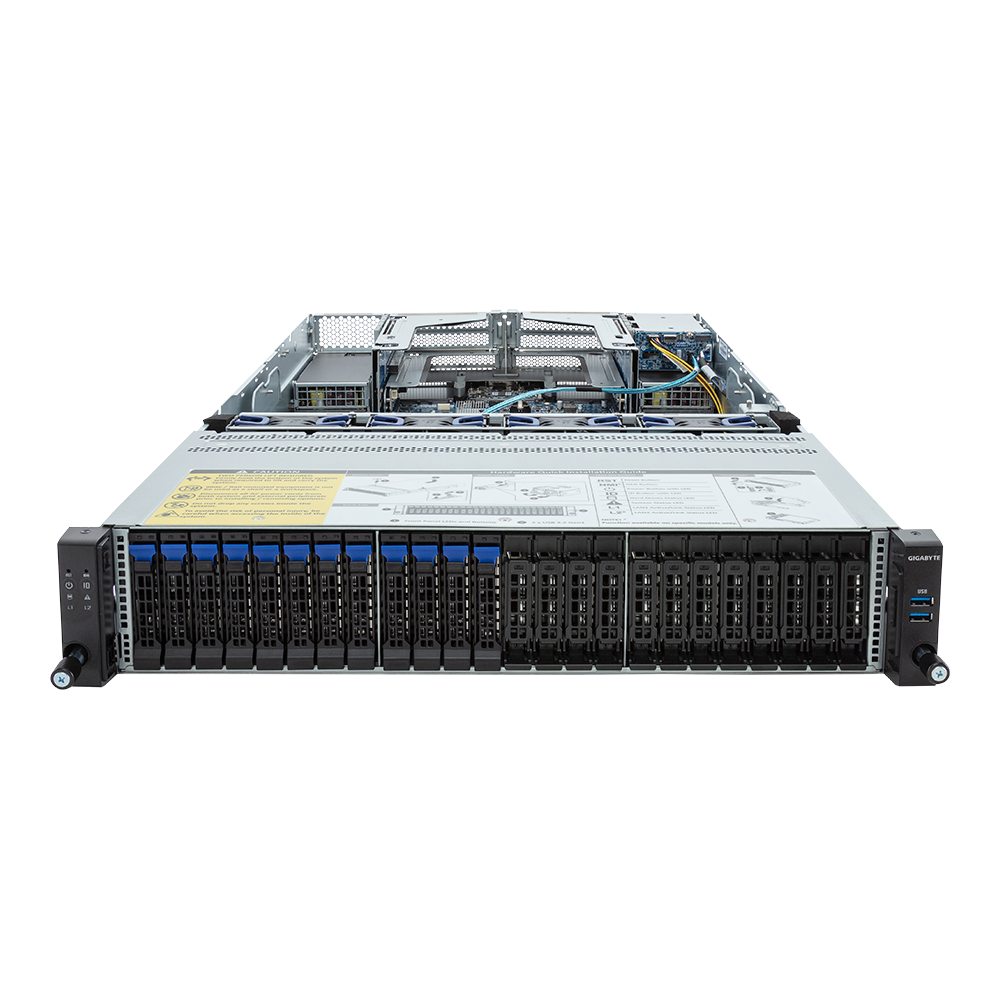

Front side:
12 x 2.5" SATA/SAS hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

4 x 80x80x38mm (18,300rpm)

Dual 1300W 80 PLUS Platinum redundant power supply

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Depends on SAS add-in cards

Intel® SATA RAID 0/1/10/5

1 x TPM header
1 x VROC connector

Speed and bandwidth: Front side - CBP20O7: SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s

Please refer to OS compatibility table in support page

1077 x 679 x 300 mm

1 x R283-S95-AAC1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit

- Barebone package (5th/4th Gen): 6NR283S95DR000ABC1* - Barebone package (4th Gen): 6NR283S95DR000AAC1* - Motherboard: 9AS93FS1UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-323208-A0R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101J: 9CRS101JNR-00 - Riser card - CRS101Q: 9CRS101QNR-00 - Riser card - CRS201A: 9CRS201ANR-00 - Riser card - CRS201B: 9CRS201BNR-00 - G-SCM board - CDCR112: 9CDCR112NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-213004-F3S

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S95SR-RMA-A100

Windows Server 2022 (x64)

CRS101J: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS101Q: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 CRS201A: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS201B: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
