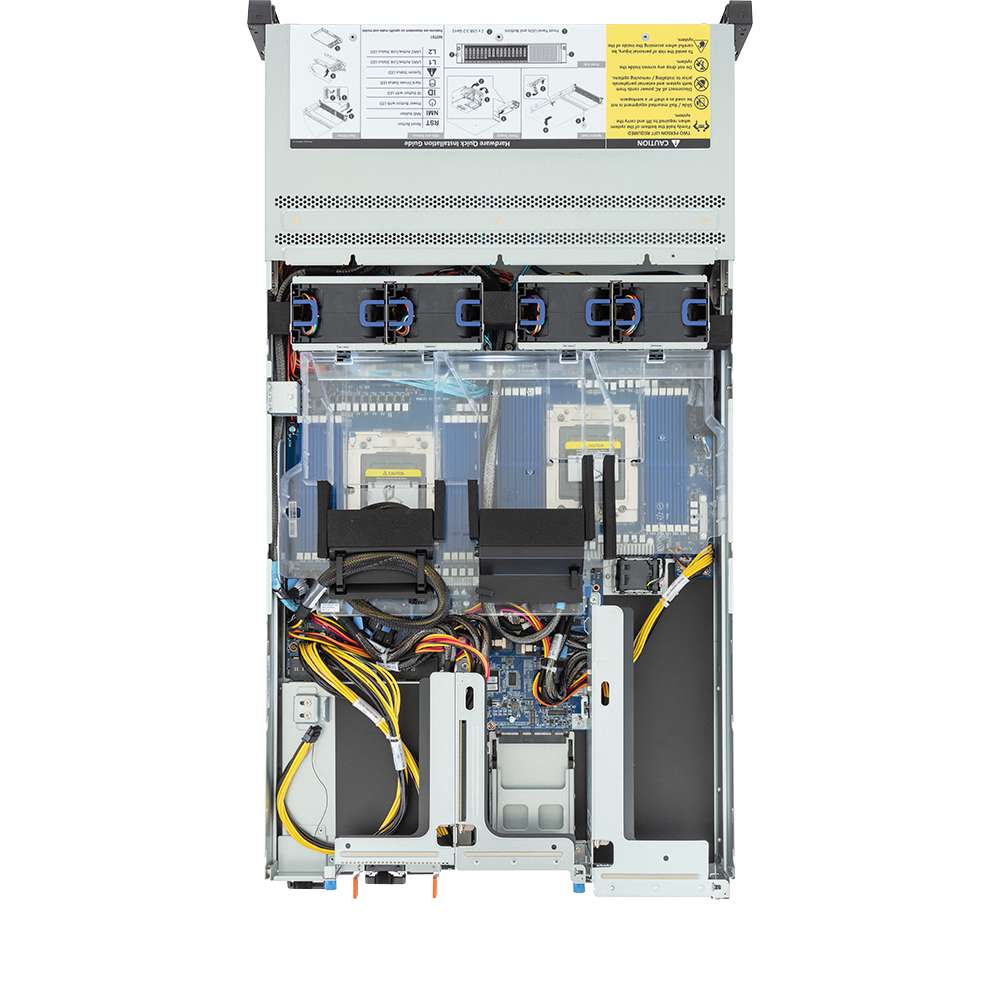

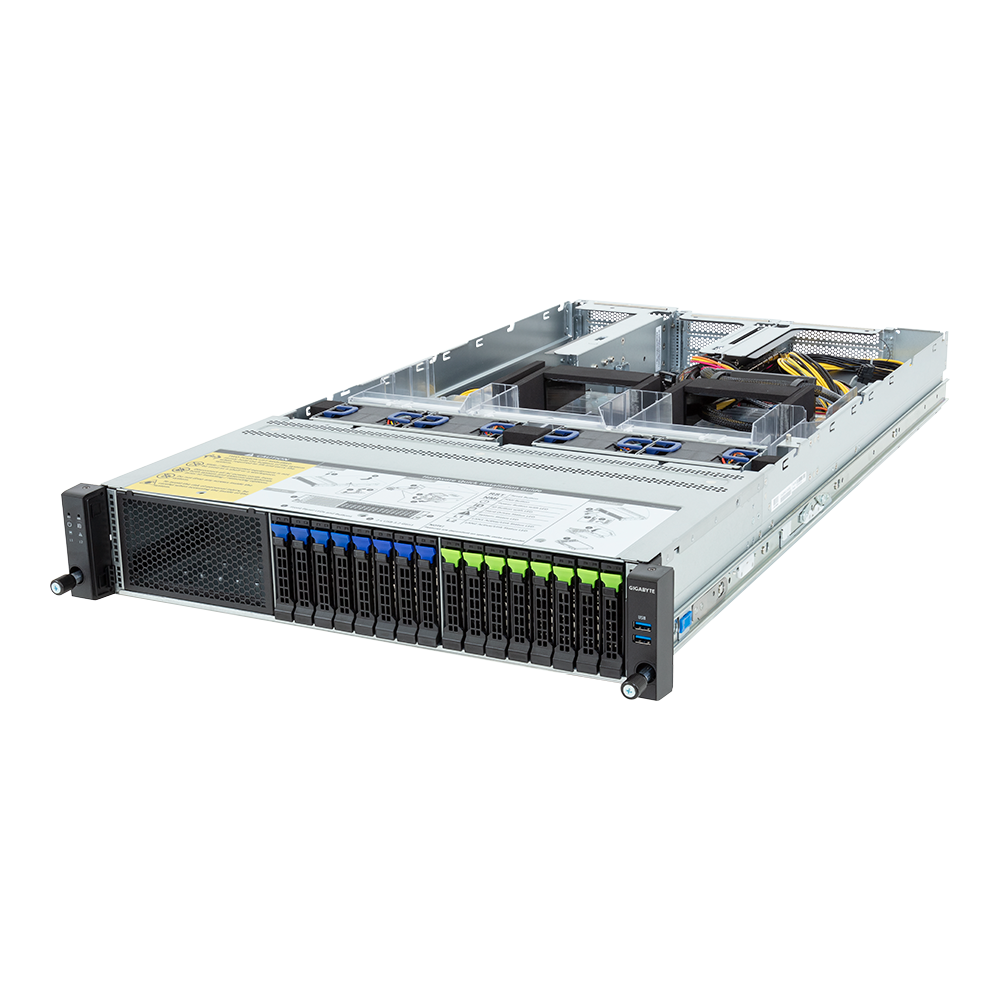

R283_ZF1-AAL1

Rack Server - AMD EPYC™ 9004 - 2U DP 4 x PCIe Gen5 GPUs
Comparison Request Price
Overview Specifications
  • Supports up to 4 x Dual slot Gen5 GPUs
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 4 x 2.5" Gen5 NVMe hot-swappable bays
  • 8 x 2.5" SATA/SAS-4 hot-swappable bays
  • 4 x FHFL PCIe Gen5 x16 slots for GPUs
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP 3.0 Gen5 x16 slot
  • Dual 2700W 80 PLUS Titanium redundant power supply
Dimensions

438 x 87.5 x 815

Form Factor

2U
Motherboard

MZF3-GP0
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 30°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
Network Connectivity

Rear side:
1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Drive Bays / Storage

Front side:
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
4 x 2.5" Gen5 NVMe hot-swappable bays
8 x 2.5" SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)

SAS card is required for SAS devices support

Note: SATA hotplug utility can be downloaded on support page.

Expansion Slots

PCIe cable x 5:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot, from CPU_0
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
- Occupied by CRS2810 - 6 x SATA ports

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280 cards
- Occupied by CRS2810 - 6 x SATA ports

Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

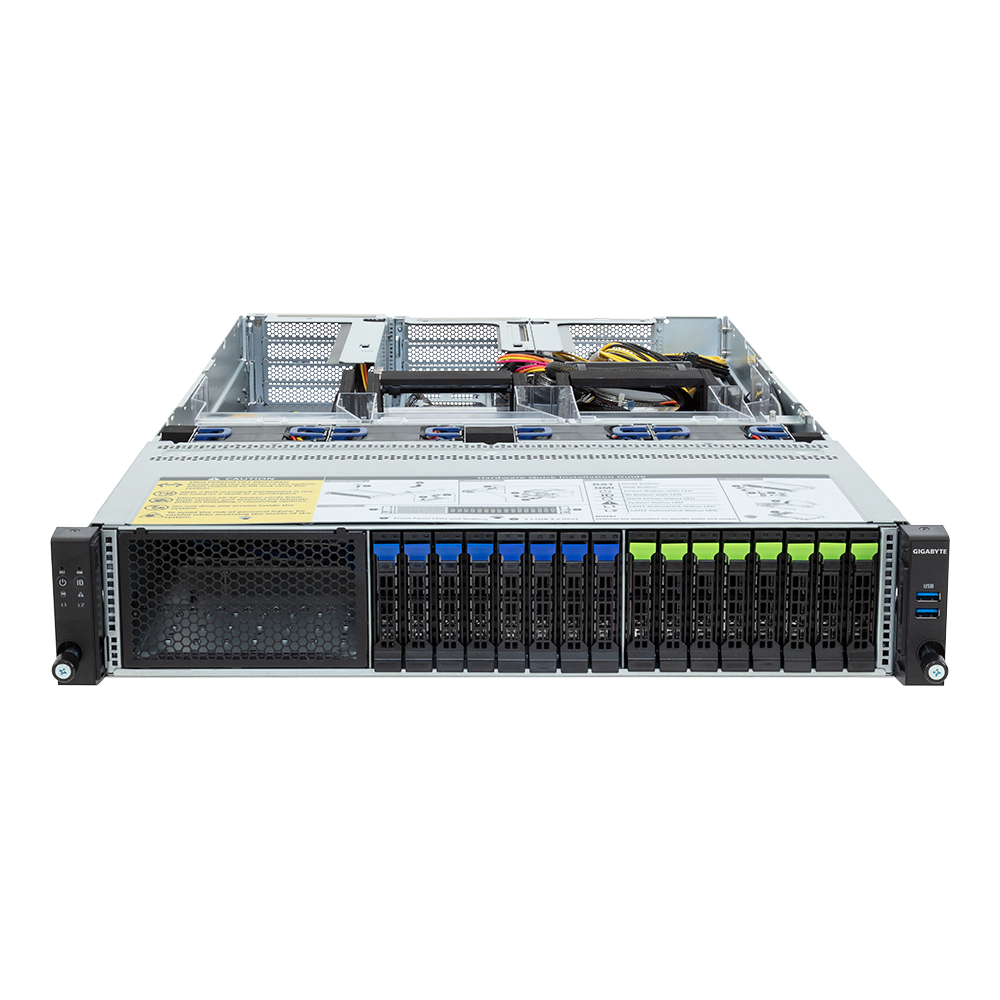

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage status LED
1 x System status LED

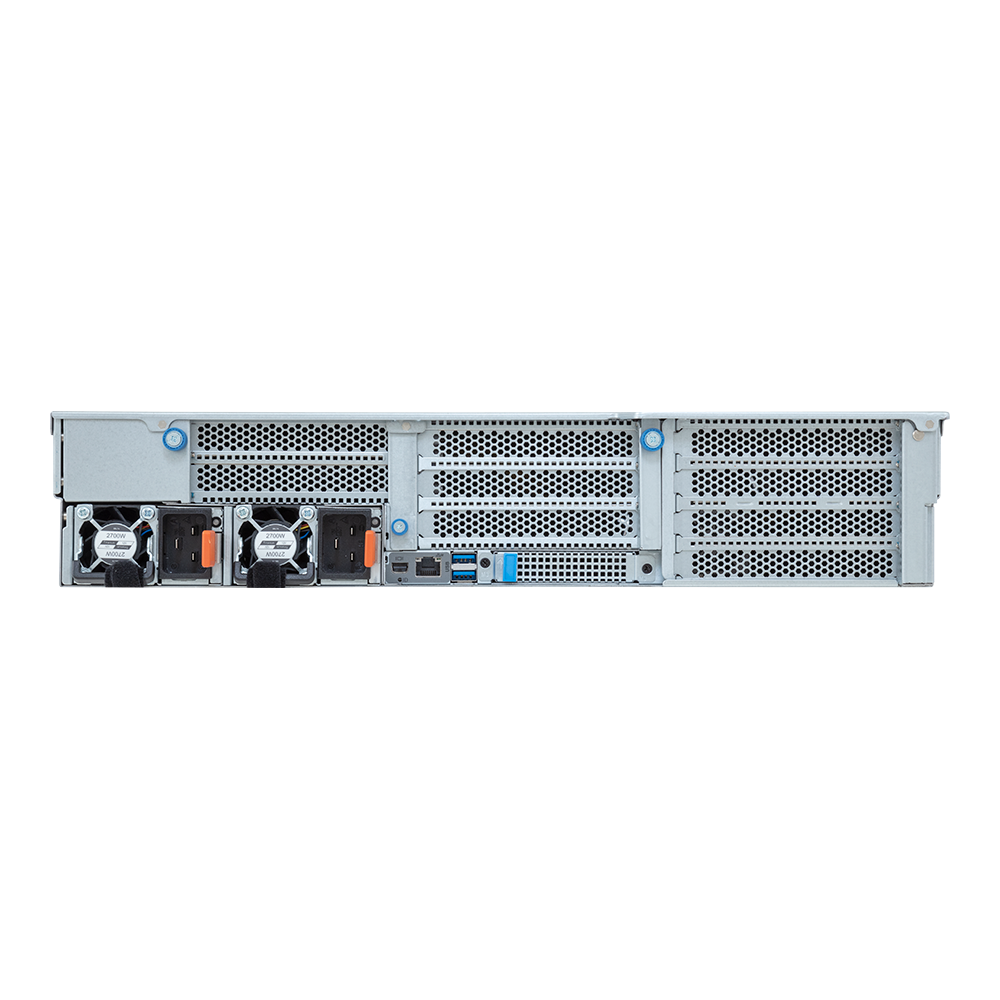

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED

System Fans

1 x 40x40x28mm (34,000rpm)
4 x 80x80x56mm (15,500rpm)

Power Supply

Dual 2700W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

Operating Environment

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-ZF1-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 150mm)
1 x GPU power cable (12VHPWR, 250mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283ZF1DR000AAL1* - Motherboard: 9MZF3GP0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-4Z3200-S7R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20G0: 9CBP20G0NR-00 - Fan module 40x40x28mm: 25ST2-44282I-N2R - Fan module 80x80x56mm: 25ST2-885621-A0R - M.2 type SATA card - CRS2810: 9CRS2810NR-00 - I/O board - CBG70: 9CBG70NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R - GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R - GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R - GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R - Power supply: 25EP0-227000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283ZF1SR-RMA-A100
