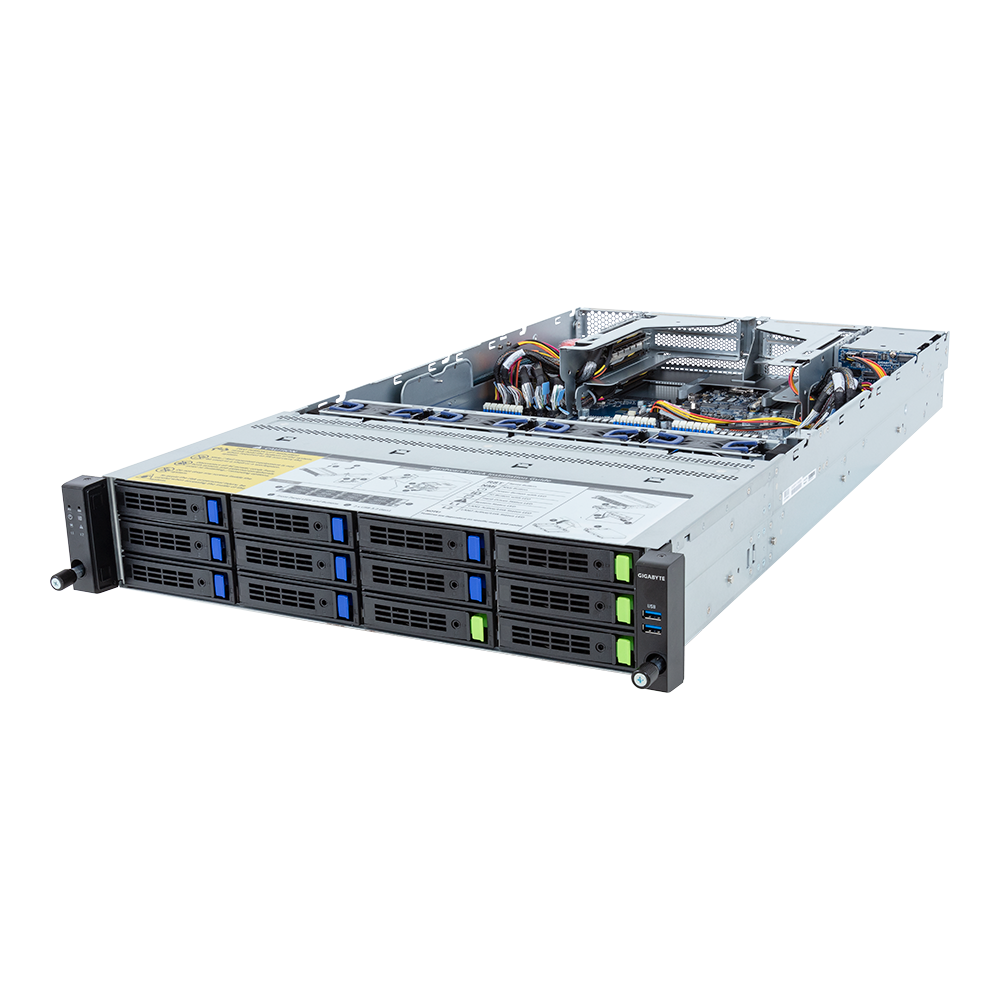

R283_Z95-AAV1

Rack Server - AMD EPYC™ 9004 - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4 with expander Titanium
Comparison Request Price
Overview Specifications
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 8 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
  • 2 x 2.5" SATA/SAS-4 hot-swappable bays on the rear side
  • Onboard 24Gb/s SAS-4 expander
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 5 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply
Dimensions

438 x 87.5 x 815

Form Factor

2U

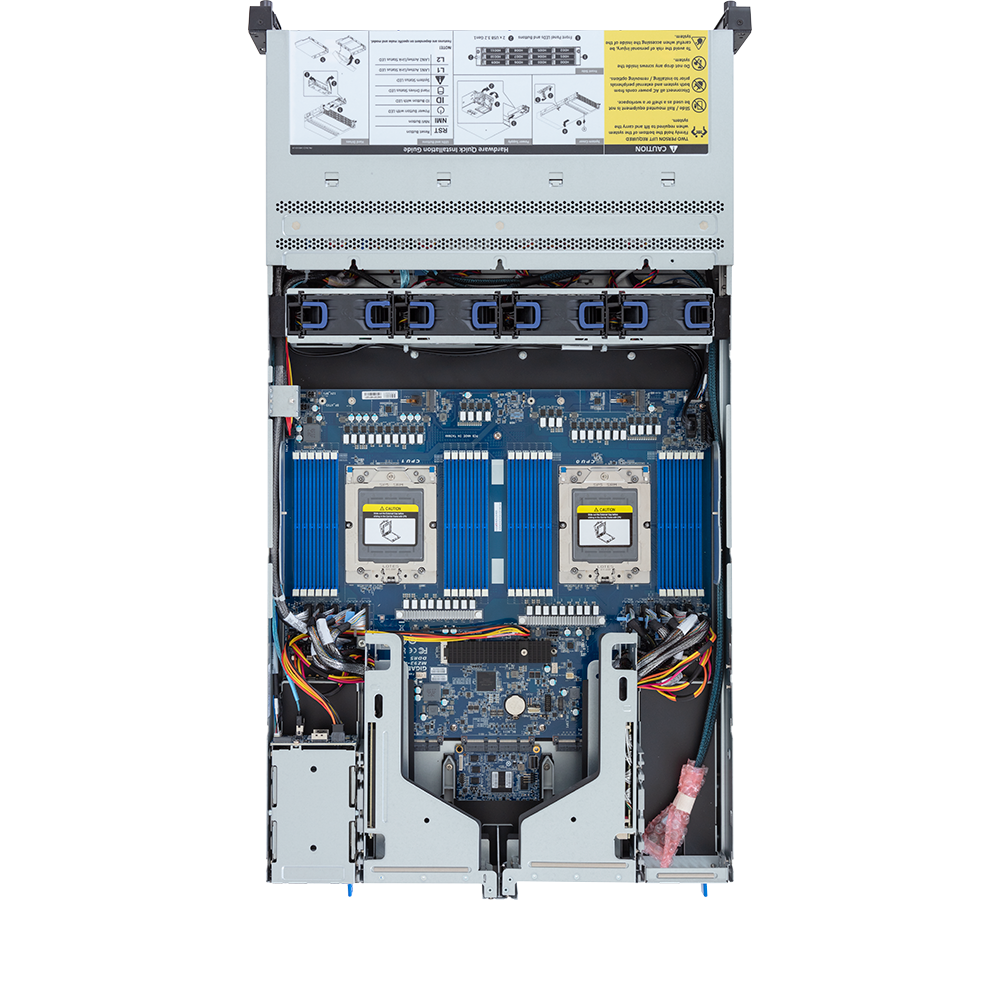

Motherboard

MZ93-FS1
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

Supports EPYC 9654 cTDP 400W.

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Drive Bays / Storage

Front side:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays, NVMe from CPU_1
8 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS-4 hot-swappable bays

Broadcom SAS4x32 expander
Bandwidth: SATA 6Gb/s or SAS-4 24Gb/s per port

a) SAS card is required to enable the drive bays
b) All devices are connected to SAS expander
c) Please select enterprise SATA devices for SAS expander system
Expansion Slots

PCIe Cable x 5:
- 3 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

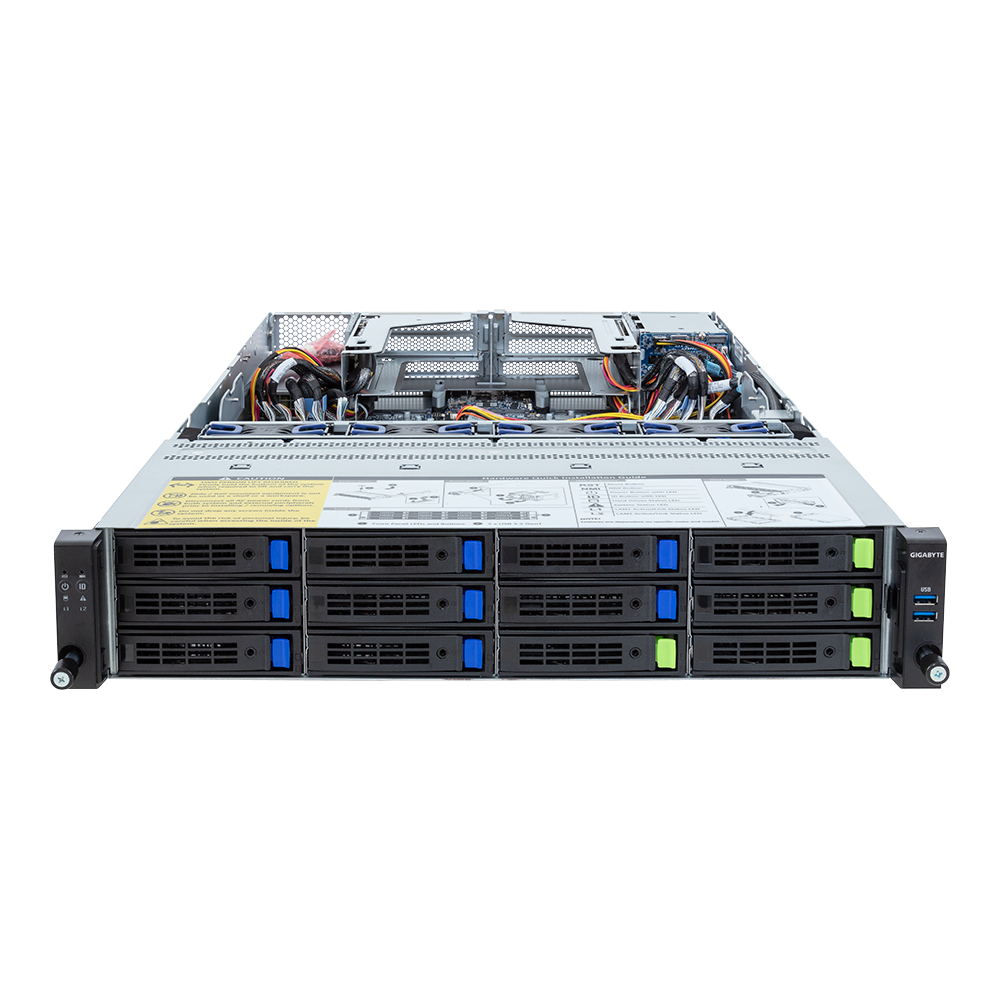

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

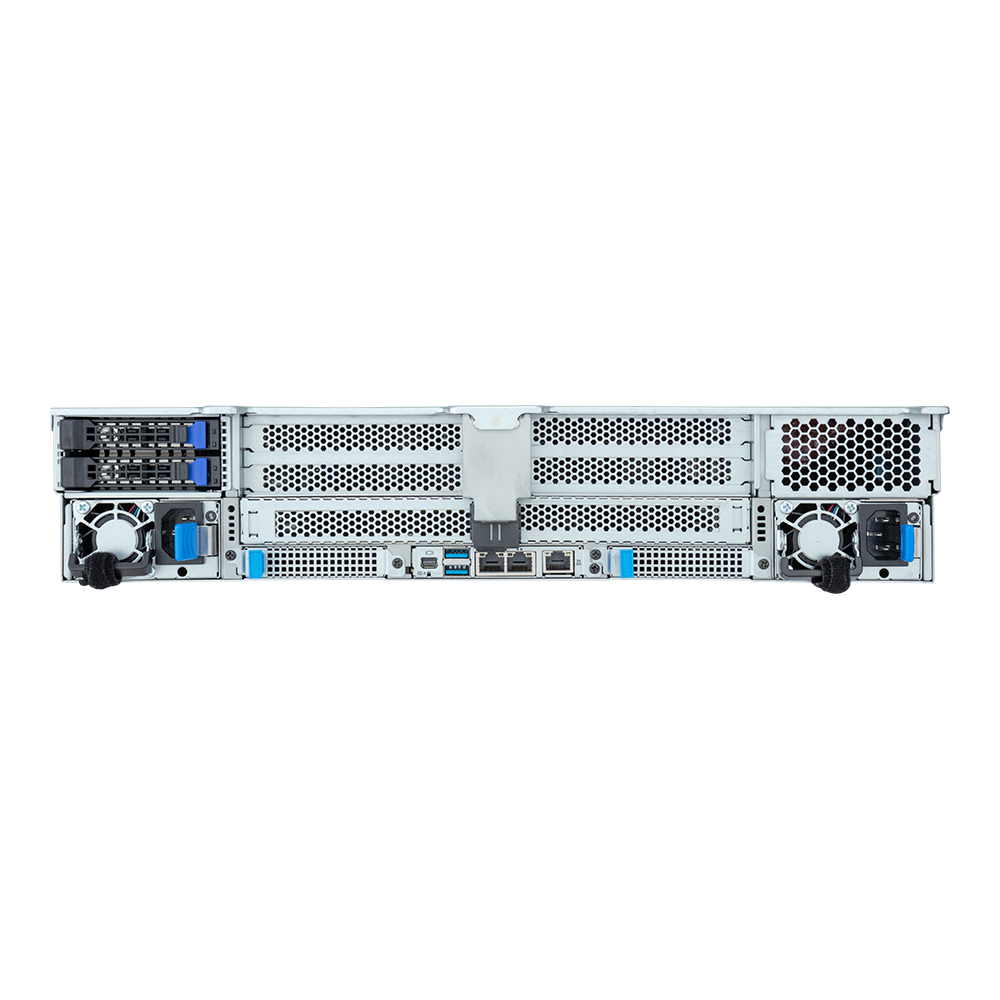

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

Dual 1600W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Supported
Raid

Depends on SAS add-in cards
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: Front side - CBP21C4: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-Z95-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283Z95DR000AAV1* - Motherboard: 9MZ93FS1UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-15320G-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP2025: 9CBP2025NR-00 - Backplane board with expander - CBP21C4: 9CBP21C4NR-00 - Fan module: 25ST2-88382T-S1R - G-SCM board - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-21600D-G1S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z95SR-RMA-A100
