R283_Z92-AAE2

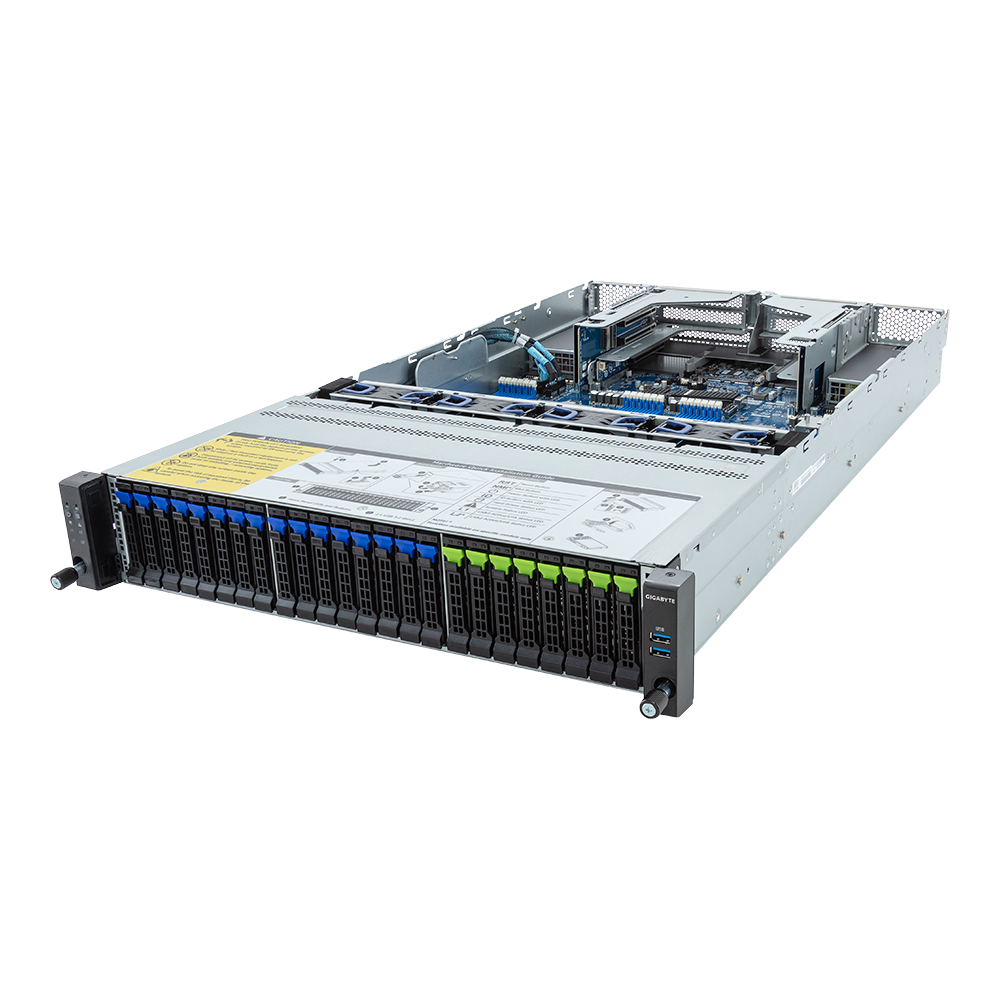

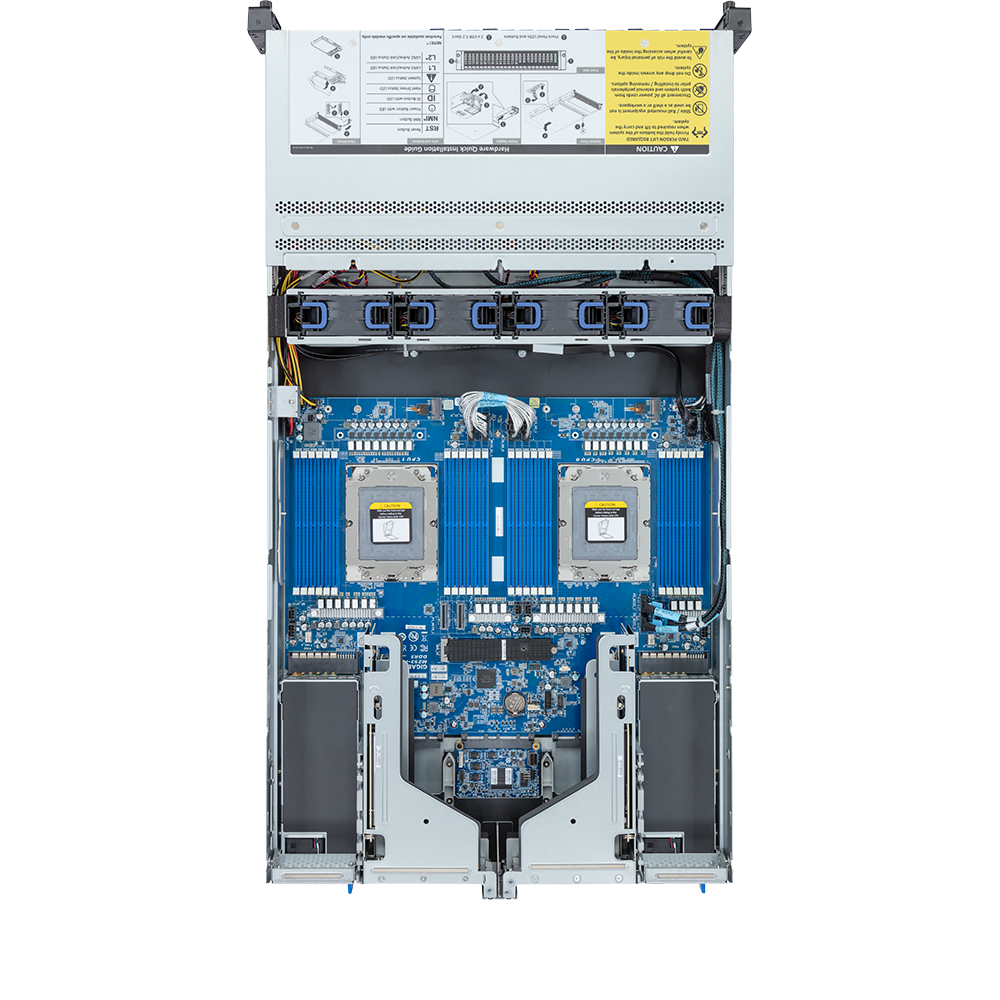

Rack Server - AMD EPYC™ 9004 - 2U DP 24-Bay Gen4 NVMe/SATA/SAS (8 x NVMe)
Comparison Request Price
Overview Specifications
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 4 x FHHL PCIe Gen5 x16 slots
  • 1 x OCP 3.0 Gen5 x16 slot
  • 1+1 2000W 80 PLUS Platinum redundant power supplies
Dimensions

438 x 87 x 815

Form Factor

2U
Motherboard

MZ93-FS0
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

Supports EPYC 9654 cTDP 400W.

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

Front side:
8 x 2.5" Gen4 NVMe hot-swappable bays, from CPU_1
16 x 2.5" SATA/SAS hot-swappable bays, from CPU_0

SAS card is required for SAS devices support

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot disabled, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards

Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

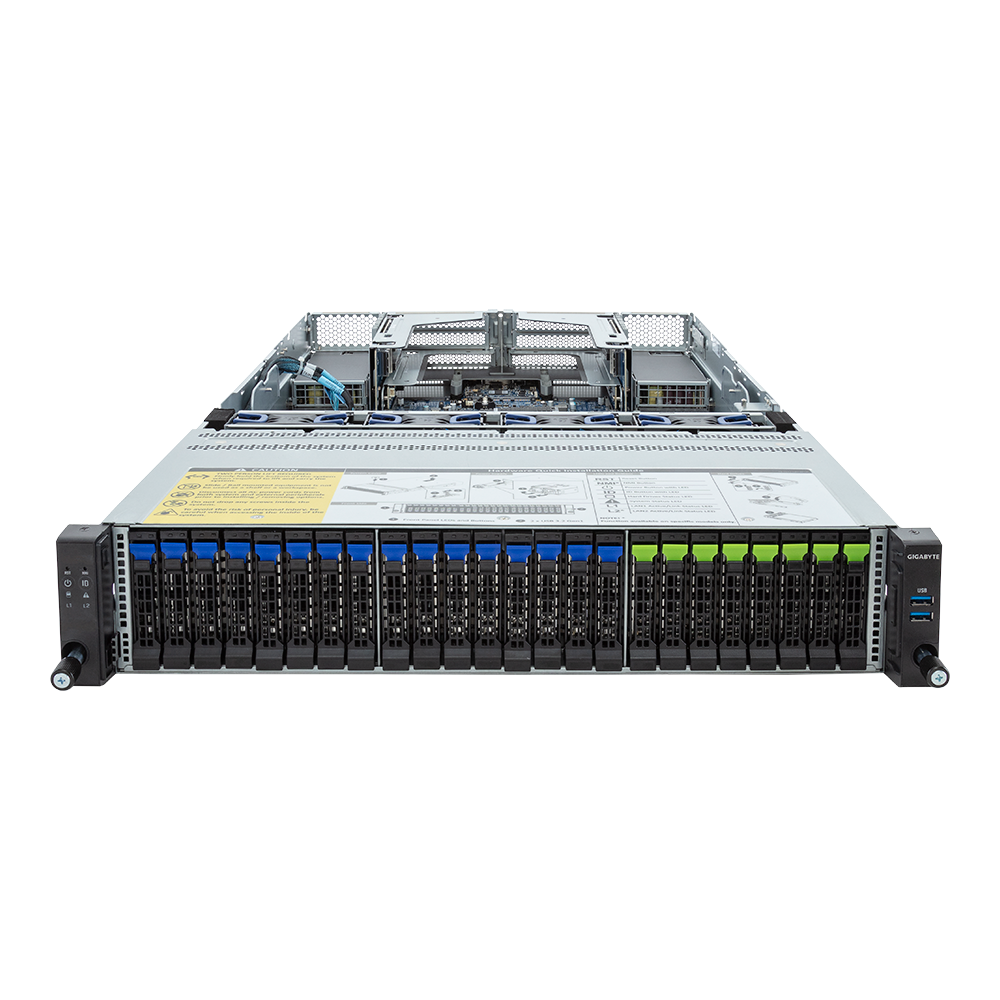

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

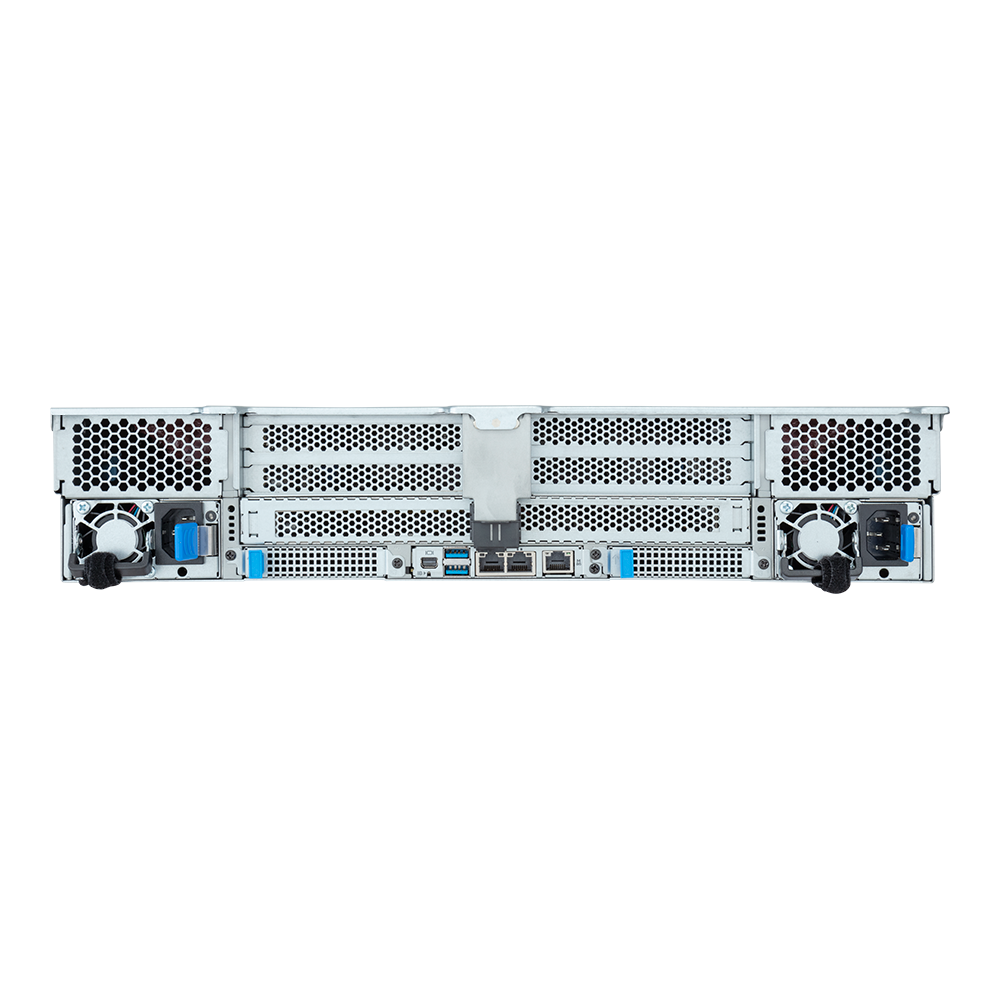

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

1+1 2000W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12V/ 163.5A
+12Vsb/ 2.5A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Depends on SAS add-in cards
Raid

N/A
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-Z92-AAE2
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283Z92DR000AAE2* - Motherboard: 9MZ93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-15320G-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP20O7: 9CBP20O7NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101Q: 9CRS101QNR-00 - Riser card - CRS101T: 9CRS101TNR-00 - Riser card - CRS202M: 9CRS202MNR-00 - Riser card - CRS202N: 9CRS202NNR-00 - G-SCM board - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-22000A-L0S
Optional Parts

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z92SR-RMA-A100
Additional Certifications

Ubuntu 22.04 LTS (x64)
VMware ESXi 8.0 or later
Windows Server 2022 (x64)

Riser Card

CRS101T: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 CRS101Q: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 CRS202M: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0 - 1 x PCIe x16 slot disabled CRS202N: - 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1 - 1 x PCIe x16 slot disabled
