R283_Z91-AAD2

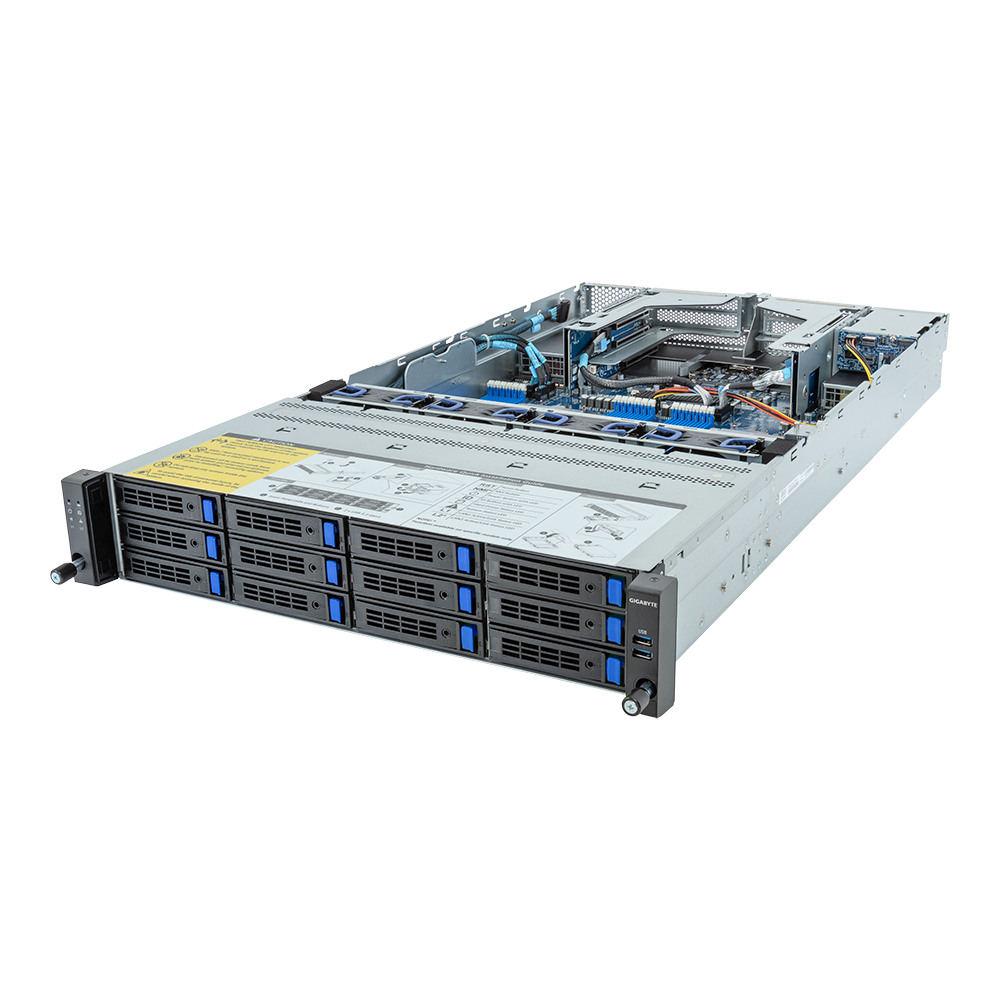

Rack Server - AMD EPYC™ 9004 - 2U DP 12+2-Bay SATA/SAS with expander
Comparison Request Price
Overview Specifications
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
  • Onboard 12Gb/s SAS expander
  • 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 6 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • Dual 1600W 80 PLUS Platinum redundant power supply
Dimensions

438 x 87 x 815

Form Factor

2U

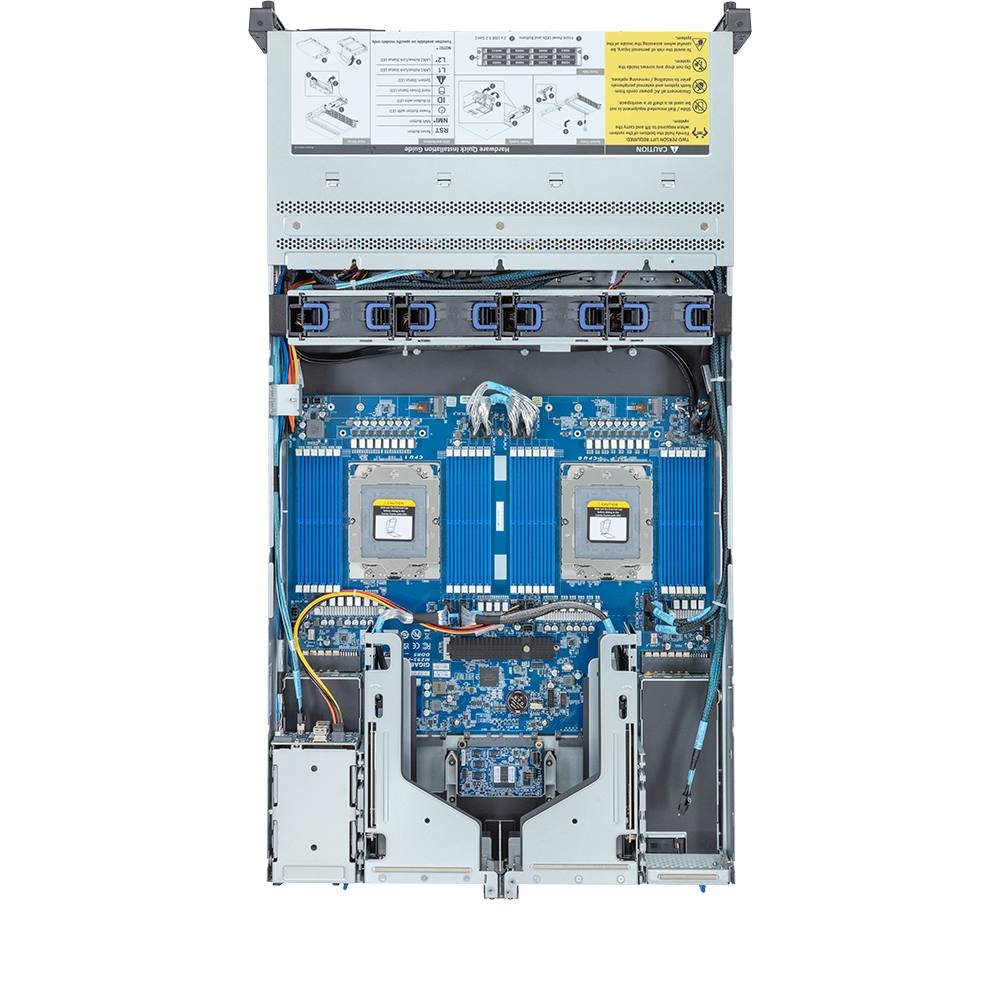

Motherboard

MZ93-FS0

CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

Supports EPYC 9654 cTDP 400W.

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5

Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
Network Connectivity

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

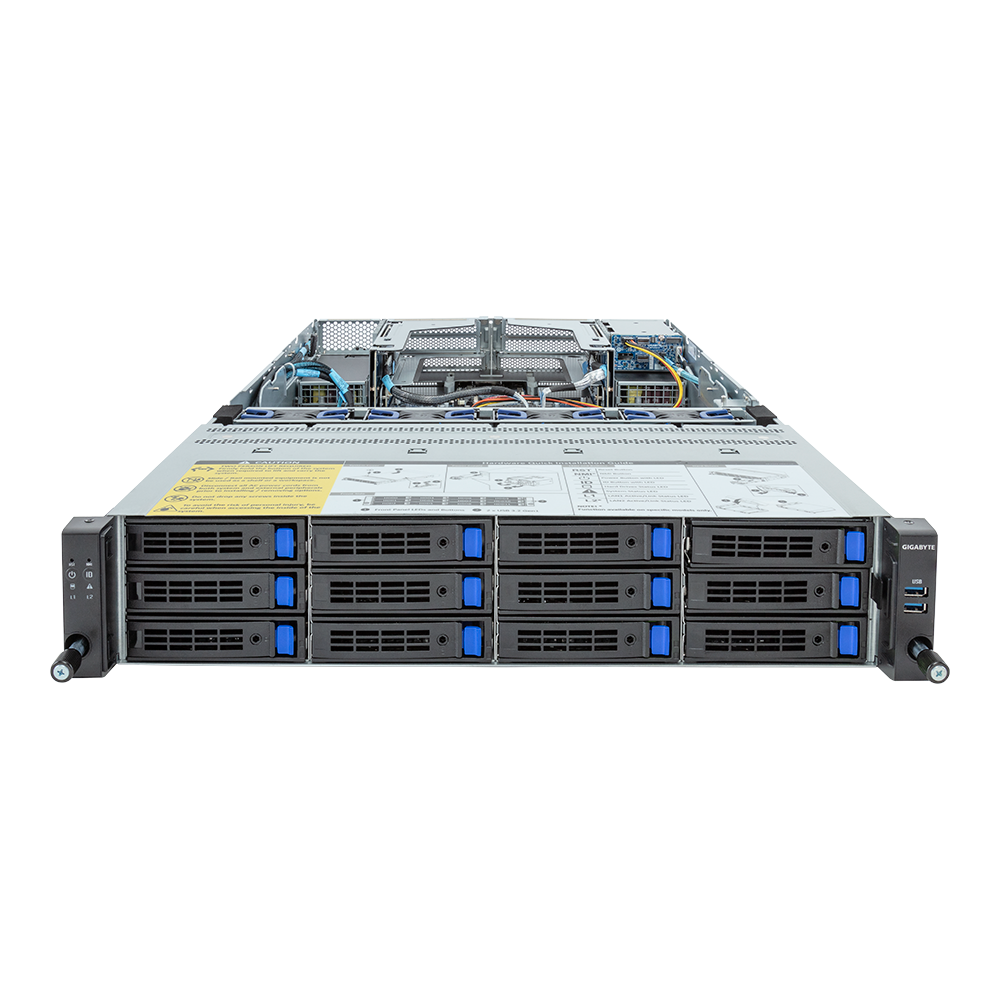

Drive Bays / Storage

Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays

Rear side:
2 x 2.5" SATA/SAS hot-swappable bays

Broadcom SAS35x24R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

a) SAS card is required to enable the drives
b) All devices are connected to SAS expander
c) Please select enterprise SATA devices for SAS expander system

Expansion Slots

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards

Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

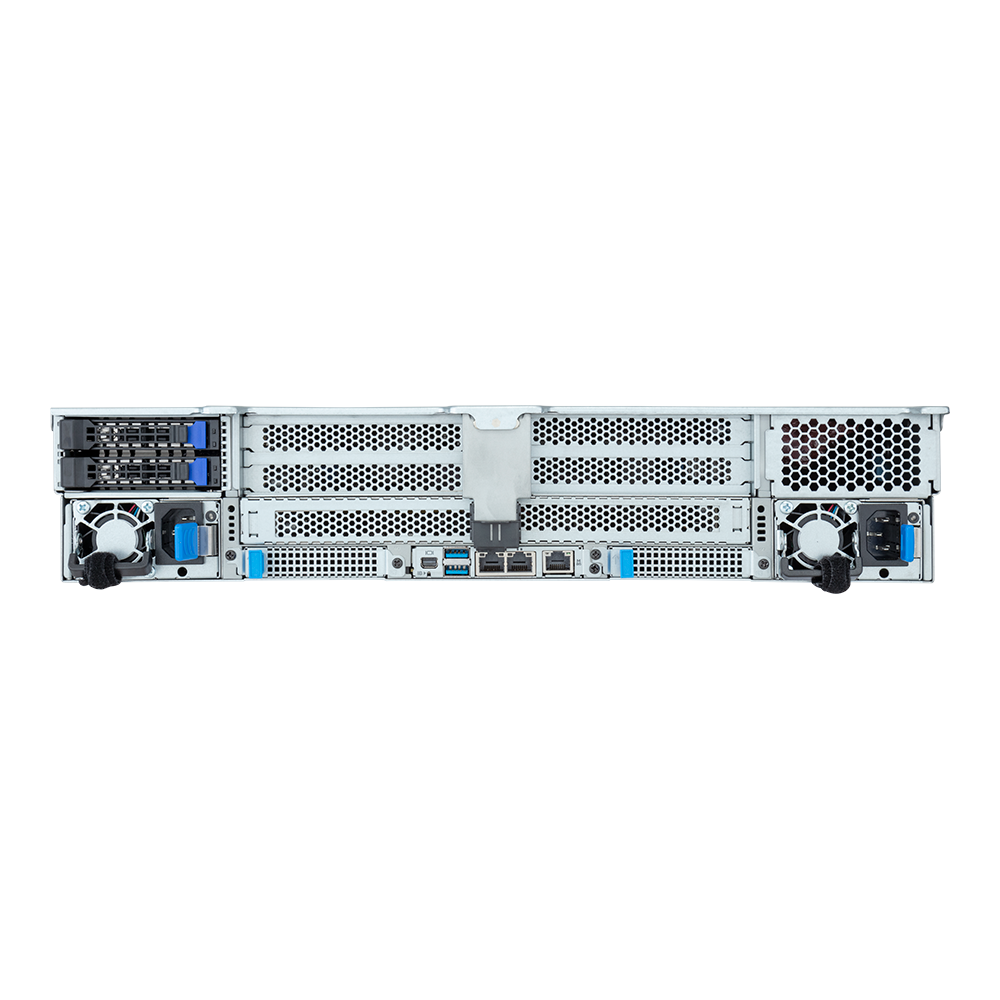

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
System Fans

4 x 80x80x38mm (18,300rpm)
Power Supply

Dual 1600W 80 PLUS Platinum redundant power supply

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Supported
Raid

Depends on SAS add-in cards
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: Front side - CBP21C1: SATA 6Gb/s or SAS 12Gb/s Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R283-Z91-AAD2
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283Z91DR000AAD2* - Motherboard: 9MZ93FS0UR-000 - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-15320G-A0R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00 - Backplane board - CBP2022: 9CBP2022NR-00 - Backplane board - CBP21C1: 9CBP21C1NR-00 - Fan module: 25ST2-88382T-S1R - Riser card - CRS101Q: 9CRS101QNR-00 - Riser card - CRS101T: 9CRS101TNR-00 - Riser card - CRS202M: 9CRS202MNR-00 - Riser card - CRS202N: 9CRS202NNR-00 - G-SCM board - CDCR114: 9CDCR114NR-00 - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-216008-L0S
