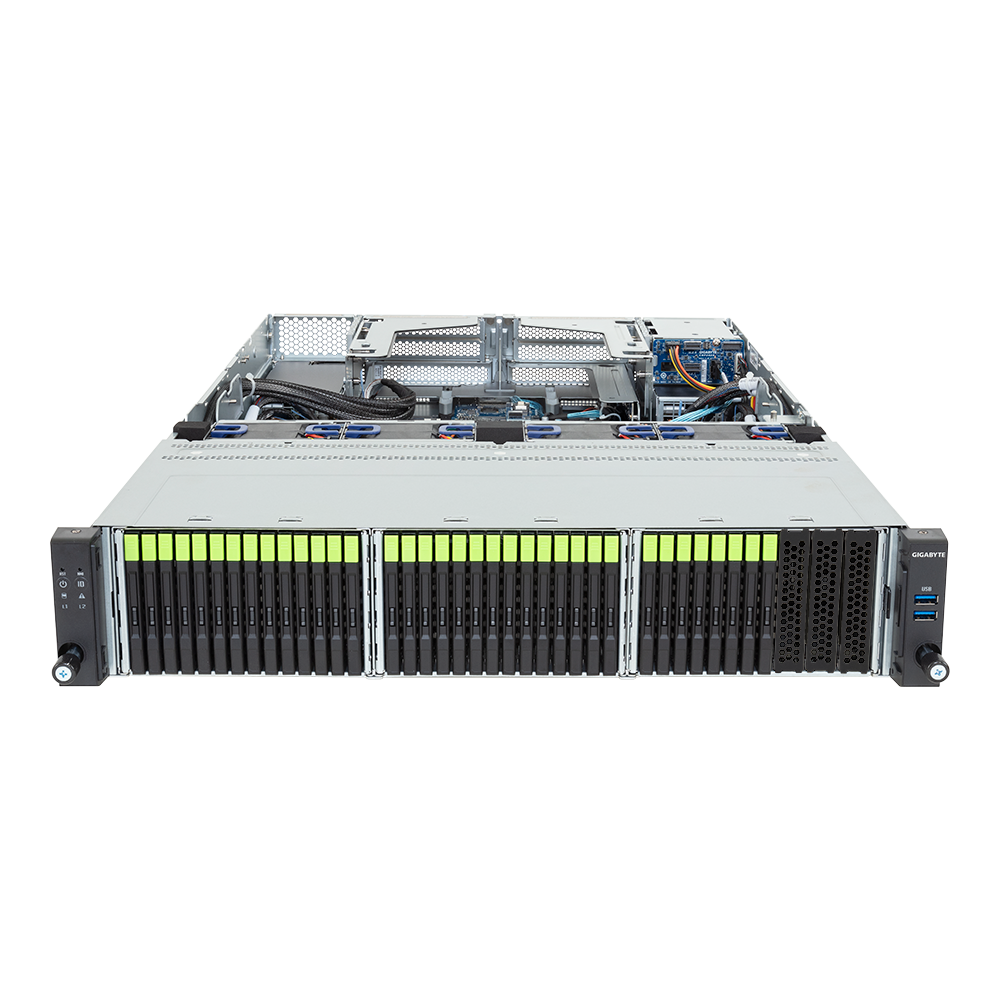

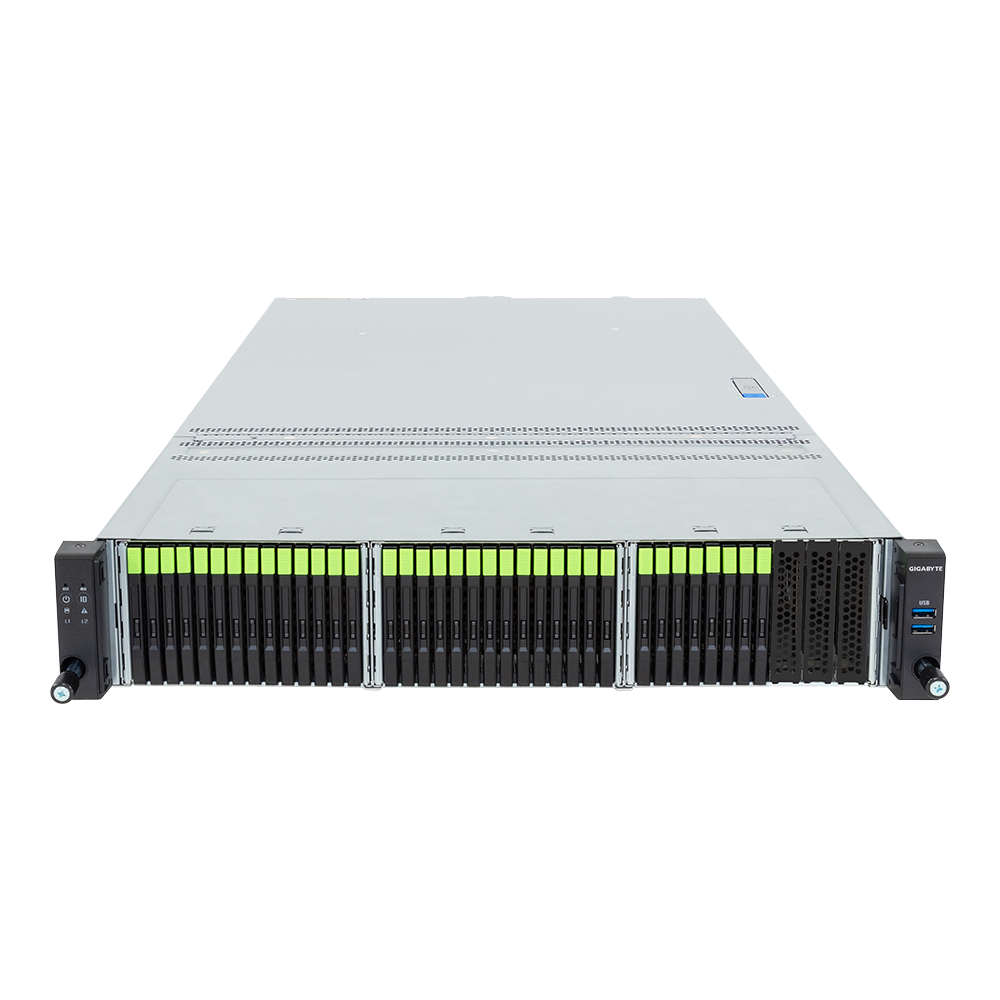

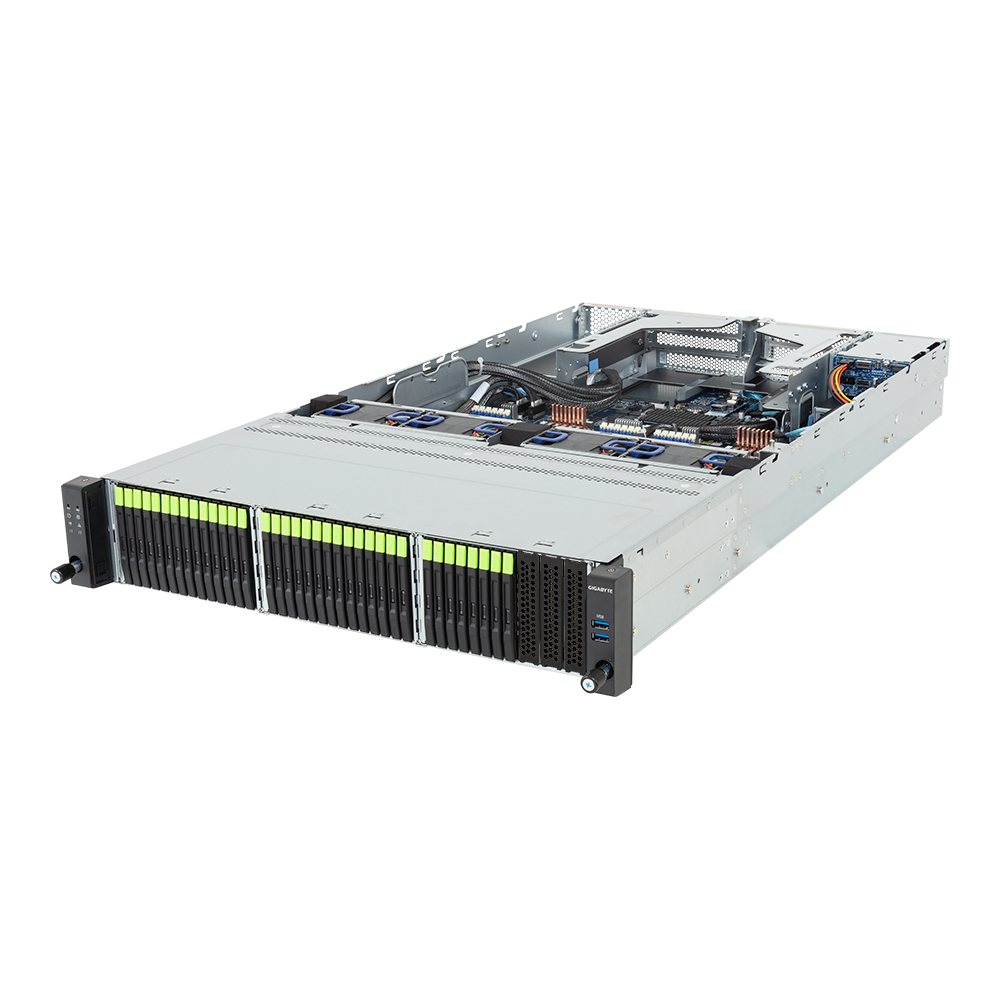

R284_A91-AAL1

Rack Server - Intel® Xeon® 6 Processors - 2U DP 36-Bay E3.S Gen5 NVMe + 2-Bay SATA/SAS-4
Comparison Request Price
Overview Specifications
  • Dual Intel® Xeon® 6 Processors, LGA 7529
  • 12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 36 x E3.S Gen5 NVMe hot-swap bays
  • 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
  • 2 x M.2 slots with PCIe Gen5 x4 interface
  • 1 x FHHL PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 2 x 2700W 80 PLUS Titanium redundant power supply
Dimensions

438 x 87.5 x 815

Form Factor

2U

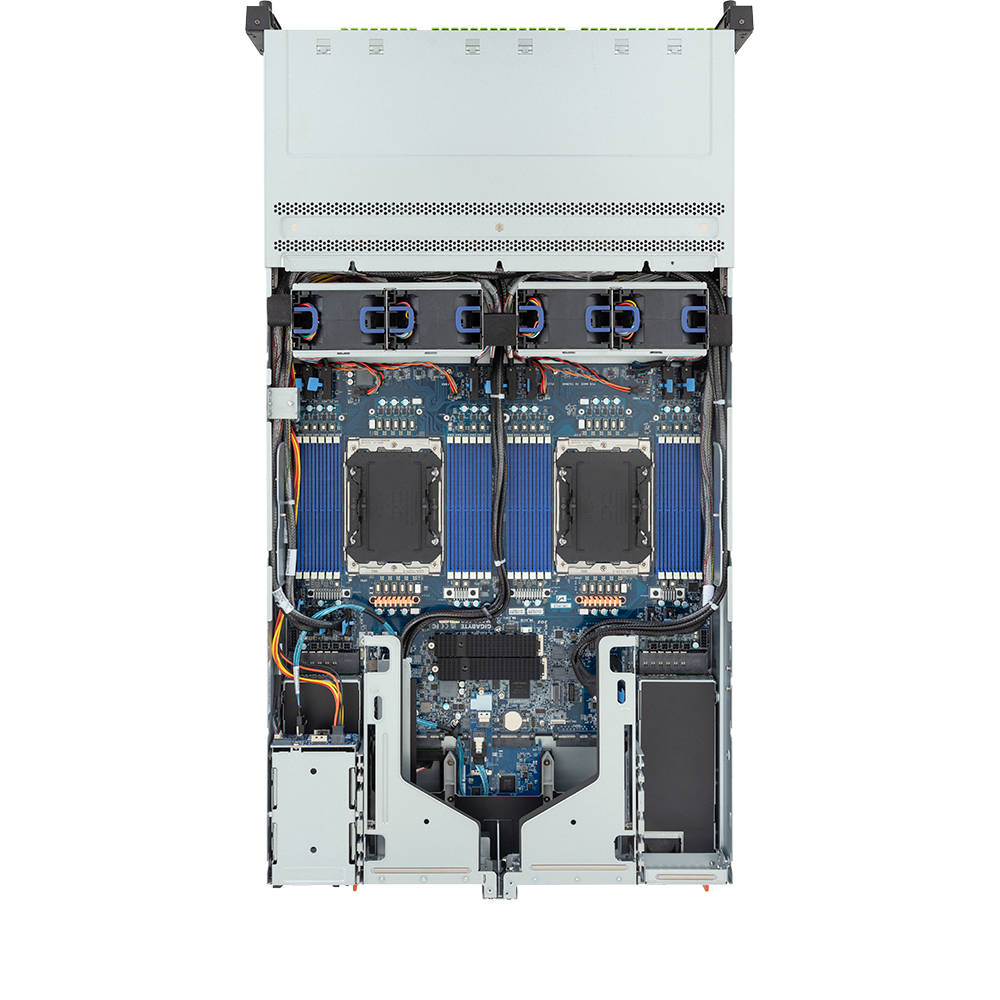

Motherboard

MA94-FS0
CPU

Intel® Xeon® 6 Processors
- Intel® Xeon® 6900-Series Processors

Dual processor, TDP up to 500W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 7529
Socket BR
Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s

[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores.

Network Connectivity

Rear (I/O board - CDCR010):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
- 1 x Mini-DP
Drive Bays / Storage

Front hot-swap:
36 x E3.S Gen5 NVMe
- (16 x NVMe from CPU_0, 20 x NVMe from CPU_1)

Rear hot-swap:
2 x 2.5" SATA/SAS-4 [1]
- (SATA from CPU_0, through I/O board)

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA

[1] SAS card is required to support SAS drives.
Expansion Slots

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1, occupied for NVMe
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)
Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

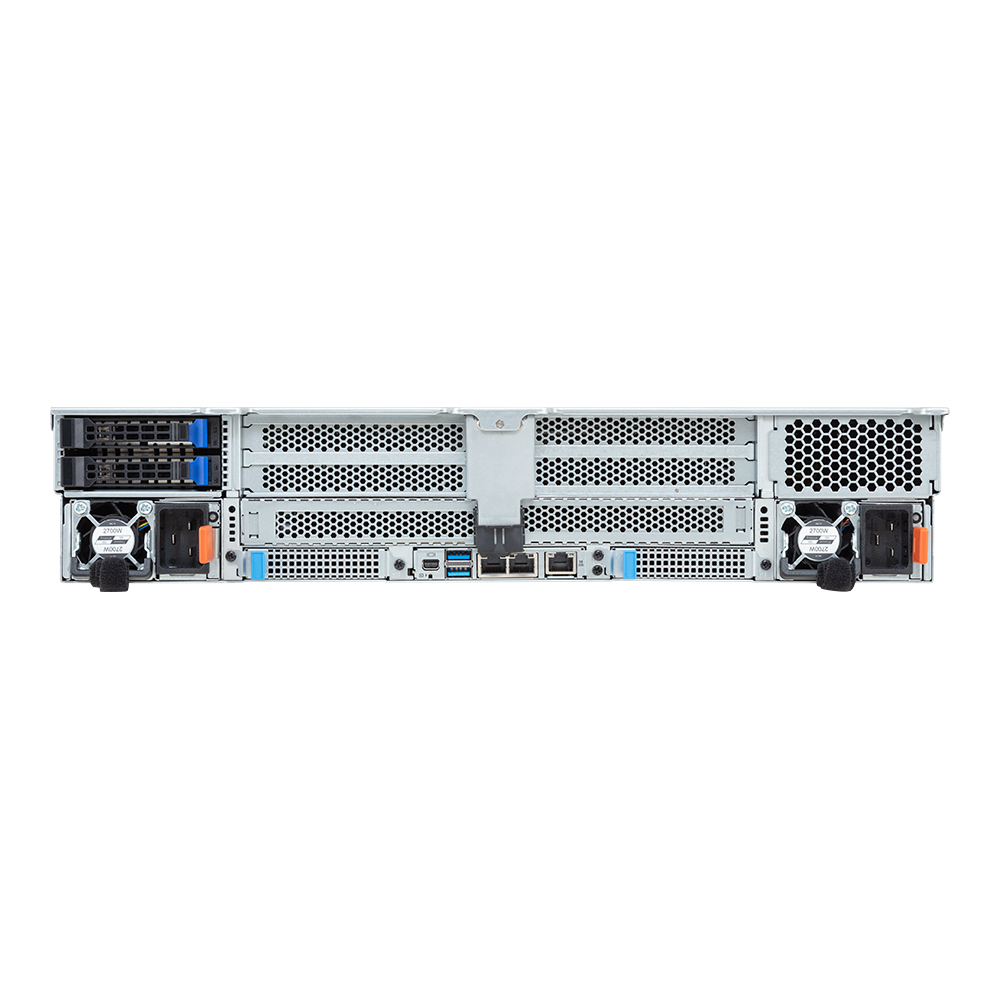

Rear I/O

I/O board - CDCR010:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

System Fans

4 x 80x80x56mm (15,500rpm)
Power Supply

2 x 2700W 80 PLUS Titanium redundant power supply [1]

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Require SAS add-in cards
Raid

Require RAID add-in cards Onboard VROC key header
Backplane Board

Speed and bandwidth: Front side - CBP20E0: PCIe Gen5 x4 Front side - CBP20P0: PCIe Gen5 x4 Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page

Packaging Dimensions

1077 x 679 x 300 mm
Packaging Content

1 x R284-A91-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR284A91DR000AAL1* - Motherboard: 9MA94FS0UR-000* - 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R - CPU heatsink: 25ST1-553209-M1R - M.2 heatsink: 12SP2-11000E-00R - Front panel board - CFP2001: 9CFP2001NR-00* - Backplane board - CBP2025: 9CBP2025NR-00* - Backplane board - CBP20E0: 9CBP20E0NR-00* - Backplane board - CBP20P0 9CBP20P0NR-00* - Fan module: 25ST2-885621-A0R - M.2 type SATA card - CRS2810: 9CRS2810NR-00* - Riser card - CRS101K: 9CRS101KNR-00* - I/O board with M.2 slot - CDCR010: 9CDCR010NR-00* - Mini-DP to D-Sub cable: 25CRN-200801-K1R - Power supply: 25EP0-227000-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
Riser Card

CRS101K: - 1 x FHHL x16 (Gen5 x16), from CPU_1
