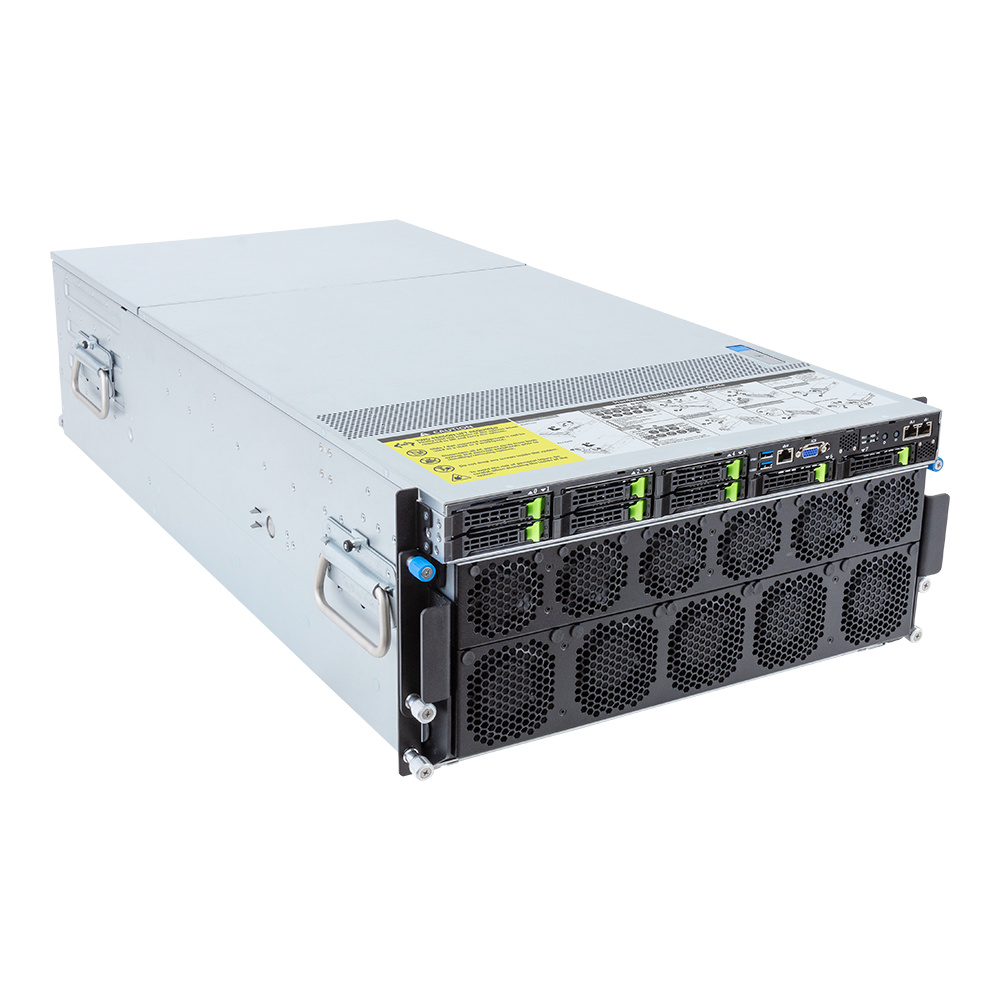

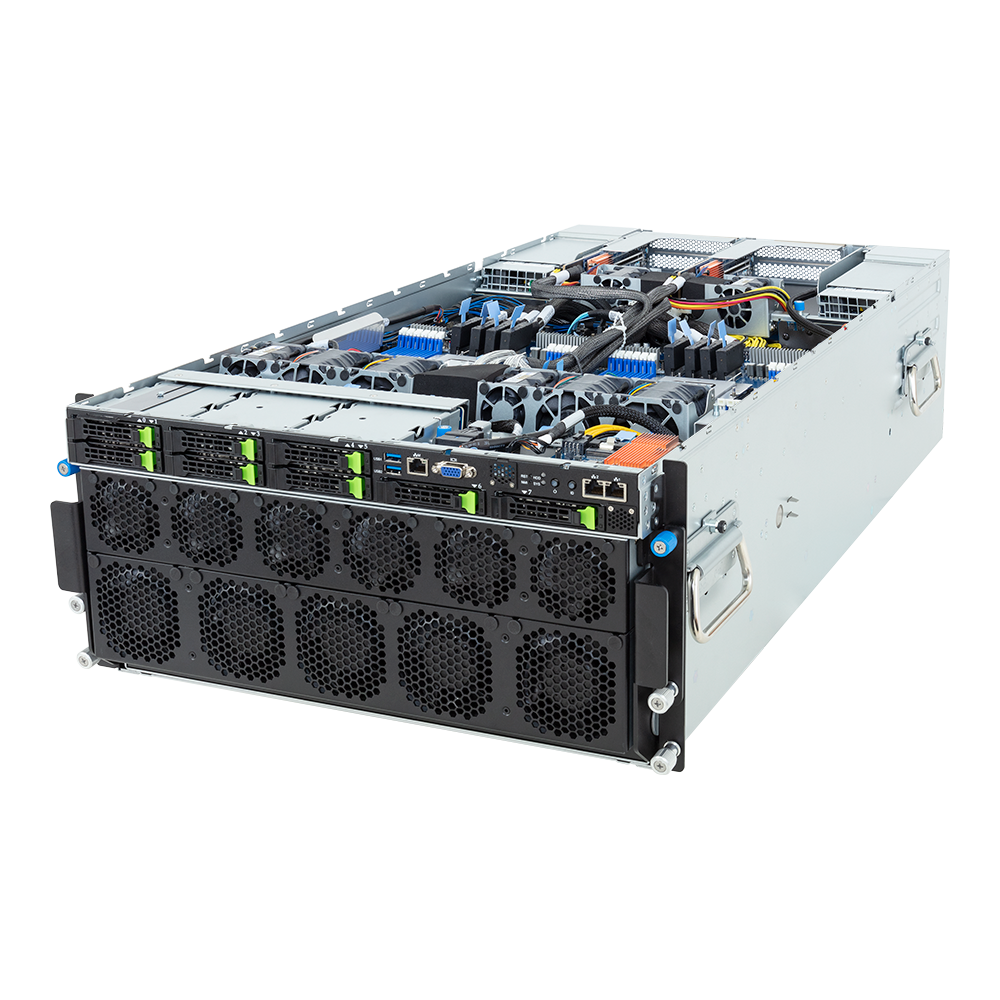

G593_ZD1-AAX1

HPC/AI Server - AMD EPYC™ 9004 - 5U DP NVIDIA HGX™ H100 8-GPU 8-Root Port
Comparison Request Price
Overview Specifications
  • NVIDIA HGX™ H100 with 8 x SXM5 GPUs
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 8 x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies
Dimensions

447 x 219.7 x 945
Weight

Net Weight: 91 kg
Gross Weight: 100 kg
Form Factor

5U

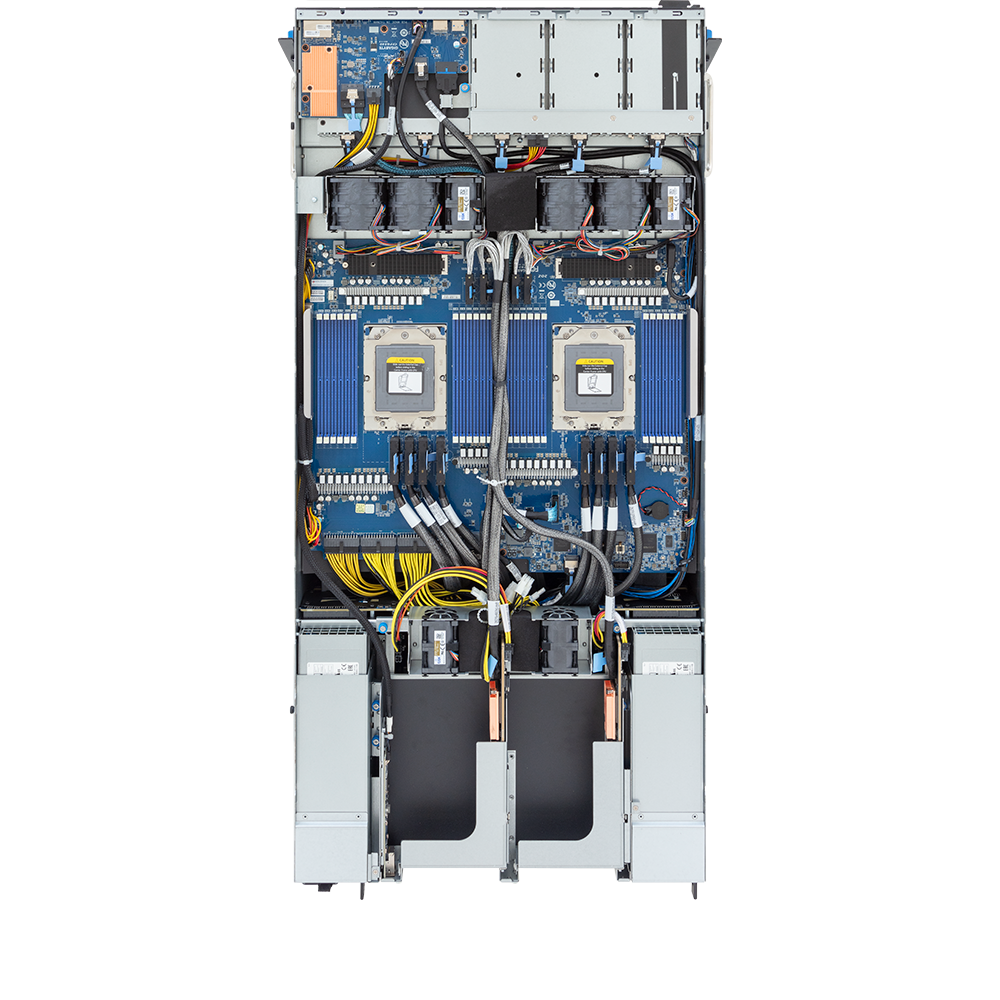

Motherboard

MZB3-G43
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5
Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
Network Connectivity

Front side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear side:
1 x 10/100/1000 Mbps Management LAN
Video Output

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Drive Bays / Storage

Front side:
8 x 2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays, NVMe from PEX89104
Expansion Slots

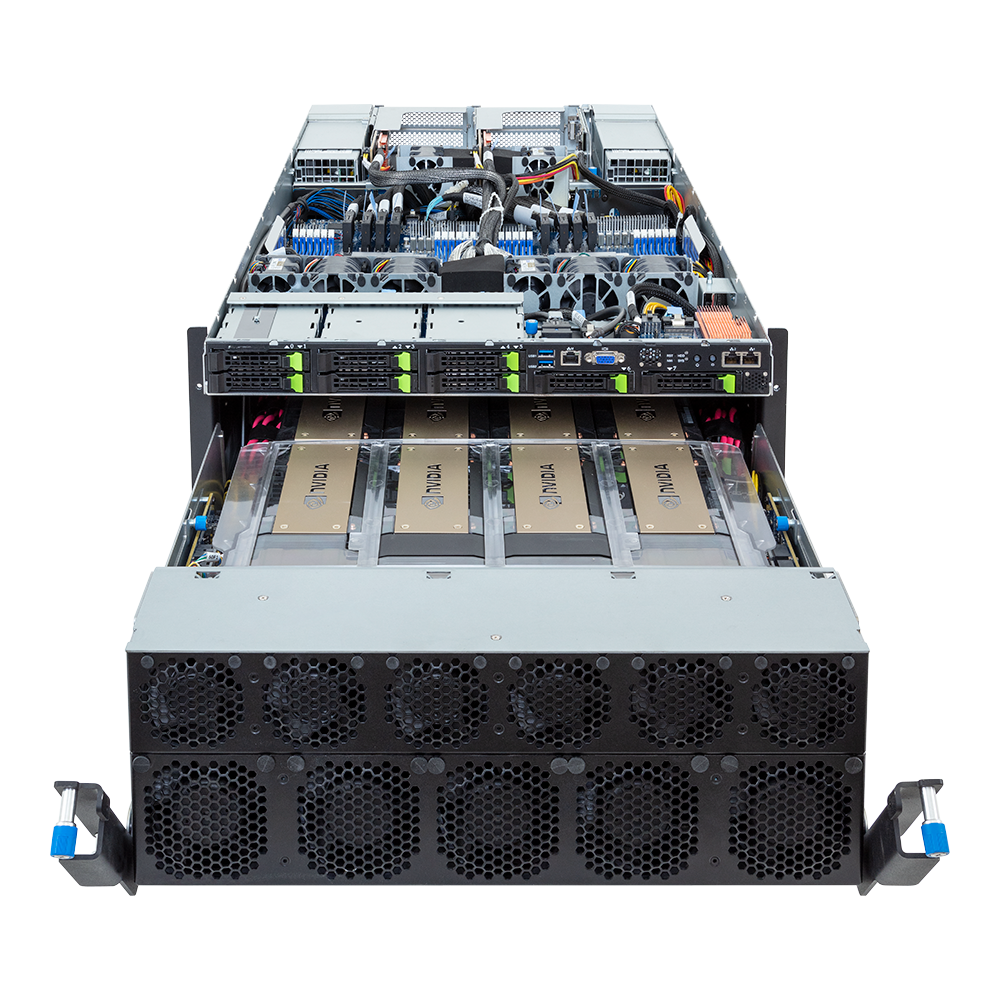

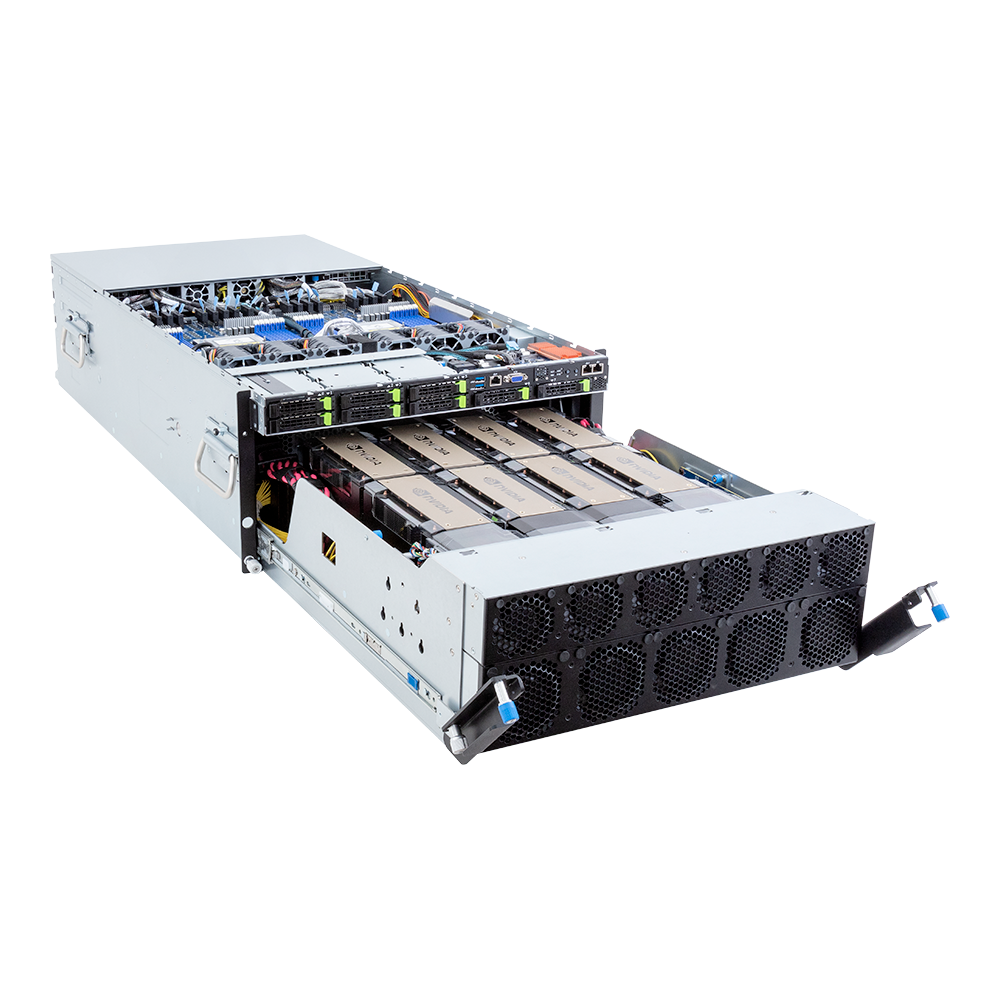

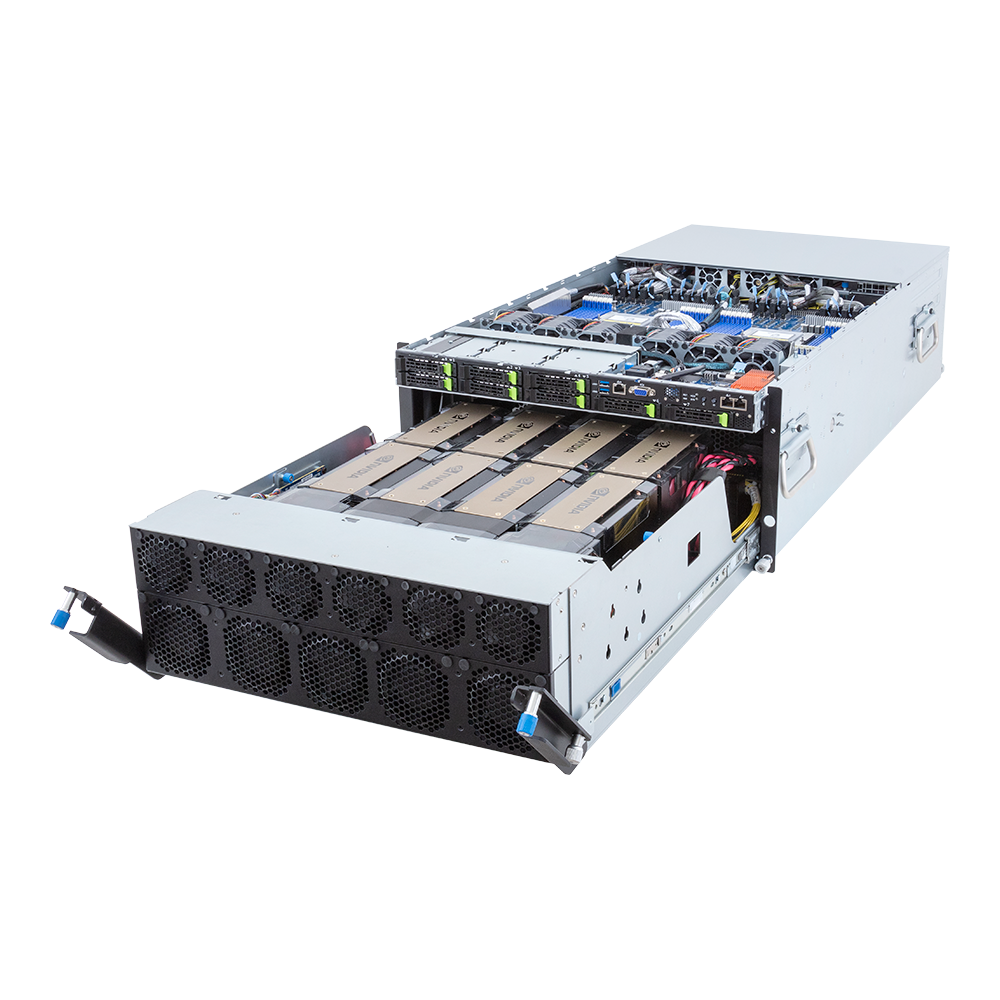

NVIDIA HGX™ H100 with 8 x SXM5 GPUs
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from CPU_0
- Supports 2280/22110 cards
Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

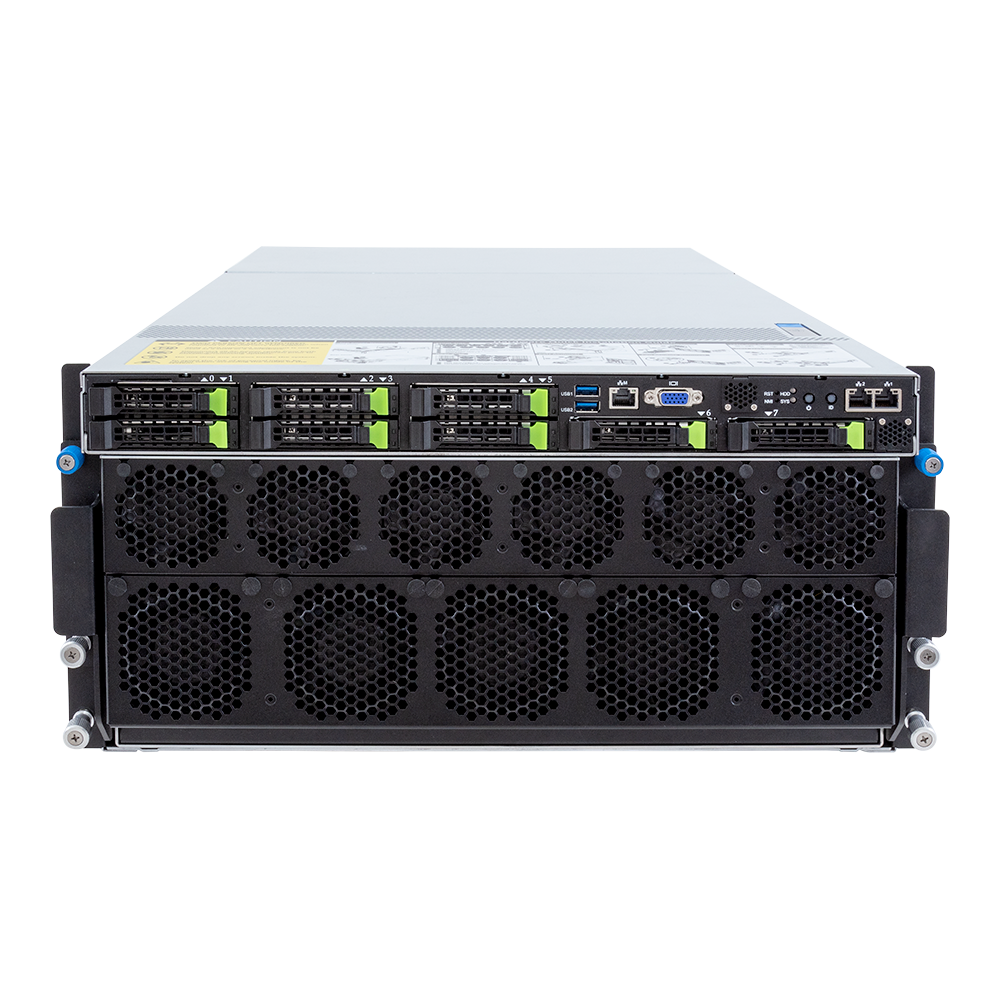

Front I/O

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

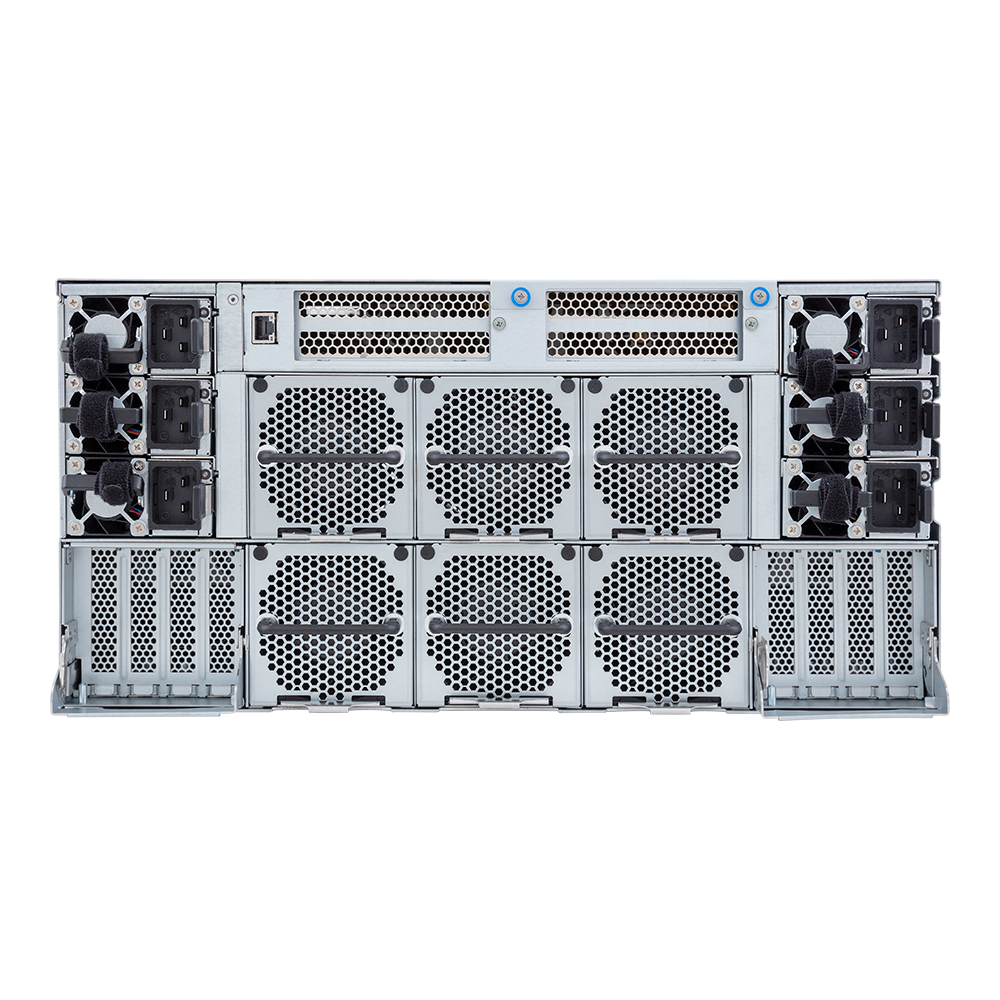

Rear I/O

1 x MLAN
System Fans

Motherboard:
2 x 40x40x56mm (32,000rpm)
4 x 60x60x56mm (24,000rpm)

PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)

GPU tray:
6 x 60x60x76mm (21,700rpm)
6 x 80x80x80mm (17,000rpm)
5 x 80x80x80mm (17,200rpm)
Power Supply

4+2 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Sas

Require SAS add-in cards
Raid

Require RAID add-in cards
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1200 x 890 x 700 mm
Packaging Content

1 x G593-ZD1-AAX1
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers

- Barebone w/ NVIDIA module: 6NG593ZD1DR000AAX1* - Motherboard: 9MZB3G43UR-000 - L-shape Rail kit: 25HB2-A96102-K0R - CPU heatsink: 25ST1-44320Z-C1R - Front panel board - CFPG540: 9CFPG540NR-00 - Backplane board - CBPG680: 9CBPG680NR-00 - Fan module 80x80x80mm: 25ST2-808037-S1R - Fan module 80x80x80mm: 25ST2-888032-S1R - Fan module 60x60x76mm: 25ST2-667630-S1R - Fan module 60x60x56mm: 25ST2-665620-S1R - Fan module 40x40x56mm: 25ST2-40562M-A0R - Fan module 40x40x56mm: 25ST2-40562N-A0R - Fan module 40x40x28mm: 25ST2-44282D-D0R - Riser card - CPBGD20: 9CPBGD20NR-00 - I/O board - CDB66: 9CDB66NR-00 - PCIe extension board - CPBG044: 9CPBG044NR-00 - PCIe switch board - CPBG902: 9CPBG902NR-00 - Power supply: 25EP0-23000J-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
Additional Certifications

Windows Server 2022 (x64)
Extension Board

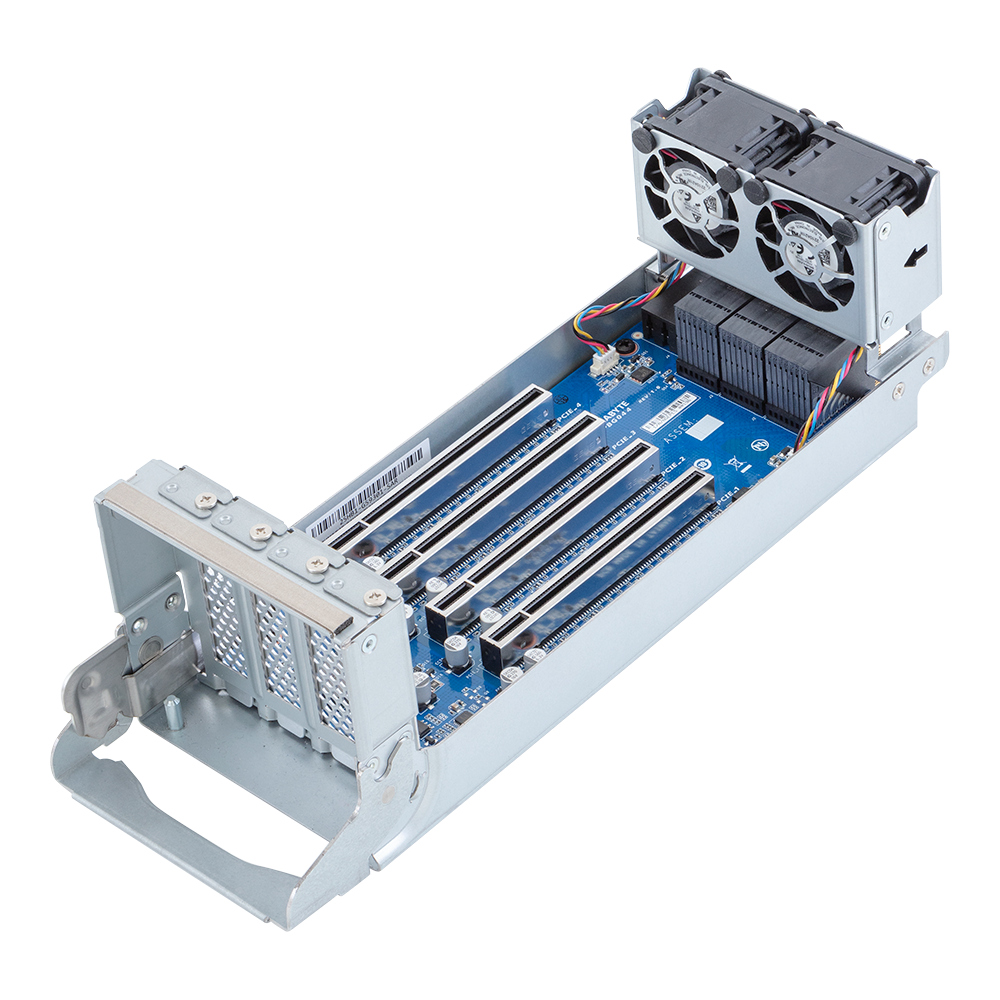

CPBG044 x 2: - 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
Riser Card

CPBGD20 x 2: - 4 x PCIe x16 (Gen5 x16) FHHL slots, from PEX89048
