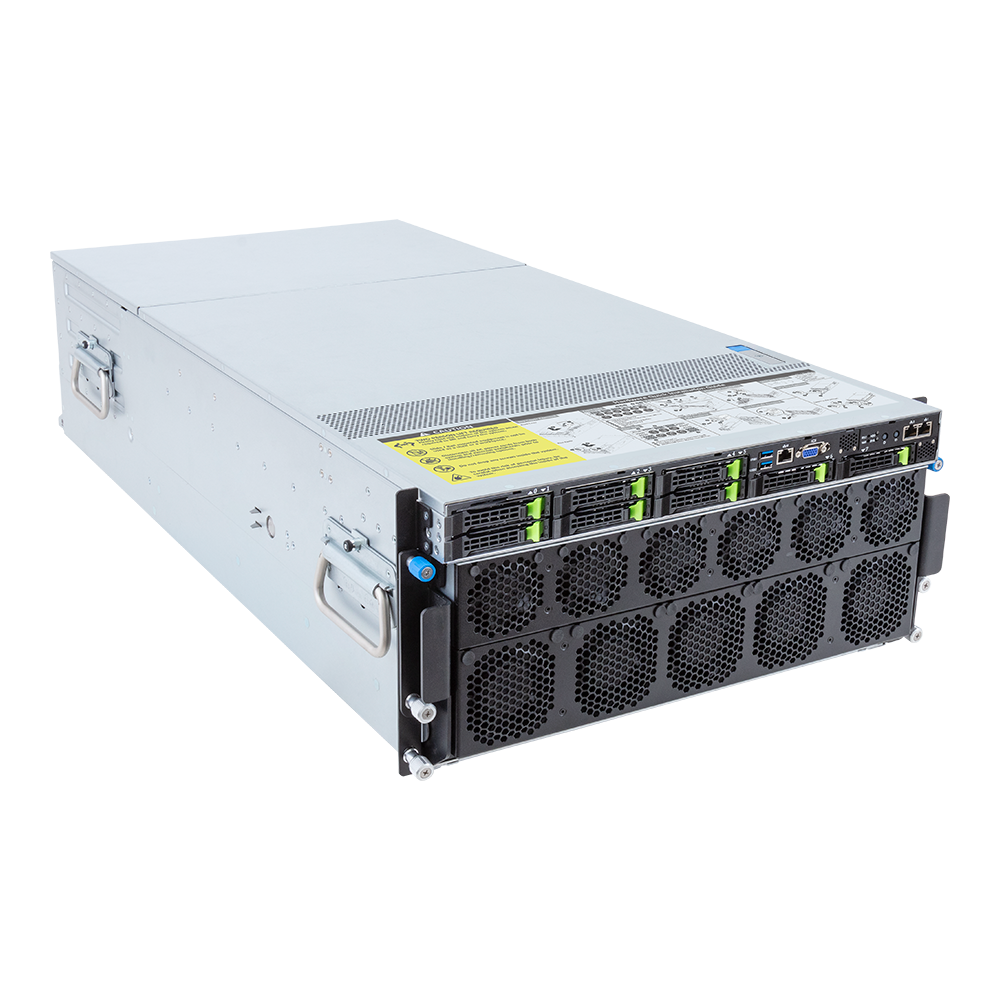

G593_ZD2-AAX1

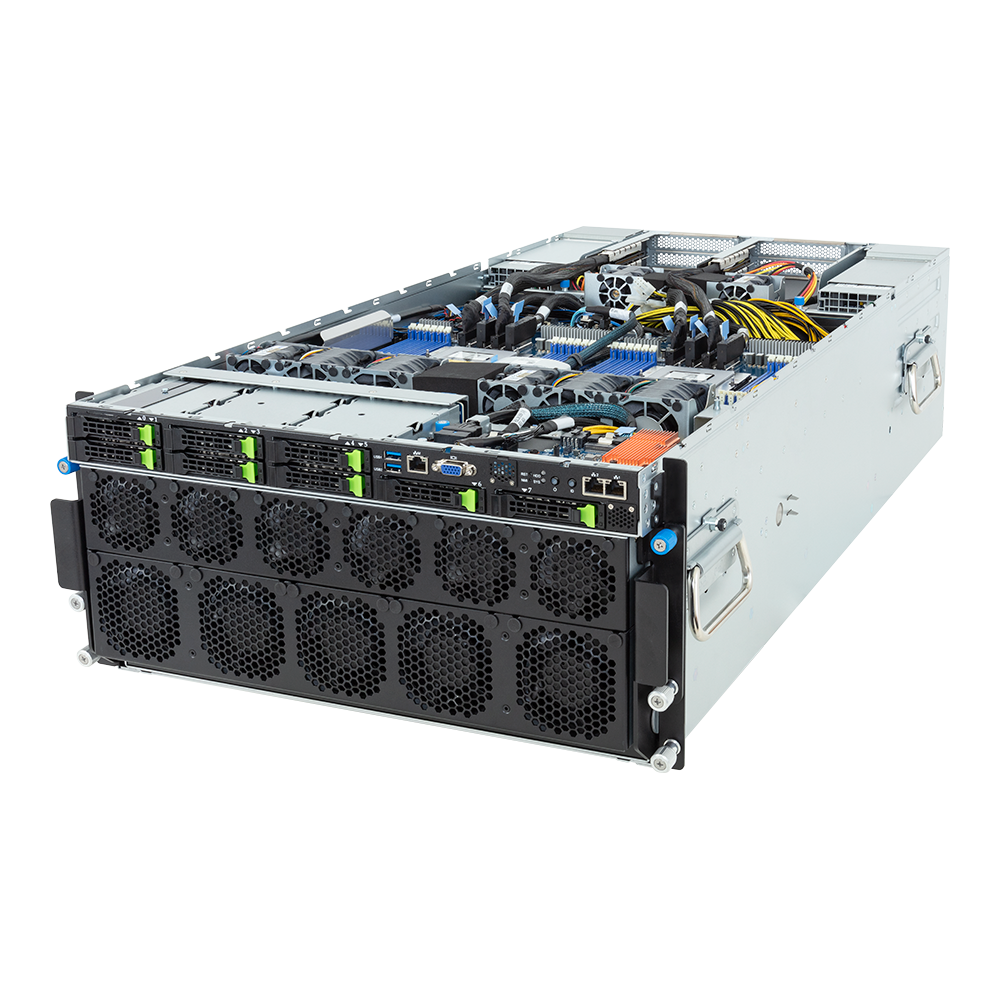

HPC/AI Server - AMD EPYC™ 9004 - 5U DP NVIDIA HGX™ H100 8-GPU 4-Root Port
Comparison Request Price
Overview Specifications
  • NVIDIA-Certified Systems™ - Data Center Servers

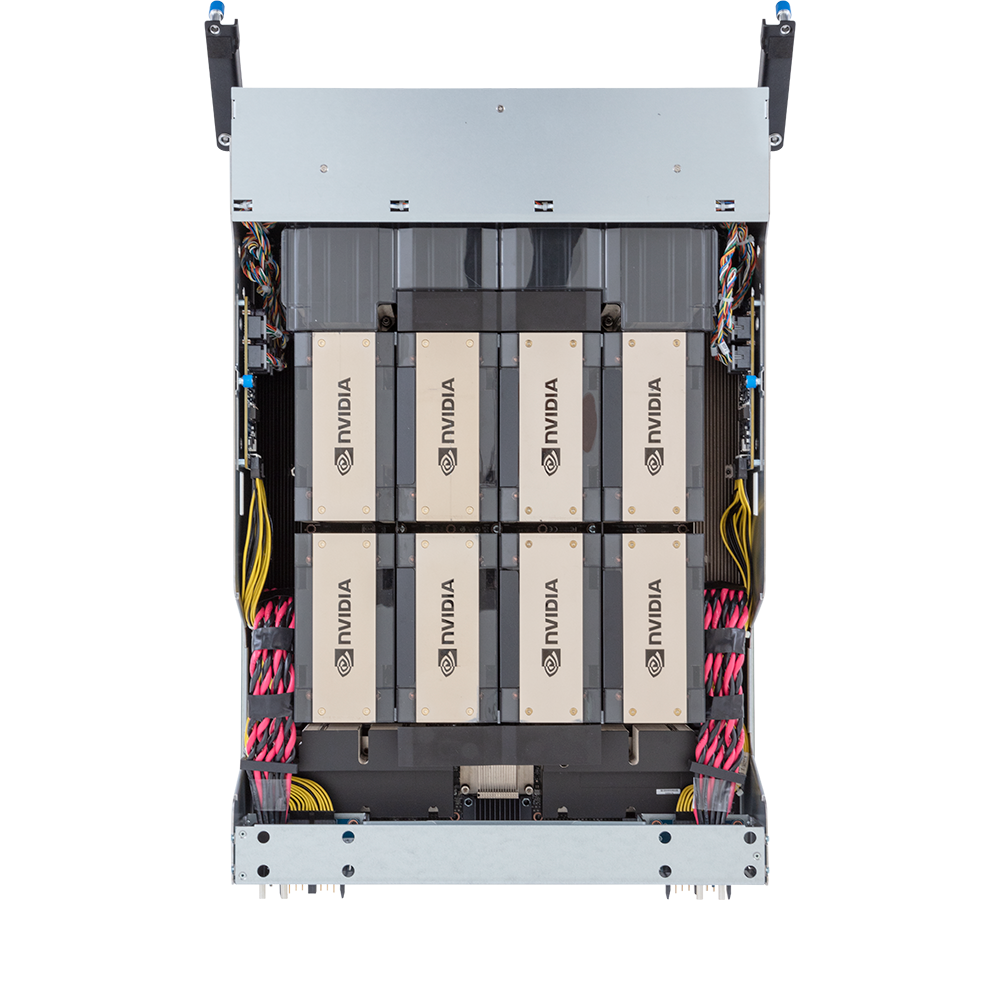

  • NVIDIA HGX™ H100 with 8 x SXM5 GPUs
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
  • Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 8 x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies





Dimensions

447 x 219.7 x 945
Weight

Net Weight: 91 kg
Gross Weight: 100 kg
Form Factor

5U

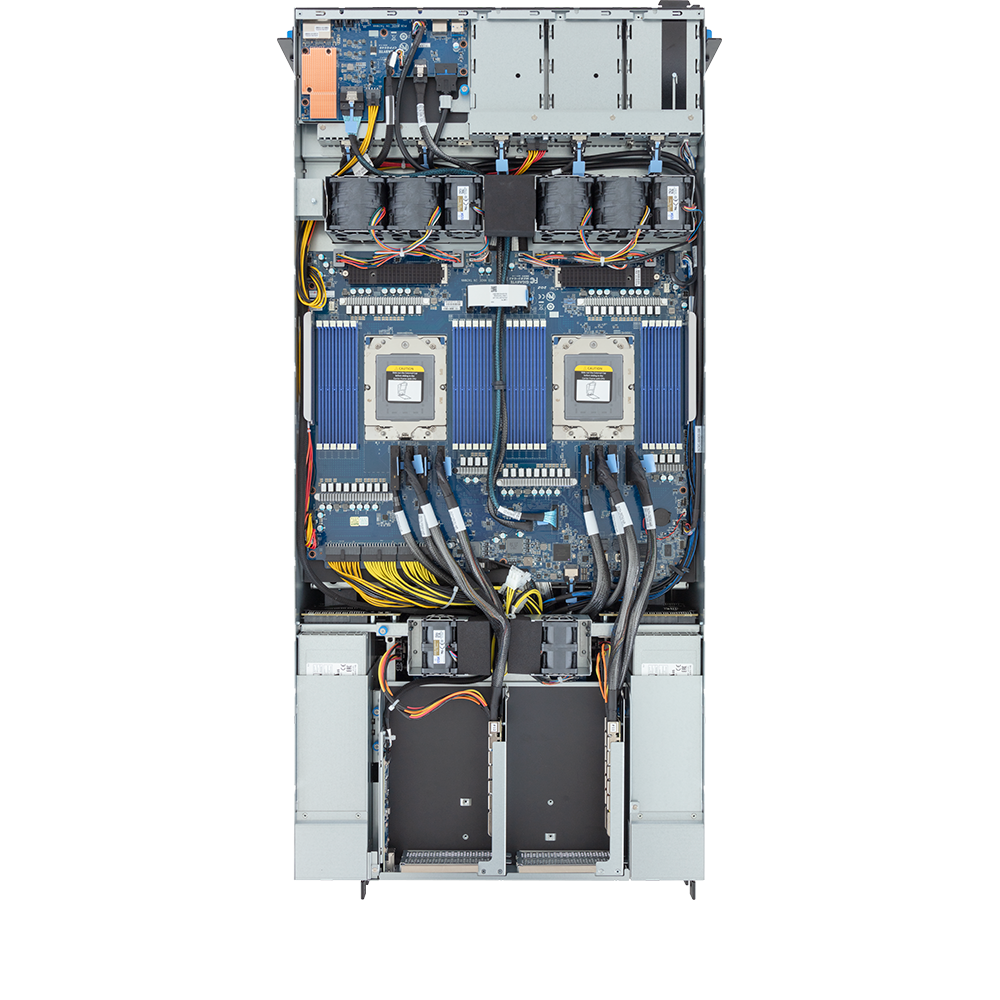

Motherboard

MZB3-G43
CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket

2 x LGA 6096
Socket SP5
Chipset

System on Chip
Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
Network Connectivity

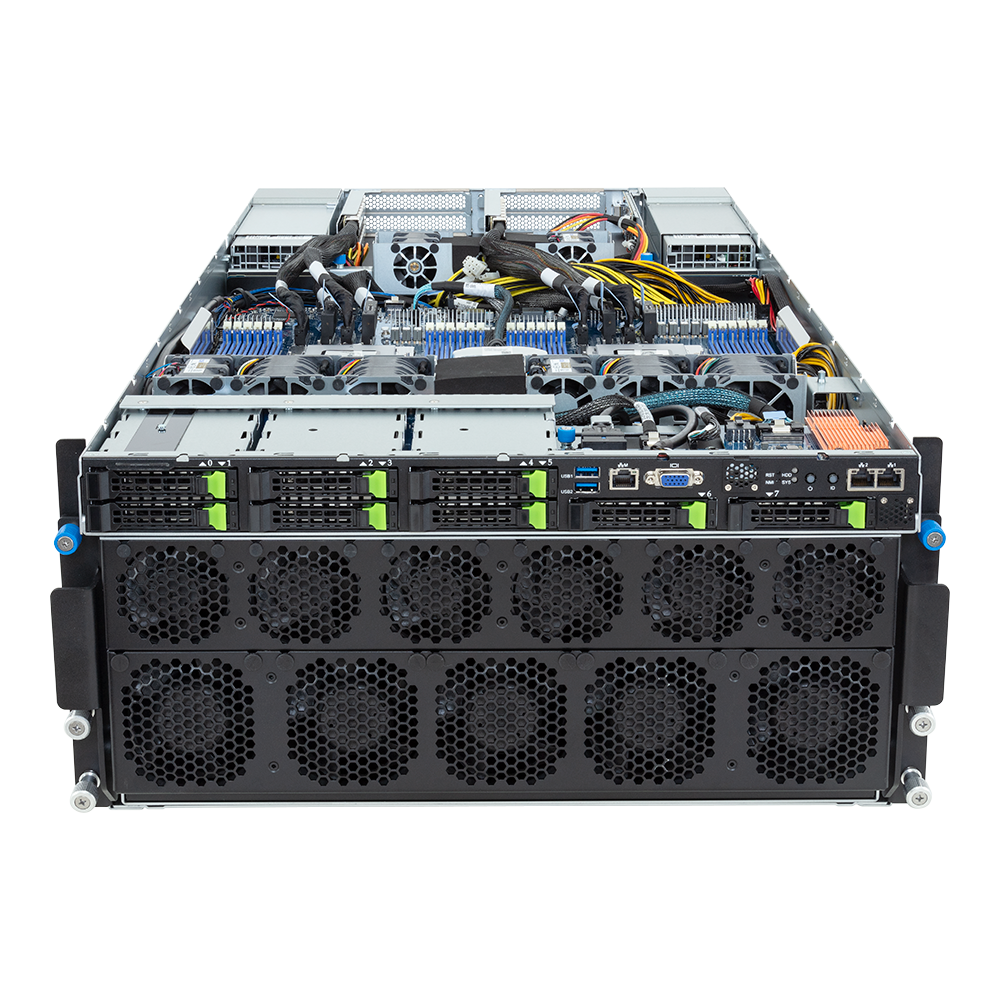

Front side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear side:
1 x 10/100/1000 Mbps Management LAN

Notice: When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video Output

Integrated in Aspeed® AST2600
- 1 x VGA port
Drive Bays / Storage

Front side:
8 x 2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays, NVMe from PEX89104

*Storage card is required to support SATA and SAS drives.
Expansion Slots

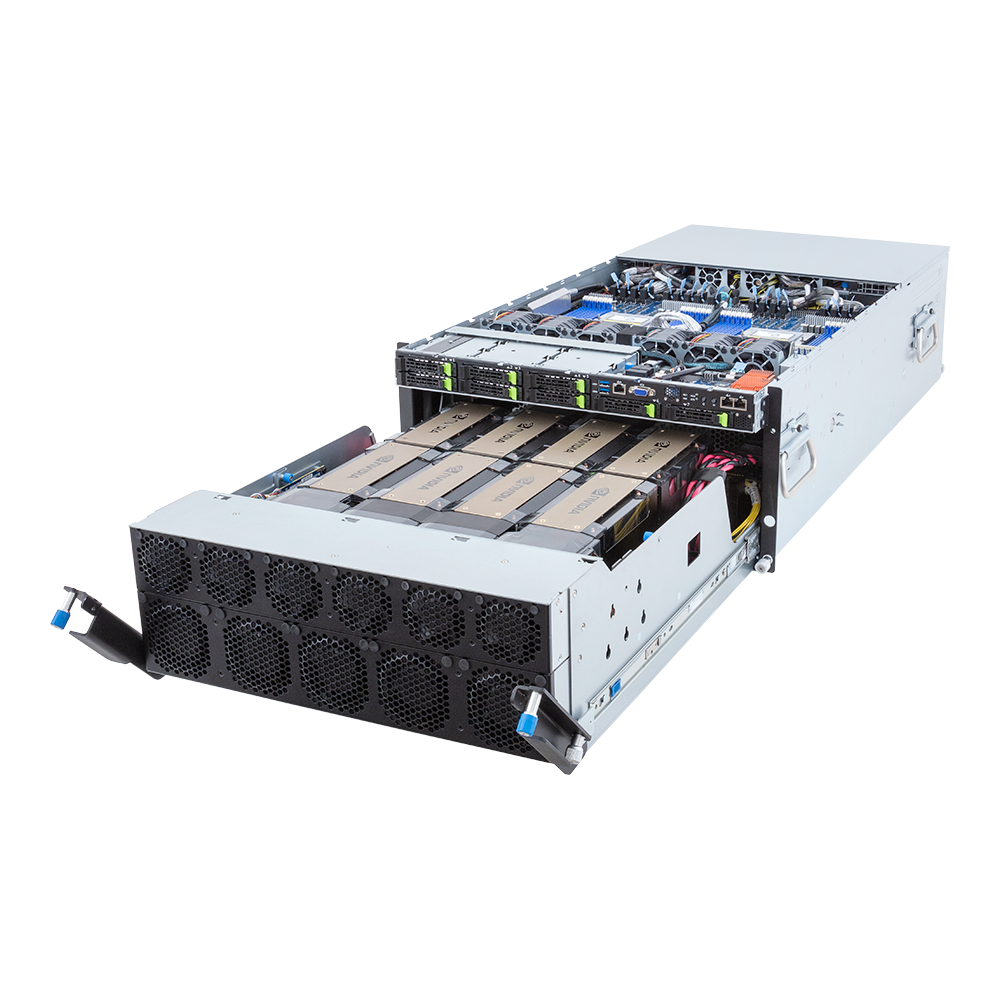

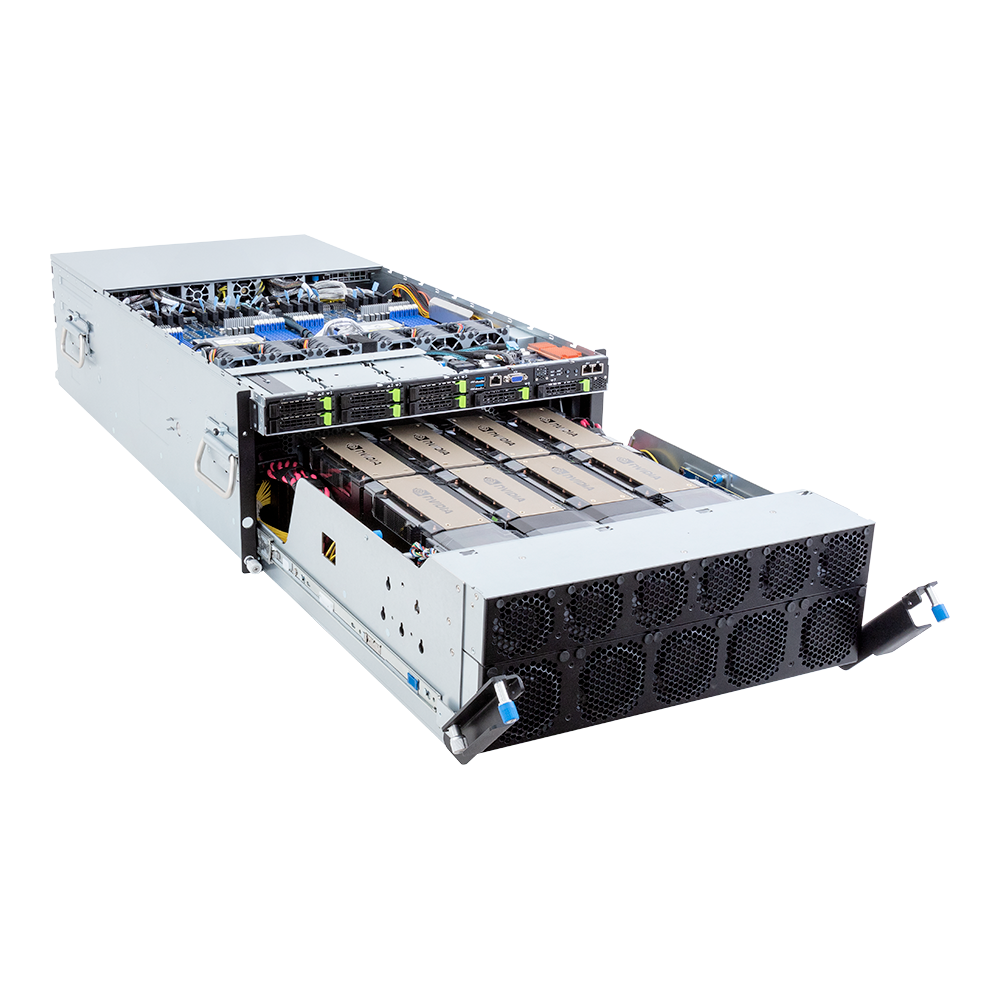

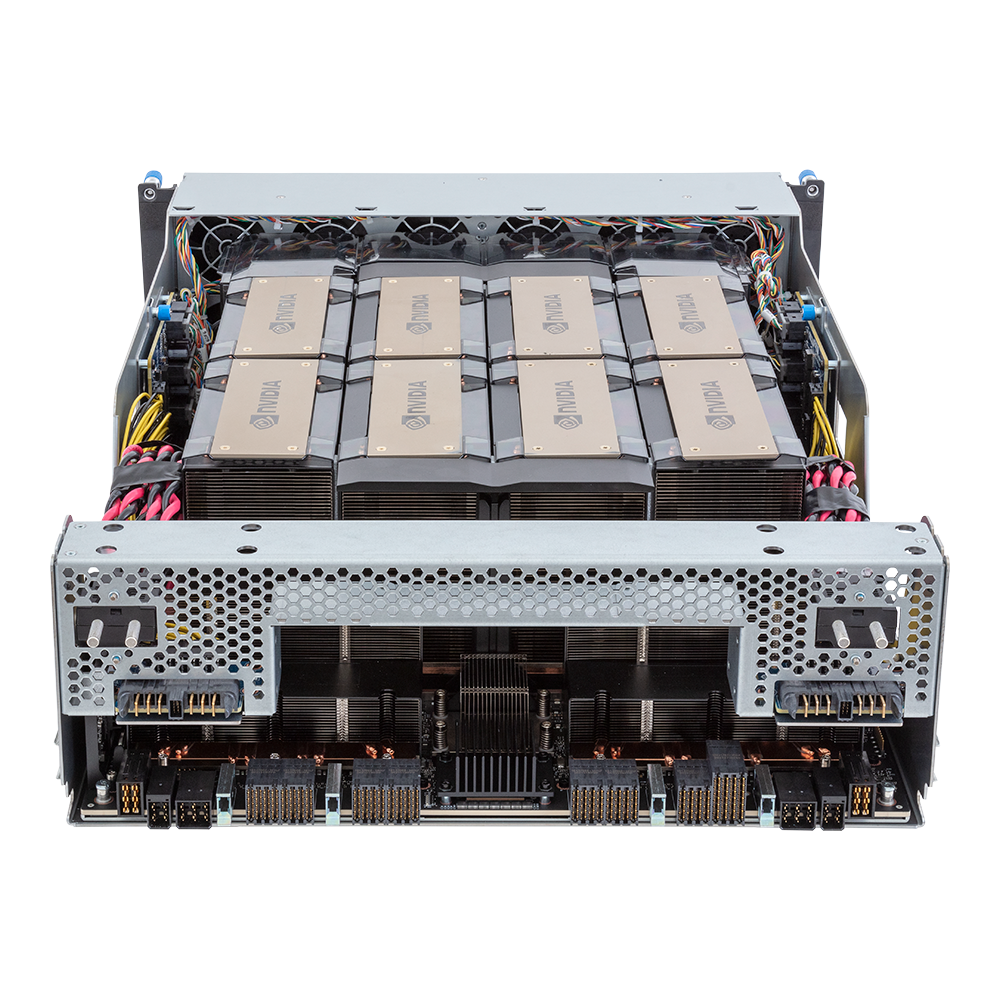

NVIDIA HGX™ H100 with 8 x SXM5 GPUs
PCIe Cable x 4:
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from CPU_0
- Supports 2280/22110 cards
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

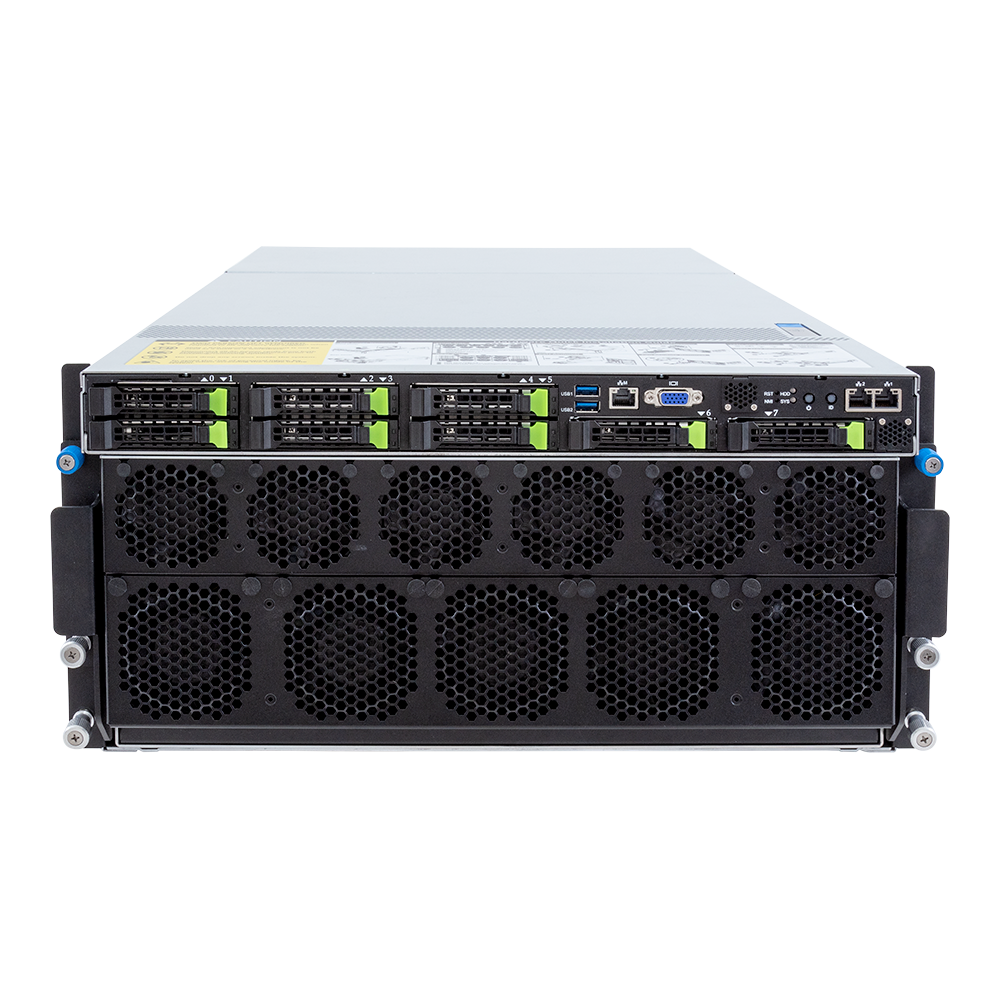

Front I/O

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

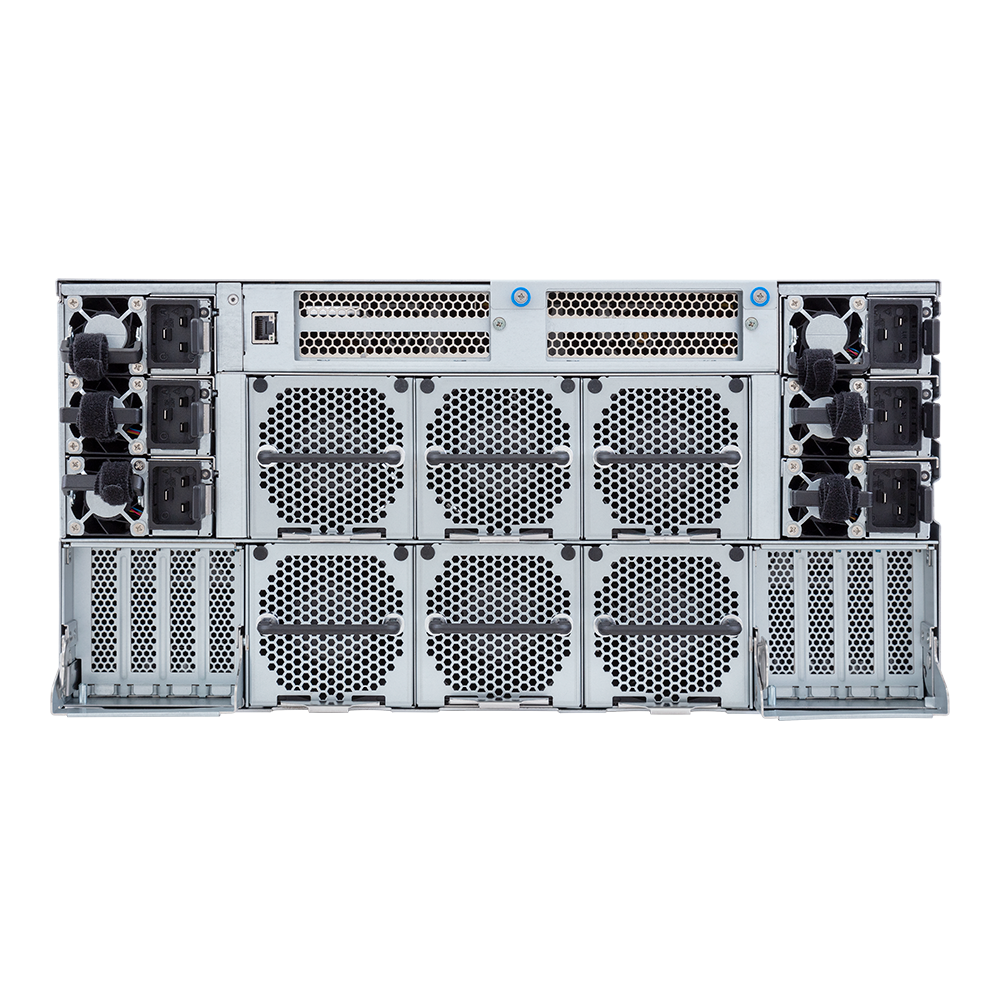

Rear I/O

1 x MLAN
System Fans

Motherboard:
2 x 40x40x56mm (29,700rpm)
4 x 60x60x56mm (24,000rpm)

PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (29,700rpm)

GPU tray:
6 x 60x60x76mm (21,700rpm)
6 x 80x80x80mm (17,000rpm)
5 x 80x80x80mm (17,000rpm)
Power Supply

4+2 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Require SAS add-in cards
Raid

Require RAID add-in cards
Internal Io

1 x TPM header
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1200 x 890 x 700 mm
Packaging Content

1 x G593-ZD2-AAX1
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers

- Barebone w/ NVIDIA module: 6NG593ZD2DR000AAX1* - Motherboard: 9MZB3G43UR-000 - L-shape Rail kit: 25HB2-A96102-K0R - CPU heatsink: 25ST1-44320Z-C1R - Front panel board - CFPG540: 9CFPG540NR-00 - Backplane board - CBPG680: 9CBPG680NR-00 - Fan module 40x40x28mm: 25ST2-44282D-D0R - Fan module 40x40x56mm: 25ST2-40562G-A0R - Fan module 40x40x56mm: 25ST2-40562L-A0R - Fan module 60x60x56mm: 25ST2-665620-S1R - Fan module 60x60x76mm: 25ST2-667630-S1R - Fan module 80x80x80mm: 25ST2-888032-S1R - Fan module 80x80x80mm: 25ST2-808037-S1R - I/O board - CDB66: 9CDB66NR-00 - PCIe extension board - CPBG044: 9CPBG044NR-00 - PCIe switch board - CPBG902: 9CPBG902NR-00 - Power supply: 25EP0-23000J-D0S
Optional Parts

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R

Additional Certifications

Windows Server 2022 (x64)
Extension Board

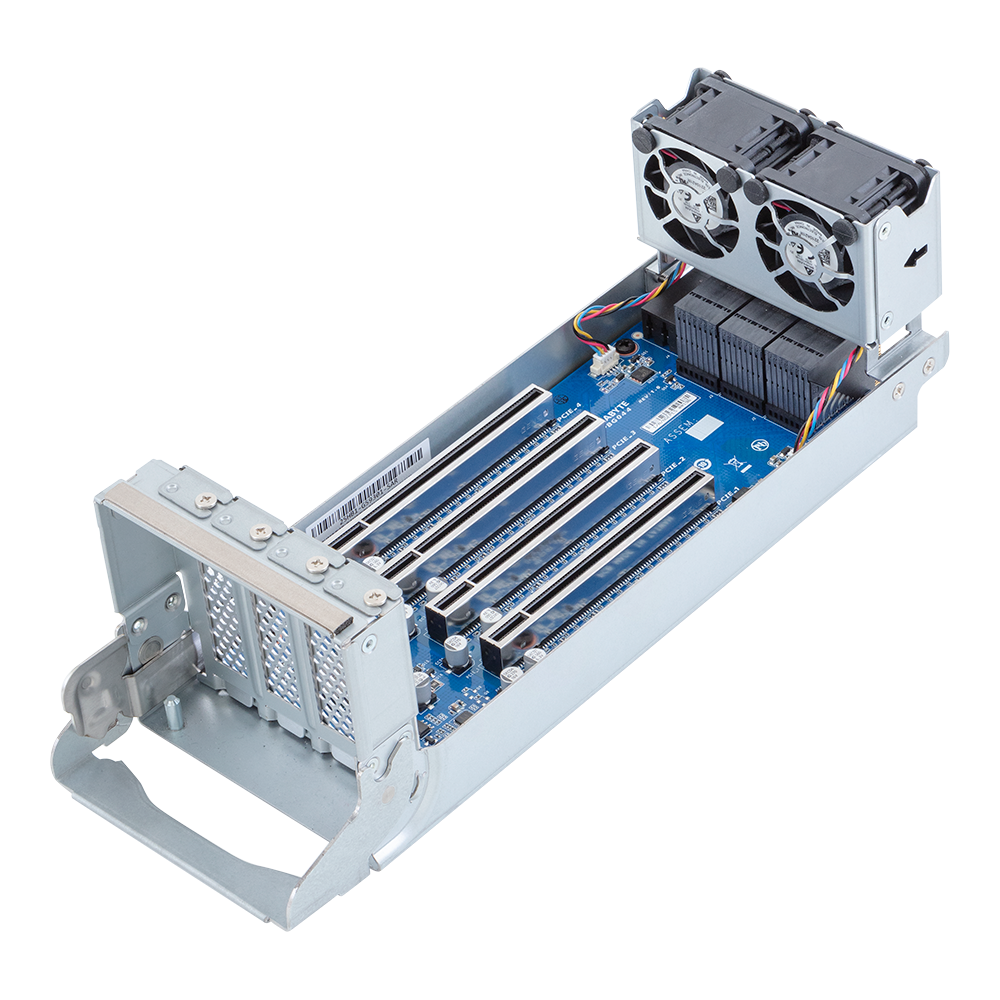

CPBG044 x 2: - 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
