G593_SD1-AAX1

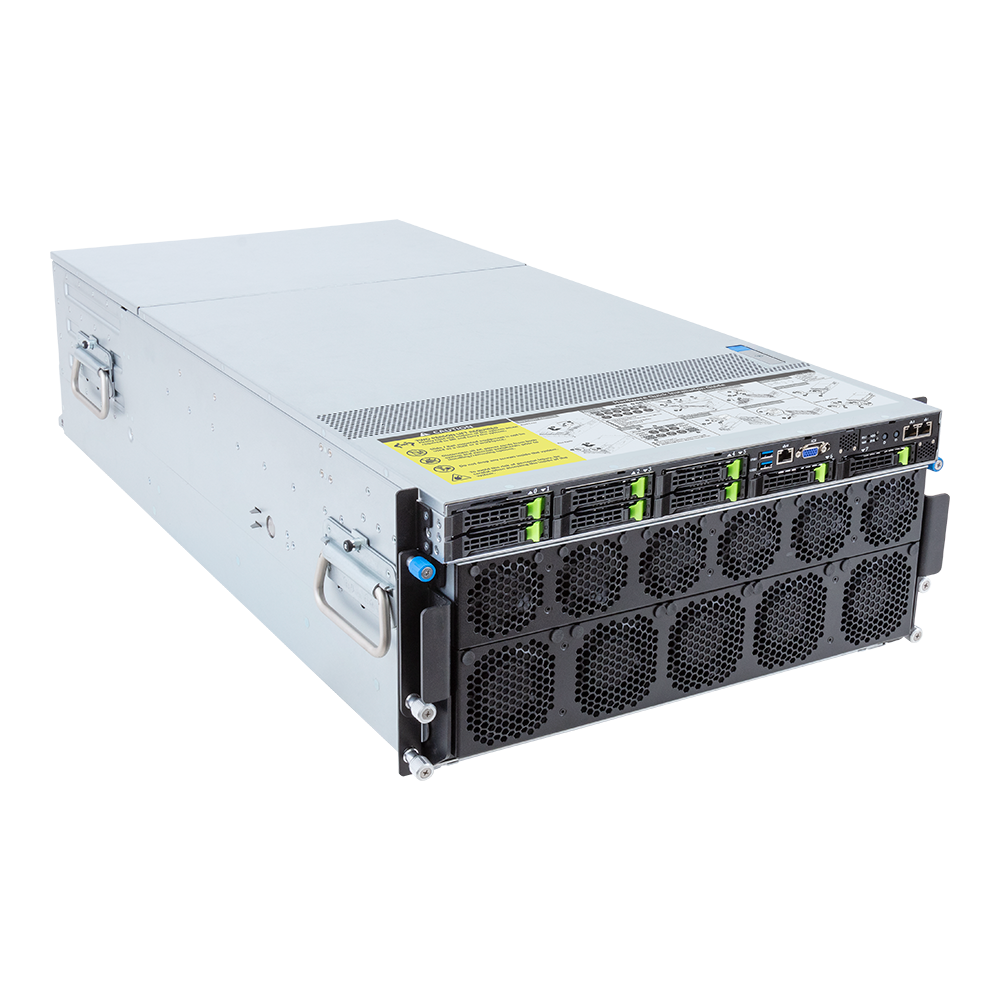

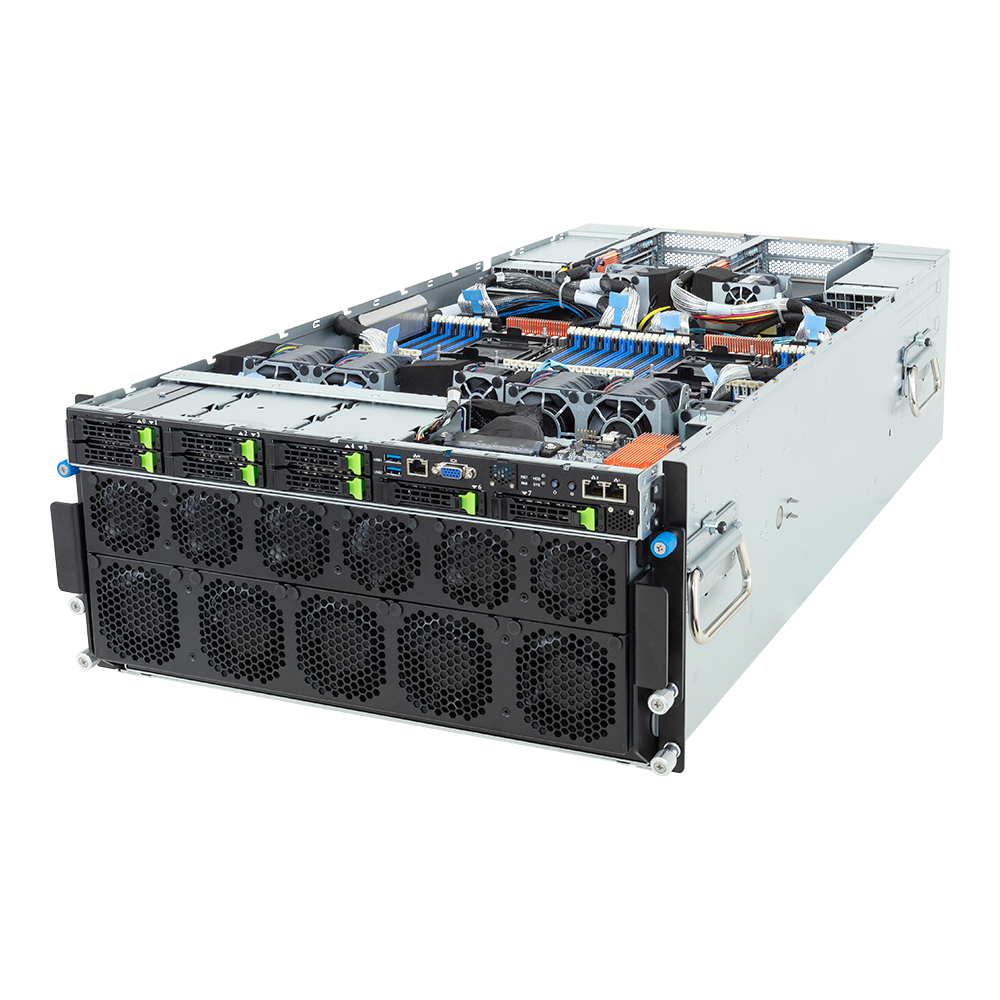

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 5U DP NVIDIA HGX™ H100 8-GPU 8-Root Port (BF-3)
Comparison Request Price
Overview Specifications
  • NVIDIA-Certified Systems™ - Data Center Servers

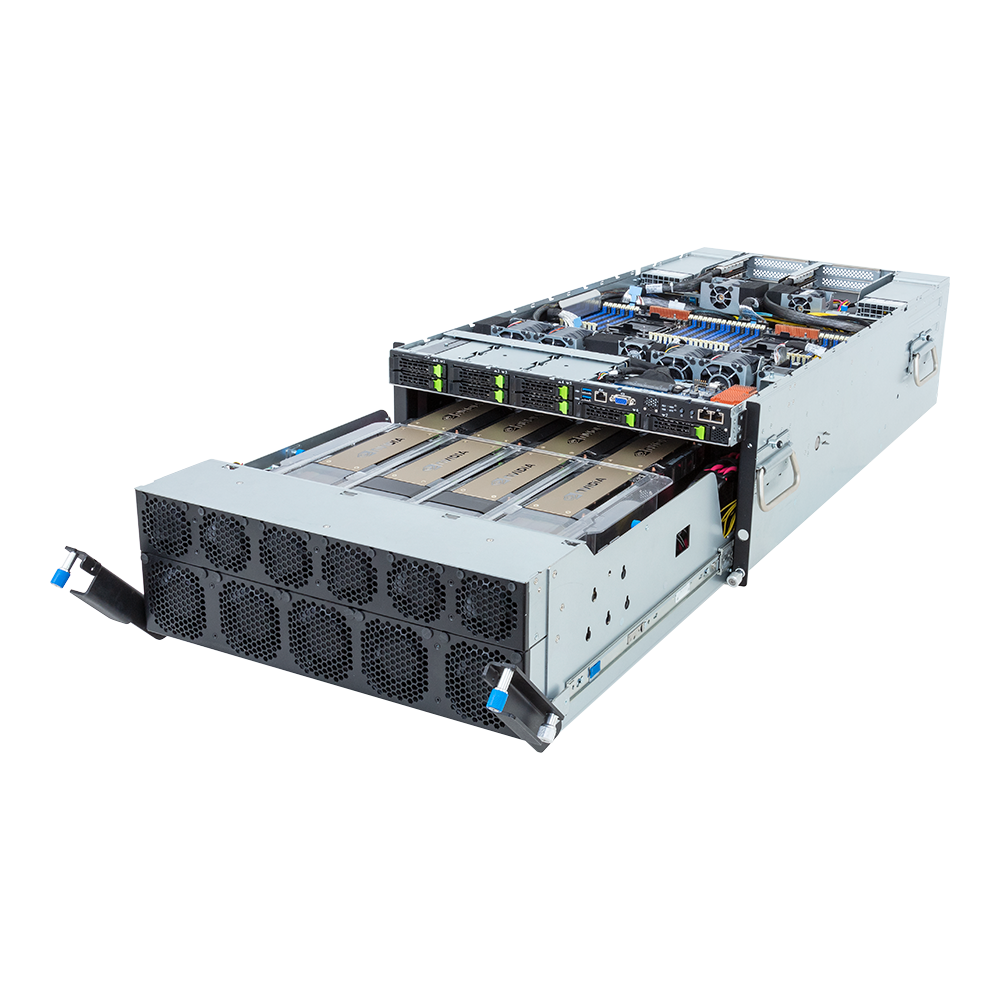

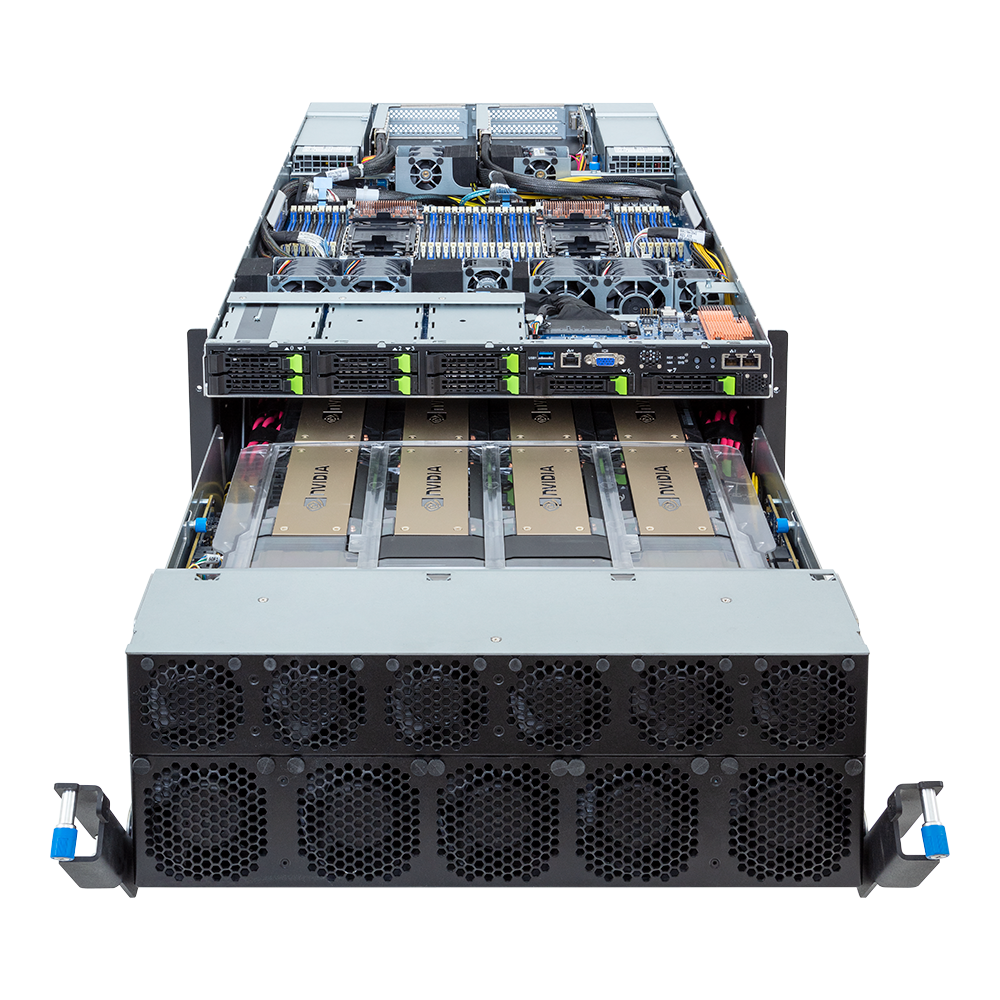

  • NVIDIA HGX™ H100 with 8 x SXM5 GPUs
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • Compatible with NVIDIA BlueField®-3 DPUs/SuperNICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
  • 4 x FHHL PCIe Gen5 x16 slots
  • 8 x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies
Dimensions

447 x 219.7 x 945
Weight

Net Weight: 91 kg
Gross Weight: 100 kg
Form Factor

5U

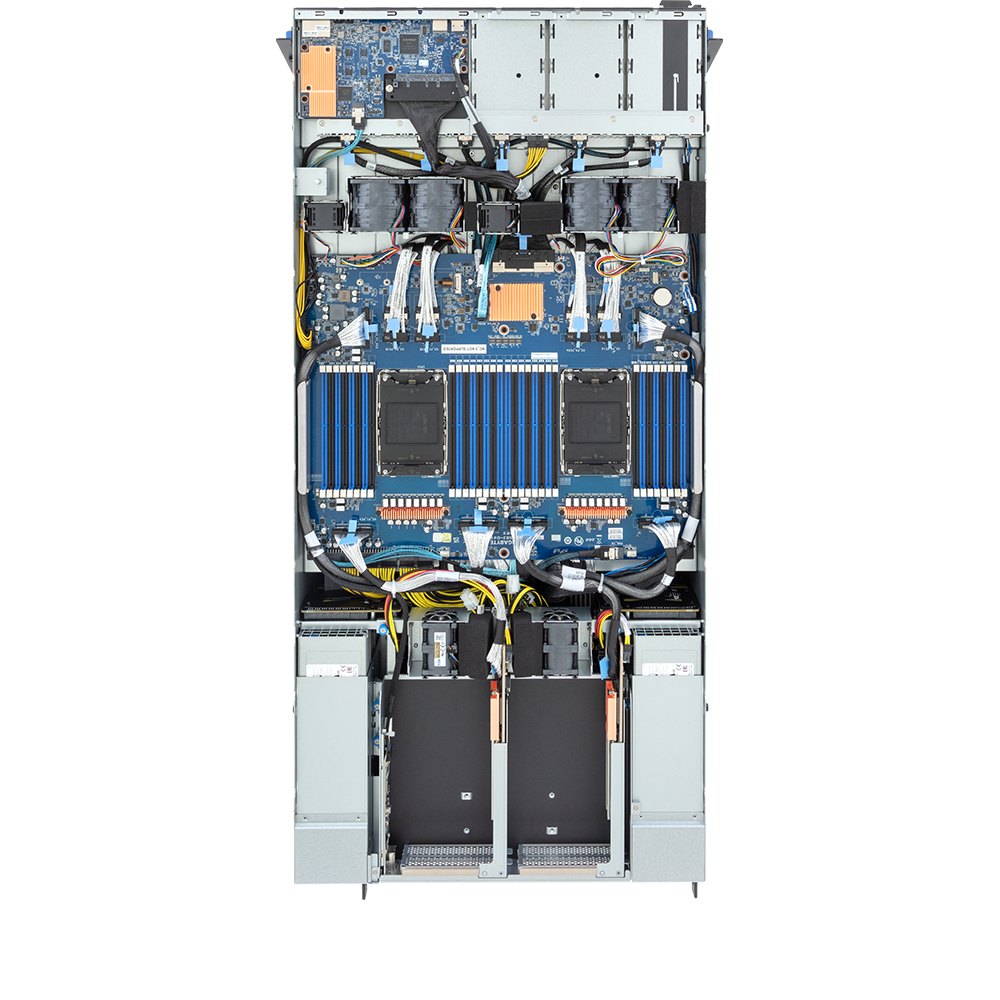

Motherboard

MSB3-G41
CPU

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4677
Socket E
Chipset

Intel® C741
Memory

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Network Connectivity

Front side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear side:
1 x 10/100/1000 Mbps Management LAN

Notice: When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video Output

Integrated in Aspeed® AST2600
- 1 x VGA port
Drive Bays / Storage

Front side:
8 x 2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays, NVMe from PEX89104

*SAS card is required to support SAS drives.
Expansion Slots

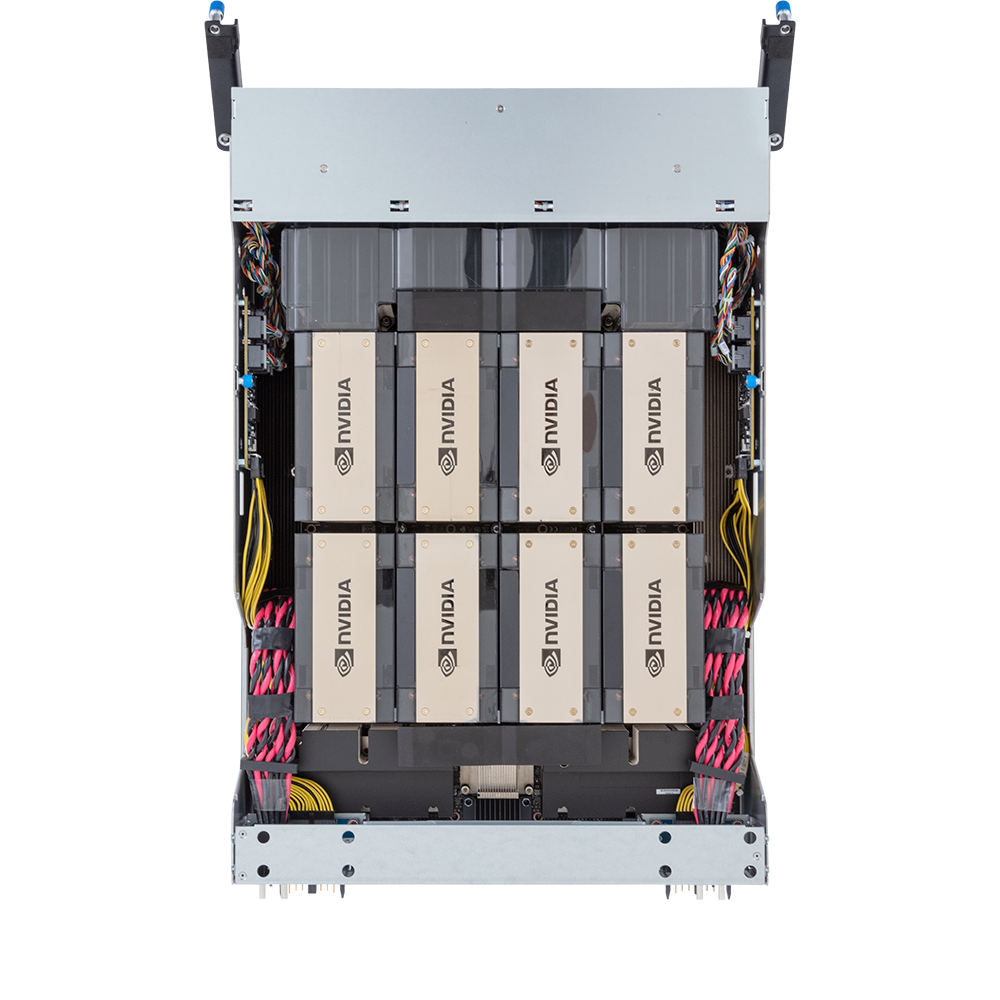

NVIDIA HGX™ H100 with 8 x SXM5 GPUs
Management

Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Security / TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

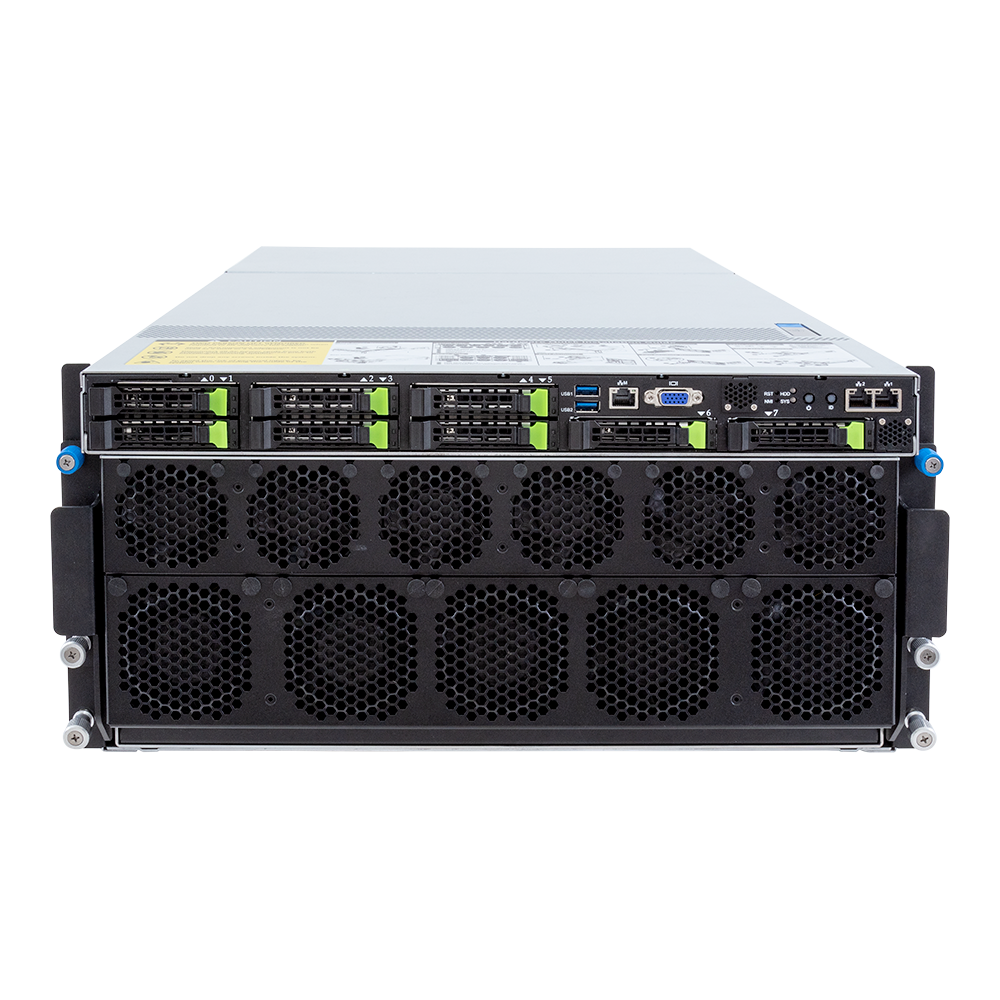

Front I/O

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN (default port)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

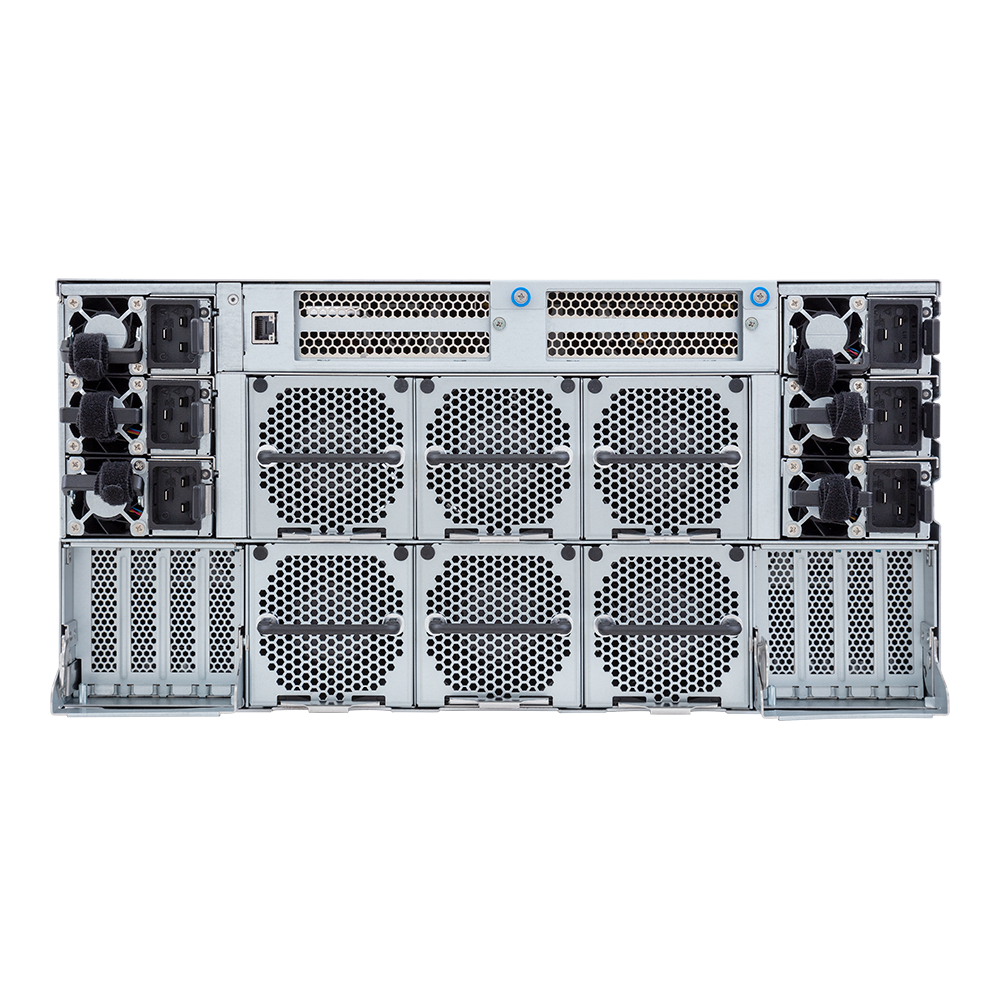

Rear I/O

1 x MLAN
System Fans

Motherboard:
2 x 40x40x28mm (25,000rpm)
4 x 60x60x56mm (24,000rpm)

PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)

GPU tray:
6 x 60x60x76mm (21,700rpm)
6 x 80x80x80mm (17,000rpm)
5 x 80x80x80mm (17,000rpm)

Power Supply

4+2 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
Operating Environment

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Sas

Require SAS add-in cards
Raid

Intel® SATA RAID 0/1/10/5 Support optional RAID add-in cards
Internal Io

1 x TPM header
1 x VROC connector
Backplane Board

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Os Compatibility

Please refer to OS compatibility table in support page
Packaging Dimensions

1200 x 890 x 700 mm
Packaging Content

1 x G593-SD1-AAX1
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit
Part Numbers

- Barebone w/ NVIDIA module (5/4th Gen): 6NG593SD1DR000ABX1* - Barebone w/ NVIDIA module (4th Gen): 6NG593SD1DR000AAX1* - Motherboard: 9MSB3G41NR-000 - L-shape Rail kit: 25HB2-A96102-K0R - CPU heatsink: 25ST1-24320H-M1R - Backplane board - CBPG680: 9CBPG680NR-00 - Fan module 40x40x28mm: 25ST2-44282D-D0R - Fan module 40x40x56mm: 25ST2-40562M-A0R - Fan module 60x60x56mm: 25ST2-665620-S1R - Fan module 60x60x76mm: 25ST2-667630-S1R - Fan module 80x80x80mm: 25ST2-888032-S1R - Fan module 80x80x80mm: 25ST2-808037-S1R - Riser card - CPBGD20: 9CPBGD20NR-00 - I/O board - CDB66: 9CDB66NR-00 - PCIe extension board - CPBG044: 9CPBG044NR-00 - PCIe switch board - CPBG902: 9CPBG902NR-00 - G-SCM board - CDCG120: 9CDCG120UR-00 - Power supply: 25EP0-23000J-D0S
Optional Parts

C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG593SD1SR-RMA-A100
Additional Certifications

Red Hat Enterprise Linux 9.2 or later (x86_64)
Windows Server 2022 (x64)

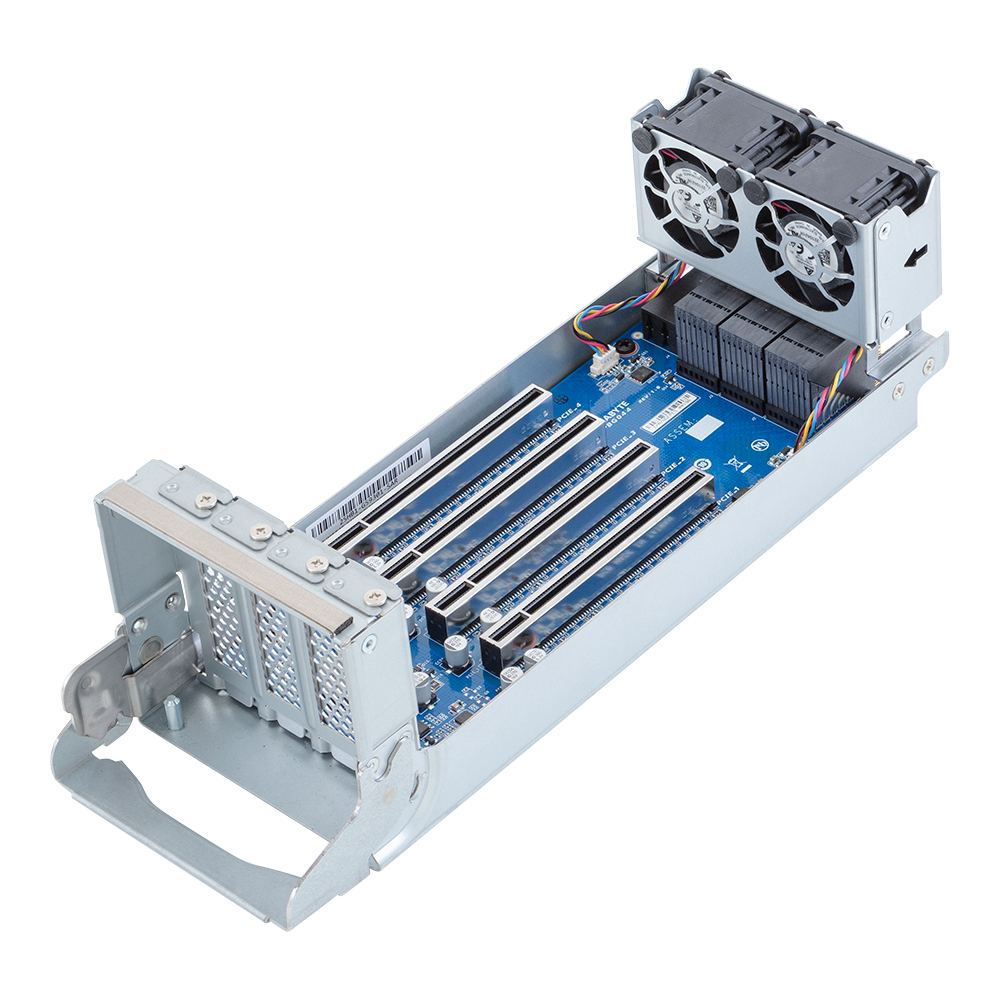

Extension Board

CPBG044 x 2: - 8 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89104
Riser Card

CPBGD20 x 2: - 4 x PCIe x16 (Gen5 x16) FHHL slots, from PEX89048
