G293_S40-AAP1

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 8 x PCIe Gen4 GPUs (with PCIe switches)

Comparison Request Price

Overview Specifications

NVIDIA-Certified Systems™ - Data Center Servers
Supports up to 8 x Dual slot Gen4 GPUs
Dual 5th/4th Gen Intel^® Xeon^® Scalable Processors
8-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
4 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
8 x FHFL PCIe Gen4 x16 slots for GPUs
2 x LP PCIe Gen5 x16 slots for add-in cards
Dual 3000W 80 PLUS Titanium redundant power supply

Dimensions	448 x 87.5 x 800
Weight	Net Weight: 35.2 kg Gross Weight: 37.1 kg
Form Factor	2U
Motherboard	MS43-G20
CPU	5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Dual processor, TDP up to 225W Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket	2 x LGA 4677 Socket E
Chipset	Intel® C741
Memory	24 x DIMM slots DDR5 memory supported only 8-Channel memory architecture RDIMM up to 96GB supported 3DS RDIMM up to 256GB supported 5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
Network Connectivity	Rear side: 2 x 10Gb/s LAN ports (1 x Intel® X710-AT2) Support NCSI function 1 x 10/100/1000 Mbps Management LAN
Video Output	Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp
Drive Bays / Storage	Front side: 4 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays 4 x 2.5" SATA/SAS* hot-swappable bays - (2 x NVMe from CPU_0, 2 x NVMe from CPU_1) *SAS card is required to support SAS drives.
Expansion Slots	Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H). - System is validated for population with a uniform GPU model. - Support is not provided for mixed GPU populations. - For the latest GPU cards QVL, please contact your GIGABYTE representative.
Management	Aspeed® AST2600 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
Security / TPM	1 x TPM header with SPI interface - Optional TPM2.0 kit: CTM010

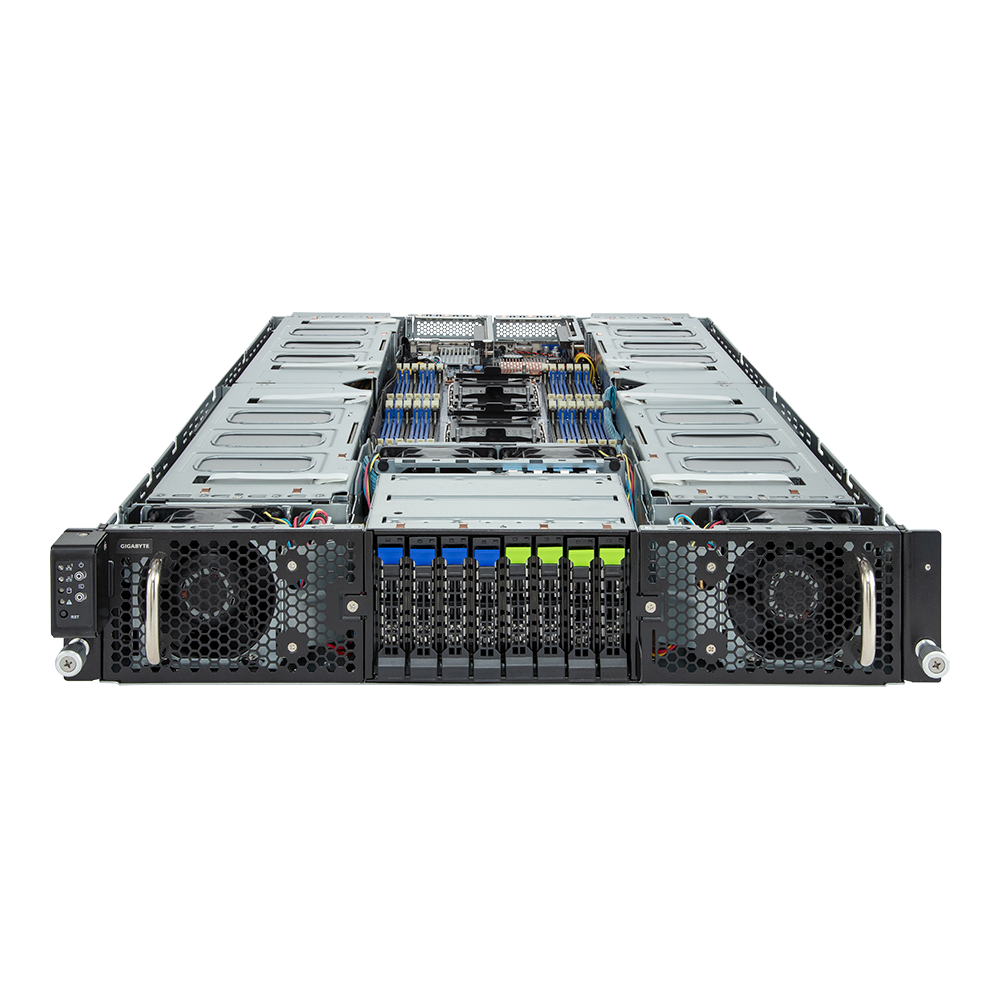

Front I/O	1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED

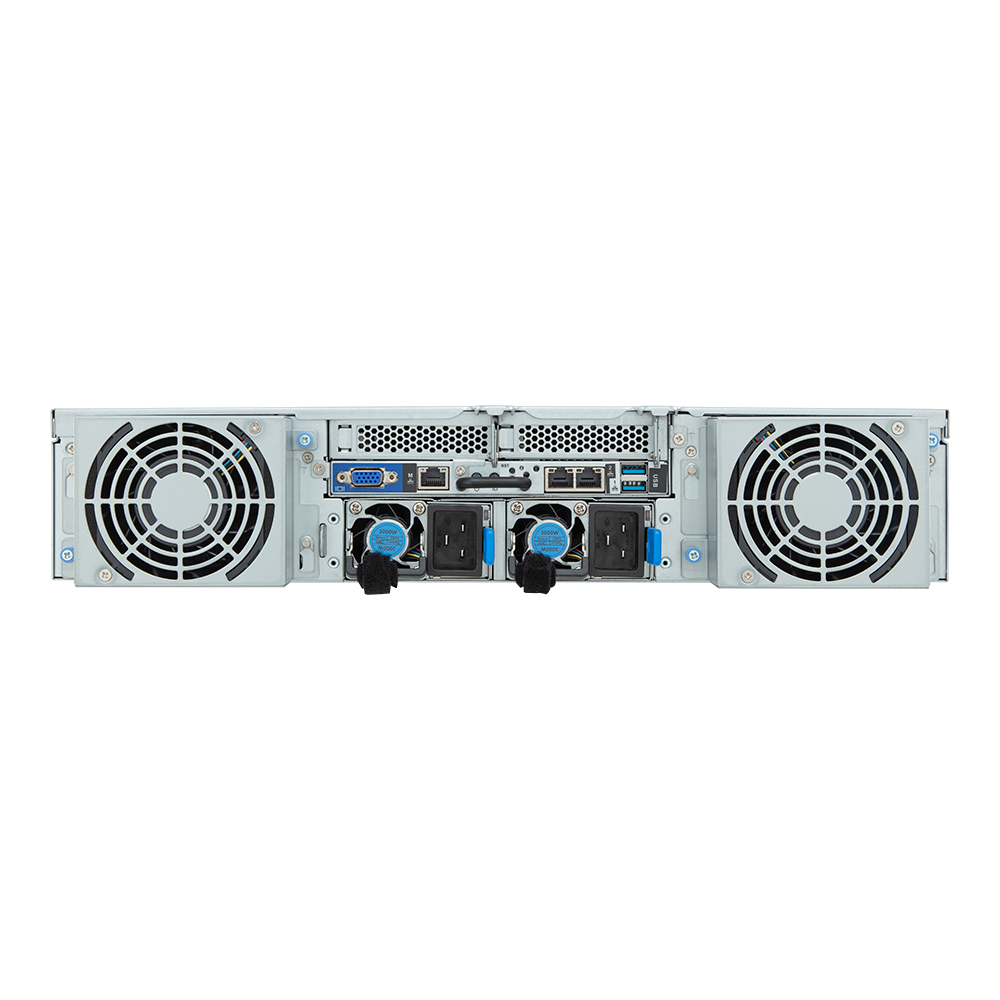

Rear I/O	2 x USB 3.2 Gen1 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED
System Fans	8 x 80x80x38mm (18,300rpm)
Power Supply	Dual 3000W 80 PLUS Titanium redundant power supply AC Input: - 100-127V~/ 15.5A, 50-60Hz - 200-220V~/ 15.5A, 50-60Hz - 220-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) - 240Vdc/ 15.5A DC Output: - Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A - Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A - Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A Note: The system power supply requires C19 power cord.
Operating Environment	Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Sas	Require SAS add-in cards
Raid	Intel® SATA RAID 0/1/10/5 Support optional RAID add-in cards
Internal Io	1 x TPM header 1 x VROC connector
Backplane Board	Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
Os Compatibility	Please refer to OS compatibility table in support page
Packaging Dimensions	1133 x 724 x 261 mm
Packaging Content	1 x G293-S40-AAP1 2 x CPU heatsinks 8 x GPU power cables (12VHPWR, 250mm) 6 x Carriers 1 x L-shape Rail kit
Part Numbers	- Barebone package (5th/4th Gen): 6NG293S40DR000ABP1* - Barebone package (4th Gen): 6NG293S40DR000AAP1* - Motherboard: 9MS43G20UR-000 - L-shape Rail kit: 25HB2-A86102-K0R - CPU heatsink: 25ST1-35320F-C1R/25ST1-453207-C1R - Backplane board - CBPG086: 9CBPG086NR-00 - Fan module: 25ST2-88382R-S1R - Riser card - CRSG01F: 9CRSG01FNR-00 - Riser card - CRSG624: 9CRSG624NR-00 - Riser card - CRSG625: 9CRSG625NR-00 - GPU power cable (12VHPWR, 250mm): 25CRI-250108-Y4R - Power supply: 25EP0-230005-G1S
Optional Parts	- C19 power cord 125V/15A (US): 25CP1-018000-Q0R - C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R - C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R - RMA packaging: 6NG293S40SR-RMA-A100
Additional Certifications	Windows Server 2022 (x64)

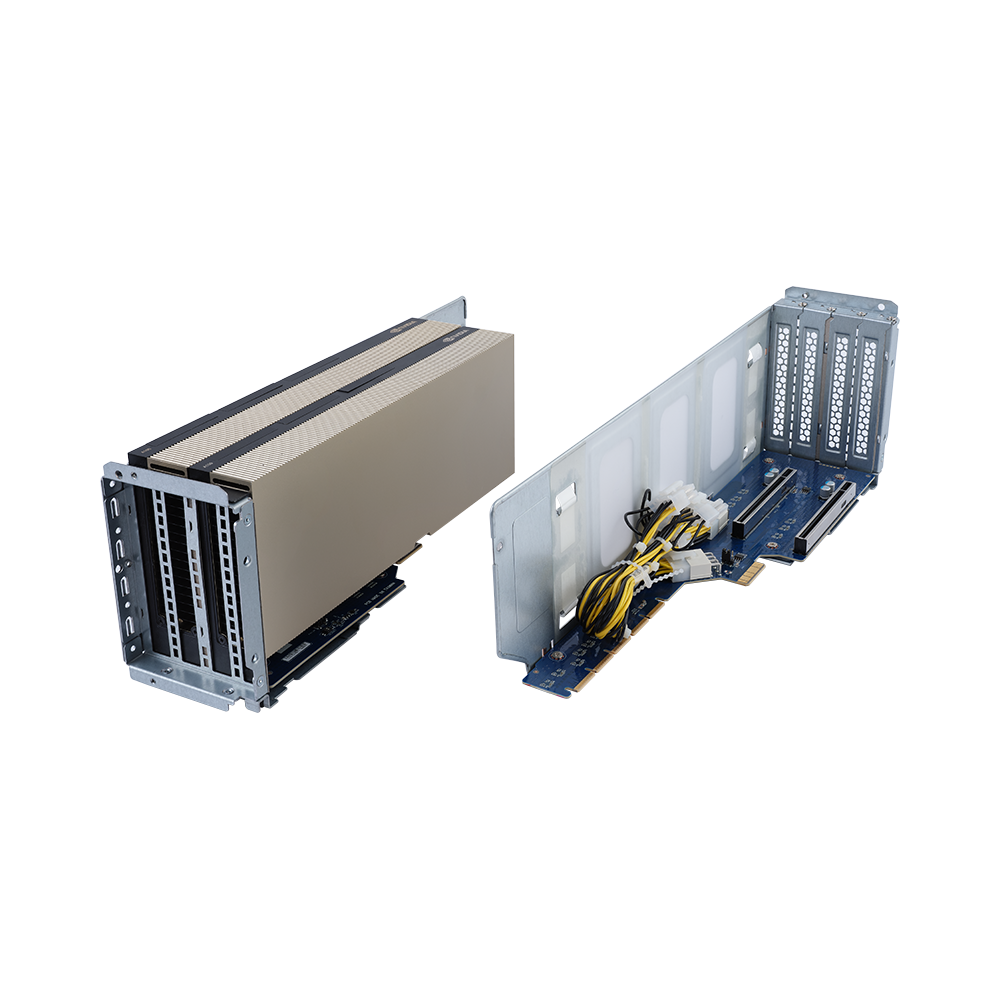

Riser Card	CRSG624 x 2: - 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs CRSG625 x 2: - 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs CRSG01F x 2: - 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0 - 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1 - Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H). - System is validated for population with a uniform GPU model. - Support is not provided for mixed GPU populations. - For the latest GPU cards QVL, please contact your GIGABYTE representative.
