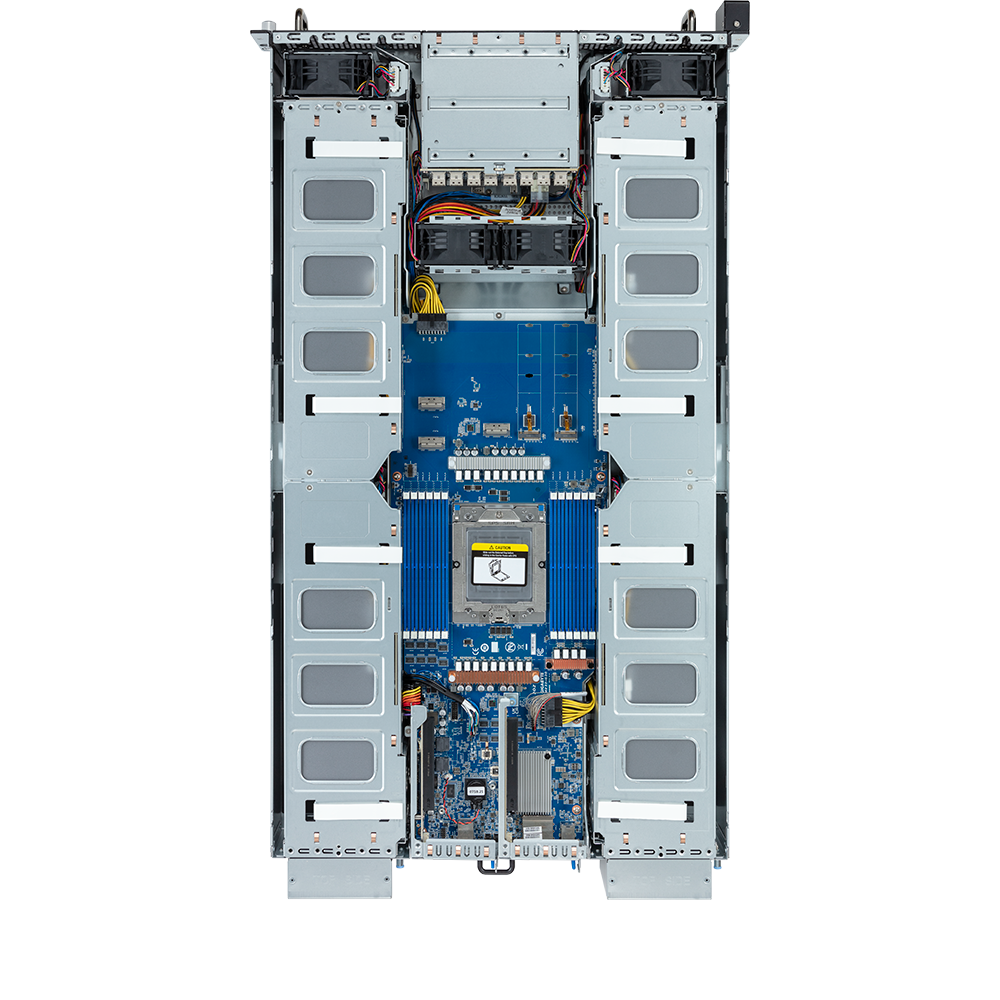

G293_Z20-AAP1

448 x 87.5 x 800

Net Weight: 33.84 kg
Gross Weight: 36.14 kg

2U

MZ23-G20

AMD EPYC™ 9004 Series Processors
Single processor, 5nm technology
Up to 84 cores, 168 threads
cTDP up to 300W

1 x LGA 6096
Socket SP5

System on Chip

12 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

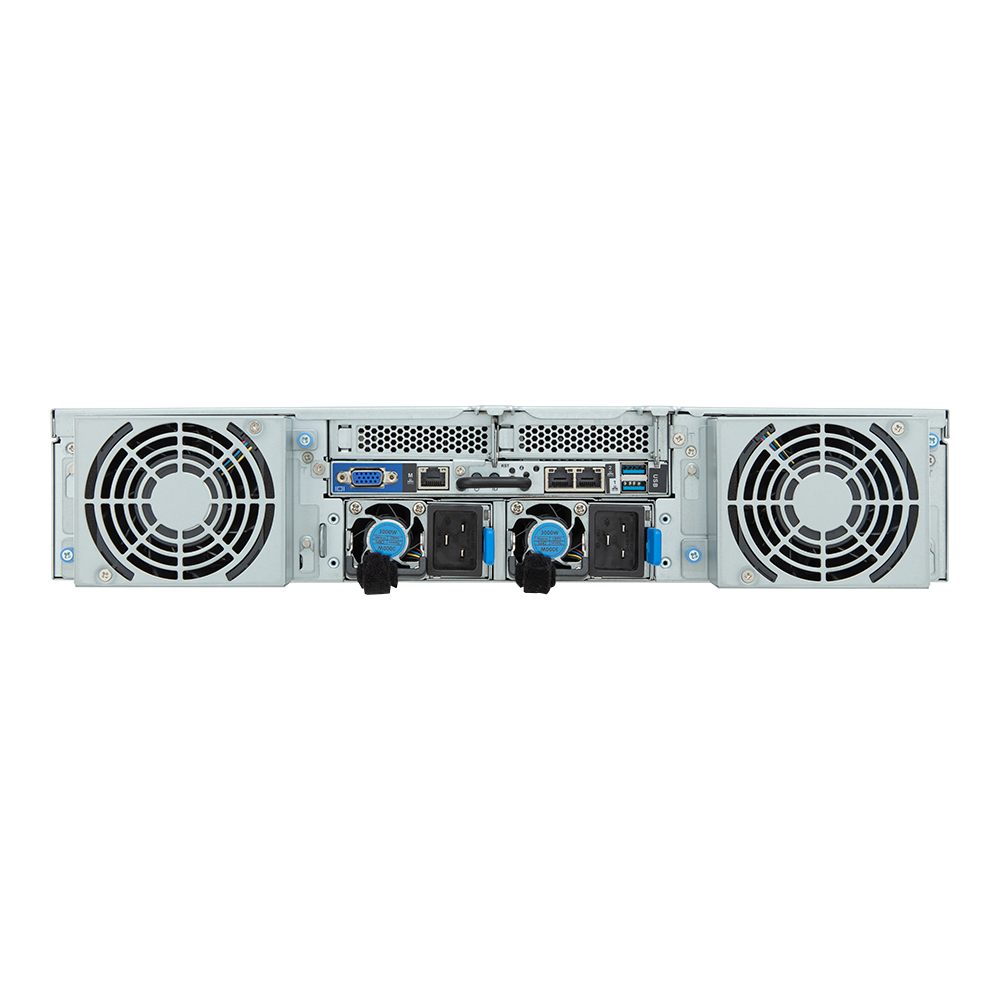

Rear side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

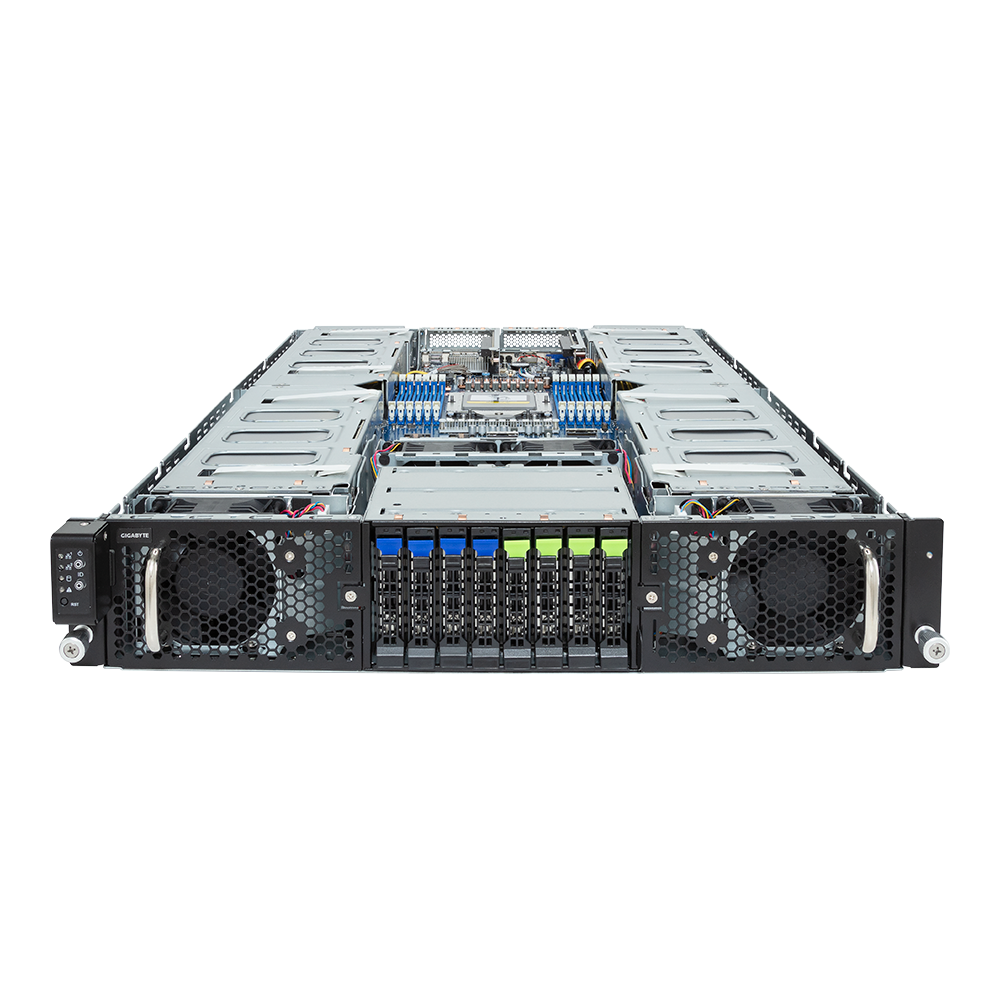

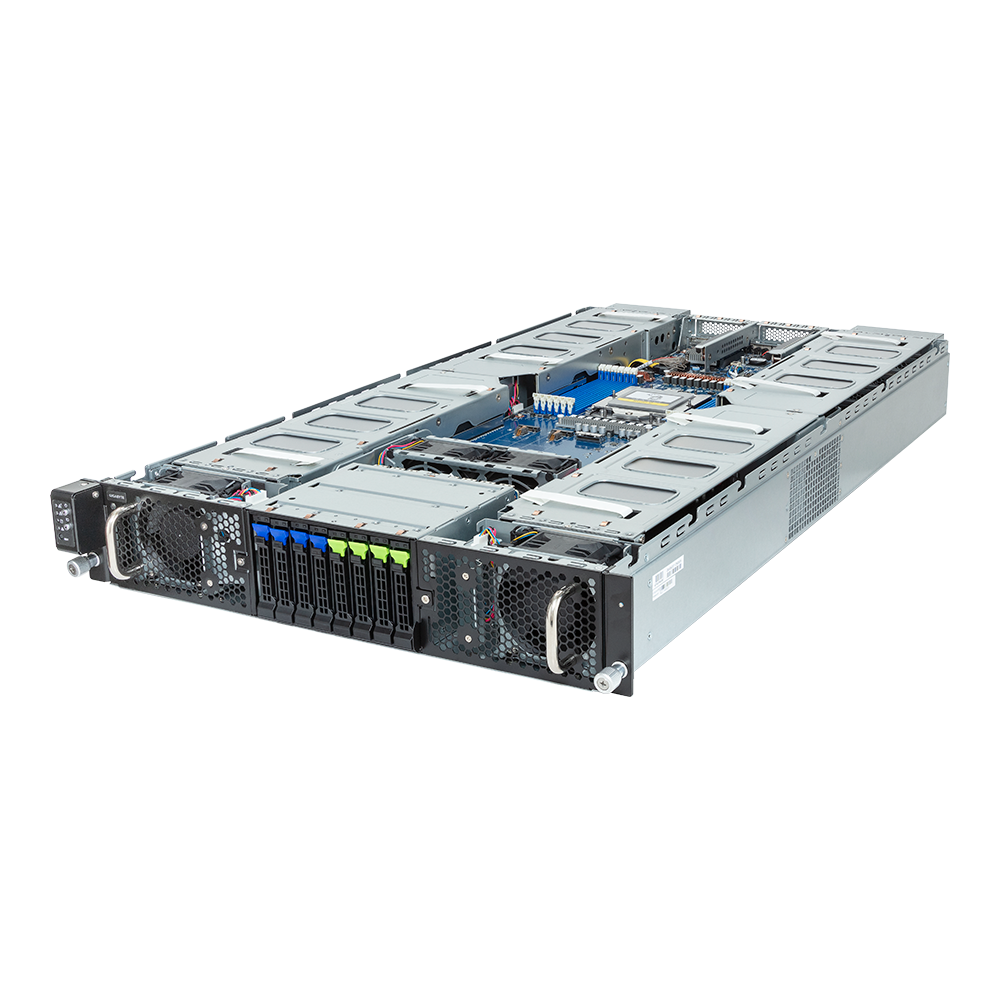

Front side:
4 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays
4 x 2.5" SATA/SAS* hot-swappable bays

*SAS card is required to support SAS drives.

2 x M.2 slots:
- M-key
- PCIe Gen5 x4
- Support 2280/22110 cards

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

8 x 80x80x38mm (18,300rpm)

Dual 3000W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Require SAS add-in cards

Require RAID add-in cards

1 x TPM header

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

Please refer to OS compatibility table in support page

1133 x 724 x 261 mm

1 x G293-Z20-AAP1
1 x CPU heatsink
8 x GPU power cables (12VHPWR, 250mm)
1 x L-shape Rail kit

- Barebone package: 6NG293Z20DR000AAP1* - Motherboard: 9MZ23G20UR-000 - L-shape Rail kit: 25HB2-A86102-K0R - CPU heatsink: 25ST1-25320N-M1R - Backplane board - CBPG086: 9CBPG086NR-00 - Fan module: 25ST2-88382R-S1R - Riser card - CRSG01F: 9CRSG01FNR-00 - Riser card - CRSG624: 9CRSG624NR-00 - Riser card - CRSG625: 9CRSG625NR-00 - GPU power cable (12VHPWR, 250mm): 25CRI-250108-Y4R - Power supply: 25EP0-230005-G1S

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293Z20SR-RMA-A100

Windows Server 2022 (x64)

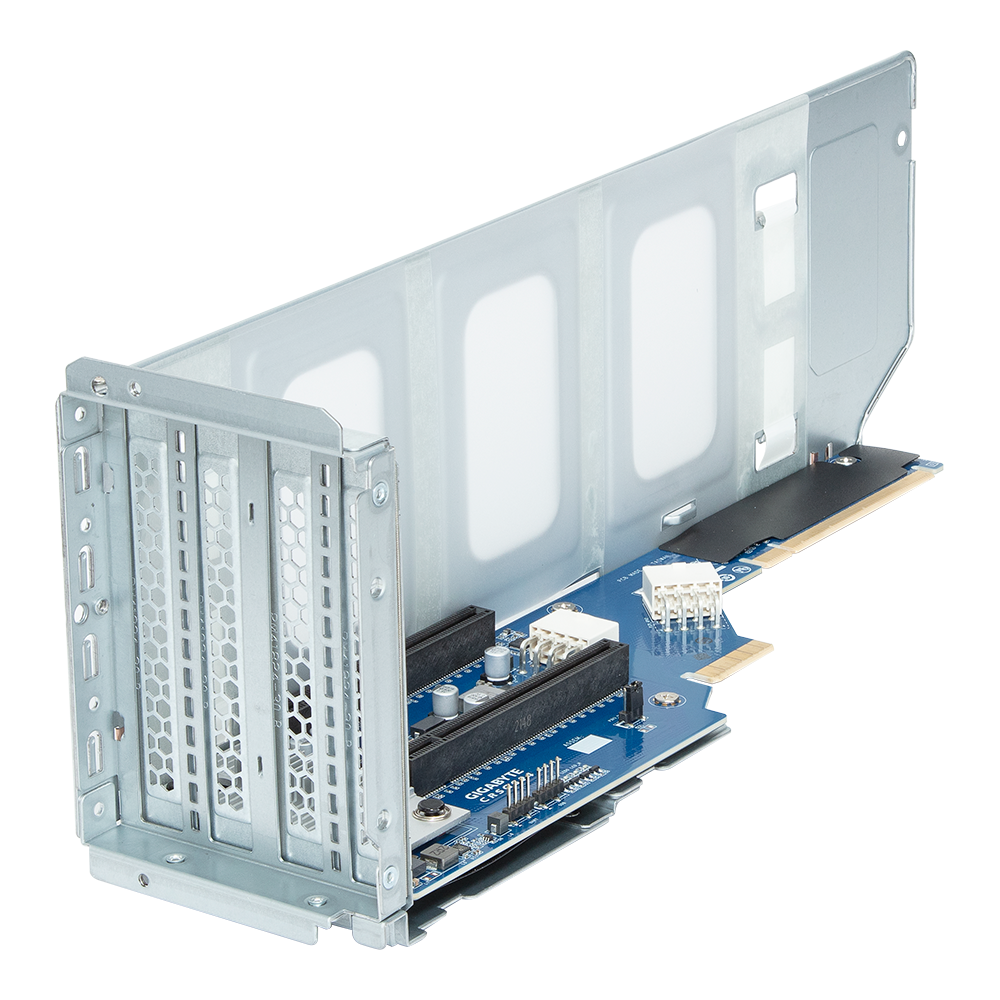

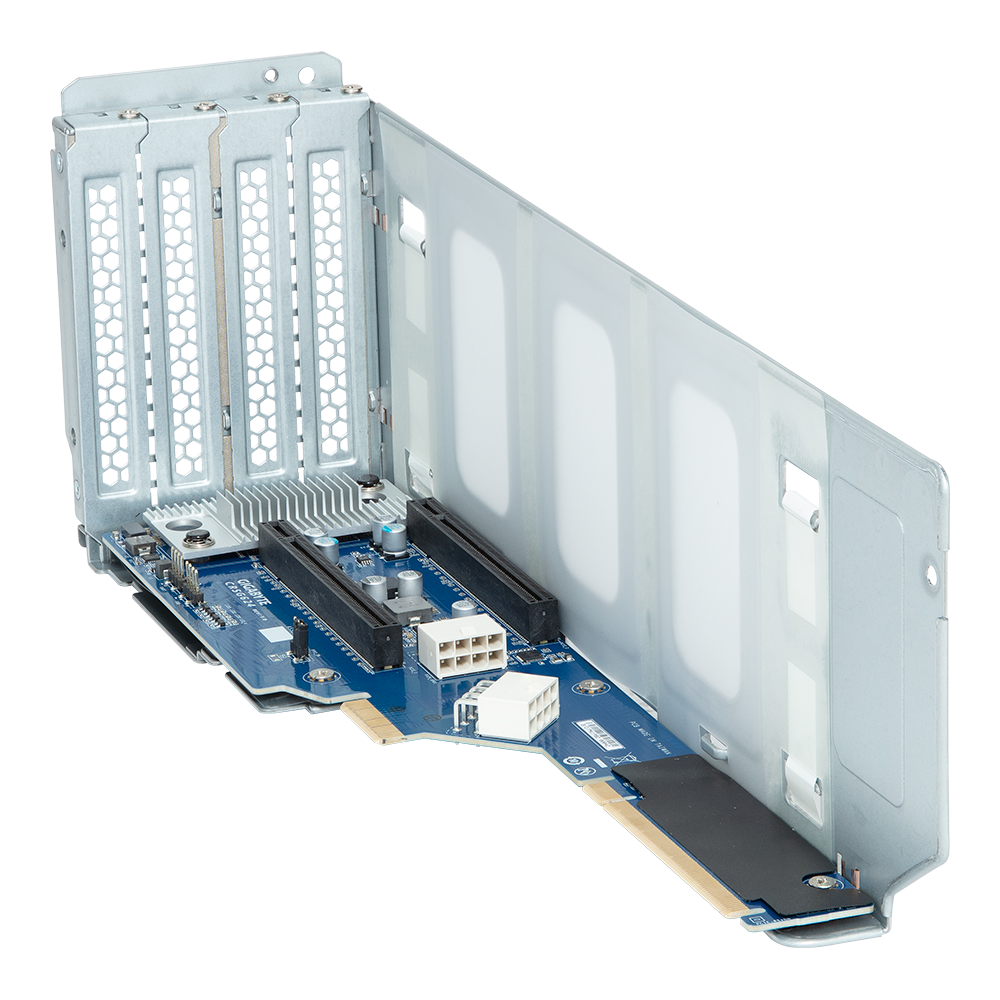

CRSG624 x 2: - 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs CRSG625 x 2: - 4 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs CRSG01F x 2: - 2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU
