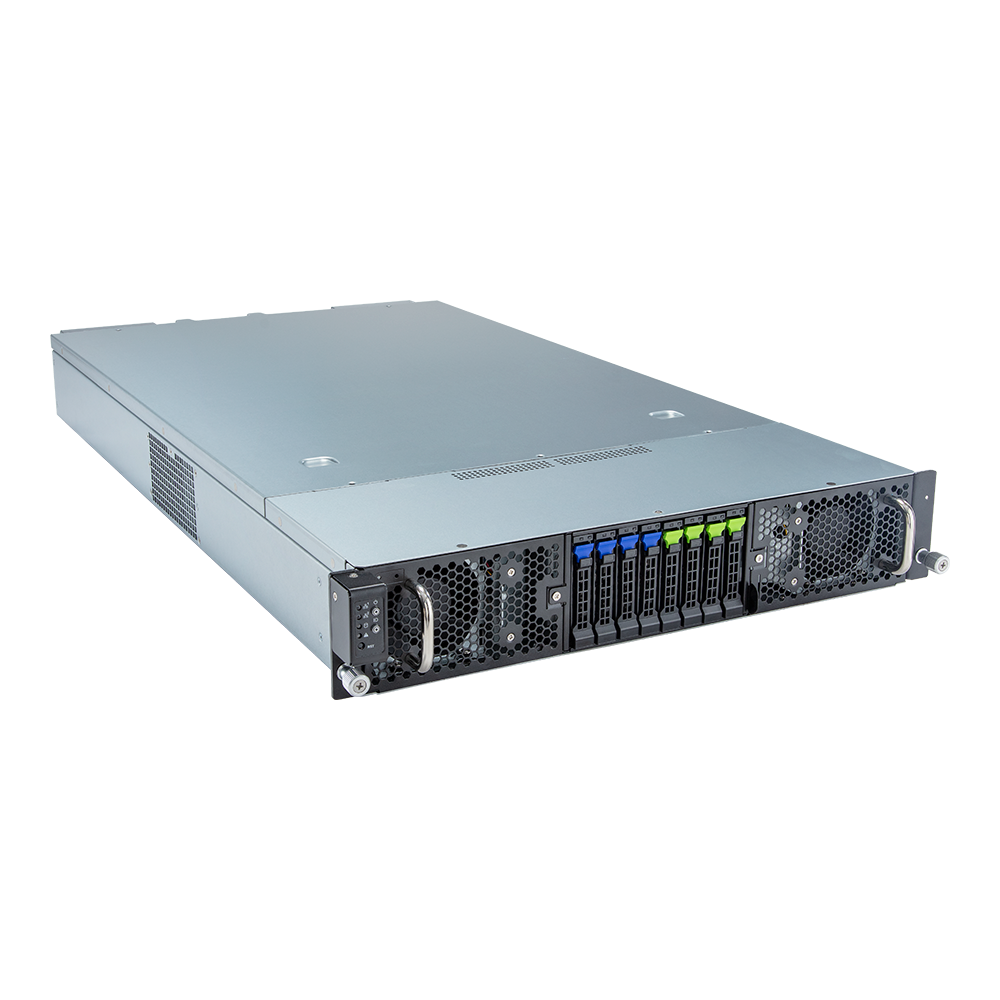

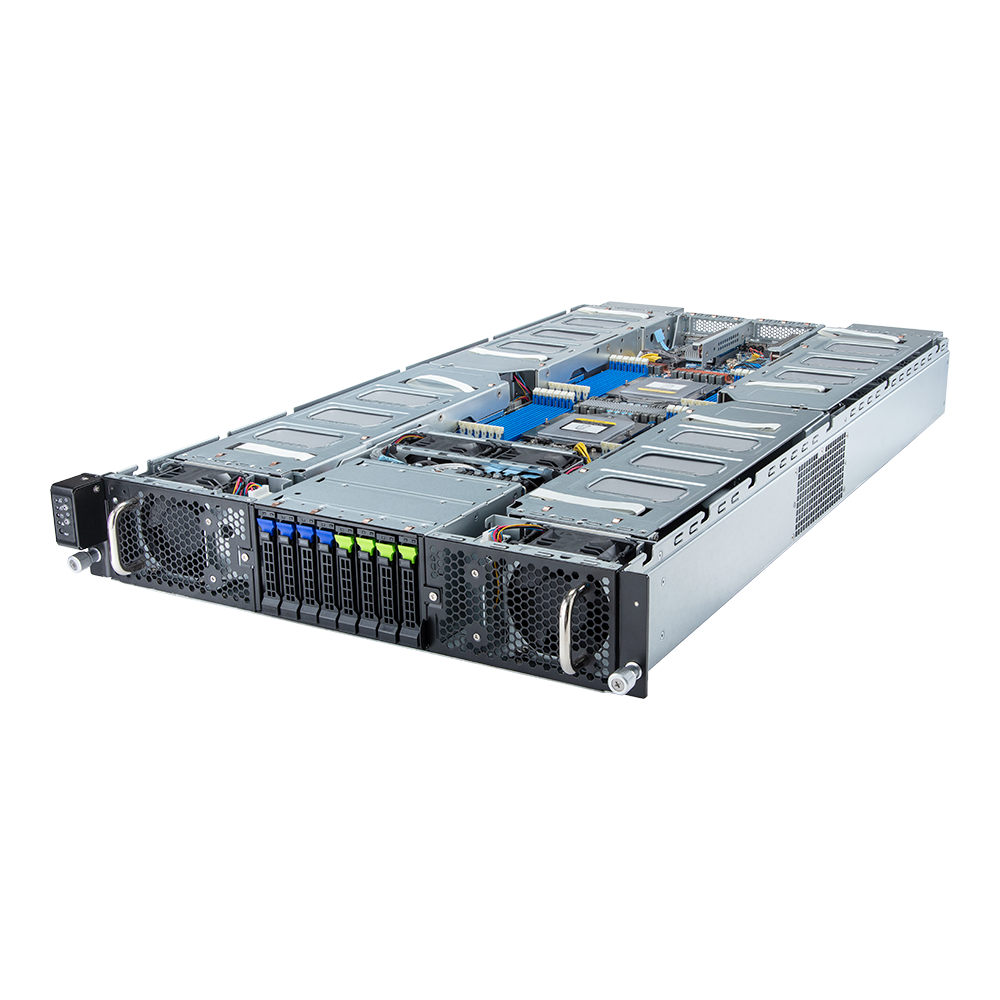

G293_Z42-AAP1

448 x 87.5 x 800

Net Weight: 44.7 kg
Gross Weight: 47 kg

2U

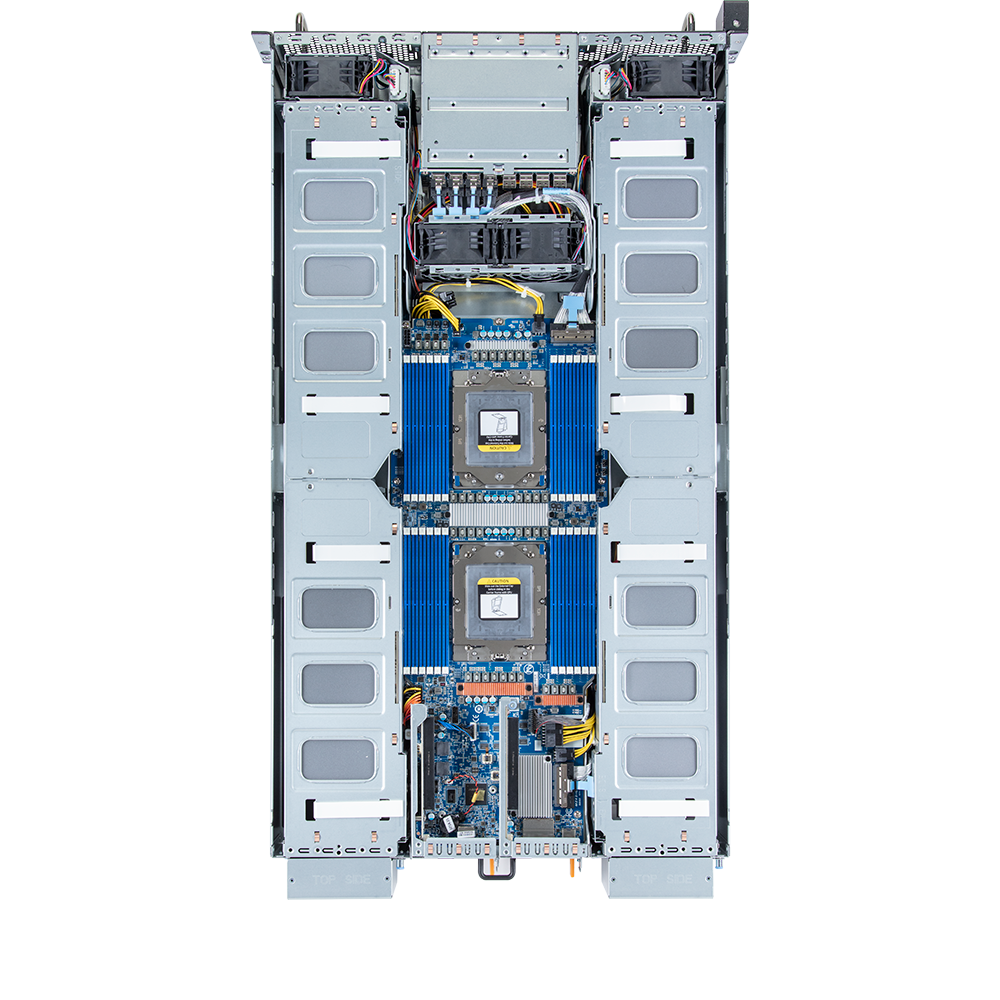

MZ43-G20

AMD EPYC™ 9004 Series Processors
Dual processor, 5nm technology
Up to 32 cores, 64 threads per processor
TDP up to 210W

cTDP 240W supported at ambient 30°C

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 6096
Socket SP5

System on Chip

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

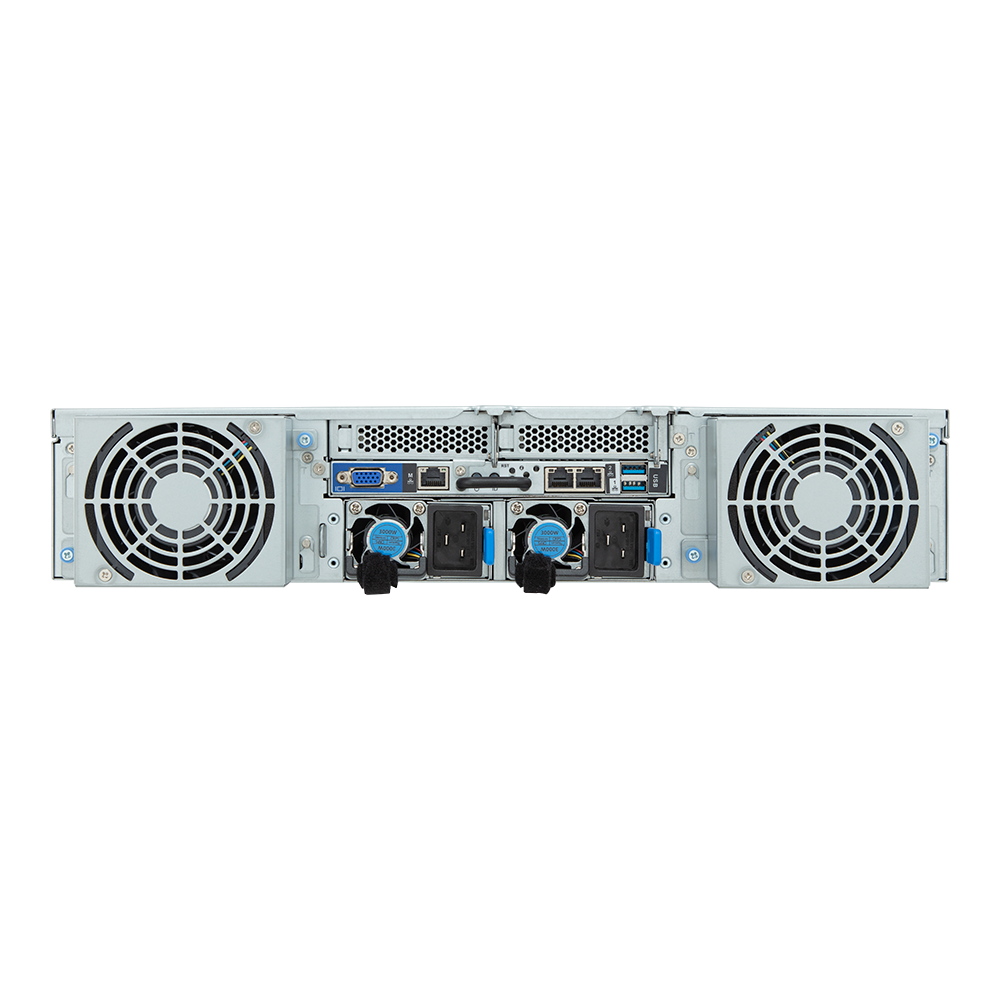

Rear side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

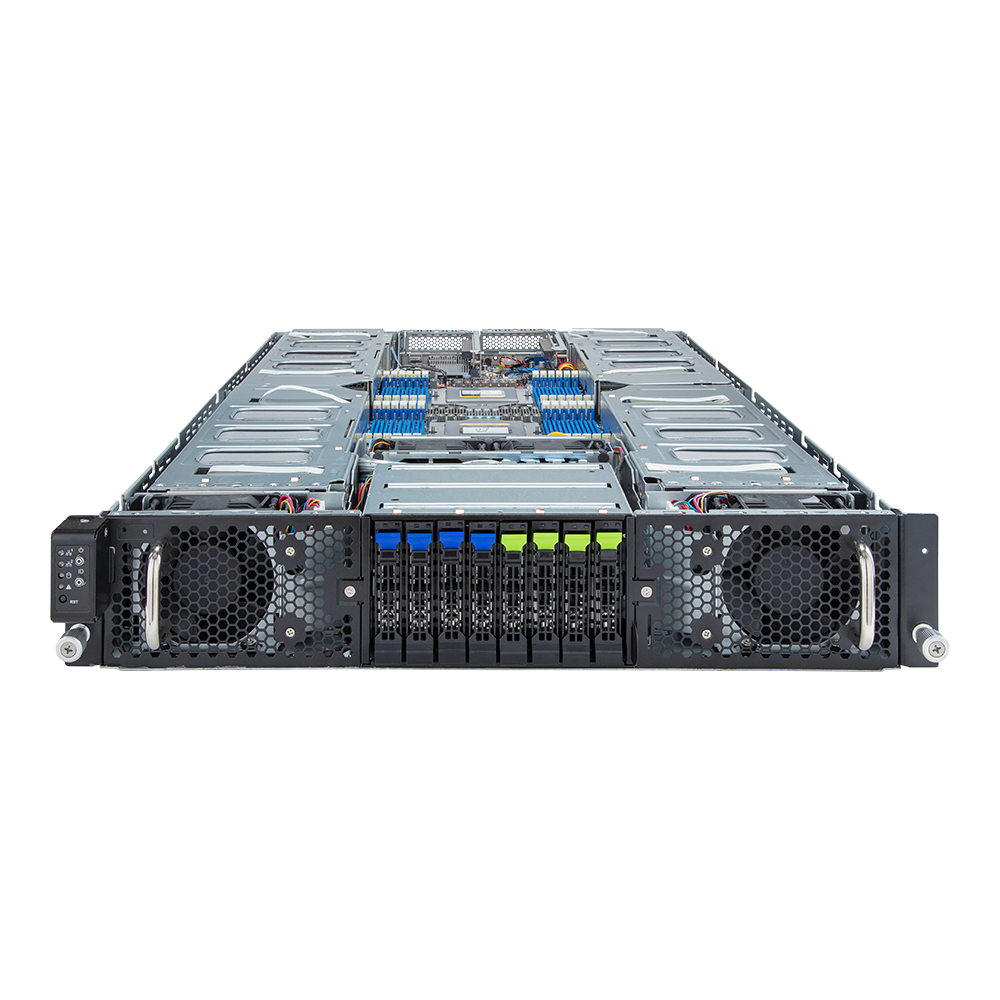

Front side:
4 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays
4 x 2.5" SATA/SAS* hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_1)

*SAS card is required to support SAS drives.

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

8 x 80x80x38mm (18,300rpm)

Dual 3000W 80 PLUS Titanium redundant power supply

AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Require SAS add-in cards

Require RAID add-in cards

1 x TPM header

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

Please refer to OS compatibility table in support page

1133 x 724 x 261 mm

1 x G293-Z42-AAP1
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 280mm)
1 x L-shape Rail kit

- Barebone package: 6NG293Z42DR000AAP1* - Motherboard: 9MZ43G20UR-000 - L-shape Rail kit: 25HB2-A86102-K0R - CPU heatsink: 25ST1-243105-A0R/25ST1-553202-A0R - Backplane board - CBPG086: 9CBPG086NR-00 - Fan module: 25ST2-88382R-S1R - Riser card - CRSG01F: 9CRSG01FNR-00 - Riser card - CRSG622: 9CRSG622NR-00 - Riser card - CRSG623: 9CRSG623NR-00 - GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R - GPU power cable (12VHPWR, 280mm): 25CRI-300102-Y4R - Power supply: 25EP0-23000C-D0S

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293Z42SR-RMA-A100

SUSE Linux Enterprise Server 15 SP4 (x64)
Windows Server 2022 (x64)

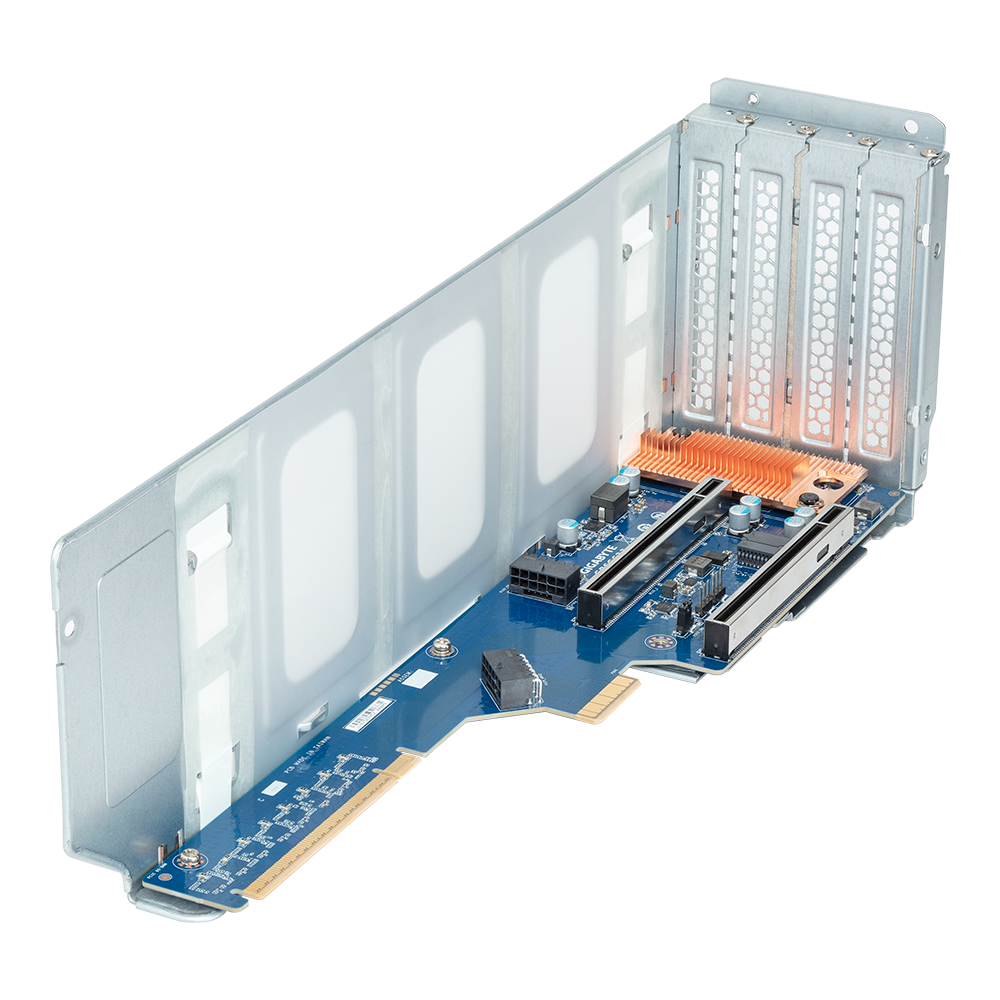

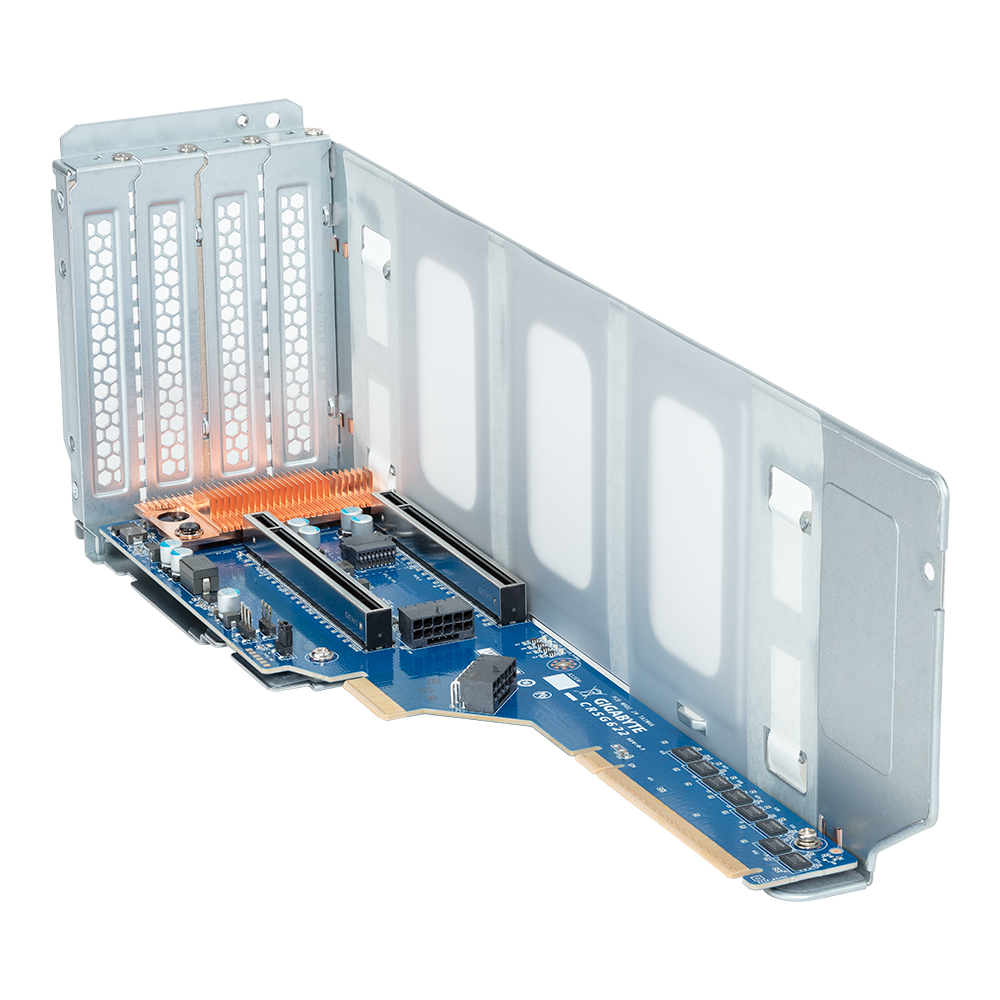

CRSG622 x 2: - 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs CRSG623 x 2: - 4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89048, for GPUs CRSG01F x 2: - 2 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
